Lenovo N3 Series User manual
Version 1.0
Machine type: 10153/F0AH
2013.10
Lenovo
N3 Series
User Guide
31506210
Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or product
damage.
The interface and functions shown in this User Guide are provided for reference
only and may differ from actual product appearance. Product design and
specifications may be changed without notice.
Danger: Be aware of extremely hazardous or potentially lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2013. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction,
or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
i
Contents
Contents
Important Safety Information
Using the Computer Hardware ................................................. 1
Front view of the computer.........................................................................2
Left and right view of the computer ............................................................3
Rear view of the computer .........................................................................4
Computer stand .........................................................................................5
Connecting your computer.........................................................................6
Important information about using the computer ........................................7
Mounting the computer onto a wall ............................................................8
Troubleshooting and Confirming Setup ................................. 11
Troubleshooting Problems Hard Disks ......................................................12
Performing Daily Maintenance Tasks ........................................................12
Appendix. .................................................................................. 14
Declaration...............................................................................................14
Trademarks ..............................................................................................15
ii Contents
This chapter contains the following
topics:
ØIntroduction to the computer hardware
ØInformation on computer connections
Note: The descriptions in this chapter might be
different from what you see on your computer,
depending on the computer model and
configuration.
User Guide 1
Using the Computer Hardware
2User Guide
Front view of the computer
41 2 3
Built-in microphone Camera LED
Camera Ambient light sensor *
* Ambient light sensor: The ambient light sensor detects the amount of light in
your surroundings. The screen brightness automatically adjusts depending on
the ambient light conditions detected by the built-in ambient light sensor.
Note: Battery status is displayed in several places in the status bar. You
will be alerted when the battery starts to run low. Make sure you connect
the power supply when you receive an alert.
3
User Guide

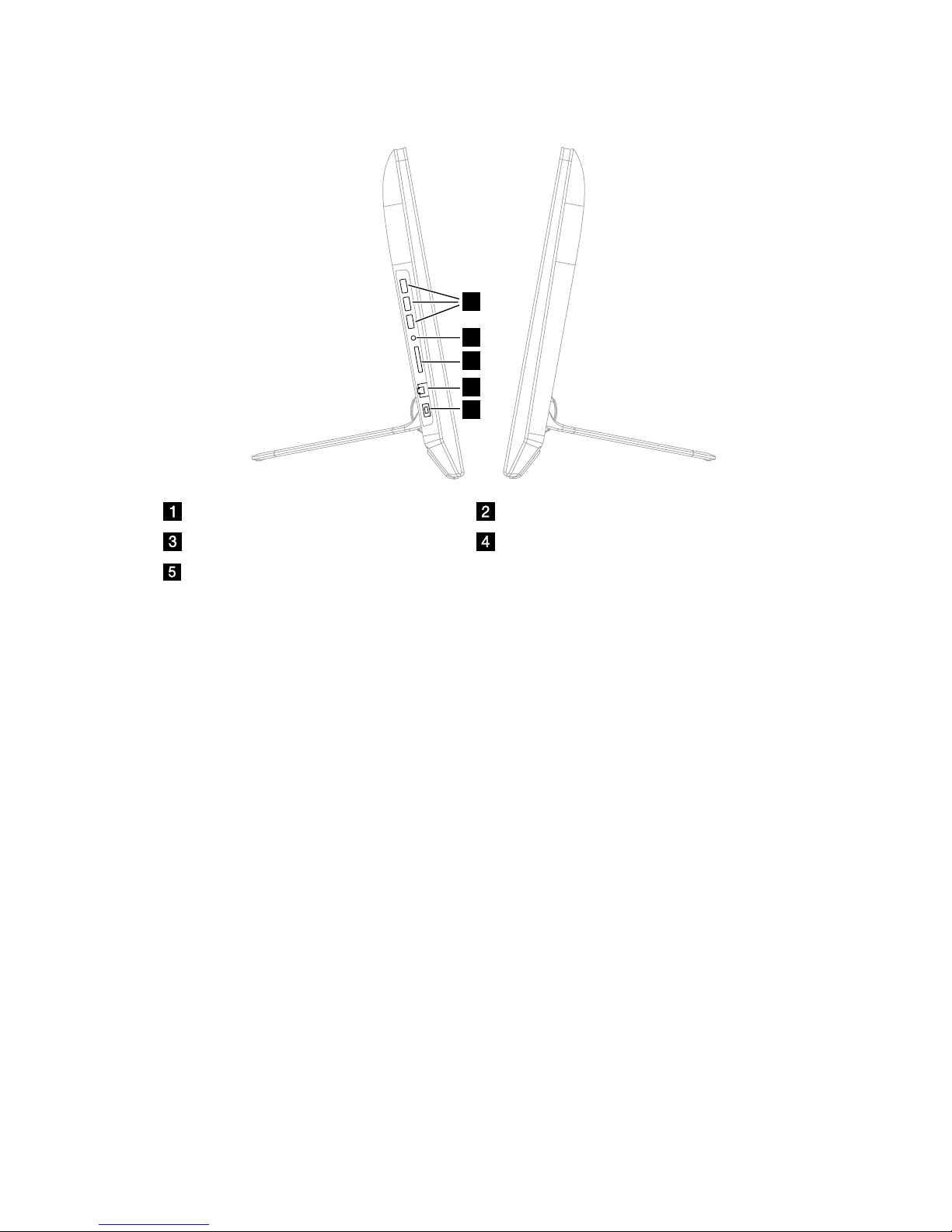

Left and right view of the computer
1
2
4
5
3
USB 2.0 connector Headphone connector
Memory card reader Ethernet connector
Power connector
4User Guide

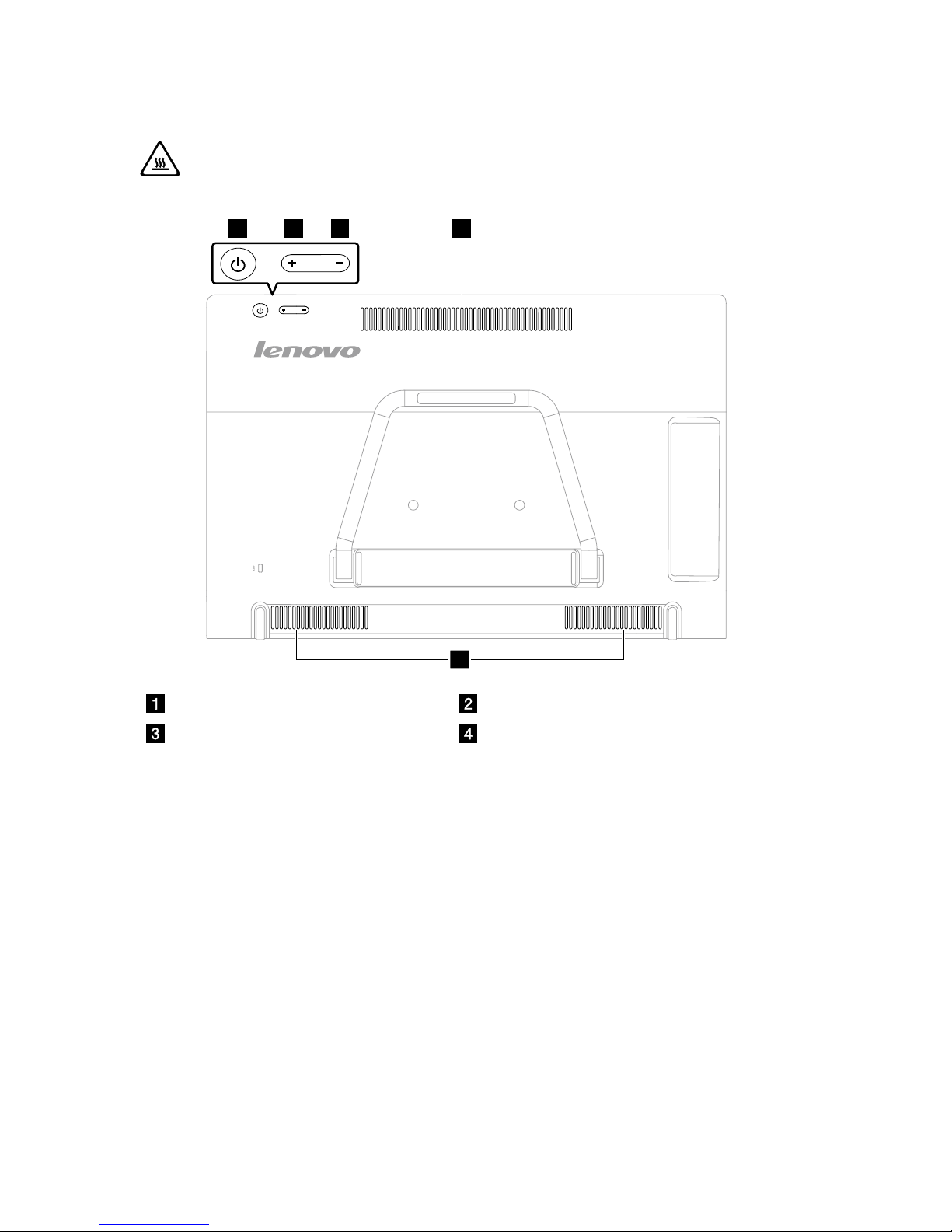

Rear view of the computer
Attention: Be careful not to block any air vents on the computer. Blocked
air vents can cause overheating.
12 3 4
4
Power button Volume up
Volume down Air vents
5
User Guide
Computer stand
Use the stand to position the display to your preference. It can be rotated 15°
forward and 90° backward.
