Lenovo S660 User manual

Company confidential

Lenovo S660 Service Manual

Publisher：NJD HW Team

Date：2014.02.28

Company confidential

Function Block

Company confidential

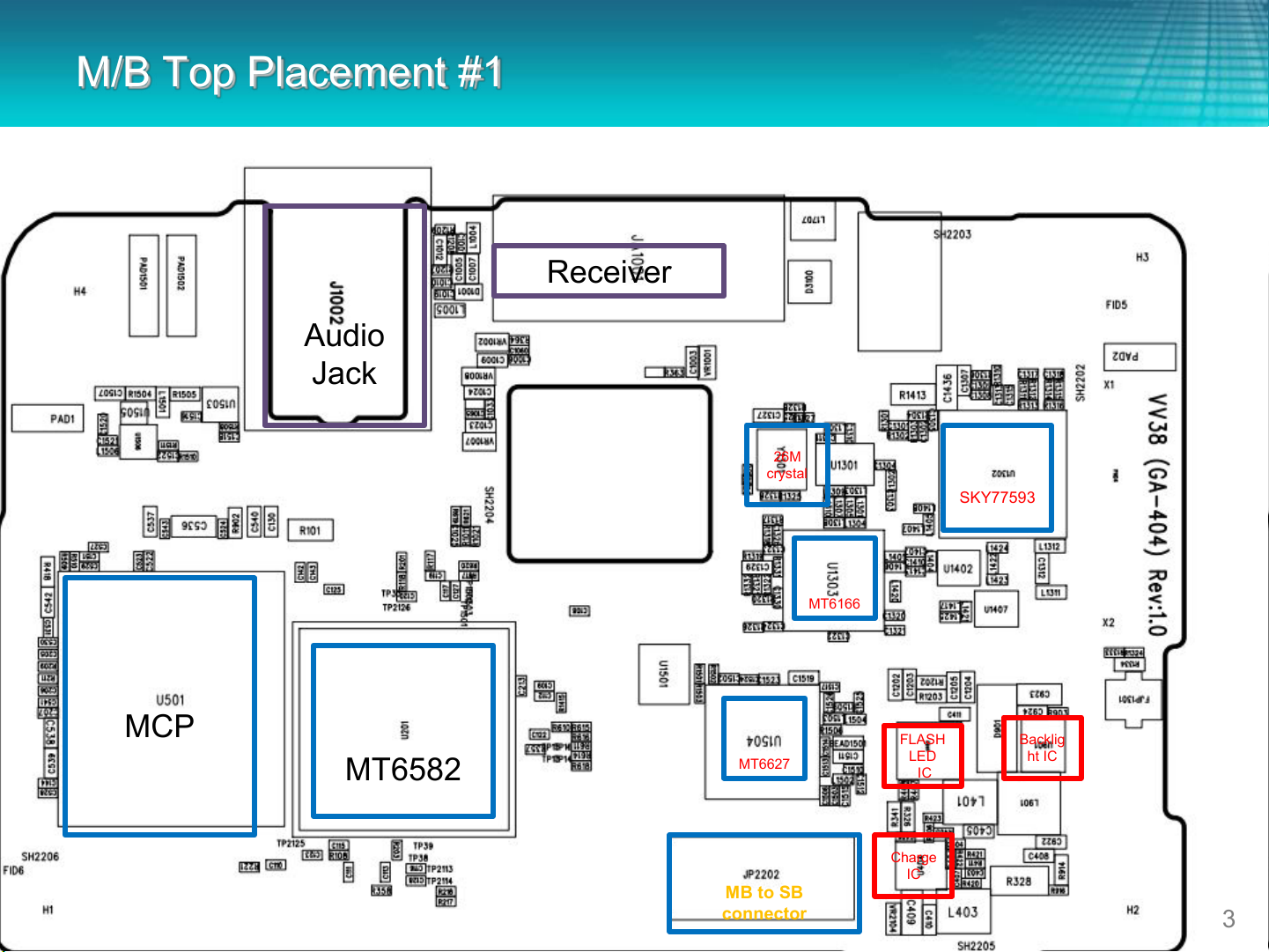

M/B Top Placement #1

MT6582

MCP

Charge

Audio

Jack

Receiver

SKY77593

MT6166

FLASH

LED

Backlig

ht IC

26M

crystal

MT6627

MB to SB

connector

Company confidential

M/B Bottom Placement #2

MT6323

DUAL SIM CONNECTOR

BACK UP

BATTERY

Mic 2

TF CARD CONNECTOR

Battery connector

Camera

Connector

P/L

Sensor

Connector

Audi

o PA

G-Sensor

LCM

connector

32K

crystal

Company confidential

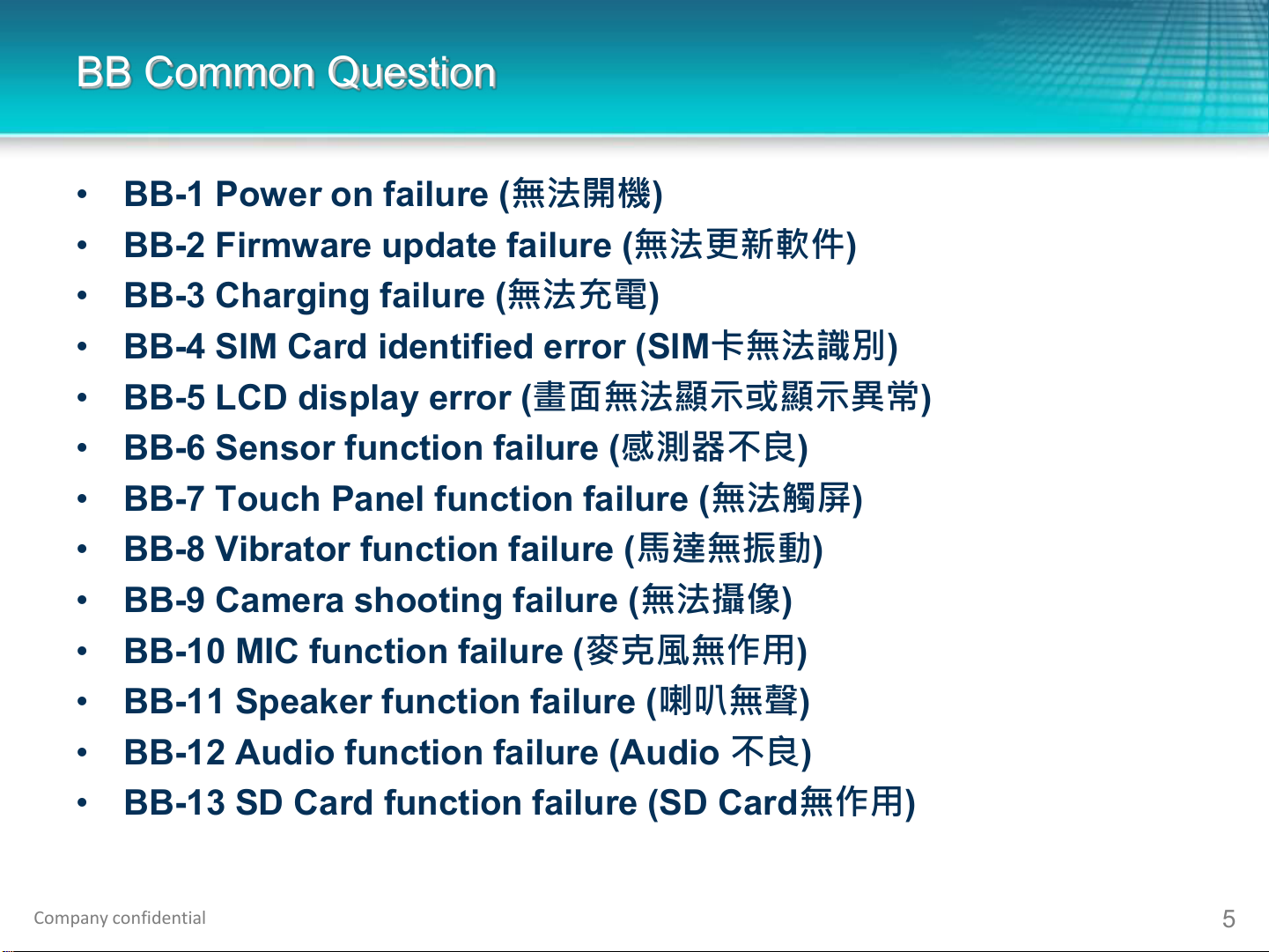

BB Common Question

•BB-1 Power on failure (無法開機)

•BB-2 Firmware update failure (無法更新軟件)

•BB-3 Charging failure (無法充電)

•BB-4 SIM Card identified error (SIM卡無法識別)

•BB-5 LCD display error (畫面無法顯示或顯示異常)

•BB-6 Sensor function failure (感測器不良)

•BB-7 Touch Panel function failure (無法觸屏)

•BB-8 Vibrator function failure (馬達無振動)

•BB-9 Camera shooting failure (無法攝像)

•BB-10 MIC function failure (麥克風無作用)

•BB-11 Speaker function failure (喇叭無聲)

•BB-12 Audio function failure (Audio 不良)

•BB-13 SD Card function failure (SD Card無作用)

Company confidential

BB-1 Can not power on (無法開機) (1/3)

•1. Check if battery power level is low (確認電池是否有電?)

–VBATT (TP09 > 3.6V)

•2. Check if J802 soldering condition is good (確認J802吃錫狀況是否正常?)

•3. Check if power button is functional (確認開機鍵是否正常?)

–PWRKEY(TP11 > 2.8V)

–TP11 connect with ground wire to power on (跟地短路後可將系統開機)

TP09 > 3.6V

TP11 > 2.8V

Company confidential

•5. Please check whether MT6323 voltage is normal (請確認MT6323周圍電壓是否

正常?)

–VPROC_PMU should be between C134 (0.9V~1.1V)

–VSYS_PMU should at R373 (1.8V)

BB-1 Can not power on (無法開機) (2/3)

VSYS_PMU

VPROC_PMU

Company confidential

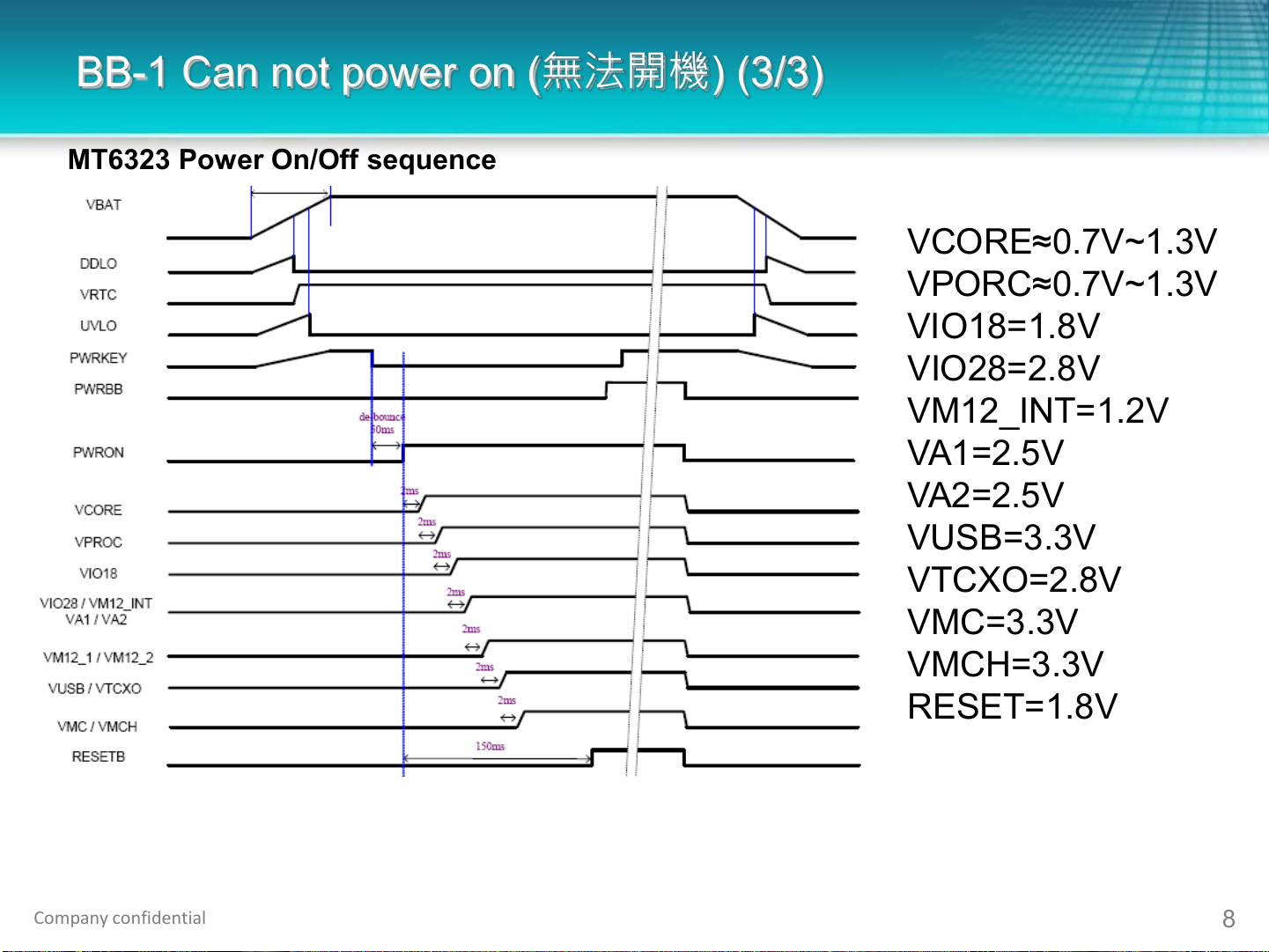

BB-1 Can not power on (無法開機) (3/3)

VCORE≈0.7V~1.3V

VPORC≈0.7V~1.3V

VIO18=1.8V

VIO28=2.8V

VM12_INT=1.2V

VA1=2.5V

VA2=2.5V

VUSB=3.3V

VTCXO=2.8V

VMC=3.3V

VMCH=3.3V

RESET=1.8V

MT6323 Power On/Off sequence

Company confidential

BB-2 Can not download (無法更新軟件) (1/3)

•1. Please check whether current is normal after boot (確認開機後電流起跳正常)

•(記憶體中無代碼時，電池電流約在0.1A左右)

•2. If current in booting process is larger or less than normal, USB port will be

unidentified (開機過程中如果電流過大或過小，會造成USB port無法識別)

•3. Please check if R3312 is solid soldering on (檢查SB的R3312是否空焊)

Company confidential

BB-2 Can not download (無法更新軟件) (2/3)

•4. If DL is passed, and META mode is un-entered, check RF transceiver 26MHz

and RF chip function (若可以正常DL，但無法進入META mode，檢查RF

transceiver 26MHz及RF chip是否正常。)
