Read this guide carefully before using your smartphone.

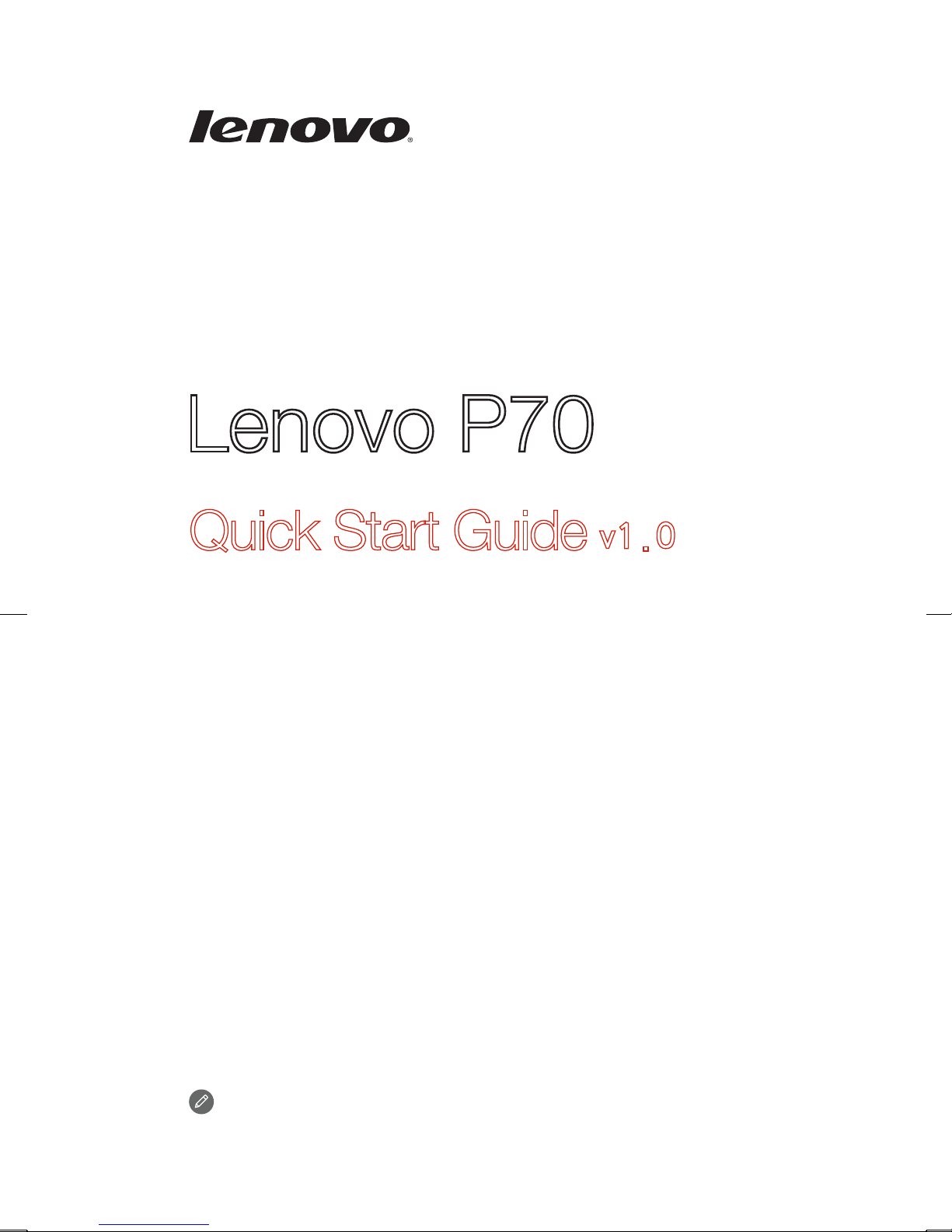

Quick Start Guide v1.0

Lenovo P70

Type: CMOS

Pixels: 13.0 megapixels (back) + 5.0 megapixels (front)

Processor: MTK MT6752

,

Octa Core

,

1.7 GHz

Size: 5.0 inches

Resolution: 1280 × 720 pixels

Model: Lenovo P70-A

Battery: 4000 mAh

Height: 142 mm (5.59 inches)

Depth: 8.9 mm (0.35 inch)

Model and system

① Depending on the measuring method, the dimensions and weight

might vary slightly.

② In some countries, LTE is not supported. To know if your

smartphone works with LTE networks in your country, contact

your carrier.

Display

Battery

Processor

①Dimensions and weight

Camera

Wireless Communication

Width: 71.8 mm (2.83 inches)

Weight: 149 g (0.328 lb)

System: Android

Screen: multi-touch

LCD type: IPS

Technical speciﬁcations

Bluetooth 4.0; WLAN 802.11 b/g/n; ②LTE, WCDMA, GSM; GPS

2

Microphone

Flashlight

Micro USB

connector

Speaker

On/Off button

Volume buttons

Receiver

1

4

7

10

5

8

3

6

9

2

1

4

3

5

Front-facing

camera

Rear-facing

camera

Headset

connector

6 7

8

6

10

9

First glance

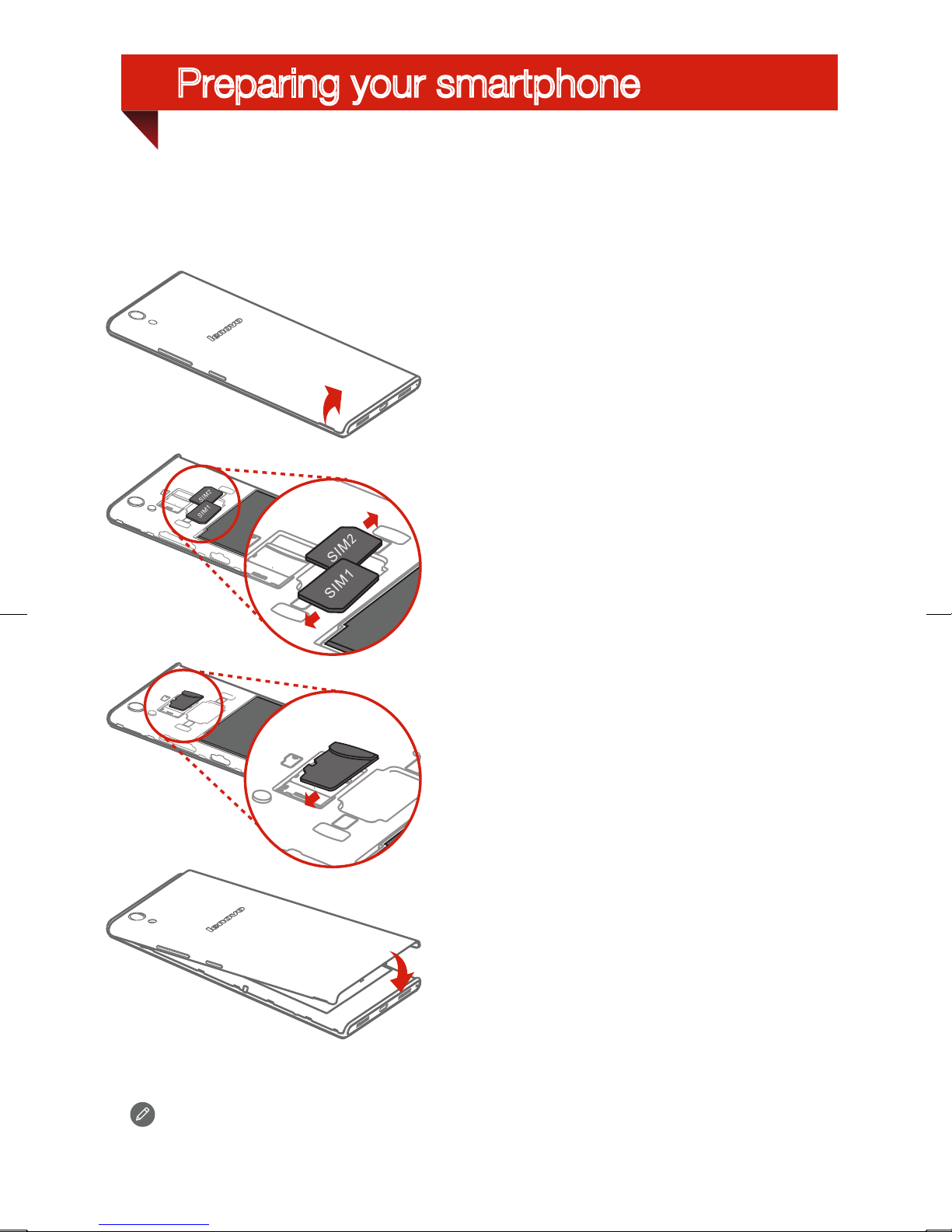

You must insert the SIM card provided by your carrier to use cellular

services. Set up your smartphone as shown.

Step 1. Open the back cover.

Tip: The battery is unremovable,

and is ﬁxed to the phone.

Please do not pull the

battery, otherwise it will

damage the phone.

Step 2. Insert the (U)SIM cards.

Tip: Insert the (U)SIM card into

SIM1 slot and SIM card into

SIM2 slot.

Step 3. Insert the memory card.

Step 4. Install the back cover.

Always turn off your smartphone ﬁrst before you insert or remove a

SIM card. Insert or remove a SIM card with your smartphone on may

damage your SIM card or smartphone permanently.

microSD

microSD

Preparing your smartphone

Turning on or turning off your smartphone

Turn on: Press and hold the On/Off button until

the Lenovo logo appears.

Turn off: Press and hold the On/Off button for a

few seconds, then tap Power off.

Your smartphone has a rechargeable battery. For more information

about battery safety, see the “Rechargeable battery notice” in the

Important Product Information Guide shipped with your smartphone.

Low battery power Fully charged Charging

2

1

Charge the battery as shown.

Method 1.

Method 2.

Connect your smartphone to a power outlet using the

cable and USB power adapter that come with your

smartphone.

Connect your smartphone to a computer using the cable

that comes with your smartphone.

Charging the battery

Radio and Telecommunications Terminal Equipment

Directive

This product is in compliance with the essential requirements

and other relevant provisions of the Radio and

Telecommunications Terminal Equipment Directive, 1999/5/EC.

European Union conformity

HQ60111378000

Printed in China

First Edition (January 2015) © Copyright Lenovo 2015.

Learning more

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the

United States, other countries, or both.

Other company, product, or service names may be

trademarks or service marks of others.

To learn more information about your Lenovo smartphone and

obtain the latest smartphone manuals, go to:

http://support.lenovo.com/.

Getting support

For support on network service and billing, contact your

wireless network operator. For instructions on how to use your

device, go to: http://support.lenovo.com/.
