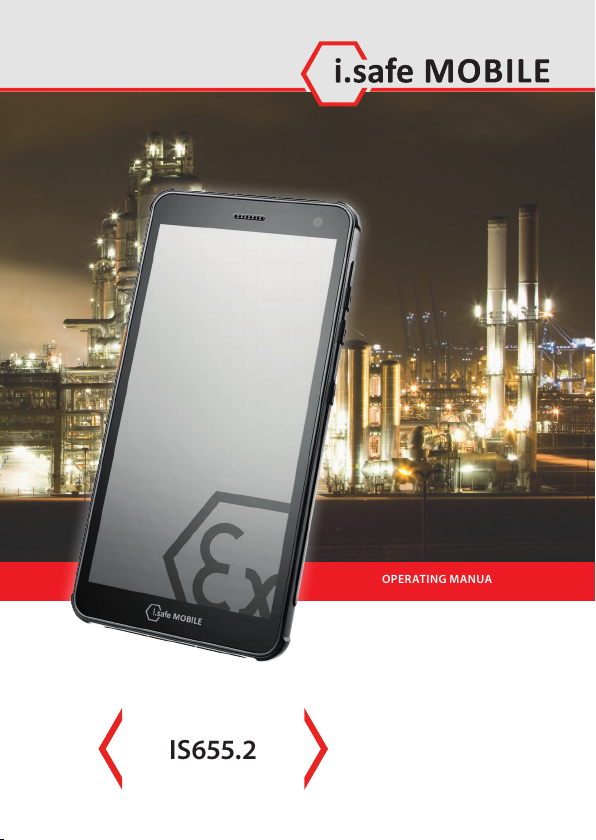

ISAFE MOBILE IS655.2 User manual

OPERATING MANUAL

IS655.2

MODEL M655A01

Document No. 1034MM10REV00

Version: 2022-02-08

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel. +49 9343 60148-0

[email protected]

www.isafe-mobile.com Template: TEMPMM01REV10

CONTENTS

English.............................................................................. 4

Deutsch............................................................................ 16

Česky .............................................................................. 28

Dansk.............................................................................. 40

Español ............................................................................ 52

Suomi..............................................................................64

Français............................................................................ 76

Magyar ............................................................................ 88

Italiano ...........................................................................100

Nederlands .......................................................................112

Norsk .............................................................................124

Polski .............................................................................136

Português (BR) ....................................................................148

Русский...........................................................................160

Svenska...........................................................................172

Hrvatski...........................................................................184

Slovenská.........................................................................196

Српски .......................................................................... 208

Korean ...........................................................................220

Japanese ........................................................................232

Chinese.......................................................................... 244

Arabic ............................................................................256

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

Diese Bedienungsanleitung erfüllt die Anforderungen der folgenden Normen:

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS655.2 (model M655A01). This Operating

Manual provides important information for safe use of the device.

Before using the device, read this Operating Manual carefully and pay particular attention

to the “Safety” section and the warnings highlighted with the warning symbol.

Also read the Safety Instructions before using the device.

You can nd these at www.isafe-mobile.com/en/support/downloads

Make sure you have access to this Operating Manual when you need it. You can nd the

current Operating Manual at www.isafe-mobile.com/en/support/downloads

Follow all instructions given on the device and on the packaging.

Follow local safety regulations.

INTENDED USE

The IS655.2 is an Internet-capable communication device for industrial use in explosion

hazardous areas of Zone 2/22, in accordance with Directives 2014/34/EU, 1999/92/EC and the

IECEx system, among others.

Only use the device as described in this Operating Manual. Any other use is considered impro-

per and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by

improper use. The warranty expires in the event of improper use.

EN 5

WARRANTY

You can nd the warranty conditions at www.isafe-mobile.com/en/support/service

For any damage caused by computer viruses that you download while using the Internet

functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU DECLARATION OF CONFORMITY

You will nd the EU declaration of conformity at

www.isafe-mobile.com/en/support/downloads

FCC/IC STATEMENT

The FCC/IC declaration can be found at

www.isafe-mobile.com/en/support/downloads

EX MARKINGS

ATEX:

II 3G Ex ic IIC T4 Gc IP54

II 3D Ex ic IIIB T135°C Dc IP54

Certicate of conformity:

EPS 19 ATEX 1 129 X

CE-designation:

IECEx:

Ex ic IIC T4 Gc IP54

Ex ic IIIB T135°C Dc IP54

IECEx Certicate: IECEx EPS 19.0064X

UKCA:

II 3G Ex ic IIC T4 Gc IP54

II 3D Ex ic IIIB T135°C Dc IP54

CML 21UKEX2495X

UKCA-designation:

North America:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G , T135˚C

Class III Div 2

Temperature range:

-10°C … +60°C (EN/IEC 60079-0)

-10°C … +55°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

DEVICE OVERVIEW/FUNCTIONS

EN 7

1 EARPHONE JACK

2 LOUDSPEAKER

3 CAMERA

4 LOUDNESS CONTROL: Volume up/Volume down.

5 POWER KEY: A long press switches the device on/o. A short press switches the stand-

by mode on/o.

6 CURRENT APPLICATION: Shows all open applications.

HOME KEY: Switch to the main screen.

8 BACK KEY: Go to the previous screen.

9 SIDE KEY LEFT: Optional function - function can be assigned via Button App (system

integrated).

10 SIM CARD SLOT: To insert SIM card and microSD card.

11 USB INTERFACE:

Connection for the

Micro USB Cable

or for connection to other

devices. Also see sections “Charging” and “Connecting approved accessories”.

12 MICROPHONE

SAFETY

Read the “Safety” section of this Operating Manual carefully before using the device. If you

do not follow these instructions or do not understand them, this could lead to death, severe

injuries and damage to the device.

USER

Only trained users who are qualied in the use of Ex devices in explosion hazardous areas and

who have read and understood this Operating Manual may use this device.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

Only use the device in explosion hazardous areas of zones2/22 or outside of

explosion hazardous areas.

Before entering an explosion hazardous area with the device,

•make sure that only approved accessories are connected to the device, see section

“Connecting approved accessories”,

•make sure that no gap can be seen between the two halves of the device,

•make sure the device is not damaged,

•make sure that all the labels on the device are readable.

If you use the device in an explosion hazardous area,

read and follow the instructions in the “Possible User Errors” section.

Switch o the device immediately and leave the explosion hazardous area without delay if

•malfunctions occur on the device,

•you have damaged the housing of the device,

•you have exposed the device to excessive loads,

•the labels on the device are no longer readable.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

Do not use the device in places where its use is prohibited.

Turn o the device in clinics or other medical facilities.

Always keep a safety distance of at least 15cm between the device and a pacemaker or

hearing aid. The device can aect the functioning of medical devices such as pacemakers and

hearing aids.

When using the device while driving a motor vehicle, be sure to comply with applicable

national laws.

Make sure you prevent the user errors described in the section entitled “Possible User Errors”.

Only charge the device as described in the “Charging” section.

EN 9

CAUTION

When using earphones or headsets at the maximum volume setting, you can

damage your hearing.

First set the volume control on the device to 50% of the maximum volume.

Gradually adjust the volume.

NOTICE

Incorrect use can damage the device.

Only use accessories approved by i.safe MOBILE, as described in the section on

“Connecting approved accessories”.

Protect the device and the Power Adapter from strong electrical magnetic elds as for examp-

le those emitted by induction cookers or microwave ovens, for example.

Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

Do not modify the device structurally.

Do not expose the device to high temperatures.

Do not expose the device to strong UV radiation.

Do not expose the device to processes with high electrical charges.

Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

Do not loosen the screws on the device.

Do not connect any accessories to the device.

Do not open any interface cover.

Do not charge the device.

Do not open the device.

Do not damage the device.

SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS655.2

1 x Quick Start Manual

1 x Safety Instructions

1 x Display Protection Foil

1 x Micro USB Cable

1 x Power Adapter universal (power supply unit and various country-specic adapters)

1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to

all recipients within a cell.

INSERT/REMOVE SIM CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries!

Only open the device outside of explosion hazardous areas to insert or remove the SIM card.

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and

the SIM card. Switch o the device before inserting or removing a SIM card. Do not charge the

device while inserting or removing a SIM card.

Insert the SIM card into the slot. The device has a slot for two SIM cards or for one SIM card in

combination with a microSD card.

If you have inserted two SIM cards, select a favorite card. Information on operating the device

can be found at www.isafe-mobile.com/en/support/service under the menu item „FAQ“.
