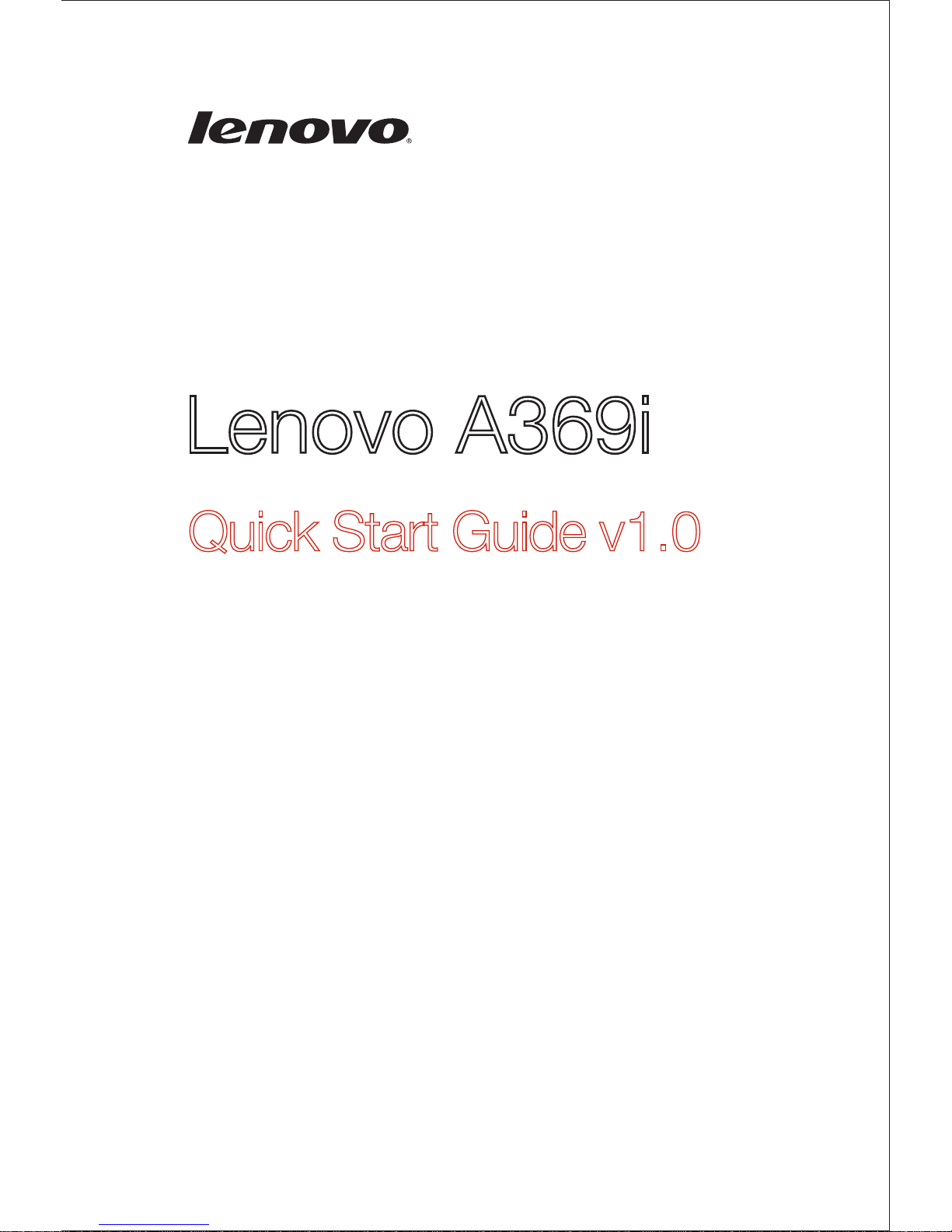

Lenovo A369i User manual
Quick Start Guide v1.0
Lenovo A369i
English/繁體中文
Learn more
Legal notices Lenovo and the Lenovo logo are trademarks
of Lenovo in the United States, other
countries, or both.
Other company, product, or service names
may be trademarks or service marks of
others.
Read this guide carefully before using your smartphone.
To learn more information about your
Lenovo smartphone and obtain the latest
smartphone manuals, go to:
http://support.lenovo.com/.
Getting support For support on network service and billing,
contact your wireless network operator. For
instructions on how to use your device, go
to: http://support.lenovo.com/.
English
Type: CMOS
Pixels: 2 megapixels (back)
Processor: MTK MT6572W
,
Lite Dual-core
,
1.3 GHz
Size: 4.0 inches Screen: Multi-touch display
Resolution: 800 × 480 pixels LCD type: TFT
Model: Lenovo A369i System: Android
Bluetooth 3.0; WLAN 802.11 b/g/n; WCDMA, GSM, EDGE
Battery: 1500 mAh
Height: 124.00 mm (4.88 inches) Width: 63.98 mm (2.52 inches)
Depth: 11.70 mm (0.46 inches) Weight: 120.78 g (0.26 lb)
Model and system
① Depending on the measuring method, the dimensions and weight
might vary slightly.
Display
Battery
Processor
①Dimensions and weight
Camera
Wireless Communication
Technical specifications
Volume up
Micro USB
connector
Volume down
Earphone jack Speaker
Receiver
1
4
7
2
5
8
3
6
9
On/Off button
Microphone Camera
First glance
5
12
3
4
6
7 8
9
You must insert the SIM card provided by your carrier to use cellular
services. Set up your smartphone as shown.
Step 1. Open the back cover.
Step 2. Insert the SIM cards and
the memory card.
Tip: Insert the (U)SIM card into
SIM1 slot and SIM card
into SIM2 slot.
Step 3. Install the battery.
a. Align the battery
connectors on the battery
with the pins in the
battery compartment.
b. Push the battery down
into place.
Step 4. Install the back cover.
Always turn off your smartphone first before you insert or remove a
SIM card. Insert or remove a SIM card with your smartphone on may
damage your SIM card or smartphone permanently.
SD
SIM2
SIM1
SD
SIM2
SIM1
ab
Preparing your smartphone
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a
few seconds, then tap Power off.
Your smartphone has a rechargeable battery. For more information
about battery safety, see the “Rechargeable battery notice” in the
Important Product Information Guide shipped with your smartphone.
Low battery power Fully charged Charging
2
1
Charge the battery as shown.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Charging the battery
更多資訊
法律注意事項 Lenovo 及Lenovo 標誌為美國、其他國家或美
國及其他國家的 Lenovo 商 標。
其他公司、產品或服務名稱可能是其他公司的商
標 或 服 務 商 標。
使用智能手機前，請仔細閱讀本手冊。
如需 Lenovo 智 能 手 機 的 更 多 相 關 資 訊，以 及
獲取最新的智能手機使用手冊，請瀏覽：
http://support.lenovo.com/。
取得支援 如需關於網絡服務和收費的支援，請聯絡您的
無線網絡營運商。如需關於使用裝置的指示，
請 瀏 覽：http://support.lenovo.com/。
繁體中文
類型：CMOS
像素：200 萬像素（背面）
處理器：MTK MT6572W，Lite Dual-core，1.3 GHz
大小：4.0 吋螢幕：多點觸控
解像度：800 × 480 像素 LCD 類型：TFT
型號：Lenovo A369i 系統：Android
藍牙 3.0；WLAN 802.11 b/g/n；WCDMA、GSM、EDGE
電池：1500 mAh
高度：124.00 毫米 (4.88 吋) 寬度：63.98 毫米 (2.52 吋)
厚度：11.70 毫米 (0.46 吋) 重量：120.78 g (0.26 lb)
型號與系統
① 視乎量度方法而定，尺寸及重量可能略有不同。
顯示器
電池
處理器
①尺寸及重量
相機
無線通訊
技術規格
音量增大
Micro USB 連接器
音量減少
耳機插孔 揚聲器
接收器
1
4
7
2
5
8
3
6
9
開/關按鈕
麥克風 相機
概覽
5
12
3
4
6
7 8
9
您必須插入由電訊營運商提供的 SIM 卡.如圖所示，安裝您的智能
手機。
步驟 1. 打開背蓋。
步驟 2. 插入 SIM 卡和記憶卡。
提示：
插入 (U)SIM 卡到 SIM1 插槽
和SIM 卡到 SIM2 插槽。
步驟 3. 安裝電池。
a. 將電池連接器對準電池，
確保電池連接器的針對準
電池。
b. 將電池向下退嵌入到位。
步驟 4. 安裝背蓋。
插入或移除 SIM 卡前記得先關閉智能電話。開機狀態下插入或取出
SIM 卡，可能會對 SIM 卡或智能手機造成永久性的損壞。
SD
SIM2
SIM1
SD
SIM2
SIM1
ab
使用智能手機前的準備工作
