Kramer Galil 4-D User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

Galil 4-O (SPK-W411T)

On-Wall Speakers

P/N: 2900-300371 Rev 1

Galil 4-O –Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

3.1 Defining the Galil 4-O 5

4Installing the Galil 4-O 6

4.1 Choosing the Best Location 6

4.2 Installing the Speaker Wires 6

4.3 Installing the Mounting Bracket 7

4.4 Array Installation 9

4.5 Galil 4-O Setup 11

5Technical Specifications 12

Figures

Figure 1: Galil 4-O 5

Figure 2: Adjust Tap Selector 7

Figure 3: Galil 4-O with Brackets Connected 8

Figure 4: Square Layout 9

Figure 5: Hexagonal Layout 9

Figure 6: Square Layout Parallel Wiring 10

Figure 7: Galil 4-O Installed 11

Galil 4-O - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer Galil 4-O On-Wall Speakers, which

are ideal for:

Home theater sound systems

Multimedia systems

Galil 4-O - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer Speakers away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not open the housing of the speaker; doing so may reduce the

quality of the sound.

Galil 4-O - Getting Started

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Galil 4-O - Overview

3 Overview

The Galil 4-O includes a pair of high performance indoor on-wall speakers that

can be mounted on the wall vertically or horizontally. The mounting brackets,

made of painted steel, can be attached to each speaker, letting you rotate each

speaker to the left or right. The Galil 4-O speakers feature a multi-tap power

transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power

settings that are suitable for an array installation..

Galil 4-O - Overview

3.1 Defining the Galil 4-O

This section defines the Galil 4-O:

Figure 1: Galil 4-O

Feature

Function

Mounting screw opening

Provides the ability to hang the Speaker on the wall

Tap Selector

Adjust each speaker to the appropriate tap setting:

For 70V: 1.2W, 2.5W or 5W

For 100V: 2.5W, 5W or 10W

Or select 8(to bypass the transformer when connecting

directly to an amplifier without using the 70/100V array

option) see Figure 2

Input and Output

Terminal Block

Connectors

One +, - pair for the input and the other pair to output to

the next speaker in an array configuration (see Section

4.4)

Bracket

Use to mount the speaker onto the wall (allowing rotation

to the left/right side)

Bracket Knobs (2)

Use two knobs to fasten the bracket to the speaker

Tweeter

Reproduces the higher frequency sounds

Bass Port

Enforces the low-frequency sounds

Speaker Grille

Protects the internal components of the speaker from

foreign objects.

Do not remove from the speakers

Woofer Driver

Reproduces low frequencies

Galil 4-O - Installing the Galil 4-O

4 Installing the Galil 4-O

This section explains how to:

Choose the best location for your speakers (see Section 4.1)

Install the speaker wires (see Section 4.2)

Install the mounting brackets (see Section 4.3)

Setup an array installation (see Section 4.4)

Install the Galil 4-O (see Section 4.5)

4.1 Choosing the Best Location

Before installing the speakers:

Experiment by placing the speakers in different locations before finally

deciding on the most suitable location

Be sure that the wall type is appropriate for the mounting brackets, that is,

either solid wood, bricks, concrete, hollow building blocks, or wood studs

Check that the mounting location is free of obstructions, such as electrical

piping, AC ducts or water lines, and so on

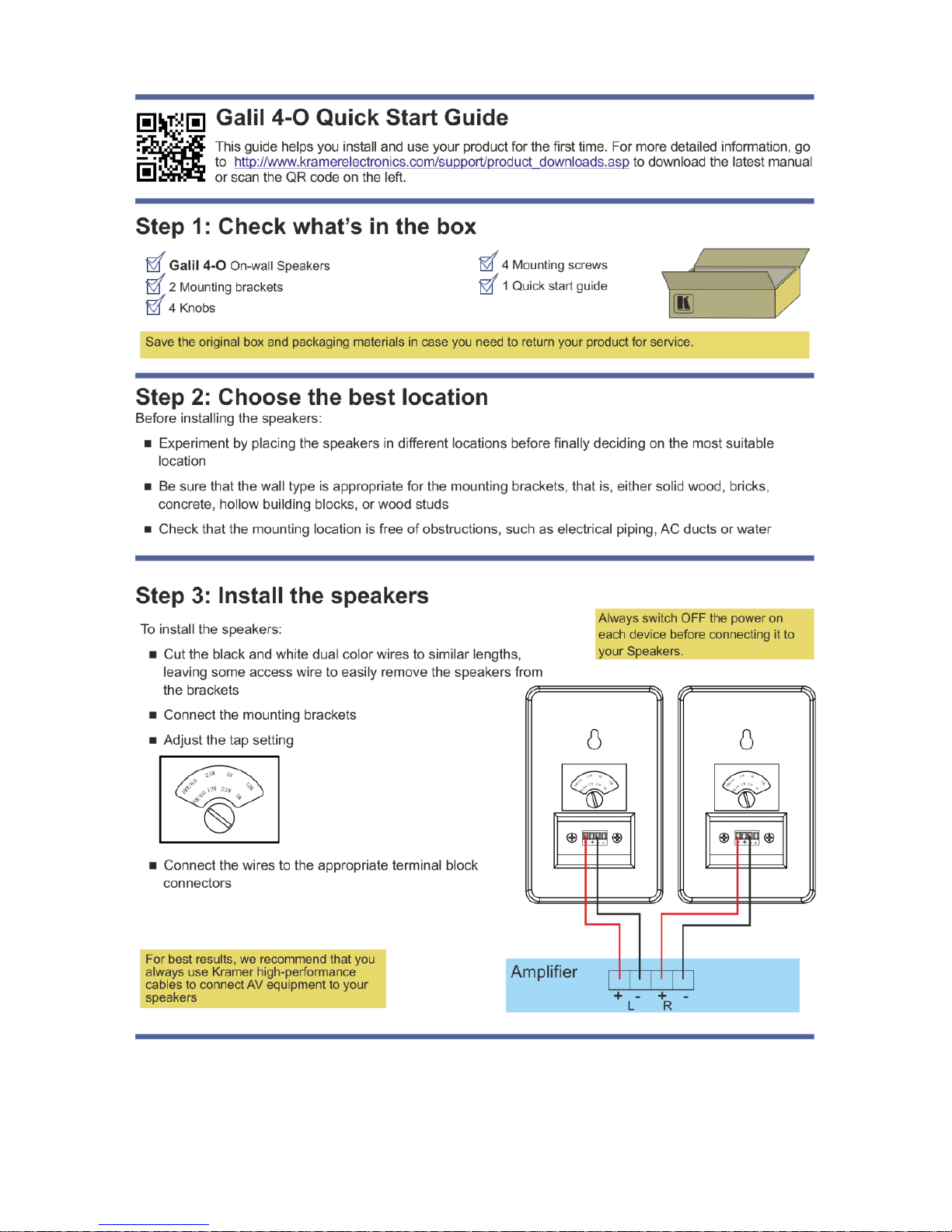

4.2 Installing the Speaker Wires

To install the speakers, do the following:

1. Prepare the wires for the speakers:

Cut the wires to similar lengths

For achieving high quality sound

Measure the length from each speaker to the receiver, and cut the

wires accordingly, adding some access wire length to let you easily

remove the speakers from the bracket without having to disconnect the

input wires

2. Strip the ends of the wires to expose a length of approximately 3/8 inch.

Galil 4-O - Installing the Galil 4-O

3. Pass the speaker wires through the round hole in the mounting bracket (see

Section 4.3).

4. Adjust each speaker to the appropriate tap setting (see Figure 2).

Set the tap according to the power requirements of the speaker based on its location in the

room (for example, a speaker located in a remote corner may require additional power)

Figure 2: Adjust Tap Selector

5. Connect one of the + and –terminal block pairs on the rear panel (see

Figure 1) by connecting the wire from the:

Negative terminal on the receiver into the negative terminal block of the

speaker

Positive terminal on the receiver into the positive terminal block of the

speaker

6. Repeat step 5 for the other speaker (see Figure 7).

7. If required, connect the + and - terminal blocks to the + and - terminal blocks

to an adjacent speaker (as illustrated in the example in Figure 6).

4.3 Installing the Mounting Bracket

To install the mounting brackets, do the following:

1. Mark the location of the mounting holes on the wall.

2. Screw the mounting screws onto the wall at the location that you want to

mount the speakers.

If the location is backed by wall studs, you can use the wood screws

provided. If the location is backed by a gypsum board, use wall anchors (not

included in the package).
