Kramer Dolev 8 User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

Dolev 8

2-Way, Bi-Amplified Studio-

Grade Speaker

P/N: 2900-300418 Rev 1

Dolev 8 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

4Defining the Dolev 8 5

5Installing the Speaker 6

5.1 Choosing the Best Location 6

5.2 Setting up Mid/Near-Field Installation 6

5.3 Setting up Far-Field Installation 7

5.4 Installing the Speaker 8

6Technical Specifications 9

Figures

Figure 1: Dolev 8 Active 2-Way, Bi-Amplified Studio-Grade Speaker 5

Figure 2: setting the Dolev 8 at head height 6

Figure 3: Dolev 8 Optimum positioning 7

Dolev 8 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 13 groups that are clearly defined by

function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio.

Congratulations on purchasing your Kramer Dolev 8 2-Way, Bi-Amplified Studio-

Grade Speaker, which is ideal for the following typical applications:

Home theater

Sports bars

Luxurious Boardrooms

Dolev 8 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (such as the Kramer

C-XLQM/XLQF) to avoid interference, deterioration in signal quality due to

poor matching, and elevated noise levels (often associated with low quality

cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer Dolev 8 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not open the housing of the speaker; doing so may reduce the

quality of the sound.

Dolev 8 - Getting Started

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims

to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country go

to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Dolev 8 - Overview

3 Overview

The Dolev 8 is a high-quality, high-fidelity, studio grade speaker designed and

crafted for superior clarity and detail for high-end applications or any other task that

requires precise, accurate and detailed sound, even at high volume levels.

The Dolev 8 ensures that you hear exactly what is happening in the music and

reveals all the original nuances of the sound, without adding to or subtracting from

the signal. Premium components, an advanced cabinet design, and efficient bi-

amplification come together to provide superior full-range sound—from crystal-clear

highs, to deep, rich bass tones. You can be confident that your music sounds its

best in any listening environment.

The Dolev 8 features:

A Two-way, bass-reflex, bi-amplified speaker

A 8” fiberglass woofer and a 1” neodymium dome tweeter

1 unbalanced and 2 balanced audio inputs

Four-position high-frequency gain control

A volume adjustment control knob

Magnetic shielding

Dolev 8 - Defining the Dolev 8

4 Defining the Dolev 8

This section defines the powered Dolev 8:

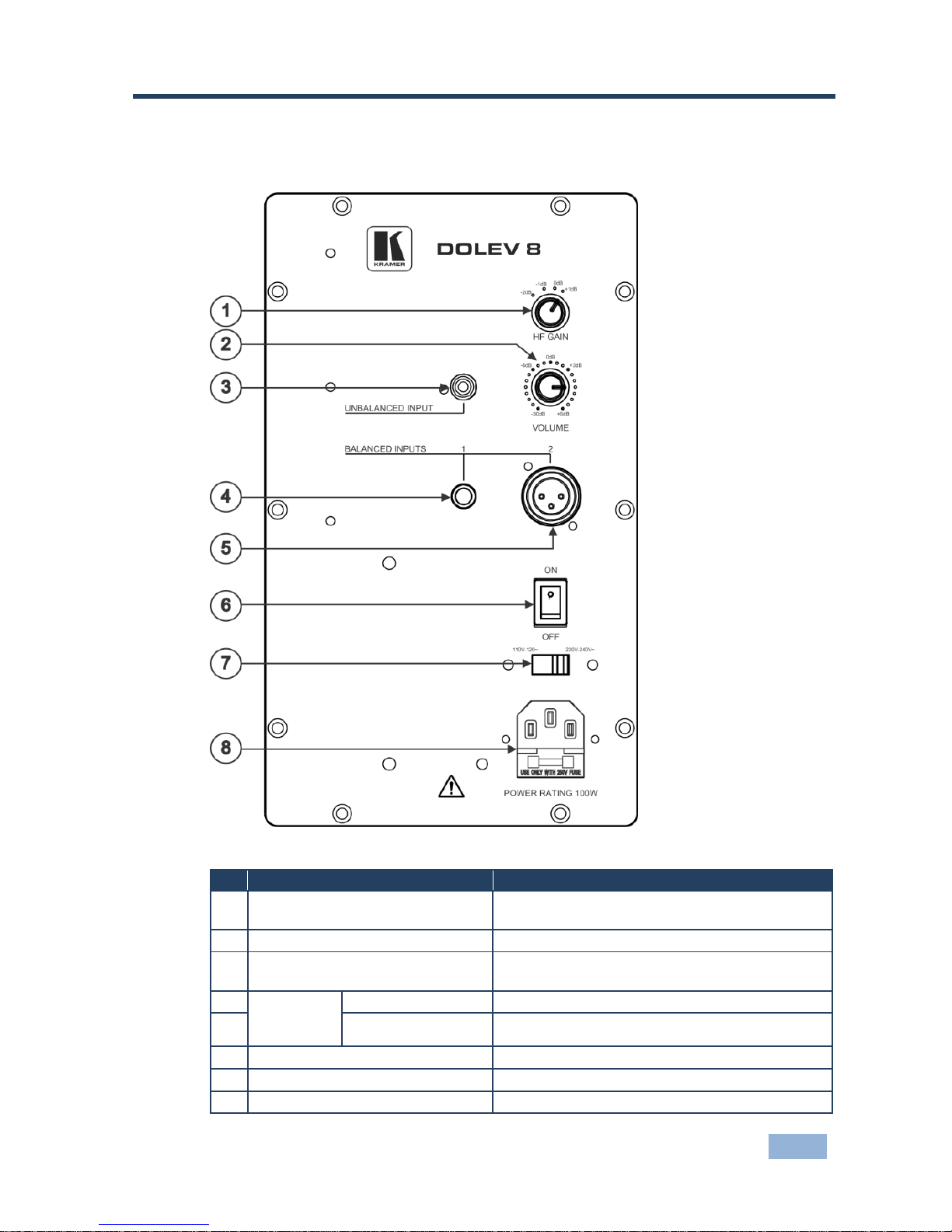

Figure 1: Dolev 8 Active 2-Way, Bi-Amplified Studio-Grade Speaker

Feature

Function

HF GAIN Selector Knob

Choose one of the 4 settings of the high

frequencies gain: -2dB, -1dB, 0dB or +1dB

VOLUME Control Knob

Rotate the button to adjust the audio volume

UNBALANCED INPUT RCA

Connector

Connect to an unbalanced audio source

BALANCED

INPUT

Connectors

1 6.3mm TRS Phone

Connect to a balanced source

2 XLR

Connect to a balanced source

ON Switch

Set to ON to power the speaker

POWER Settings Slide Switch

Set to 110-120V or to 220-240V

Power Connector with Fuse

AC connector, enabling power supply to the unit

Dolev 8 - Installing the Speaker

5 Installing the Speaker

This section explains how to:

Choose the best location for your speakers (see Section 5.1)

Setup mid/near-field (see Section 5.2) or far-field (see Section 5.3) Installation

Install the speaker (see Section 5.4)

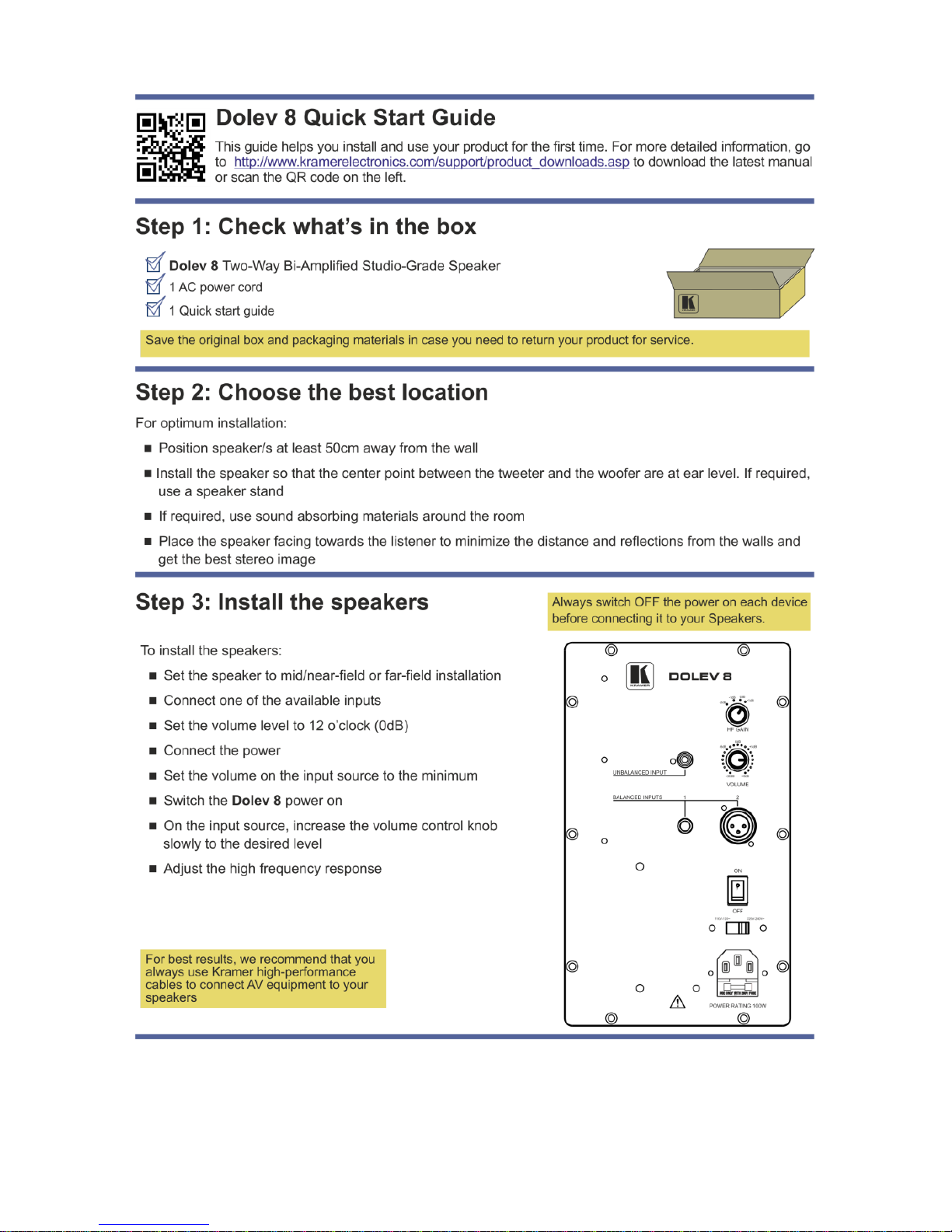

5.1 Choosing the Best Location

For optimum installation:

Speakers should be positioned at least 50cm from the walls

Install the Dolev 8 so that the center point between the tweeter and the

woofer are at ear level. If required, use a speaker stand

If required, use sound absorbing materials around the room

Place the speaker facing towards the listener to minimize the distance and

reflections from the walls and get the best stereo image

5.2 Setting up Mid/Near-Field Installation

Mid-field or near-field installation is usually directed towards a specific listener or

listeners in a specific location of the room. To maximize your listening experience:

1. Make sure that the speakers are set at head height (whether you will be using

the speakers sitting down or standing up).

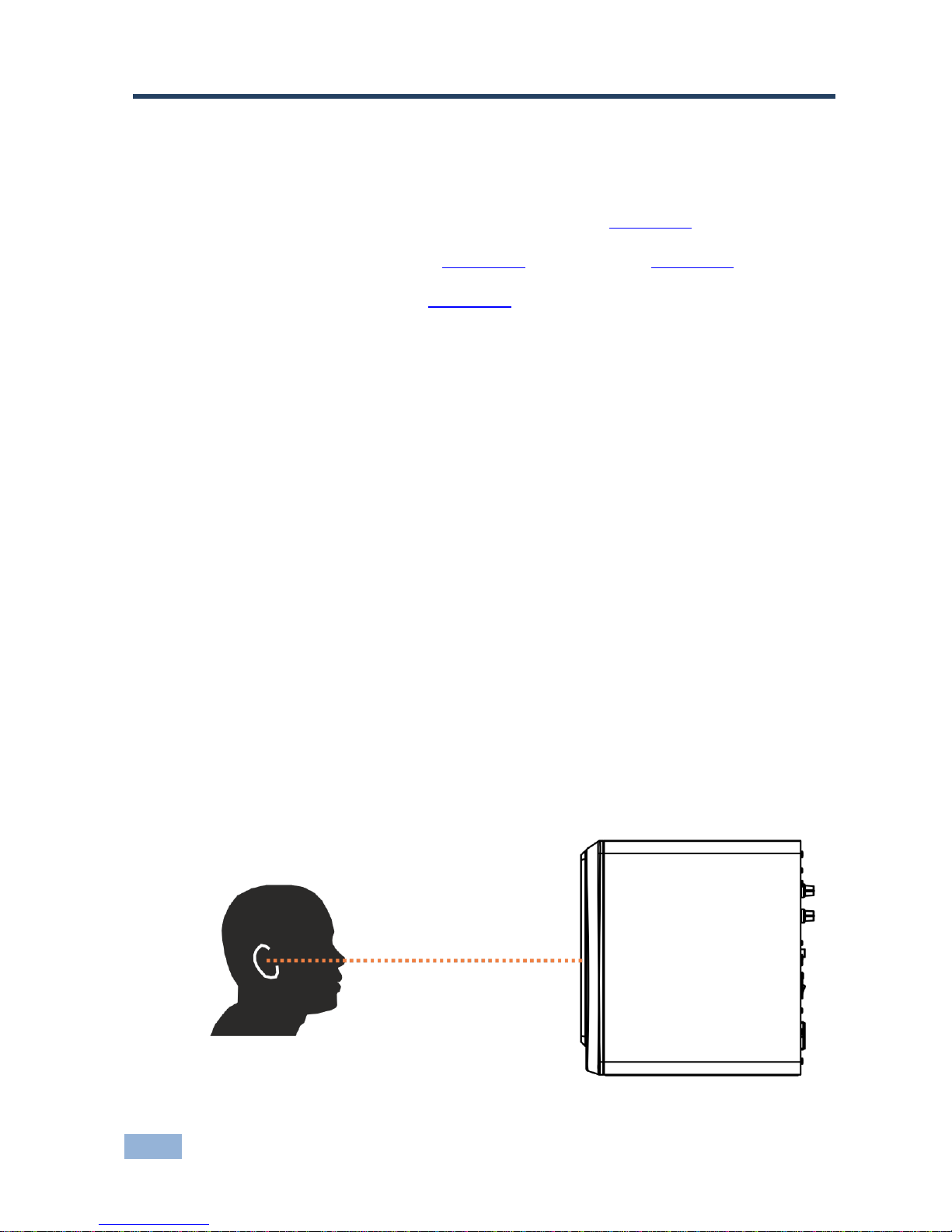

Figure 2: setting the Dolev 8 at head height

Dolev 8 - Installing the Speaker

2. Position the speaker at an angle so that together with the listener, an

equilateral triangle is created.

3. Try to keep the speakers at a distance of about 50cm from the walls

4. Try to keep a distance of about 1.5 to 2 meters between the speakers.

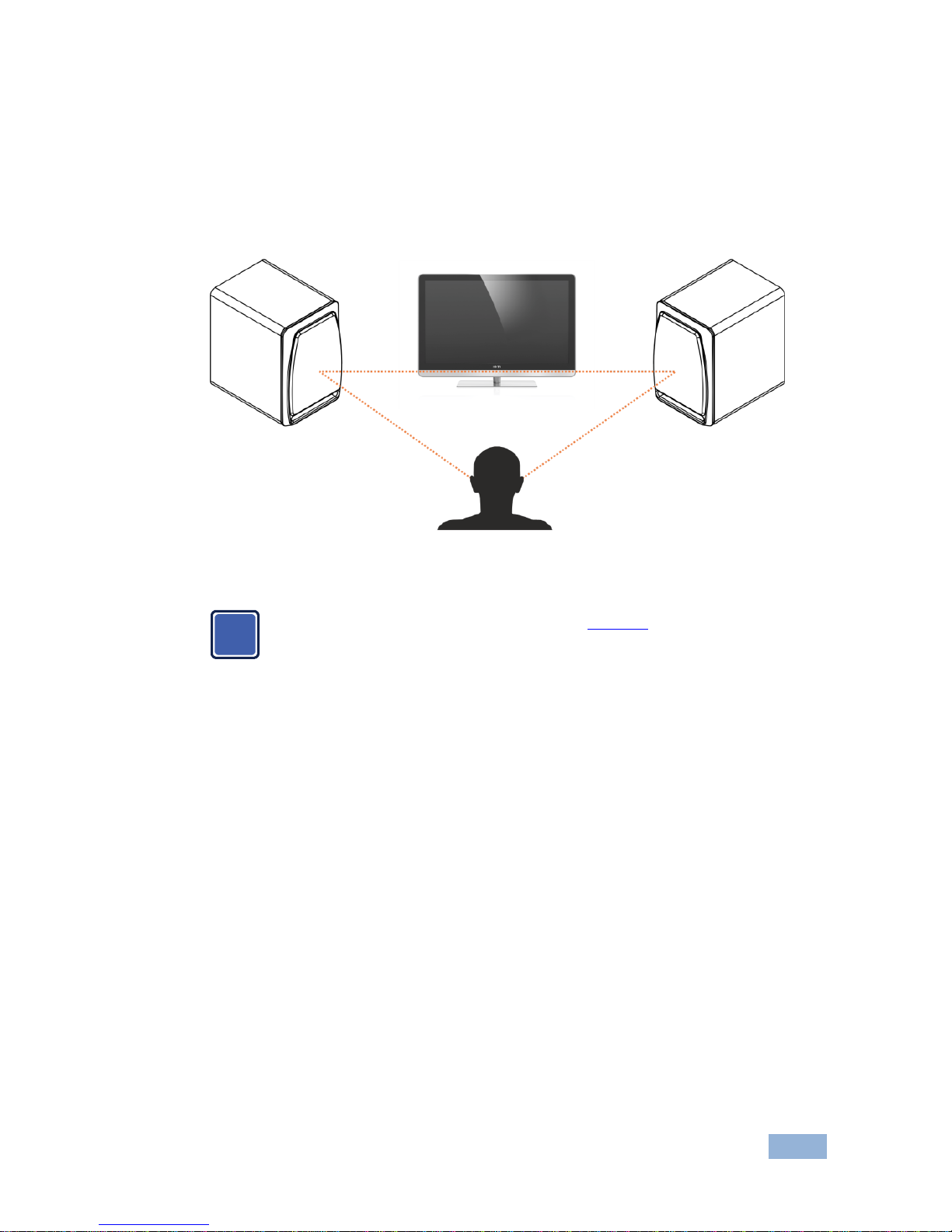

Figure 3: Dolev 8 Optimum positioning

Note that even though the illustration in Figure 3 shows two

speakers each Dolev 8 package includes one speaker.

5.3 Setting up Far-Field Installation

Far-field positioning is suitable for a large amount of listeners (unlike the near-field

positioning where the speakers are directed at a specific listener). To maximize the

listening experience:

1. Make sure that the speakers are facing the center of the room.

2. Make sure that both speakers are placed along the same wall in the room

(not facing each other).

3. Aim to achieve the largest sweet spot.

For optimum results we recommend that you either experiment and locate the

sweet spot by trial-and-error or alternatively, consult an acoustic engineer.
