Kramer VP-427 User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-427

HDBaseT to HDMI

Receiver/Scaler

P/N: 2900-300328 Rev 5

VP-427 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VP-427 HDBaseT to HDMI Receiver/Scaler 5

4Connecting the VP-427 6

5Operating the VP-427 8

5.1 Operating the VP-427 from the Front Panel Buttons 8

5.2 Using the OSD 8

6Technical Specifications 12

6.1 Input Resolutions Support 12

Figures

Figure 1: VP-427 HDBaseT to HDMI Receiver/Scaler 5

Figure 2: Connecting the VP-427 HDBaseT to HDMI Receiver/Scaler 7

VP-427 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer VP-427 HDBaseT to HDMI

Receiver/Scaler, which is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Rental and staging

VP-427 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VP-427 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VP-427 - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VP-427 - Overview

3 Overview

The Kramer VP-427 is a receiver/scaler for HDBaseT twisted pair, HDMI,

bidirectional RS-232 and IR signals. The unit receives an HDBaseT signal that it

converts to HDMI, IR and passed RS-232 signals. It up- or down-scales the picture

to match the resolution of the HDMI monitor.

The VP-427 also features:

An HDBaseT input

An HDMI output

A bidirectional RS-232 port for embedding/de-embedding control commands

in the HDBaseT data stream

Infrared input and output ports for controlling devices over the HDBaseT data

stream

Embedded audio supporting LPCM 2CH

Maintains constant sync on the output, even when the input video signal is

lost or interrupted

System range of up to 70m (230ft)

A built-in ProcAmp for convenient signal adjustment

An On-Screen Display (OSD) for easy setup and adjustment, accessible via

the front-panel buttons

A non-volatile memory that retains the last settings used

A freeze button

A USB connector for firmware upgrading

The machine is fed from an external 5V DC source, making it suitable for field

operation.

VP-427 - Overview

3.1 Defining the VP-427 HDBaseT to HDMI Receiver/Scaler

This section defines the VP-427.

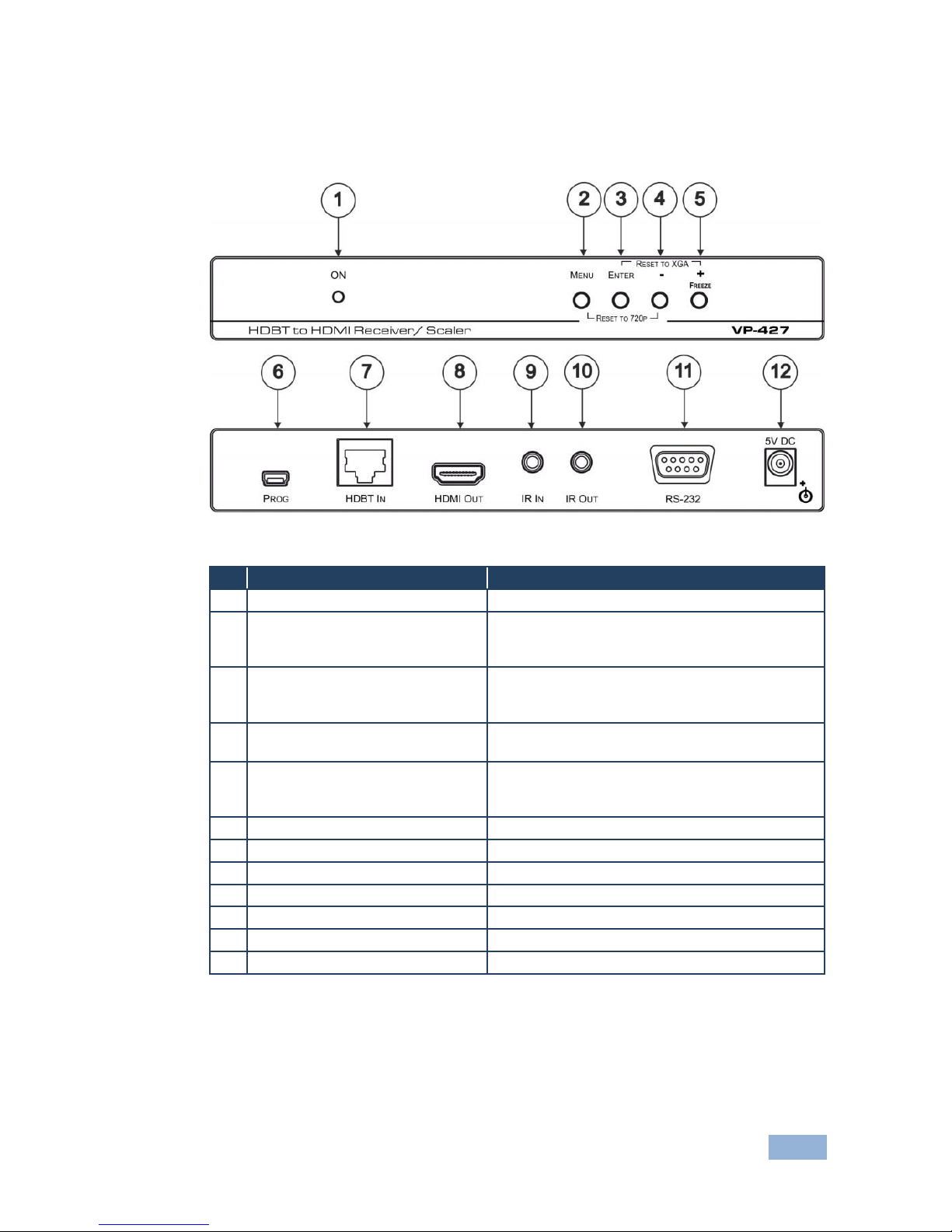

Figure 1: VP-427 HDBaseT to HDMI Receiver/Scaler

Feature

Function

ON LED

Lights green when the unit is powered on

MENU Button

Press to enter/escape the on-screen display

(OSD) menu. Press together with the –button to

reset to 720p

ENTER Button

In OSD, press to choose the highlighted menu

item. Press together with the + button to reset to

XGA

–

In OSD, press to move backward through the list

or to decrement the parameter value

+/FREEZE Button

In OSD, press to move forward through the list or

to increment the parameter value. When not in

OSD, press to freeze the display

PROG USB Connector

Connects to a PC for programming upgrade

HDBT IN RJ-45 Connector

Connects to an HDBaseT transmitter

HDMI OUT Connector

Connects to an HDMI acceptor

IR IN 3.5mm Mini Jack

Connects to an IR receiver

IR OUT 3.5mm Mini Jack

Connects to an IR emitter

RS-232 9-pin D-sub Connector

Connects to a controller

5V DC

+5V DC connector for powering the unit

VP-427 - Connecting the VP-427

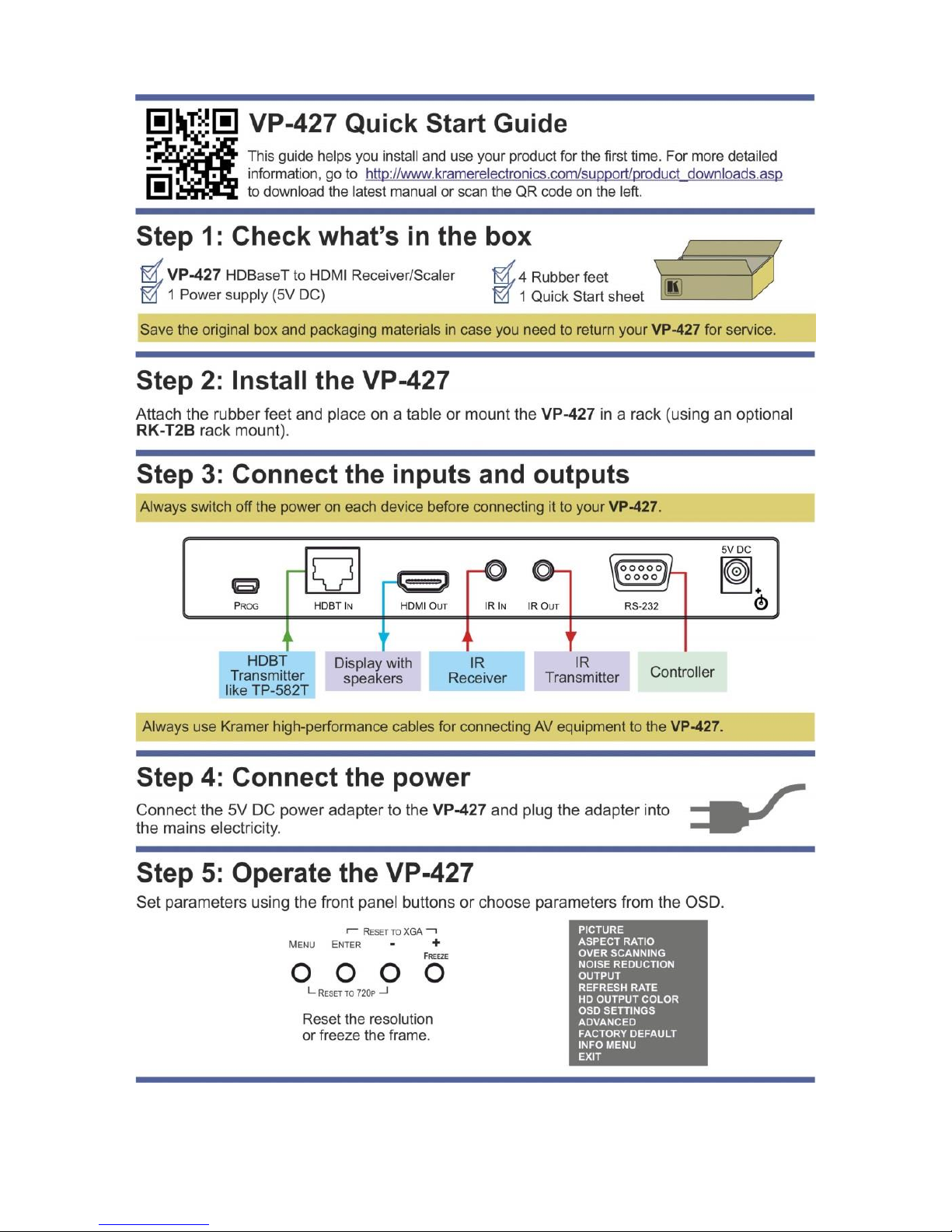

4 Connecting the VP-427

Always switch off the power to each device before connecting it to your

VP-427. After connecting your VP-427, connect its power and then

switch on the power to each device.

To connect the VP-427 as illustrated in the example in Figure 2:

1. Connect the output from an HDBaseT transmitter (for example, an TP-582T)

to the HDBT IN RJ-45 connector.

2. Connect the HDMI OUT connector to an HDMI acceptor (for example, a

display).

3. Connect an IR receiver to the IR IN 3.5mm mini jack.

4. Connect the IR OUT 3.5mm mini jack to an IR emitter.

5. Connect the RS-232 9-pin D-sub connector to an RS-232 port (for example,

a display).

6. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 2).

VP-427 - Connecting the VP-427

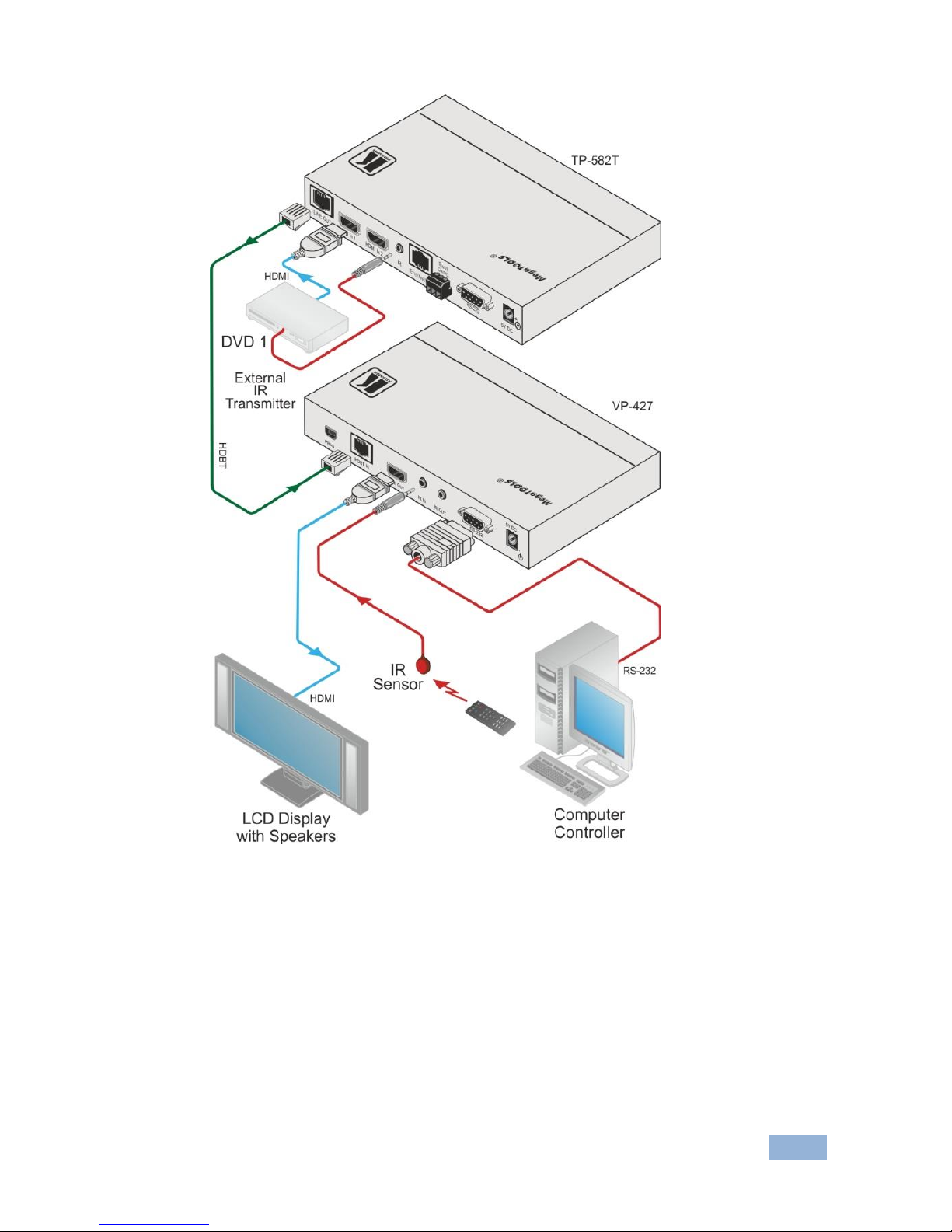

Figure 2: Connecting the VP-427 HDBaseT to HDMI Receiver/Scaler
