Kramer TP-580Txr User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

TP-580Txr

HDMI Line Transmitter

TP-580Rxr

HDMI Line Receiver

P/N: 2900-300088 Rev 4

TP-580Txr/TP-580Rxr – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About HDBaseT™ Technology 5

3.2 Using Twisted Pair Cable 5

4Defining the TP-580Txr HDMI Line Transmitter 6

5Defining the TP-580Rxr HDMI Line Receiver 7

6Connecting the TP-580Txr / TP-580Rxr Transmitter / Receiver 8

6.1 Controlling the A/V Equipment via an IR Transmitter 10

6.2 Connecting to a PC 12

6.3 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors 13

7Technical Specifications 14

Figures

Figure 1: TP-580Txr HDMI Line Transmitter 6

Figure 2: TP-580Rxr HDMI Line Receiver 7

Figure 3: Connecting the TP-580Txr/TP-580Rxr Transmitter/Receiver 9

Figure 4: Controlling a DVD Player via the TP-580Rxr 10

Figure 5: Controlling an LCD Display via the TP-580Txr 11

Figure 6: RS-232 Control 12

Figure 7: TP PINOUT 13

TP-580Txr/TP-580Rxr - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer TP-580Txr transmitter and/or

TP-580Rxr receiver, which can be part of a transmitter/receiver system and are

ideal for the following typical applications:

Conference rooms, boardrooms, auditoriums, hotels, churches, classrooms

and production studios

Rental and staging

Note that TP-580Txr and TP-580Rxr are purchased separately, and

can be connected to other HDBaseT certified transmitters and

receivers, respectively.

TP-580Txr/TP-580Rxr - Getting Started

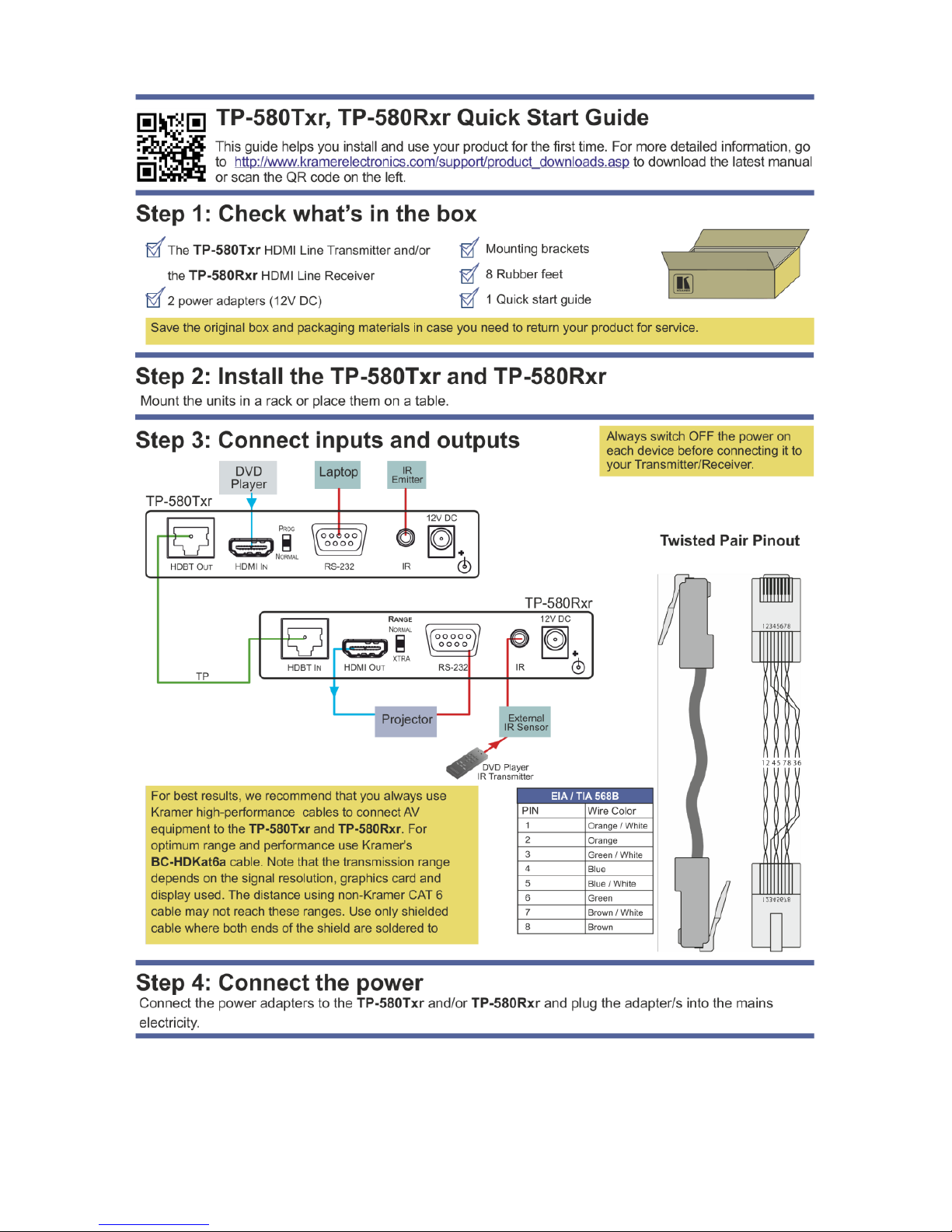

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer TP-580Txr and TP-580Rxr transmitter/receiver pair

away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the

wall before installing

TP-580Txr/TP-580Rxr - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

TP-580Txr/TP-580Rxr - Overview

3 Overview

The TP-580Txr and TP-580Rxr are a high-performance, extra range, HDBaseT

technology Twisted Pair transmitter and receiver for HDMI, bidirectional RS-232

and IR signals. The TP-580Txr converts the HDMI signal, RS-232 and IR input

signals to a twisted pair signal. The TP-580Rxr converts the twisted pair signal

back into HDMI, RS-232, and IR signals.

The TP-580Txr and TP-580Rxr can together form an extended HDMI/data line

transmission and reception system or can separately connect to other certified

HDBaseT devices to form the transmission and reception system. For example, the

transmitter and receiver system can be composed of WP-580Txr that connects to

the Kramer TP-580Rxr to form a transmitter / receiver pair.

The TP-580Txr and TP-580Rxr transmitter/receiver feature:

A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel) in normal

mode; up to 4.95Gbps (1.65Gbps per graphic channel) in ultra-mode

System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra

mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables

For optimum range and performance using HDBaseT™, use Kramer's

BC−HDKat6a cable. Note that the transmission range depends on the

signal resolution, source and display used. The distance using

non−Kramer CAT 6 cable may not reach these ranges.

2K and 4K support in normal mode

HDBaseT™technology

HDTV compatibility and HDCP compliance

HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI

uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2K, 4K, 3D)

EDID pass through, passes EDID signals from the source to the display

Bidirectional RS-232 interface - commands and data can flow in both

directions via the RS−232 interface, allowing status requests and control of

the destination unit

TP-580Txr/TP-580Rxr - Overview

Bidirectional infrared interface for remote control of peripheral devices (see

Section 6.1)

LED status indicators for input, output, link and power

Compact DigiTOOLS®enclosures, and these can be rack mounted side-by-

side in a 1U rack space with the optional RK-3T, RK-6T or RK-9T universal

rack adapters

3.1 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (Supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit, for example,

uncompressed full high-definition video, audio, IR, as well as various control

signals.

The products described in this user manual are HDBaseT certified.

3.2 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; BC−HDKat6a (CAT 6 23 AWG cable) significantly

outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

TP-580Txr/TP-580Rxr - Defining the TP-580Txr HDMI Line Transmitter

4 Defining the TP-580Txr HDMI Line

Transmitter

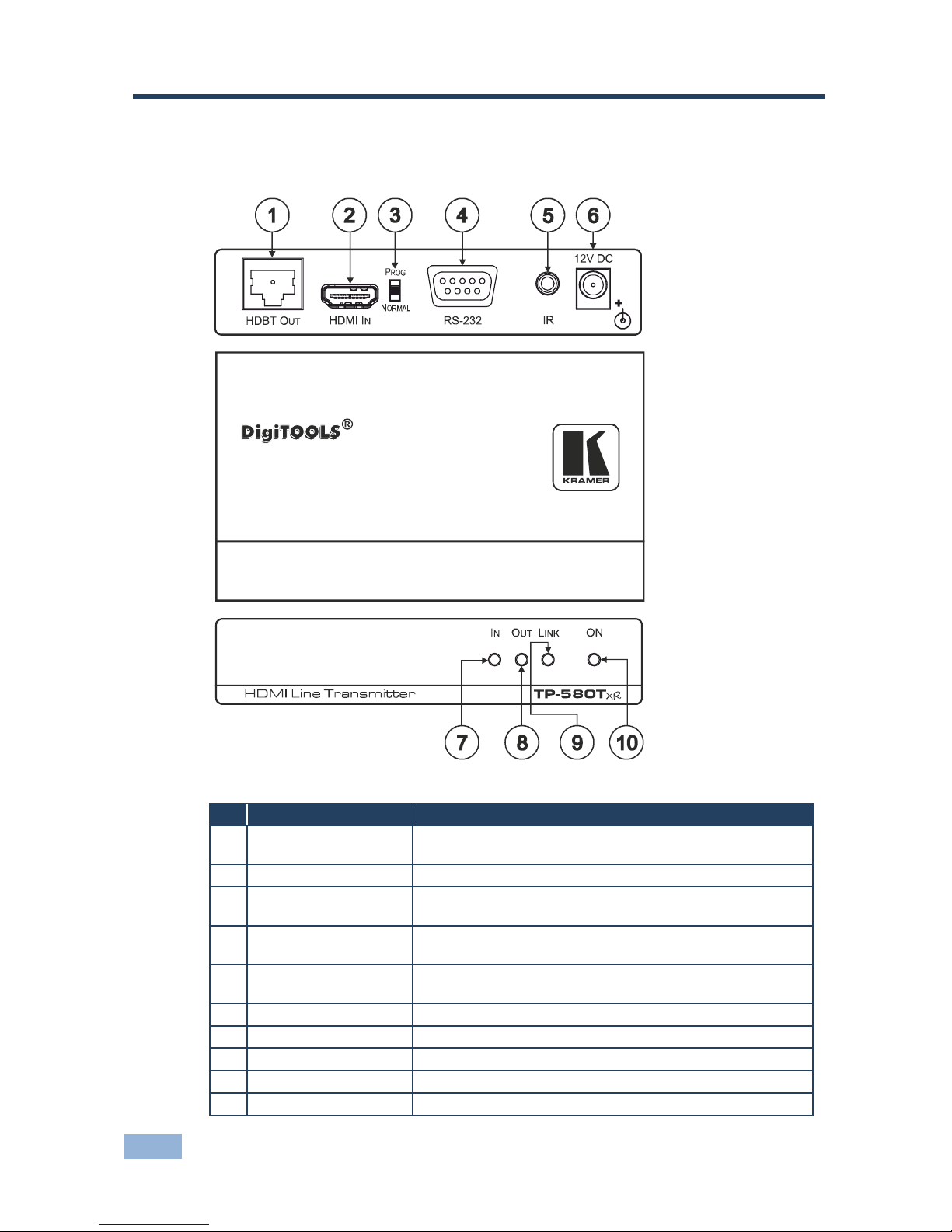

Figure 1: TP-580Txr HDMI Line Transmitter

Feature

Function

HDBT OUT RJ-45

Connector

Connects to the HDBT IN RJ-45 connector on the TP-580Rxr

HDMIINConnector

Connects to the HDMI source

PROG/NORMAL Switch

Slide to PROG to upgrade to the latest Kramer firmware via

RS-232, or slide to NORMAL for normal operation

RS-232 9-pin D-sub

Connector

Connects to an RS-232 port for firmware upgrade and

control of the destination unit

IR 3.5mm Mini Jack

Connector

Connects to an external infrared transmitter / sensor

(receiver)

12V DC

+12V DC connector for powering the unit

IN LED

Lights green when an HDMI input device is connected

OUT LED

Lights green when an HDMI output device is detected

LINK LED

Lights green when the TP connection is active

ON LED

Lights when receiving power

TP-580Txr/TP-580Rxr - Defining the TP-580Rxr HDMI Line Receiver

5 Defining the TP-580Rxr HDMI Line Receiver

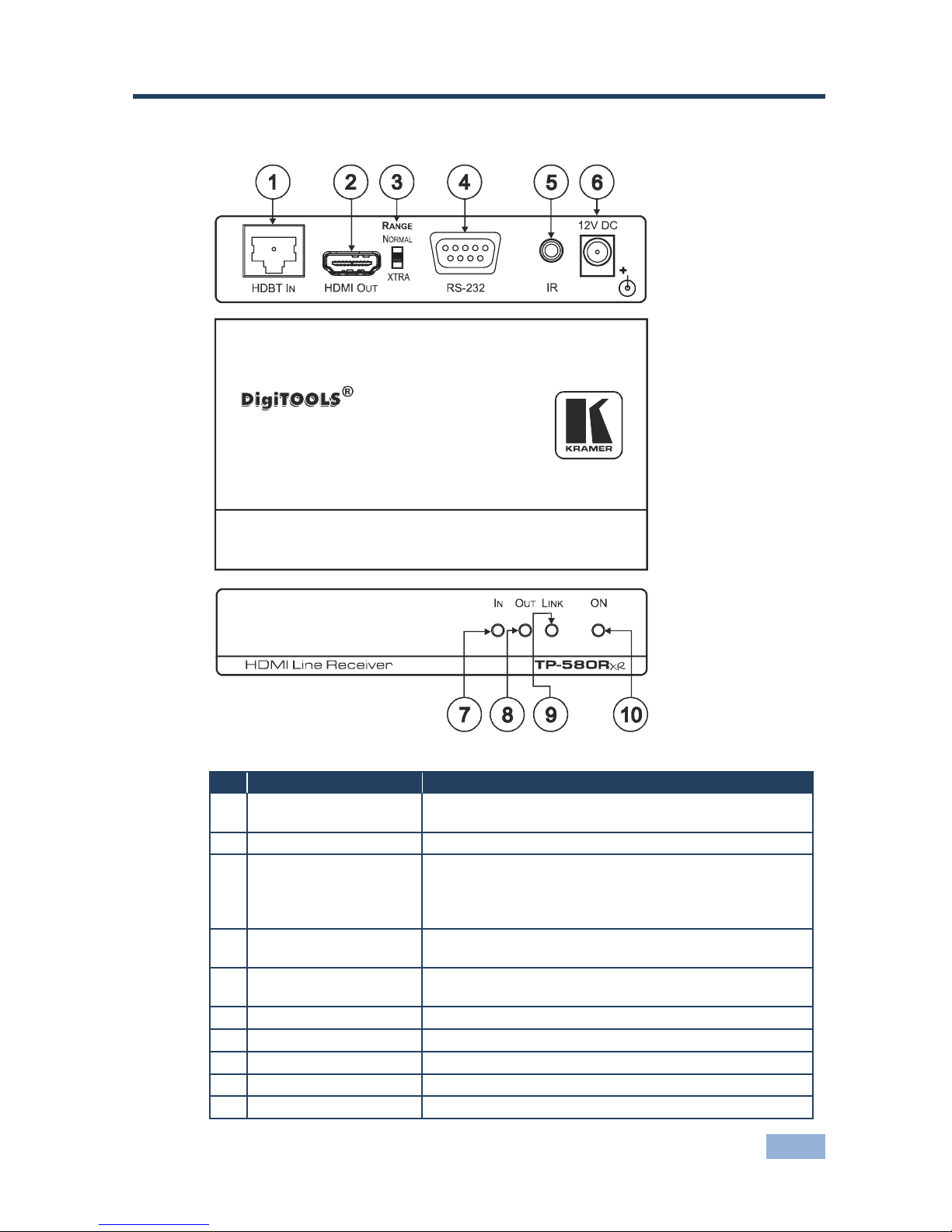

Figure 2: TP-580Rxr HDMI Line Receiver

Feature

Function

HDBT IN RJ-45

Connector

Connects to the HDBT OUT RJ-45 connector on the

TP-580Txr

HDMI OUTConnector

Connects to the HDMI acceptor

NORMAL/XTRA RANGE

Slide Switch

Slide to NORMAL for distances of up to 100 meter at

1080p@60Hz@36bpp

Slide to XTRA for distances of up to 150 meters at

1080p@60Hz@24bpp

RS-232 9-pin D-sub

Connector

Connects to an RS-232 port for firmware upgrade and

control of the destination unit

IR 3.5mm Mini Jack

Connector

Connects to an external infrared transmitter / sensor

(receiver)

12V DC

+12V DC connector for powering the unit

IN LED

Lights green when an HDMI input device is connected

OUT LED

Lights green when an HDMI output device is detected

LINK LED

Lights green when the TP connection is active

ON LED

Lights green when receiving power
