Knightsbridge KIT16 Instruction Manual

INSTALLATION & MAINTENANCE MANUAL

KIT16

230V

50Hz

These instructions should be read carefully and retained after installation by the end user for future

reference and maintenance.

These instructions should be used to aid installation of the following products:

KIT16W, KIT16B, KIT16WW

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a qualiﬁed

electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this load is ﬁtted) does not exceed the rating

of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location for

installation

• This product series is IP65 rated

• This product is Class II double insulated

• When installing into decking, ensure there is enough clearance below so the ﬁtting, cable, and

driver are not sitting in standing water

• Connect the cable from the secondary side of the driver to the ﬁrst light in the installation with the

male and female plugs and sockets then connect remainder of the ﬁttings in sequence

• Connect the cable from the primary side of the driver to a suitable power source ensuring correct

polarity is observed (Live (brown), Neutral (blue))

• Switch on power supply and check for correct operation

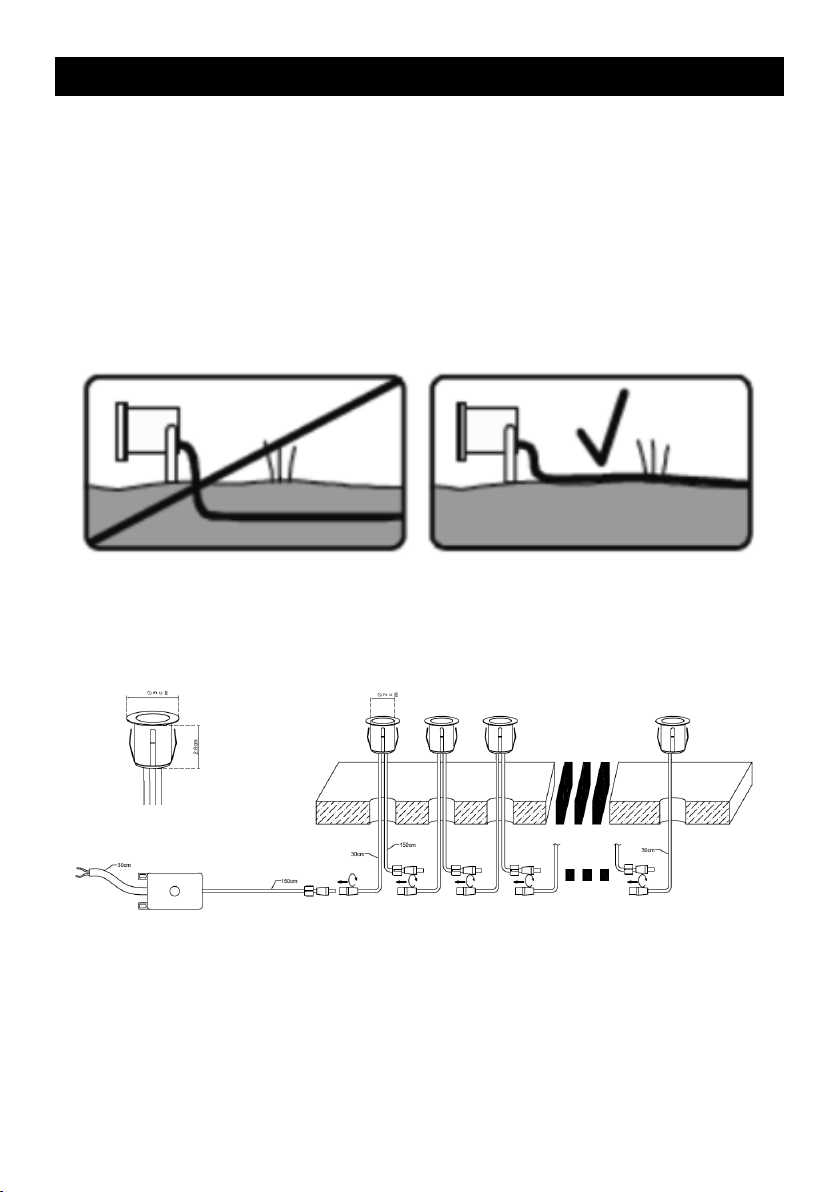

Fig. 2

INSTALLATION

Note: If this luminaire is being used in conjunction with external PIR or sensors, please conﬁrm with

the manufacturer of the sensors that they are compatible with the lamp source

• Cut suitable 25mm holes in the mounting surface ensuring that they do not infringe with

electrical cables or water/gas pipes

• Provide power to the required point of installation (refer to BS7671 for correct cabling methods).

Suitable IP rated junction boxes should be used where required ensuring the power source is via

an RCD or an RCBO

• The pre-installed cable supplied is for above-ground use only. Cables that are to be routed

within walls or below ground must be protected by means of suitable conduit or trunking

(see Fig. 1)

Fig. 1

• Feed the pre-installed cables through the holes and connect with the pre-installed

plugs and sockets (see Fig. 2)

ML Accessories Limited

LU5 4LT

www.mlaccessories.co.uk AKNOV18_V2

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install in accordance with

the current edition of the IEE Wiring Regulations, improper use, or removal of the batch codes will

invalidate the warranty. If this product should fail within its warranty period it should be returned

to the place of purchase for a replacement. ML Accessories does not accept responsibility for any

installation costs associated with the replacement product. Your statutory rights are not affected.

ML Accessories reserve the right to alter product speciﬁcation without prior notice.

WARNING

GENERAL

This product is unsuitable for installation in or near coastal and marine environments.

The product should be recycled in the correct manner when it reaches the end of its life. Check local

authorities for where facilities exist.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may

damage the product.

A light ﬁlm of acid free oil is recommended after installation and maintained periodically

(2-3 times a year) to aid corrosion prevention

Note: the drainage below the luminaire should be able to drain the water away within 30 minutes

Do not use any source of high pressure washers to maintain or clean this product.

This product is non-dimmable

Driver supplied

This product has a cut-out of 25mm

This product must be disconnected from the circuit if subjected to any high voltage or insulation

resistance testing. Irreparable damage will occur if this instruction is not followed.
