Knightsbridge BL12LEDS Instruction Manual

230V

50Hz

INSTALLATION & MAINTENANCE MANUAL

BL12LEDS & BL20LEDS

These instructions should be read carefully and retained after installation by the end

user for future reference and maintenance

These instructions should be used to aid installation of the following products:

BL12LEDS / BL20LEDS

GENERAL INSTRUCTIONS

SAFETY

INSTALLATION

• Installation of this luminaire should only be carried out by a qualified electrician or competent

person to the current IEE Wiring Regulations (BS7671)

• Please isolate mains prior to installation/maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the

rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for

installation

• This product is Class II double insulated

• This product is non-dimmable

• A maximum of 280W LED can be linked via the Slave Live terminal (SL)

• Provide power to the required point of installation. Suitable IP rated junctions boxes should

be used where required

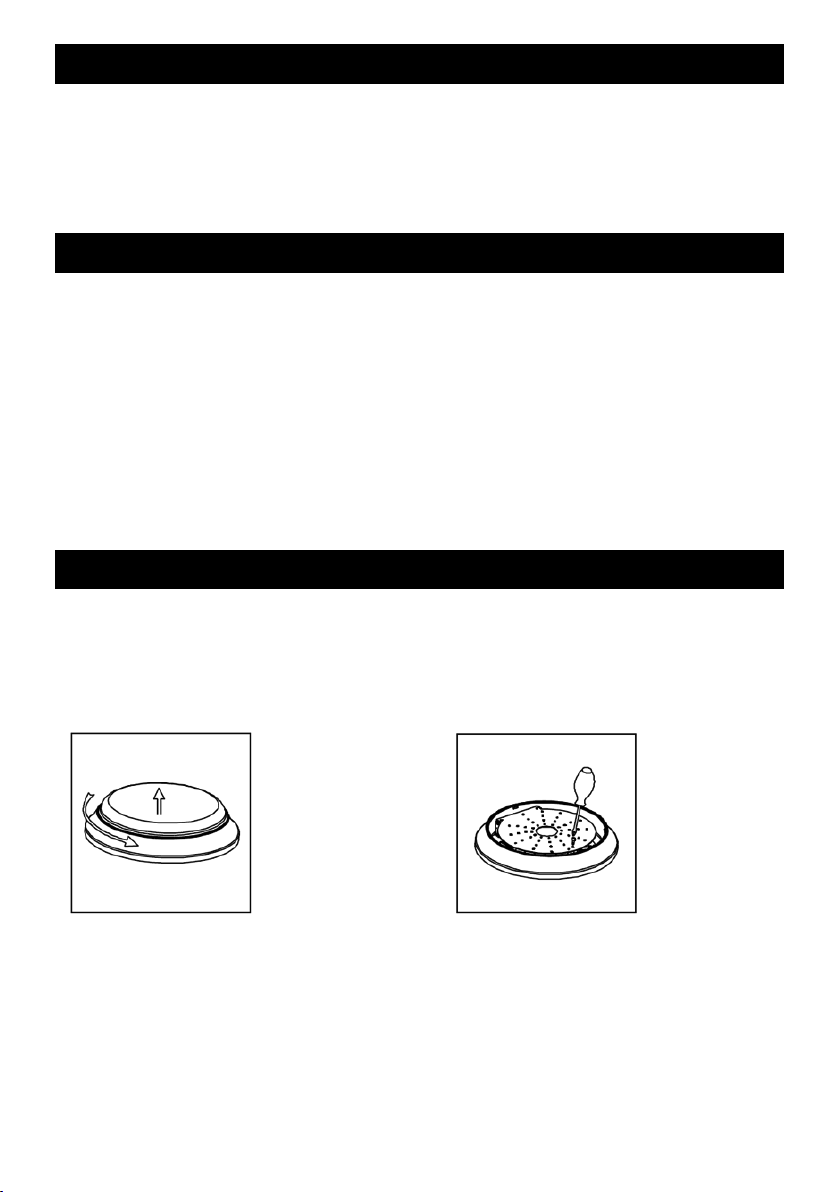

• Rotate the diffuser anti-clockwise and remove (see Fig 1)

• Remove screw at the top of the LED (see Fig 2)

• Mark the location of the fixing holes and drill the holes ensuring not to infringe with any

joists, gas / water pipes or electrical cables

• Feed the cable via the entry point on the base of the luminaire

• Connect the Live and Neutral to the push-fit terminals on the terminal block, ensuring the

cable clamp is used (see Fig 3)

• The earth terminal is non-functional and only provided for convenience

• Slave Live (SL) is provided to link to other luminaires. (The slave luminaire(s) connected to

this terminal will be controlled by the microwave sensor in this luminaire)

Fig 1 Fig 2

ELSLN

Live (Brown)

Neutral (Blue)

Fig 5

Fig 4

Fig 6

• Replace the screw on the top of the LED as shown in Fig 5

• Replace the diffuser by rotating clockwise as shown in Fig 6

• Switch on power supply and check for correct operation

Fig 3

•Please see Fig 4 below to set up the microwave sensor

-10sec 12min

This detection is true range (1-8m)

providing the luminaire is mounted

at a height of 2.5m

Turn fully anti-clockwise to select

dusk to dawn operation (approx.

10lx). Turn fully clockwise to select

daylight operation (approx. 2000lx)

Non-functional

earth

AKAUG17_V2

ML Accessories Limited

LU5 5TA

www.mlaccessories.co.uk

GENERAL

WARRANTY

The LEDs fitted in this product are non-replaceable. The product should be recycled in the correct

manner when it reaches the end of its life. Check local authorities for where facilities exist.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may

damage the product.

This product has a warranty of 3 years from date of purchase. Failure to install this product in

accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of

the batch codes will invalidate the warranty. If this product should fail within its warranty period it

should be returned to the place of purchase for a free of charge replacement. ML Accessories does

not accept responsibility for any installation costs associated with the replacement product. Your

statutory rights are not affected. ML Accessories reserve the right to alter product specification

without prior notice.

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation

resistance testing. Irreparable damage will occur if this instruction is not followed

Note: If this product is being used in conjunction with external PIR or sensors, please confirm with

the manufacturer of the sensors that they are compatible with LED lamps
