INSTRUCTION MANUAL

Model#: 300365

Product images may vary slightly from actual product.

65" Imari

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

SAFETY RULES..................................................................3

TOOLS REQUIRED............................................................4

PACKAGE CONTENTS ....................................................4

MOUNTING OPTIONS.....................................................5

HANGING THE FAN......................................................... 6

INSTALLATION OF SAFETY CABLE ......................... 9

ELECTRICAL CONNECTIONS ................................. 10

FINISHING THE INSTALLATION................................12

ATTACHING THE FAN BLADES.................................13

INSTALLING THE LIGHT PLATE ...............................13

INSTALLING THE LED LIGHT

KIT AND DECORATIVE RING ......................................14

CONTROL SYSTEM SET-UP......................................15

BUTTON INSTRUCTION...............................................16

SENSORLESS DC CONTROL

PAIRING PROCEDURES...............................................17

INSTALLING THE WALL CONTROL

SYSTEM WALL PLATE.................................................. 18

OPERATING INSTRUCTIONS.....................................19

TROUBLESHOOTING...................................................20

FCC INFORMATION ......................................................22

2 | KICHLER.COM

SAFETY RULES

1. CAUTION – RISK OF SHOCK – Disconnect Power at the main

circuit breaker panel or main fusebox before starting and during the

installation.

2. WARNING: All wiring must be in accordance with the National

Electrical Code “ANSI/NFPA 70” and local electrical codes.

Electrical installation should be performed by a qualified licensed

electrician.

3. WARNING: To reduce the risk of electric shock, this fan must be

installed with a general-use, isolating wall control/switch.

4. WARNING: Not suitable for use with solid-state speed controls.

5. WARNING: To reduce the risk of fire, electric shock, or personal

injury, mount to outlet box marked “acceptable for fan support of

15.9 kg (35 lbs.) or less” and use mounting screws provided with the

outlet box. Most outlet boxes commonly used for the support of

light fixtures are not acceptable for fan support and may need to

be replaced. Due to the complexity of the installation of this fan, a

qualified licensed electrician is strongly recommended.

6. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 15.9 kg (35 pounds). Use

only cULus Listed outlet boxes marked “Acceptable for Fan Support

of 15.9 kg (35 lbs) or less”.

7. The fan must be mounted with a minimum of 2.1 m (7 feet) clearance

from the trailing edge of the blades to the floor.

8. To operate the reverse function on this fan, press the reverse

button while the fan is running.

9. Avoid placing objects in the path of the blades.

10. WARNING: make sure the power is disconnected before cleaning

your fan.

11. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

12. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be suitable

for most cleaning.

13. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

the ungrounded conductor on the other side of the outlet box.

14. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be cULus Listed and marked suitable for

use with the model fan you are installing. Switches must be cULus

General Use Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and retightened where necessary,

before installation.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO

NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.

DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

N.W. 10.2 KGS (22.4 LBS) / G.W. 12.3 KGS (27.1 LBS)

65" Imari | 3

TOOLS REQUIRED

PACKAGE CONTENTS

Unpack your fan and check the contents . You should have the following items:

A. Fan Blades (3)

B. Canopy & Ceiling

Mounting Bracket

C. Ball/Downrod Assembly

D. Coupling Cover

E. Fan Motor Assembly

F. Light Plate

G. 25W LED Light Kit

H. Decorative Ring

I. Receiver

J. Wall Transmitter

K. Part Bag Contents

1) Mounting Hardware:

Wire Nuts (3)

2) Blade Attachment Hardware:

Screws with Lock Washers (9),

Flat Washers (9)

• Phillips Screwdriver

• Blade Screwdriver

• 11 mm Wrench

• Step Ladder

• Wire Cutters

4 | KICHLER.COM

MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect

the power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box

and its support must be able to fully support the full weight

of the fan (up to 15.9 kg (35 pounds)). Do not use plastic outlet

boxes.

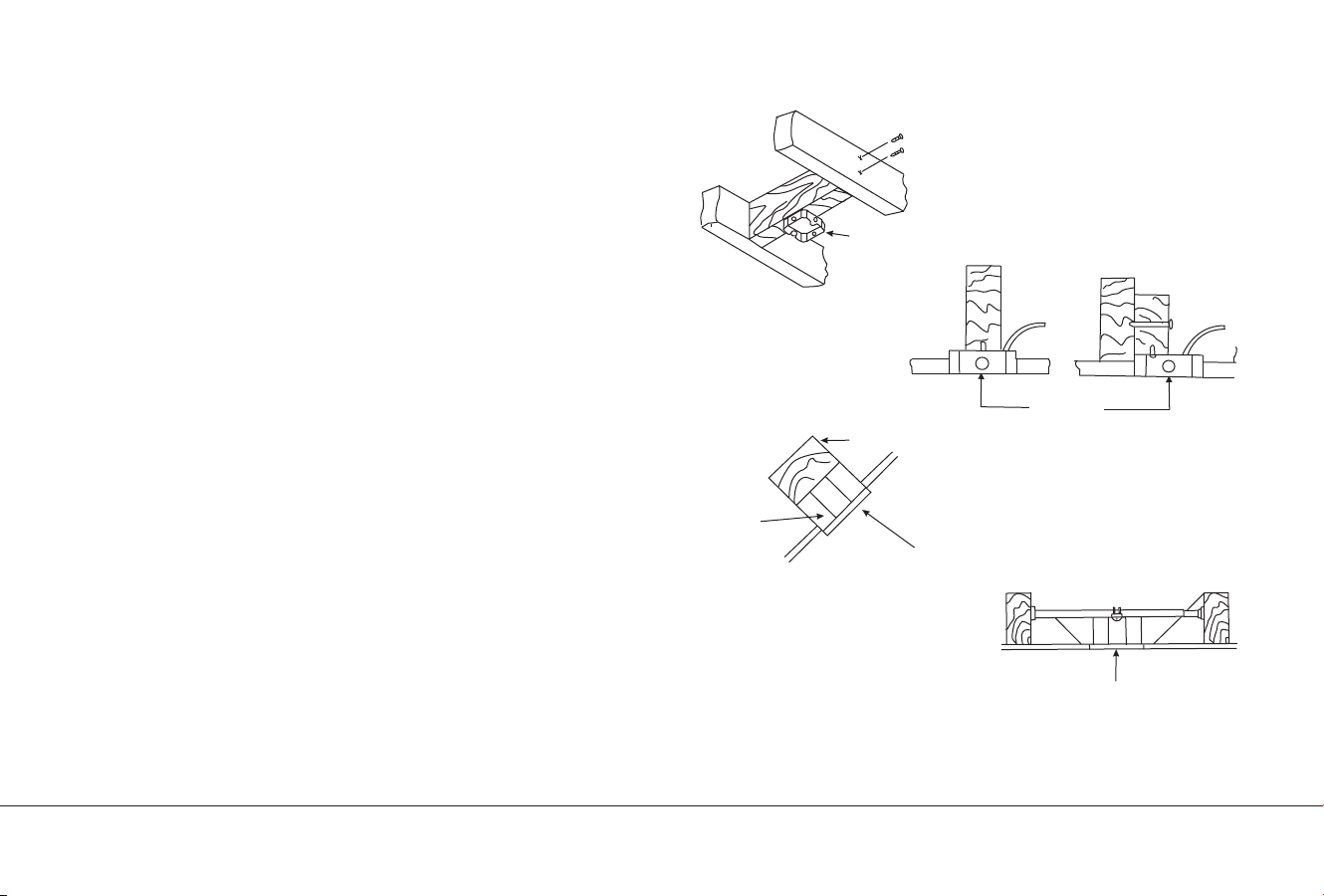

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist

Hanger” for the support of the outlet box. Make sure the joist

hanger you purchase has been designed for use with ceiling

fans. (Fig. 4)

Fig. 1

Outlet box

Fig. 2

Fig. 3

Fig. 4

Outlet box

Recessed

outlet box ceiling

Ceiling

mounting

plane

Provide strong

support

ANGLED CEILING

MAXIMUM 30° ANGLE

65" Imari | 5

HANGING THE FAN

REMEMBER to turn o the power before you begin.

To properly install your ceiling fan, follow the steps below.

Step 1. Remove the decorative canopy bottom cover from the canopy by

turning the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by removing

and saving one of the two screws. Loosen the remaining screw by a half turn.

(Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the

screws and washers included with the outlet box. (Fig.6)

Hanger Bracket

Fig. 5

Fig. 6

Ceiling

Canopy

Cover

cULus Listed

Electrical

Box

120V Wires

Washers

Mounting Screws

(Supplied with Electrical Box)

Ceiling

Mounting

Bracket

6 | KICHLER.COM

HANGING THE FAN

(continued)

WARNING: All set screws must be checked, and retightened where

necessary, before installation.

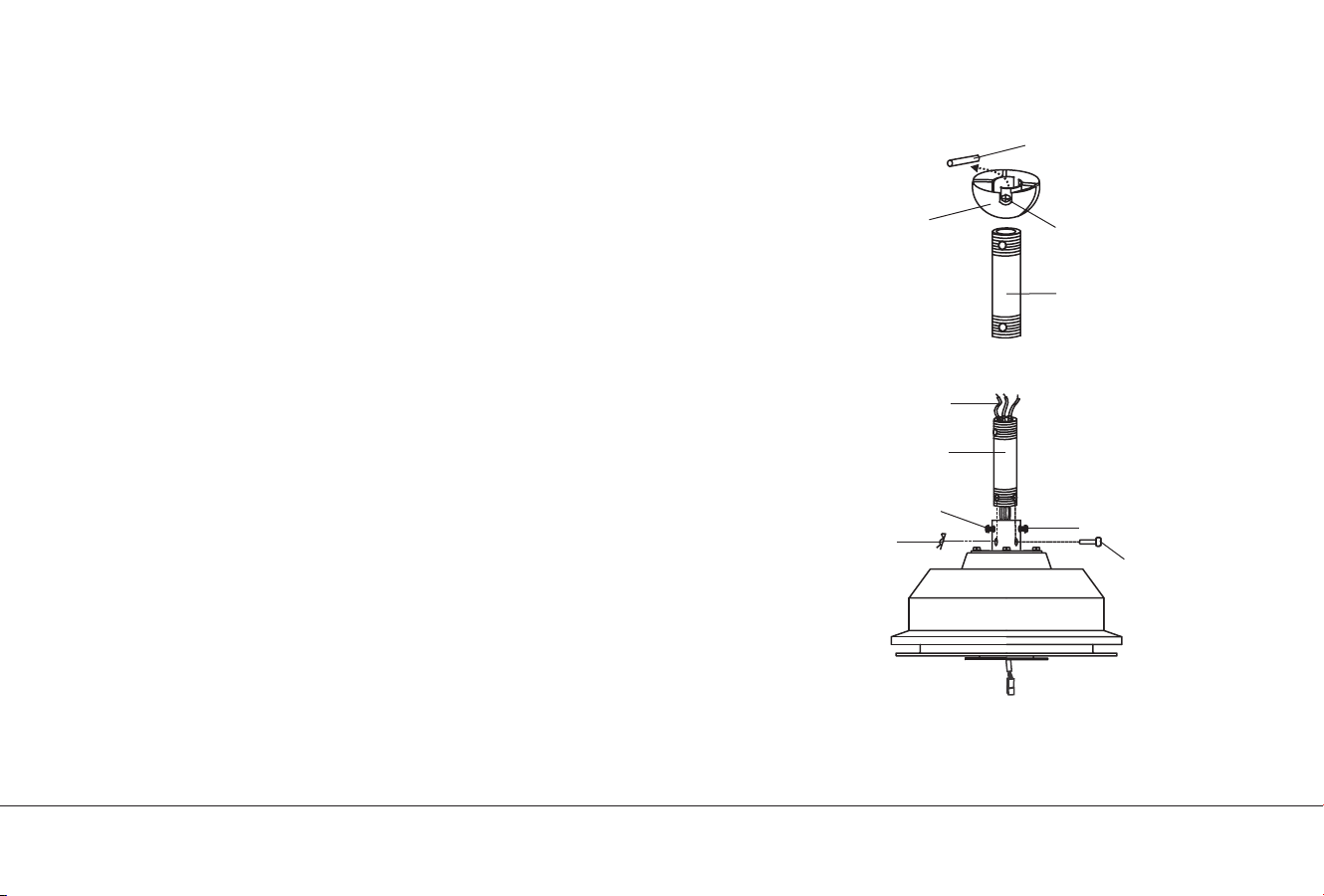

Step 5. Remove the hanger ball from the downrod assembly by loosening

the set screw, unscrewing and removing the cross pin and unscrewing the

ball o the rod. (Fig. 7)

Step 6. Loosen the two set screws and remove the hitch pin and retaining

clip from the coupling on top of the motor assembly. (Fig. 8)

Step 7. Carefully feed the electrical lead wires from the fan up through the

downrod. Thread the downrod into the coupling until the Hitch pin holes

are aligned.

Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)

NOTE: This fan comes with a 6" downrod. please cut o the electrical lead

wires If you do not plan use a longer downrod.

Fig. 7

Fig. 8

Cross Pin

Hanger

Ball Set Screw

Download

Supply Wires

Downrod

Set Screws

Hitch Pin

Retaining Clip

65" Imari | 7

HANGING THE FAN (continued)

Step 8. Slip the coupling cover, secure ring , canopy cover and canopy

onto the downrod. (Fig. 9)

Thread the hanger ball onto the downrod, insert the cross pin through

the downrod and tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position and place the hanger ball

into the ceiling mounting bracket.

Rotate the entire assembly until the “Check Tab” has dropped into the

“Registration Slot” and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated

properly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can

cause the fan to fall from the ceiling during operation. Take special care to

make sure this pin is reattached.

Fig. 9

Fig. 10

Canopy

Coupling Cover

Downrod

Canopy Cover

Set Screws

Hitch Pin Retaining

Clip

Registration

Slot

8 | KICHLER.COM

INSTALLATION OF SAFETY CABLE

(required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from falling,

please install it as follows.

Step 1. Attach the wood screw and washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and washers by

pulling the extra cable through the cable clamp until the overall length is correct,

put the end of the cable back through the cable clamp, forming a loop at the end

of the cable. Tighten the cable clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and under the washer. Tighten the wood

screw securely.

NOTE: Although the safety support cable is required for Canadian installations

only. It’s a good idea to make the attachment with any installation.

Step 3. Insert the receiver into the ceiling mounting bracket with the flat side

of the receiver facing the ceiling. (Fig. 12) For best performance, make sure the

Black Antenna, on the end of the receiver, remains extended and not tangled

with any of the electrical wires.

Fig. 11

Attach safety cable

to ceiling joist with

screw and washer

Ceiling mounting

bracket

Fig. 12

Receiver

Hanger

Bracket

65" Imari | 9

ELECTRICAL CONNECTIONS

WARNING: Carefully read and retain this Instruction Manual

for future reference.

WARNING: To avoid possible electrical shock, be sure the

electricity is turned o at the main panel by removing the fuse

or opening the circuit breaker.

WARNING: This control is designed for use with “DC Motor

Ceiling Fans” ONLY. DO NOT use with any other type of

electrical appliance.

WARNING: All wiring must conform to national and local

electrical codes. If you feel you do not have enough electrical

knowledge, have a licensed electrician install the control.

WARNING: The amperage for your fan should not exceed 1A.

The total wattage for the lights 300W.

Make each of the wire connections illustrated in Figure 13.

Secure each with the wire nuts provided.

A. CEILING FAN TO RECEIVER WIRE CONNECTION

Step 1. Connect the Blue wire from the fan (motor) to the Blue

wire from the receiver. White wire from the fan (motor) to the

White wire from the receiver. Red wire from the fan (motor) to

the Red wire from the receiver. Gray wire from the fan (motor)

to the Gray wire from the receiver. (Fig. 13)

Step 2. If you do not plan to use the light kit with your fan at this

time, please DO NOT connect the Blue and White wires, and

respectively secure the blue and white wires with the wire nut.

B. RECEIVER TO HOUSEHOLD WIRE CONNECTION

Step 1. Snap together the 2-P wire connection plugs from the

receiver and filter: Black to black , White to white. (Fig. 13)

Step 2. Connect the Ground conductor of the 120V supply to

the one Green wire from filter and one from the fan.

C. WALL CONTROL WIRE CONNECTION

Step 1. Black wire (TO MOTOR L) from the Wall Control to the

Black wire from the Wall Outlet Box. (Fig. 13)

Step 2. Black wire (AC IN L) from the Wall Control to the Black

wire from the Wall Outlet Box.

Step 3. Your wall outlet box has a ground wire (green or bare

copper), connect the wall control’s yellow/green ground wire

to it.

10 | KICHLER.COM

This manual suits for next models

Table of contents

Languages:

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Terna 300230 User manual

Kichler Lighting

Kichler Lighting Eads 310135 User manual

Kichler Lighting

Kichler Lighting Bellamy User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting ELLYS User manual

Kichler Lighting

Kichler Lighting HATTERAS BAY PATIOLED 60" User manual

Kichler Lighting

Kichler Lighting Golden Iridescence User manual

Kichler Lighting

Kichler Lighting Decor Dorset User manual

Kichler Lighting

Kichler Lighting Monarch II Select User manual

Kichler Lighting

Kichler Lighting Verdi User manual

Kichler Lighting

Kichler Lighting Maeve LED 52 User manual

Kichler Lighting

Kichler Lighting Highland Manor User manual

Kichler Lighting

Kichler Lighting Select Canfield 300107 User manual

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH User manual

Kichler Lighting

Kichler Lighting 65" GENTRY User manual

Kichler Lighting

Kichler Lighting Sunburst 300170 User manual

Kichler Lighting

Kichler Lighting Lija User manual

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR User manual

Kichler Lighting

Kichler Lighting Canfield Patio 310192 User manual

Kichler Lighting

Kichler Lighting sterling manor select User manual

Kichler Lighting

Kichler Lighting Lacey User manual

Kichler Lighting

Kichler Lighting 35157 User manual

Kichler Lighting

Kichler Lighting 330013 User manual

Kichler Lighting

Kichler Lighting Lucian II 330241 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
