Jacuzzi Verona User manual
WHIRLPOOL
BATH
R
INSTALLATION AND OPERATING MANUAL
J-CORNER SHOWER TOWER™
ENCLOSURE-Verona™
1
Important
The bath must be installed according to installation instructions (F258000) for the Verona™ whirlpool bath.
Follow the instructions to ensure that proper framing has been provided to support the J-Corner Shower Tower.
Finishing materials must be waterproof and sealed so that spray and condensation do not cause moisture dam-
age.
NOTE: The J-Corner Shower Tower has been partially pre-assembled for your convenience during
installation. The installer must still follow the instructions to ensure proper installation of the tower and
components (see page 11). We recommend that two persons perform this installation.
Contents
Exploded View of J-Corner Shower Tower _________________________________________________ 2
Shower Tower Hardware Identification Chart __________________________________________________ 4
Tower Assembly _______________________________________________________________________ 6
Water Lines to Mixer/Diverter Valve _________________________________________________________ 8
Attaching Diverter Valve to Shower Wall _____________________________________________________ 8
Tower Installation ______________________________________________________________________ 10
Tower Disassembly______________________________________________________________________ 11
Placing Tower __________________________________________________________________________ 12
Fixed Panel Assembly____________________________________________________________________ 13
Mounting Top Ring and Wall Bracket to Tower_________________________________________________ 15
Fixed Glass Frame End Attachment _________________________________________________________ 17
Sealing and Trimming ____________________________________________________________________ 18
Attaching Face Plate _____________________________________________________________________ 19
Handle Installation and Operation___________________________________________________________ 19
Tools Required
1. Drill.
2. Drill bits: 3/32", 1/8", 3/16", 5/16" and 9/32".
3. Flat blade screw driver, No. 1.
4. Phillips type blade screw driver, No. 2.
5. 5/16" or 8 mm deep socket or nut driver.
6. Caulking gun.
7. Sealant (silicone).
8. Adjustable wrenches (small and medium).
9. Allen wrenches: 1.5 mm, 2.5 mm, 3 mm and 5/64".
10. Step ladder.
2
FIXED PANEL
SEE PAGE 13 & 14
BAILS
SEE PAGE 6
FACEPLATE
SEE PAGE 19
WALLBAR
SEE PAGE 7
MIXER (INCLUDING
HOSE CONNECTIONS)
SEE PAGES 8 & 11
L EXTRUSION
SEE PAGE 18
L EXTRUSION
SEE PAGE 18 TOP RING
SEE PAGE 15 & 16
WALL BRACKET
SEE PAGE 15 & 16
TOWER
SEE PAGE 10
HANDLE
SEE PAGE 19
HAND HELD
SHOWER,
FLEX HOSE
SEE PAGE 19
WATER INLET
SEE PAGE 6
END EXTRUSION
SEE PAGE 17
3

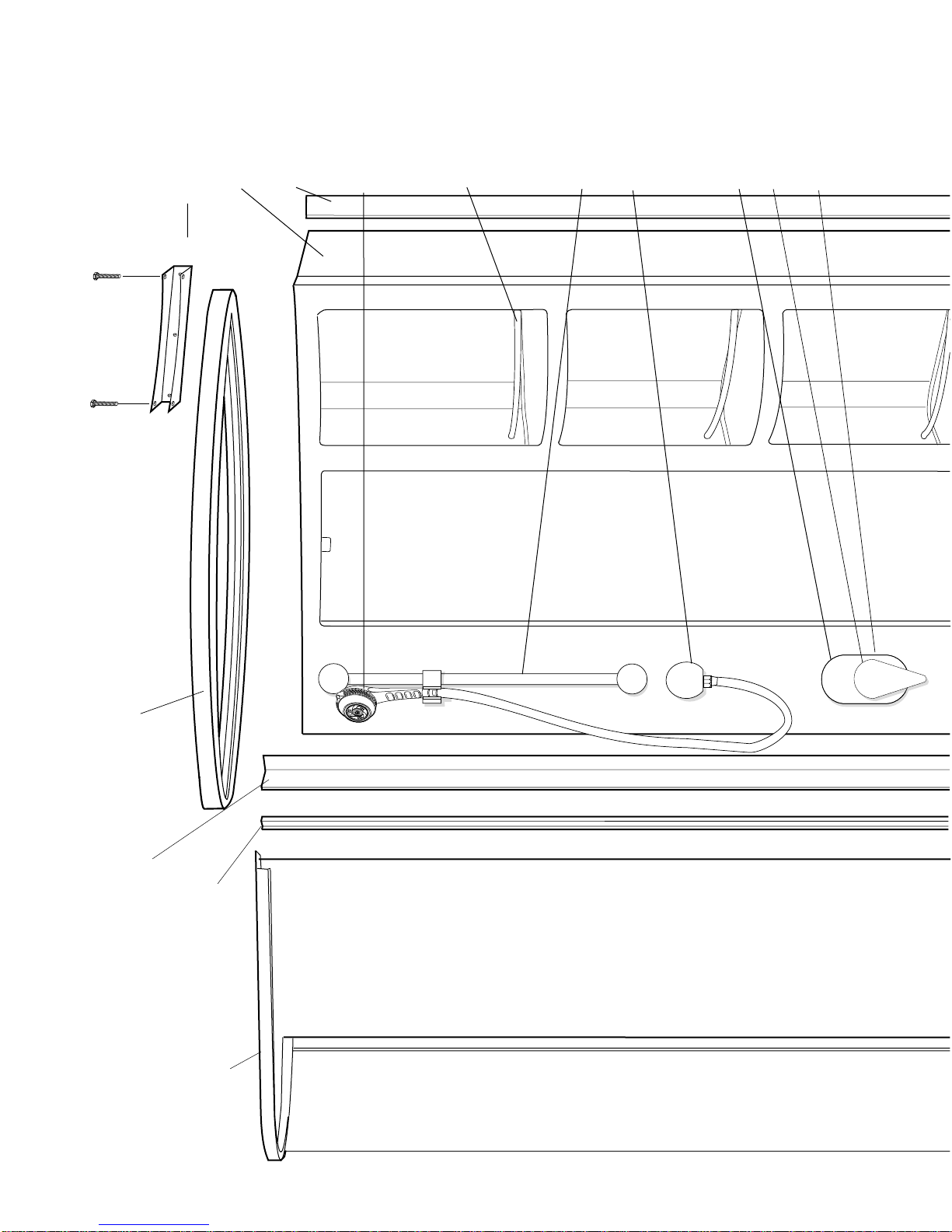

EXPLODED VIEW OF J-CORNER SHOWER TOWER
END CAP
SEE PAGE 18
BOTTOM RAIL
SEE PAGE 13 & 14
SET SCREW
SEE PAGE 14
4
Shower Tower Hardware
Identification Chart
The diagrams for these fasteners are shown actual size for fast identification.
HARDWARE
ZLOW TRACK
END CAP
CAP
QTY. -1
EXTERNAL TOOTH
LOCK-WASHER #8
STAINLESS STEEL
WASHER
QTY.-1
Y
SHEET METAL
SCREW
#8-18X2" S.S.
XSCREW
QTY.-1
SCREW, HEX
WASHER BOLT
1/4-20X2.5"
WBOLT
QTY.-2
SHEET METAL
SCREW
#10-16X2" S.S.
SCREW
QTY.-3
V
FLAT WASHER
#10 TYPE A
STAINLESS STEEL
WASHER
QTY.-3
U
HEX LOCKNUT #8-32
NUT
QTY.-1
T
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-10
S
M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-9
R
PAN HEAD SCREW
#8-32X1/2"
STAINLESS STEEL
SCREW
QTY.-3
Q
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-8
P
PIN #8-32
.25DIAX1"
PIN
QTY.-3
O
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
WASHER
QTY.-8
D
SCREW
QTY.-8 SET SCREW
6X32
C
NUT
QTY.-8 HEX NUT
10X32
B
BOLT
QTY.-8 SLOT FASTENER
10X32
A
AA SET SCREW
#8-32 x 1 1/2"
SCREW
QTY.-1
5
Shower Tower Hardware
Identification Chart
The diagrams for these fasteners are shown actual size for fast identification.
HARDWARE
NUT
QTY.-1
J
WASHER
QTY.-1
I
WATER INLET HARDWARE
LOCKNUT
1/2"-14NPT
FIBRE WASHER
1.24 DIA
WALL BAR HARDWARE
FLATHEAD SCREW
#10-24 x 2 1/2"
STAINLESS STEEL
SCREW
QTY.-2
E
WASHER
QTY.-2
F
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
HEX LOCKNUT
#10-24
H
NUT
QTY.-2
FLAT WASHER
#10, TYPE B
GWASHER
QTY.-2
MIXER HARDWARE
FOAM GASKET
3"O.D.
EE GASKET
QTY.-1
FLAT WASHER
#10
WASHER
QTY.-1
DD
SCREW
#10-24
SCREW
QTY.-1
HANDLE HARDWARE
BB
WHIRLPOOL
BATH
R
SCREW
QTY.-6
N
CROSS RECESS
SCREW M4X12
STAINLESS STEEL
MWASHER
QTY.-3
EXTERNAL TOOTH
LOCK-WASHER M4
STAINLESS STEEL
STANDOFF
QTY.-3
L
KWASHER
QTY.-1 FIBER WASHER
.75 O.D.
CAP
QTY.-1
CC
PLUMBING HARDWARE
TOWER ASSEMBLY
1. Assemble the four (4) bails to the tower wall.
(See Illustration 1.) Do not overtighten the
nuts on the threaded shaft end. Overtighten-
ing may break the stud.
BAIL
ILLUSTRATION 1
BAIL
SET SCREW (8)
BOLT (8)
SHELF
NUT (8)
C
A
B
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
WASHER (8) D
WASHER
QTY.-8
D
BOLT
QTY.-8
NUT
QTY.-8
SCREW
QTY.-8
A
B
C
SLOT
FASTENER
10 X32
HEX NUT
10 x 32
SET SCREW
6 x 32
2. Attach the water inlet to the tower wall.
(See Illustration 2.)
NUT
QTY.-1
JLOCKNUT
1/2"-14NPT
FIBER WASHER
1.24 DIA
WASHER
QTY.-1
I
J NUT
CAULK
I WASHER
WATER
INLET
TOWER
WALL
WATER INLET
ILLUSTRATION 2
6
7
3. Attach the wallbar assembly to the tower wall.
(See Illustration 3.)
FLATHEAD SCREW
#10-24 x 2 1/2"
STAINLESS STEEL
H
G
ILLUSTRATION 3
1/8" BEAD OF CAULK
WALLBAR STAND-OFF
EXTERNAL TOOTH
WASHER F (2)
SCREW E (2)
CAP
SIDE VIEW
OF WALLBAR
WALLBAR
SHOWER HEAD
BRACKET
SOAPDISH
SHOWER
WALL
KEP
NUT
H (2)
FLAT
WASHER
G (2)
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
HEX LOCKNUT
#10-24
FLAT WASHER
#10, TYPE B
WASHER
QTY.-2
NUT
QTY.-2
WASHER
QTY.-2
F
SCREW
QTY.-2
E
SCREW
#10-24x4"
S.S.
PARTS NOT NEEDED
SCREW
QTY.-2
1
TOGGLE NUT
10-24
NUT
QTY.-2
2
WALL BAR
ILLUSTRATION 5
ATTACHING MIXER VALVE TO SHOWER WALL
SCREW
QTY.-3
N
CROSS RECESS
HEAD SCREW M4X12
STAINLESS STEEL
EXTERNAL TOOTH
LOCK-WASHER M4
STAINLESS STEEL
MWASHER
QTY.-3
ILLUSTRATION 4
WATER LINES TO MIXER VALVE
✳
USE
THREAD
SEALANT
SCREWS (3)
WASHER (3)
N
M
K
WASHER
QTY.-1
FIBER WASHER
.75 O.D.
L
STANDOFF
QTY.-3
COLD WATER
LINE (48")
HOT WATER
LINE (48")
MIXER VALVE
M/F 90°ELBOW
M/F 90°
ELBOW
✳
✳
✳
✳
✳
SCREW (6)
N
STANDOFF (3) L
SCREW
QTY.-3
N
TO WATER INLET
PLUG
WASHER
K
WATER SUPPLY
TO SHOWER (12")
M/F 90°ELBOW
8
4. Attach the Hot/Cold water lines and shower line to the
mixer valve. Use an approved thread sealant on
threads. Attach standoffs to the mixer valve. (See
Illustration 4.)
5. Attach the mixer valve to the shower wall. (See Illustra-
tion 5.)
