Intersil ISL32740EVAL1Z User manual
Rev 1.00 Aug 2017
User’s Manual
ISL32740EVAL1Z
User’s Manual: Evaluation Board
Industrial Precision
UG119 Rev.1.00 Page 2 of 10
Aug 24, 2017
UG119
Rev.1.00
Aug 24, 2017
ISL32740EVAL1Z
Evaluation Board
USER’S MANUAL
1. Overview
The ISL32740EVAL1Z board enables the evaluation of the ISL32740EIBZ isolated, half-duplex RS-485 transceiver in
a typical bus node application, used in isolated industrial networks.
1.1 Features
• Drive capability of up to 160x1/5UL-transceivers
• Isolated 3.3V to 5V DC/DC converter with regulated output
1.2 Specifications
This board has been configured and optimized for the following operating conditions:
• Up to 40Mbps data rate
•V
CC = 3.3V
1.3 Related Literature
• For a full list of related documents, visit our website
•ISL32740E product page
1.4 Ordering information

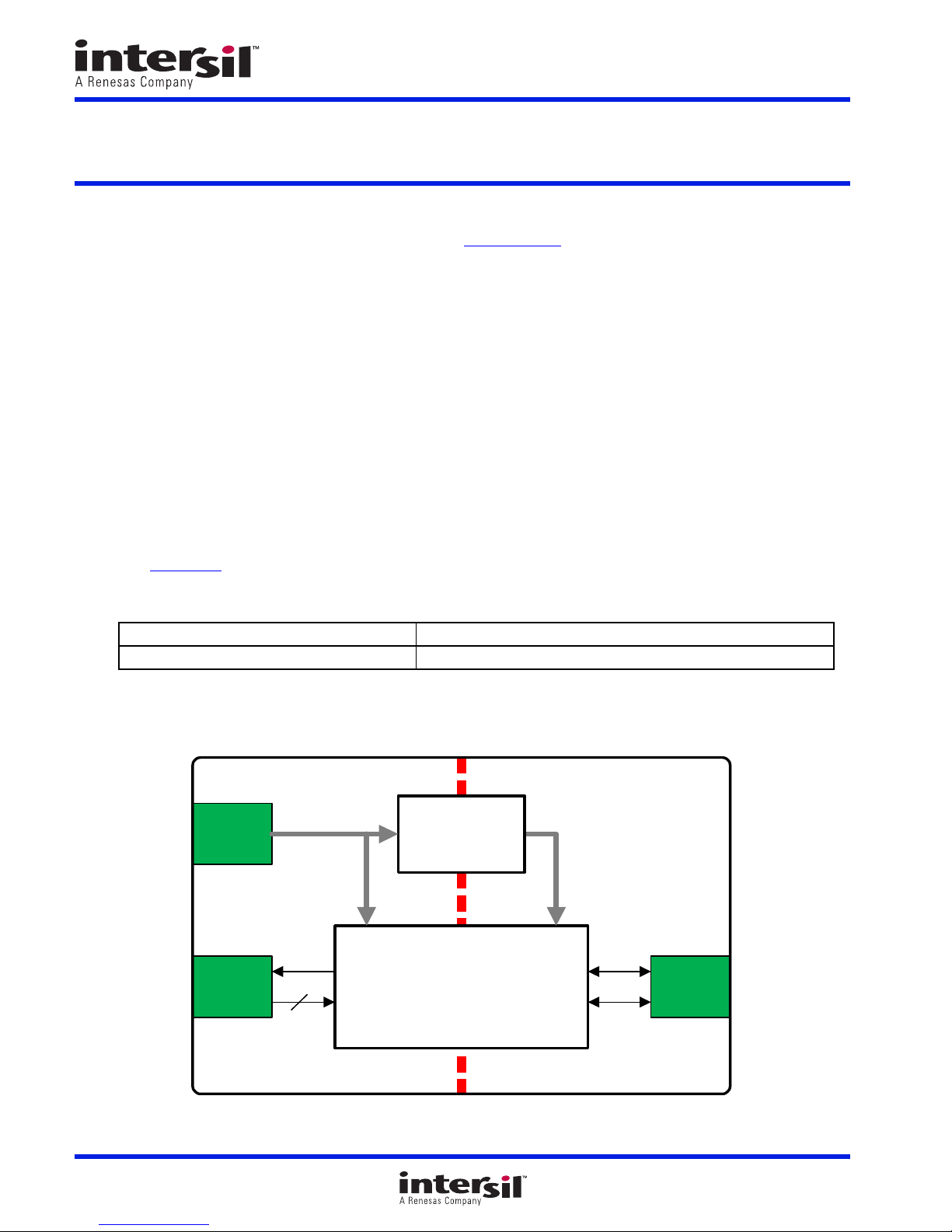

1.5 Block Diagram
Figure 1. Block Diagram
Part Number Description
ISL32740EVAL1Z ISL32740EIBZ evaluation board
LOGIC
I/O
RS-485
I/O
3.3V
SUPPLY
J5J2
J1
ISL32740EIBZ
ISOLATED
RS-485
TRANSCEIVER
ISOLATED
DC-DC
CONVERTER
5V
3
UG119 Rev.1.00 Page 3 of 10
Aug 24, 2017
ISL32740EVAL1Z 2. Functional Description
2. Functional Description
The ISL32740EIBZ is an isolated, 40Mbps, half-duplex RS-485 transceiver. The device incorporates a patented
refresh circuit to maintain the correct output state with respect to data input. At power-up, the bus outputs follow the
truth tables shown in Tables 1 and 2.
The DE input should be held low during power-up to prevent false drive data pulses on the bus. This is accomplished by
connecting DE using a 10kΩ pull-down resistor to GND1.
This transceiver uses a differential input receiver for maximum noise immunity and common-mode rejection. Input
sensitivity is ±200mV, as required by the RS-485 specification.
The receiver input resistance is 54kΩ minimum. The receiver includes a “fail-safe if open” function that ensures a
high-level receiver output if the receiver inputs are unconnected (floating). The receiver output is tri-statable through
the active low RE input.
The RS-485 driver is a differential output device that delivers at least 2.1V across a 54Ω purely differential load. The
driver features low propagation delay skew to maximize bit width and to minimize EMI.
The driver in the ISL32740E is tri-statable through the active high DE input. The outputs of the ISL32740E driver are
not slew rate limited, so faster output transition times allow data rates of at least 40Mbps.
Important Notice:
For convenience, an isolated DC/DC converter is used to provide the power supply across the isolation barrier. Its
isolation ratings however, are lower than those of the transceiver. Therefore, it must be ensured that the ground
potential difference between the left side (GND1, GND2) and the right side (GND3, GND4) of the board remain below
50VAC (see Figure 2.1 on page 4).
2.1 Truth Tables
Note: *Transceiver shutdown mode.
Table 1. Truth Table - Receiving
Receiving
Inputs Output
RE DE A-B RO
00 V
AB ≥ -0.05V 1
0 0 -0.05V > VAB > -0.2V Undetermined
00 V
AB ≤ -0.2V 0
0 0 Inputs Open/Shorted 1
1 1 X High-Z
10 X High-Z*
Table 2. Truth Table - Transmitting
Transmitting
Inputs Outputs
RE DE D ISODE B A
X11101
X10110
0 0 X 0 High-Z High-Z
1 0 X 0 High-Z* High-Z*
UG119 Rev.1.00 Page 4 of 10
Aug 24, 2017
ISL32740EVAL1Z 3. PCB Layout Guidelines
3. PCB Layout Guidelines
Both supplies, VDD1 and VDD2, must be bypassed with 100nF ceramic capacitors. These should be placed as close as
possible to the supply pins for proper operation.
3.1 ISL32740EVAL1Z Evaluation Board
Figure 2. Top Side
Figure 3. Bottom Side
UG119 Rev.1.00 Page 5 of 10
Aug 24, 2017
ISL32740EVAL1Z 3. PCB Layout Guidelines
3.2 ISL32704EVAL1Z Circuit Schematic
Figure 4. ISL32740EVAL1Z Schematic
UG119 Rev.1.00 Page 6 of 10
Aug 24, 2017
ISL32740EVAL1Z 3. PCB Layout Guidelines
3.3 Bill of Materials
Manufacturer Part Qty
Reference
Designator Description Manufacturer
ISL32740EVAL1ZREVAPCB 1 PWB-PCB, ISL32740EVAL1Z, REVA, ROHS Imagineering Inc
ISL32740EIBZ 1 U1 ISOLATED, 40Mbps, HALF-DUPLEX RS-485
TRANSCEIVER, ROHS
Intersil
R1Z-3.305/P 1 U2 ISOLATED 3.3V-TO-5V DC/DC CONVERTER WITH
REGULATED OUTPUT, ROHS
RECOM Power
CR0805-8W-1002FT
(Pb-FREE)
4 R1 - R3, R7 RES, SMD, 0805, 10k, 1/8W, 1%, TF, ROHS Venkel
RK73H2AT1330F 1 R5 RES, SMD, 0805, 133Ω, 1/8W, 1%, TF, ROHS KOA
RC0805FR-07549RL 2 R4, R6 RES, SMD, 0805, 549Ω, 1/8W, 1%, TF, ROHS Yageo
C0805X5R160-106KNE 2 C1, C3 CAP, SMD, 0805, 10µF, 16V, 10%, X5R, ROHS Venkel
ECJ-2VB1E104K 2 C2, C4 CAP, SMD, 0805, 0.1µF, 25V, 10%, X7R, ROHS Panasonic
1725656 1 J1 CONN-TERMINAL BLK, TH, 2P, 6A, 125V, 20-30AWG,
2.54mm, ROHS
Phoenix Contact
1725672 2 J2, J5 CONN-TERMINAL BLOCK, 4POS, 0.1, 26-20AWG,
63V, 6A, ROHS
Phoenix Contact
5001 4 GND1 - GND4 CONN-MINI TEST PT, VERTICAL, BLK, ROHS Keystone
5003 6 A, B, D, R, DE, RE# CONN-MINI TEST POINT, VERTICAL, ORG, ROHS Keystone
S-2261 1 Place assy in bag BAG, STATIC, 4x6, ZIPLOC, ROHS ULINE
LABEL-DATE CODE 1 Affix to back of PCB LABEL-DATE CODE_LINE 1: YRWK/REV#, LINE 2:
BOM NAME
Intersil
UG119 Rev.1.00 Page 7 of 10
Aug 24, 2017
ISL32740EVAL1Z 3. PCB Layout Guidelines
3.4 Board Layout
Figure 5. Silkscreen Top Figure 6. Top Layer
Figure 7. Silkscreen Bottom Figure 8. Bottom Layer
UG119 Rev.1.00 Page 8 of 10
Aug 24, 2017
ISL32740EVAL1Z 4. Performance Curves
4. Performance Curves
Figure 9. Transmit Mode (DR = 4Mbps) Figure 10. Receive Mode (DR = 4Mbps)
Figure 11. Transmit Mode (DR = 40Mbps) Figure 12. Receive Mode (DR = 40Mbps)
DI
A
B
TIME: 80ns/DIV
SIGNAL: 2V/DIV
A
B
TIME: 80ns/DIV
SIGNAL: 2V/DIV
RO
DI
A
B
TIME: 10ns/DIV
SIGNAL: 2V/DIV
RO
A
B
TIME: 10ns/DIV
SIGNAL: 2V/DIV
ISL32740EVAL1Z 5. Revision History
Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the
reader is cautioned to verify that the document is current before proceeding.
For information regarding Intersil Corporation and its products, see www.intersil.com
© Copyright Intersil Americas LLC 2017. All Rights Reserved.
All trademarks and registered trademarks are the property of their respective owners.
UG119 Rev.1.00 Page 9 of 10
Aug 24, 2017
5. Revision History
Rev. Date Description
1.00 Aug 24, 2017 Updated Truth Tables on page 3.
0.00 Apr 3, 2017 Initial release
