Interlogix UVD-XP4DNR(-P) User manual

P/N 1079204B-EN • REV 1.0 • ISS 15JUN12

UVD-XP4DNR(-P) Camera

User Manual

Trademarks and patents

Interlogix, UltraView brand and logo are trademarks of UTC Fire & Security.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

1275 Red Fox Rd., Arden Hills, MN 55112 6943, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance

Class A:

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated i

n a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

European Union directives

2004/108/EC (EMC directive):

Hereby, UTC Fire & Security declares that this device is in

compliance with the essential requirements and other relevant provisions of Directive

2004/108/EC

ACMA compliance

Notice!

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user m

ay be required to take adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB

-0330 du Canada.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the European Union. For proper recycling, return this product

to your local supplier upon the purchase of equivalent new equipment, or dispose of it at

designated collect

ion points. For more information see: www.recyclethis.info.

Contact information

www.interlogix.com

www.utcfssecurityproducts.eu

UVD-XP4DNR(-P) Camera User Manual i

Content

Preface 3

Safety terms 3

Product description 4

Features 4

User guidelines 4

Components 5

OSD control pad 6

Installation 6

Cable connection 6

Camera installation 7

Angle adjustment 7

Focus adjustment 7

Connect the monitor 8

Programming 9

Main menu 9

Presets menu 10

Setup menu 10

Viewing menu 13

Exposure menu 13

White balance menu 14

Save/restore menu 15

Menu Map 18

UVD-XP4DNR(-P) Camera User Manual 3

Preface

This is the UVD-XP4DNR(-P) Camera. This document includes an overview of

the product and detailed instructions explaining:

• how to connect the camera; and

• how to program the camera.

• how to adjust the camera angle and focus

To use this document effectively, you should have the following minimum

qualifications:

• a basic knowledge of CCTV systems and components; and

• a basic knowledge of electrical wiring and low-voltage electrical connections.

Note: A qualified service person, complying with all applicable codes, should

perform all required hardware installation.

Safety terms

These terms may appear in this manual:

CAUTION: Cautions identify conditions or practices that may result in damage to

the equipment or other property.

WARNING: Warnings identify conditions or practices that could result in

equipment damage or serious personal injury.

4 UVD-XP4DNR(-P) Camera User Manual

Product description

The UVD-XP4DNR(-P) (rugged dome) color video cameras is a 24 VAC/12 VDC

model. The cameras are equipped with a digital signal processor (DSP) for

processing the video signal.

Features

Camera features include:

• Next-generation XPosure technology.

• Improved low-light performance and color balance.

• 540 TVL lines color.

• Dynamic range 95 dB (typical), 120 dB (maximum).

• Preset modes optimized for various environments.

• On-screen display interface.

User guidelines

Use the following guidelines:

• Program as many camera settings as possible before mounting the camera.

Take appropriate safety precautions while completing programming after

installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the

camera.

Do not use the camera outside the temperature range specifications: -22 to 122°F

(-30 to +50°C).

• If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

WARNING: To reduce the risk of fire or electronic shock, do not expose the

camera to rain or moisture and do not remove the cover or back.

UVD-XP4DNR(-P) Camera User Manual 5

Components

Figure 1 shows the main components of the rugged dome unit.

Figure 1: Rugged dom2e unit

Lens body Bubble

Camera body OSD control pad Video monitor output

Figure 3 shows the monitor output components.

Figure 2: Monitor output cable

A. Monitor output BNC B. Monitor output RCA

Plug the monitor output RCA into the video monitor output and connect the

monitor output BNC to the TV monitor.

6 UVD-XP4DNR(-P) Camera User Manual

OSD control pad

The on-screen display (OSD) control pad (Figure 4) is a five-direction joystick

that provides the ability to manually control the camera functions. Table 1 below

lists the OSD control pad functions and describes their use.

Figure 3: OSD control pad

OSD control pad

Table 1: OSD control pad controls

Pad directions

Desc

ription

Moves the cursor upward to select an item

Left

Moves the cursor left to select or adjust the parameters of the selected

item.

Right

Moves the cursor to the right to select or adjust the parameters of the

selected item.

Down

Moves the cursor downward to

select an item.

Enter

ress the center of the control pad to display the Setup menu.If the selected item

as its own menu, press the control pad to enter a submenu. Press the control pad

or 2 seconds to save all settings and exit the Setup menu.

Installation

This chapter provides information on how to install the camera and adjust

camera angle and focus.

To install the camera you will need to prepare the mounting surface, make cable

connections, and mount the camera.

Cable connection

To make cable connections, do the following:

1. Connect a coaxial cable from the camera’s BNC connector to a CCTV

monitor or video recording device.

2. Connect a 12 VDC or 24 VAC power supply to the power input. The label on

the camera gives the following information:

Red cable. Power in.

Black cable. Power in.

White cable. Video out.

UVD-XP4DNR(-P) Camera User Manual 7

Black cable. Video ground.

Note: For AC24V or DC12V, Black or Red may be used for ground.

Camera installation

To mount the camera, attach the camera to the mounting surface using the

appropriate fasteners.

Angle adjustment

To adjust the horizontal angle of the platform up to 180 degrees, turn the platform

(Figure 4 below).

To adjust the horizontal angle of the rotor up to 350 degrees, turn the rotor on the

platform (Figure 4 below).

To adjust the vertical angle of the platform up to 90 degrees, turn the platform

(Figure 4 below).

Figure 4: Camera adjustment

Platform horizontal adjustment

Platform vertical adjustment

Rotor horizontal adjustment

Focus adjustment

To adjust the camera zoom and focus, see Figure 5 on page 8 and do the

following:

1. Loosen the zoom ring thumbscrew.

2. Turn the zoom ring to set the desired zoom.

3. Tighten the zoom ring thumbscrew.

4. Loosen the focus ring thumbscrew.

5. Turn the focus ring to set the desired focus.

6. Tighten the focus ring thumbscrew.

8 UVD-XP4DNR(-P) Camera User Manual

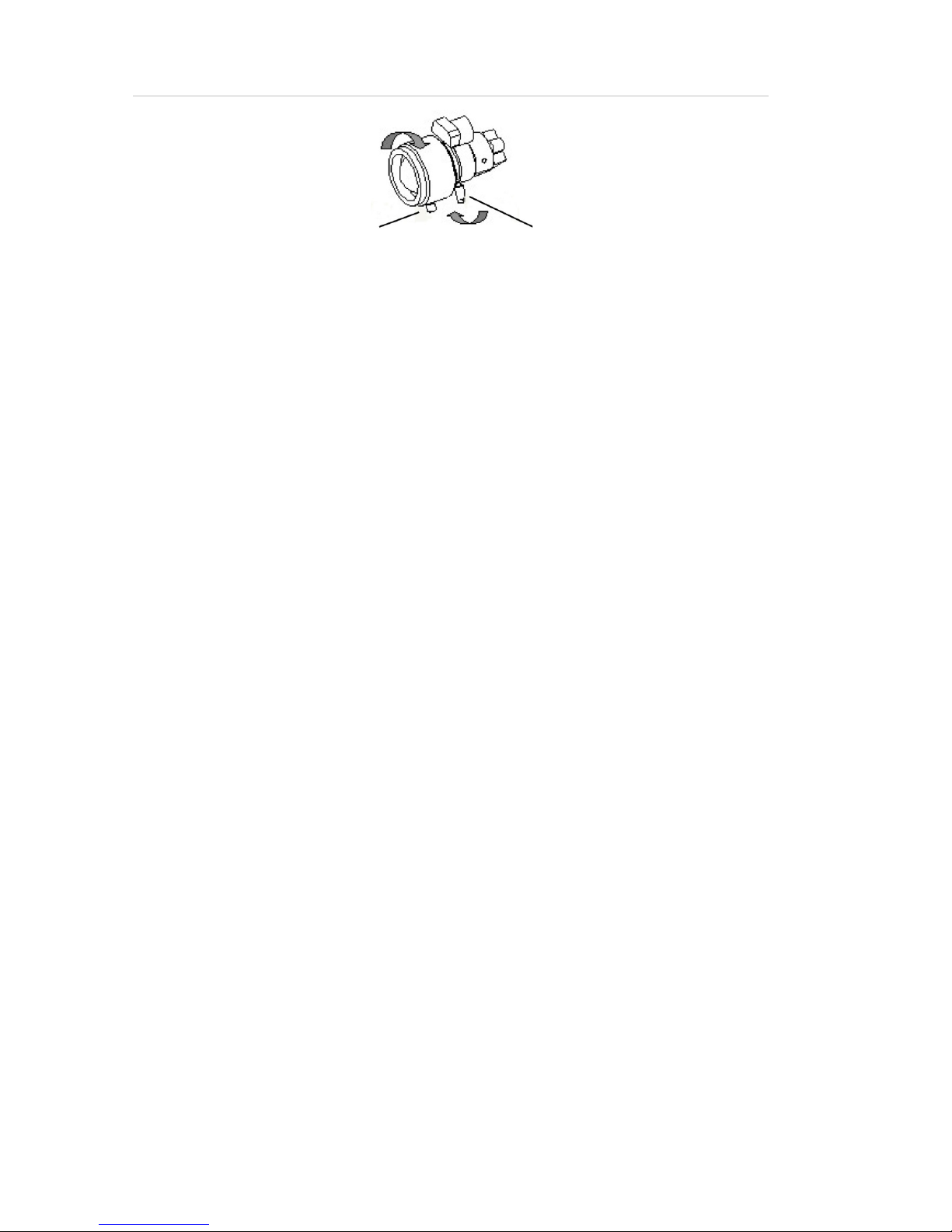

Figure 5: Zoom and focus adjustment

Zoom ring thumbscrew for VA2 and focus ring for

VA9 lens Focus ring thumbscrew for VA2 and zooming ring

for VA9 lens

Connect the monitor

Program the cameras by attaching a standard video monitor to the system.

To connect the monitor, do the following:

1. Plug the monitor output cable (Figure 2 on page 5) to the video monitor output

connector (Figure 1 on page 5).

2. Connect the BNC cable to the video monitor.

3. Press Enter (see OSD control pad on page 9) to display the Setup menu.
