Interlogix 4 SERIES Instruction sheet

TruVision HD-TVI Series 4

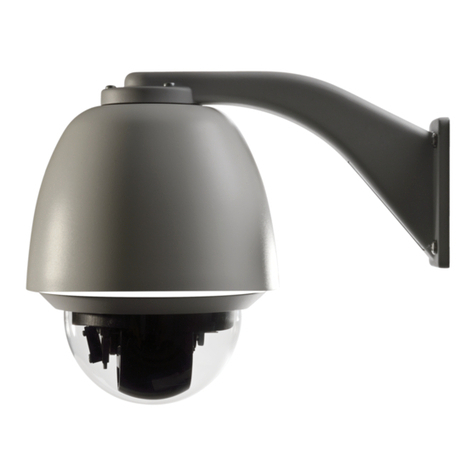

PTZ Dome Camera

Configuration Manual

P/N 1073207-EN • REV C • ISS 03FEB17

2017 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security

, a unit of United

Technologies Corporation.

Trademarks and

patents

Trade names used in this document may be trademarks or registered

trademarks of the manufacturers or vendors of the respective

products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Building & Industrial Systems B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

Contact information

For contact

information, see www.interlogix.com or

www.utcfssecurityproducts.eu

TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual 1

Content

Introduction 2

HD-TVI 1080P Non-IR Dome Cameras 2

HD-TVI 1080P IR Dome Cameras 2

Programming 3

Call up the camera OSD menu 3

Menu tree 4

Configuration 5

System Info 5

Dome Settings 5

System Settings 5

Camera Settings 8

Motion Parameter 11

Presets 12

Preset Tour 13

Timing Task 14

Shadow Tour 15

Privacy Mask 15

Alarm Input 16

Alarm Output 18

Clear Settings 18

Zones 18

Video Setting 19

IR Parameter 19

Restore Camera 20

Restore Settings 20

Reboot Dome 20

Language 20

2 TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual

Introduction

This is the configuration manual for following camera models:

HD-TVI 1080P Non-IR Dome Cameras

TVP-2401 (30X, Pendant /Wall mount, PAL)

TVP-2402 (30X, Surface/Flush mount, PAL)

TVP-4401 (30X, Pendant /Wall mount, NTSC)

TVP-4402 (30X, Surface/Flush mount, NTSC)

HD-TVI 1080P IR Dome Cameras

TVP-2403 (30X, Pendant/Wall mount, IR, PAL)

TVP-4403 (30X, Pendant/Wall mount, IR, NTSC)

TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual 3

Programming

Once the camera hardware has been installed, the camera can be configured

using a HD-TVI DVR menu.

You can also configure the camera settings via a DVR. Select the PTZ protocol

TruVision Coax and click the menu button to call up the menu.

Call up the camera OSD menu

To set up the camera:

1. Set up the camera hardware as described in the installation manual.

2. Under Camera Settings of the DVR, access the PTZ menu and set the

protocol for the TruVision HD-TVI camera to TruVision-Coax.

Note: The TruVision-Coax protocol will always be enabled.

3. In live view of the desired camera, click the PTZ Control icon on the live view

toolbar to access the PTZ control panel.

4. To call up the camera setup menu:

From the camera, press the Menu button (if present).

— or —

From the local live view of the DVR, select Menu from the PTZ control panel

or call Preset 95.

— or —

From the remote live view of the DVR, call Preset 95.

The camera setup menu appears (see “Menu tree” on page 4 for the menu

structure).

5. Select the menu options:

From the DVR: To select an OSD item, click the directional buttons up/down.

To adjust the value of a selected item, click the directional buttons left/right.

From the camera (if it has a Menu button): To select an OSD item, push

the Menu button up/down. To adjust the value of a selected item, push the

Menu button left/right.

6. Click Iris+ to enter the submenu or to confirm the selected item.

7. When the setup is complete, select Exit and click Iris+ to exit the camera

OSD.

Note: You cannot exit the camera setup menu using the Menu button on the

camera.

4 TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual

Menu tree

The menu tree of the TruVision 1080P HD-TVI PTZ domes is shown below.

TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual 5

Configuration

This section describes how to set up the menu settings.

System Info

Display the current system information of the PTZ dome, including model,

address, protocol, etc.

Note:

Information on this menu cannot be edited.

The temperature refers to the internal temperature of the PTZ dome.

Dome Settings

System Settings

You can check and edit the system information of the software address, baud

rate, system time, etc. on the system information settings menu.

Note: Click the left and right directional buttons in the PTZ control panel via the

web browser of the encoder to enter the next page and return to the previous

page of the submenu if more than one page is available.

Note:As TruVision recorders do not support an address greater than 255, a soft

address greater than 255 will not support any protocol even though the camera

supports 8190 for UTC-RS485 (Interlogix-Protocol) and 512 for DIGIPLEX and

ASCII. However, you can have an address greater than 255 for legacy products

that supports UTC-RS-485 (Interlogix-Protocol), DIGIPLEX or ASCII.

SOFT ADDRESS This is the address to connect and control the HD-TVI PTZ dome. It

can be used as an alternative to the hard address if, for example, the

address must be above the available hard address.

SET SOFT

ADDRESS ON: The soft address is the valid address for the HD-TVI PTZ dome.

The selectable soft address range is from 1 to 255.

OFF: This refers to the hard address. Use the DIP switch to set the

valid address for the HD-TVI PTZ dome.

SOFT BAUDRATE This is the valid baud rate for the HD-TVI PTZ dome with the soft

address.

6 TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual

SET SOFT BAUD ON: The soft baud rate is the valid baud rate for the HD-TVI PTZ

dome. Select 2400, 4800, 9600 or 19200.

OFF: Use the DIP switch to set the baud rate.

BROADCAST

ADDR When set to ON, the control device with address 0 can control all

domes connected to it.

PELCO This is used for Pelco-P and Pelco-D protocols.

If the video freezes, set PELCO to ON to improve the video quality.

SYSTEM TIME 1. Move the cursor to SYS TIME using the directional buttons

and click IRIS+ to enter.

2. Click the left/right directional buttons to position the cursor on

the specific item (year/month/day or hour/minute/second) of

which you want to change the value.

3. Click the up/down directional buttons to increase/decrease the

value.

4. Click IRIS+ button to confirm the settings and exit.

Y - M - D 12 12 12

H - M - S 15 33 25

DONE : OPEN

QUIT : CLOSE

ANGLE ZERO Define the angle zero of the PTZ dome.

Angle zero is when the PT position of the dome is 0,0. Use this

function to set the angle zero.

DISPLAY

SETTINGS Enable or disable the on-screen display of PTZ movements, alarms,

time, presets, zone, address, error rate, and fan/heat show, etc.

DISPLAY SETTINGS

ZOOM RATIO ON

P/T ANGLE ON

ALARM OFF

TIME ON

PRESET LABEL ON

ZONE OFF

ADDRESS OFF

BACK EXIT

DISPLAY SETTINGS

ERROR RATE OFF

FAN/HEAT OFF

BACK EXIT

ZOOM RATIO ON: Enable the on screen display of zoom

ratio.

OFF: Disable the on screen display of zoom

ratio.

2: The ZOOM RATIO will display on screen for

2 seconds.

5: The ZOOM RATIO will display on screen for

5 seconds.

10: The ZOOM RATIO will display on screen

for 10 seconds.

TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual 7

P/T ANGLE ON: Enable the on screen display of P/T angle.

OFF: Disable the on screen display of P/T

angle.

2: The P/T angle will display on screen for 2

seconds.

5: The P/T angle will display on screen for 5

seconds.

10: The P/T angle will display on screen for 10

seconds.

ALARM ON: Enable the on screen display of alarm

message.

OFF: Disable the on screen display of alarm

message.

TIME ON: Enable the on screen display of zoom

ratio.

OFF: Disable the on screen display of zoom

ratio.

PRESET LABEL ON: Enable the on screen display of preset

label.

OFF: Disable the on screen display of preset

label.

2: The PRESET LABEL will display on screen

for 2 seconds.

5: The PRESET LABEL will display on screen

for 5 seconds.

10: The PRESET LABEL will display on screen

for 10 seconds.

ZONE ON: Enable the on screen display of zone.

OFF: Disable the on screen display of zone.

ADDRESS ON: Enable the on screen display of camera

address.

OFF: Disable the on screen display of camera

address.

ERROR RATE ON: Enable the on screen display of error rate.

OFF: Disable the on screen display of error

rate.

FAN/HEAT ON: Enable the on screen display of fan/heater

message.

OFF: Disable the on screen display of

fan/heater message.

HEAT CONTROL TEMP: The heater is controlled by the temperature.

ON: Enable the heater.

OFF: Disable the heater.

N/A:Only for non-IR PTZ.

FAN CONTROL TEMP: The fan is controlled by the temperature.

ON: Enable the fan.

OFF: Disable the fan.

EIS SETTINGS ON: Enable the Electronic Image Stabilization.

OFF: Disable the Electronic Image Stabilization.

8 TruVision HD-TVI Series 4 PTZ Dome Camera Configuration Manual

PRESET FOCUS ON: Enable the preset direct focus function to also record the focus

(F) value.

OFF: Disable the preset direct focus function.

PROTOCOL

ENABLE ON: The user-defined protocol is enabled.

OFF: The user-defined protocol is disabled.

PROTOCOL Define the protocol: UTC RS-485, PELCO-P, PELCO-D,DIGIPLEX,

or ASCII.

485 CHECK Set to ON or AUTO for automatic RS-485 configuration diagnosis.

If the configuration is incorrect, an alert will be received. If you set the

value as AUTO, it will automatically stop the diagnosis when no

errors exist.

MEMORY TIME The dome resumes its previous PTZ status when it restarts after a

power-off and had stopped at the position longer than the predefined

time. Set the memory time to 10s, 30s, 60s, 180s, or 300s.

NEAR FOCUS

LEVEL This is a debug interface. It ranges from 0 to 2. Select one level to

have the optimal focus speed and accuracy depending on the actual

scenario.

Camera Settings

You can set the camera parameters including focus, shutter speed, iris, etc.

CAMERA

GAIN LIMIT 15

DEFOG OFF

INIT LENS OFF

BACK EXIT

FOCUS Set the focus mode.

AF (Autofocus): The lens remains in focus during PTZ movements.

MF (Manual Focus): Manually adjust the focus using the Focus+ and

Focus- buttons.

HAF (Half-autofocus): The PTZ dome only focuses automatically

once after panning, tilting and zooming.

Note: The focus mode needs to be changed to MF before controlling

Focus in the PTZ panel.

Table of contents

Other Interlogix Security Camera manuals

Interlogix

Interlogix TruVision TVP-5201 Instruction sheet

Interlogix

Interlogix TruVision TVB-2403 Instruction sheet

Interlogix

Interlogix TruVision Bullet IR User manual

Interlogix

Interlogix UVP-N120P-36X(-P) User manual

Interlogix

Interlogix UVD-XP4DNR(-P) User manual

Interlogix

Interlogix TVC-5120-1 User manual

Interlogix

Interlogix TruVision TVB 2102 User manual

Interlogix

Interlogix TruVision TVD-5801 User manual

Interlogix

Interlogix TruVision TVB-2401 User manual

Interlogix

Interlogix TruVision TVA-1101 User manual

Interlogix

Interlogix TruVision HD-TVI 3MPX Instruction sheet

Interlogix

Interlogix TruVision TVD-2402 User manual

Interlogix

Interlogix TruVision TVB-2402 Instruction sheet

Interlogix

Interlogix TruVision TVD-2402 User manual

Interlogix

Interlogix UVC-XP4DN-HR User manual

Interlogix

Interlogix TruVision TVW-2401 Instruction sheet

Interlogix

Interlogix UVD-XP4DNR User manual

Interlogix

Interlogix TruVision TVB-2101 User manual

Interlogix

Interlogix TruVision TVT-2101 User manual

Interlogix

Interlogix TruVision Line User manual

Interlogix

Interlogix MobileView MVC-7100-29-BL User manual

Interlogix

Interlogix TruVision TVB-6102 User manual

Interlogix

Interlogix TruVision Line User manual

Interlogix

Interlogix UltraView UVD-6130VE-2 Series User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
