TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 1

Content

Product overview 2

Package Contents 2

Features 2

User guidelines 2

Product description 3

Installation 4

Mount the camera 4

Connect the cables 5

Adjust the lens 5

Programming 7

OSD control button 7

Access the Setup menu 7

Save changes 9

Select the lens type 9

Set shutter/AGC 9

Set white balance 10

Set backlight compensation (BLC) 11

Adjust the picture characteristics 12

Set ATR-EX level 12

Set motion detection 13

Set privacy area 13

Set Day/Night mode 14

Set image noise reduction 15

Set the camera ID 15

Set sync mode 16

Select the language 16

Reset camera settings 16

Specifications 17

Dimensions 17

Menu Map 18

2 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Product overview

The TVD-6120VE-2-N(-P)/ TVD-6125VE-2-N(-P) color dome camera uses a

digital signal processor (DSP) to process video signals. The camera includes a

microcontroller to provide high-quality images with high-color reproduction and

sharp pictures.

Package Contents

The package contains the following:

• Camera

• Hex key

• Drilling template

• Composite video BNC cable

• Screws

• Quick Start Guide

Features

The camera includes the following features:

• Super HAD II (hole accumulated diode) technology

• High horizontal resolution 600 TVL

• Smart digital control automatic BLC (backlight compensation)

• Digital WDR (wide dynamic range)

• Advanced auto exposure system for both fixed iris and auto iris lenses to

optimize the amount of light

• Internal synchronization

• Eight privacy mask areas to protect privacy concerns

• Signal-to-noise ratio better than 52 dB

• Long life and high reliability

• Isolated switching power 12 VDC and 24 VAC

User guidelines

• Program the camera settings as much as possible before mounting the

camera. Take appropriate safety precautions while completing programming

after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the

camera.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 3

• Do not use the camera over the temperature range specifications: -10°C to

+50°C (14°F to 122°F)

• If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

WARNING: To reduce the risk of fire or electronic shock, do not expose the

camera to rain or moisture or open the back of the camera.

Product description

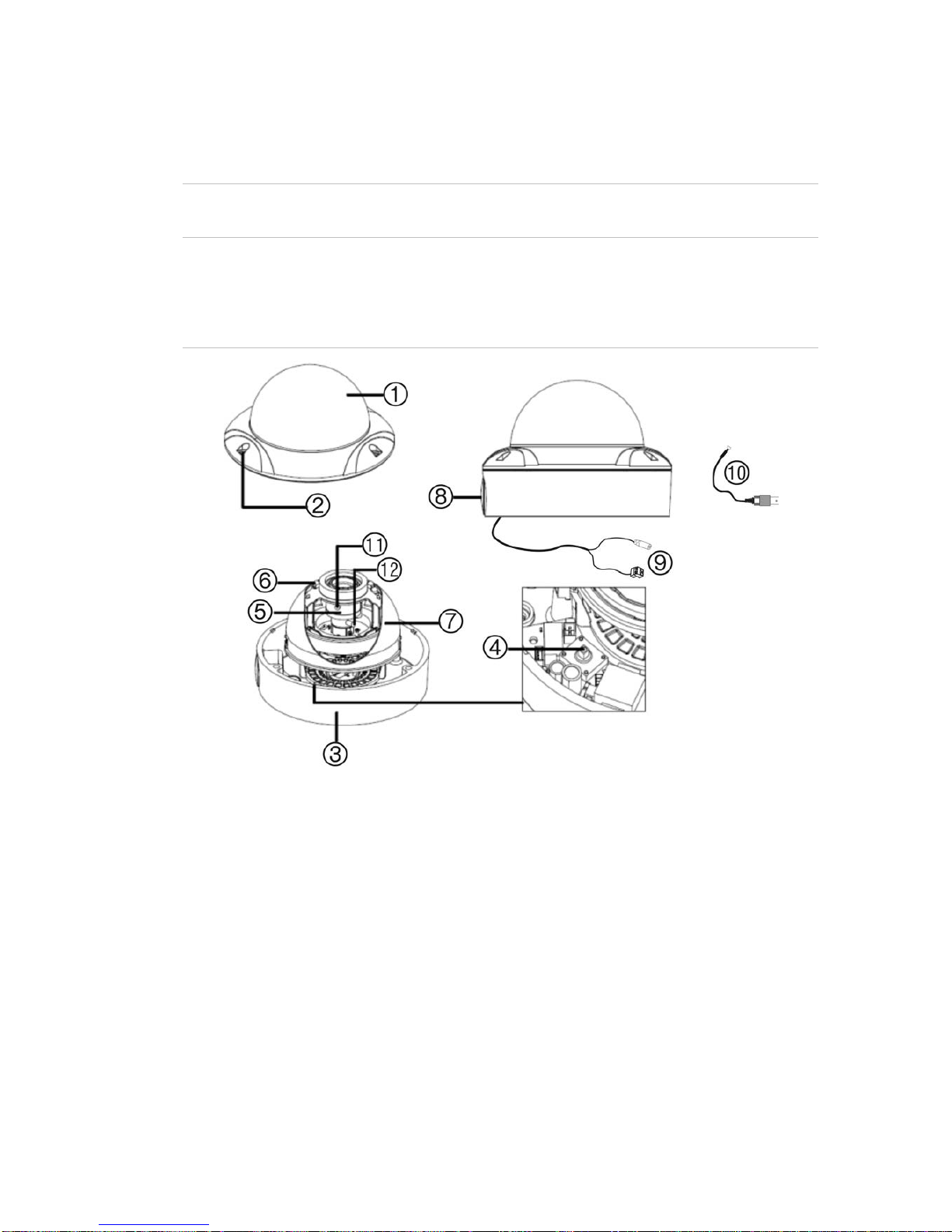

Figure 1: Product description

1. Dome cover

2. Screw hole

3. Base

4. OSD control button

5. Lens

6. IR LED

7. IR LED cover

8. Outlet hole

9. Power supply and video BNC cables

10. Composite video BNC cable

11. Focus adjustment

12. Zoom adjustment

4 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Installation

Please check the package contents and make sure that the device in the

package is in good condition and all the assembly parts are included.

To install the camera you will need to prepare the mounting surface, mount the

camera, make cable connections, and adjust the lens.

Note: Before installing, please ensure that the mounting surface is strong enough

to withstand three times the weight of the camera. If the mounting surface is not

strong enough, the camera may fall and cause serious damage.

Mount the camera

To mount the camera:

1. Prepare the mounting surface.

2. Remove the dome cover.

3. Secure the camera to the mounting surface with screws.

4. Remove the IR LED cover to adjust the lens and the viewing angle.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 5

Connect the cables

To make the cable connections:

1. Connect a 12 VDC or 24 VAC power supply to the power input.

2. Connect a coaxial cable from the camera’s BNC connector to a CCTV

monitor or video recording device.

Adjust the lens

The camera is mounted on a pan-tilt-twist (3-axis grimbal) rotating platform so

that it is easy to adjust the camera orientation.

To adjust the lens:

1. Rotate the panning table to adjust the panning position of the camera. The

adjusting range is from 0 to 355 degrees.

2. Rotate the tilting table to adjust the tilting position of the camera. The

adjusting range is from 0 to 75 degrees. Tighten the tilting table lock screw.

3. Rotate the lens to adjust the azimuth angle of the image. The adjusting range

is from 0 to 355 degrees.

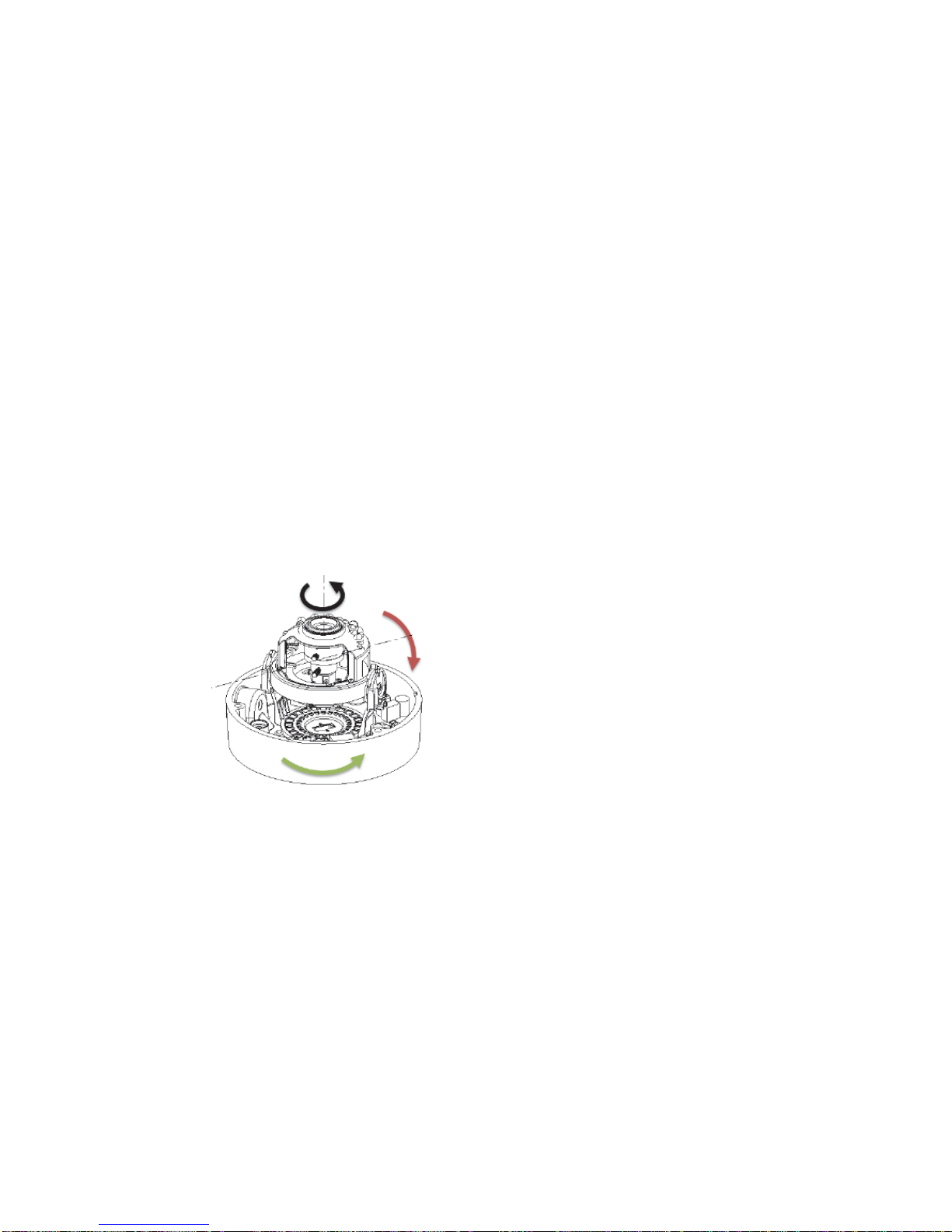

Rotation 0-355°

Tilt 0-75°

Pan 0-355°

4. Adjust the lens to obtain the appropriate angle of view and the optimum focus.

Tighten the focus lock lever.

5. Replace the IR LED and dome covers on the camera.

6. Secure the dome cover with screws.

6 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Note: Ensure that the screws highlighted above with a “ ” have been tightened

securely to prevent water seepage.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 7

Programming

Once the camera hardware has been installed, the camera can then be

configured.

Program the camera by attaching a standard video monitor to the system.

To connect the monitor:

1. Plug the monitor output cable to the video monitor output connector.

2. Connect the BNC cable to the video monitor.

3. Press Enter on the OSD menu button to display the Setup menu. See Table

1 for instructions on how to move the cursor.

OSD control button

The on-screen display (OSD) control button (see Figure 1) is a five-direction

joystick that lets you manually control the camera functions. Table 1 below lists

the OSD control button functions and describes their use.

Table 1: Using the OSD control button

Button

direction Description

Moves the cursor upward to select an item

Left

Moves the cursor left to select or adjust the parameters of the selected

item.

Right

Moves the cursor to the right to select or adjust the parameters of the

selected item.

Down

Moves the cursor downward to select an item.

Enter

Press the center of the button to display the Setup menu. If the selected

item has its own menu, press the button to enter a submenu.

Access the Setup menu

The Setup menu provides access to the camera configuration options.

8 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Figure 2: The Setup menu

Table 2: Setup menu description

Menu item Description

Lens Defines autoiris or manual iris.

Shutter/AGC Defines the method of light control.

White Bal Defines the white balance (WB) set up.

Backlight Defines the highlight compensation (HLC) and backlight compensation

(BLC) set up.

Pict Adjust Defines the image quality functions.

ATR Defines the adaptive tone reproduction set up.

Motion Det Defines the motion detection set up.

Privacy Defines privacy mask set up.

Day/Night Defines the day/night (D/N) set up.

NR Defines the digital noise reduction level.

Camera ID Defines the camera ID displayed on-screen.

Sync Displays the current synchronization mode.

Language Defines the language of the OSD.

Camera Reset Resets the camera to factory default settings.

Save All Saves all configuration changes.

Exit Exits the menu and returns to live mode.

To access the Setup menu:

1. Press the OSD control button to access the Setup menu and its submenus.

2. Push the button up/down to move between menu options.

3. Push the button left/right to select an option.

4. Select Next to move to the next Setup menu screen and Back to return to the

previous Setup menu screen.

5. When in a sub menu, select Return to return to the previous menu.

6. To exit the Setup menu and return to normal camera operation mode, move

the cursor to Exit at the bottom of the screen and press Enter.

This manual suits for next models

Table of contents

Other Interlogix Security Camera manuals

Interlogix

Interlogix TruVision TVP-5101 Instruction sheet

Interlogix

Interlogix TruVision TVD-2401 User manual

Interlogix

Interlogix TruVision TVW-2401 User manual

Interlogix

Interlogix TruVision Line User manual

Interlogix

Interlogix TVB-5501 User manual

Interlogix

Interlogix UltraView User manual

Interlogix

Interlogix TruVision 5 Series Instruction sheet

Interlogix

Interlogix TVC-5120-1 User manual

Interlogix

Interlogix TVF-1101 User manual

Interlogix

Interlogix TruVision IP Dome User manual

Interlogix

Interlogix 36X User manual

Interlogix

Interlogix TruVision TVC-7120-1-N User manual

Interlogix

Interlogix TruVision Line Instruction sheet

Interlogix

Interlogix TruVision TVW-2401 Instruction sheet

Interlogix

Interlogix PIR User manual

Interlogix

Interlogix UVC-XP4DN-HR User manual

Interlogix

Interlogix TruVision Series User manual

Interlogix

Interlogix TruVision TVD-7120VE-2 User manual

Interlogix

Interlogix TruVision Line User manual

Interlogix

Interlogix 4 SERIES Instruction sheet

Interlogix

Interlogix Ultra View UVD-6120VE-2 User manual

Interlogix

Interlogix FW5.1 User manual

Interlogix

Interlogix TruVision TVC-7120-1-N User manual

Interlogix

Interlogix TruVision TVD-2402 User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
