Intel PM945GC-478 User manual

Intel PM945GC-478 Mainboard

User’s Manual

Rev: EG1.0

Date: 2008.1

CONTENTS

CHAPTER 1 INTRODUCTION·······································2

1.1 Chipset Introduction············································2

1.2 Specification··················································2

1.3 Mainboard Introduction·········································2

CHAPTER 2 PACKAGE CONTENTS··································3

CHAPTER 3 MAINBOARD LOCATIONS······························4

CHAPTER 4 INSTALLATIONS·······································5

4.1 Jumper Setting and Slot···········································5

CHAPTER 5 BIOS SETUP···········································6

5.1 Main menu·····················································7

5.2 Standard CMOS Features·········································8

5.3 Advanced BIOS Features·········································9

5.4 Advanced Chipset Features·······································10

5.5 Integrated Peripherals···········································11

5.6 Power Management Setup········································13

5.7 Set Supervisor Password & Set User Password·······················14

5.8 Save Exit & Without Save Exit Setup·······························14

Chapter 1 Introduction

1.1 Chipset Introduction

Intel 945GC Chipset

The Intel 945GC chipset supports the latest PC technologies such as Socket 478

CPU, dual-channel DDRII memory architecture and PCI Express x16 graphics

card interface. Intel Graphics Media Accelerator 950 provides a significant

increase in graphics performance. 6 high-speed USB 2.0 ports.

Dual-channel DDRII

This Intel 945GC chipset motherboard supports TWO DDRII DIMM interfaces

that can make you have more use room. Dual-channel can give you the fastest

frequency.

1.2 Specification

INTEL 945GC

·Intel 945GC + ICH6;

·Supports Socket 478 CPU

·Supports 533/800 MHz HOST BUS Frequency;

·Intel Graphics Media Accelerator 950 VGA;

·Dual channel Mode DDRII 400/533MHz;

·Supports 1 PCI Express x16 Slot;

·Supports 2 PCI Slots;

·Supports 6 channel sound input;

·Supports 6 USB2.0 ports;

1.3 Mainboard Introduction

Key Features:

-Chipset:

Intel 945GC + ICH6

-CPU:

Supports Intel Socket 478 CPU

- Supports 533/800MHz HOST BUS Frequency

-Memory:

Supports DDRII 400/533MHz Memory

-Built-in Powerful Integrated Graphics

Integrated display function technologies without extend VGA card

Integrated 2D/3D Graphics Controller

-Provides one channel connecting two IDE drives

Supports Ultra ATA66/100/133synchronous DMA modes

-Provides 2 channel connecting 2 SATA drives with speed up to 150MB/S

-I/O:

1 floppy port support format 360K/720K/1.2M/1.44M/2.88M disk

1 serial port

1 parallel port supports EPP/ECP/SPP transfers

6 USB2.0 ports

1 PS/2 port

2 SATA ports

1 10/100M Network Adapter

-Onboard AC’97 2.3 specification compliant

Supports six channel sound input (example Realtek ALC653)

-Expansion slot:

One PCIE_X16 slot

Two 32-bit PCI slots 2.2 specification compliant

-Dimension

MICROATX

Chapter 2 Package Contents

Your mainboard package contains the following items:

1 x Intel 945GC mainboard

1 x 40-pin Ultra DMA 66/100/133 IDE ribbon cable

1 x SATA cable

1 x Driver installed CD

1 x 0ne user’s manual

1 x bracket

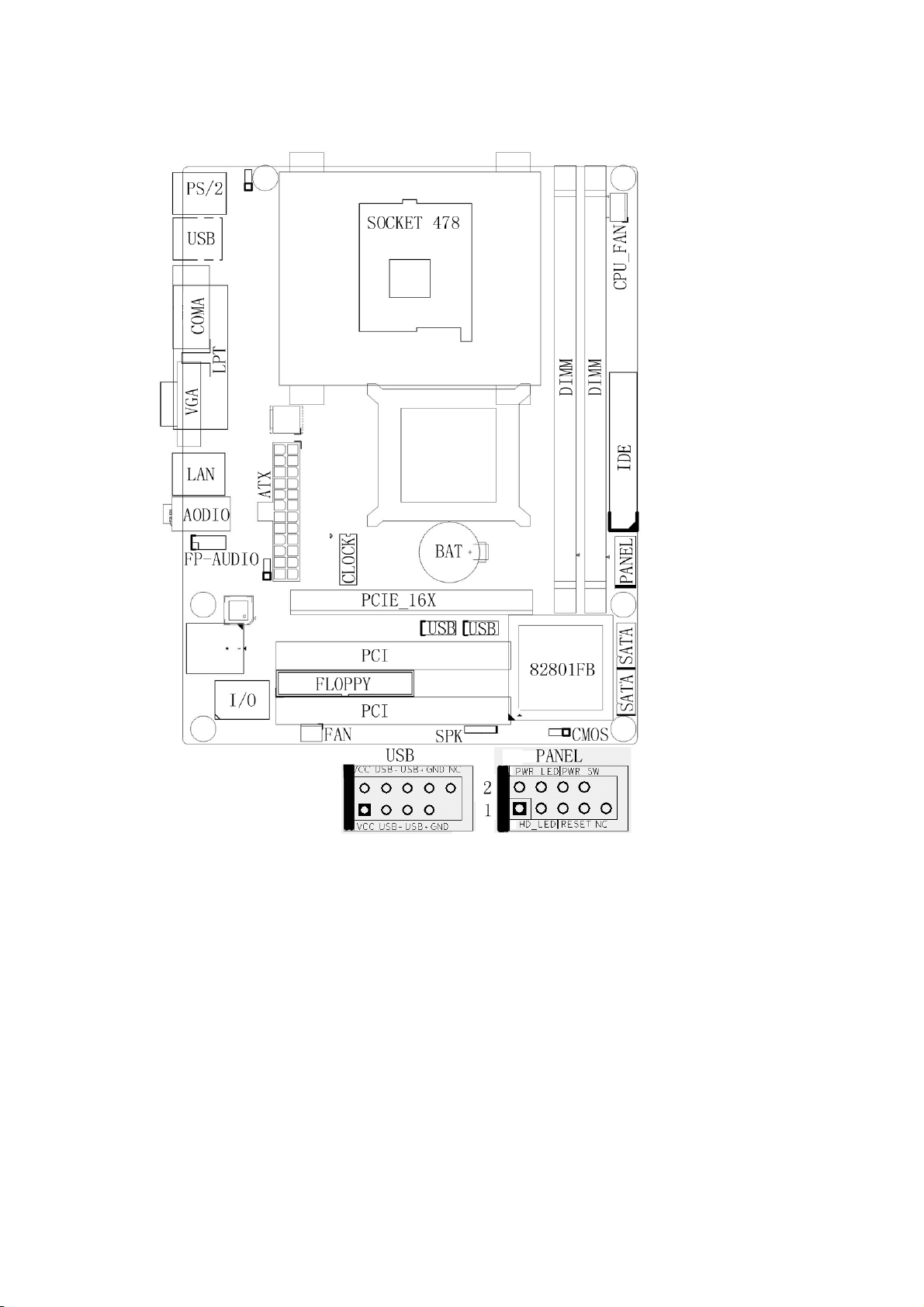

Chapter 3 Mainboard Locations

82945GC

Chapter 4 Installations

4.1 Jumper Setting and Slot

Clear CMOS Jumper setting

1-2 (Default) Normal

2-3 Clear CMOS

Audio: Front panel Jumper setting

PIN Function PIN Function

1 MIC+ 2 Ground

3 Vbias 4 AuD_Vcc(AVCC)

5 AuD_R_Out 6 R_Out Back

7 N.C. 8 Key

9 AuD_L_Out 10 L_Out Back

SATA: PIN Jumper setting

PIN SATA1 Function PIN SATA2 Function

1 Ground 1 Ground

2 RSATA_RXP1 2 RSATA_RXP2

3 RSATA_RXN1 3 RSATA_RXN2

4 Ground 4 Ground

5 RSATA_TXN1 5 RSATA_TXN2

6 RSATA_TXP1 6 RSATA_TXP2

7 Ground 7 Ground

Expansion slot

DIMM1/DIMM2 240 PIN DDRII MEMORY SLOT

PCI1/PCI2 120 PIN PCI BUS expansion slots

PCIE_X16 Intel PCI Express X16 expansion slots

USB: Expansion Connector

PIN Function PIN Function

1 VCC: Power 2 VCC: Power

3 D-:Data- Signal 4 D-: Data- Signal

5 D+: Data- Signal 6 D+: Data- Signal

7 GND: Ground 8 GND: Ground

9 KEY 10 NC

Connectors

PS/2(Bottom) PS/2 Keyboard(Purple)

PS/2(TOP) PS/2 Mouse Header(Green)

R_USB1 USB1/2 Connector Port

F_USB2 USB3/4 Connector Port

F_USB3 USB5/6 Connector Port

LPT Printer Connector Port

COM1 Serial Port COM1 Connector port

VGA On-board VGA connector

LINE OUT/

LINE IN/MIC

Audio Output/Audio Input/Microphone

IDE Primary/Secondary IDE port

SATA1/SATA2 SATA Port

FDD Floppy Disk Drive Connector Port

ATX/ATX_12V ATX/ATX_12V Power Supply Connector

port

CPU_FAN/PWR_FAN CPU/System FAN Port

Function Port Panel

Power Supply LED Pin2: Power Supply Anode;

Pin4: Ground

HHD LED Pin1: Power supply Anode

Pin3: LED Signal

Power Supply Switch Pin6、8:Switch Signal

Reset Switch Pin5、7:Reset Switch

Chapter 5 BIOS Setup

The BIOS setup Utility record settings and information of your computer,

such as date and time, the type of hardware installed, and various configuration

settings. Your computer applies those information to initialize all the

components when booting up and basic function of coordination between system

components.

If the Setup Utility configuration is incorrect, it may cause the system to

malfunction. It can even stop you computer booting properly. If it happens, you

can use the clear CMOS jumper to clear the CMOS memory which has stored

the configuration information; or you can hold down the Page

Up Key while rebooting your computer. Holding down the Page Up key also

clears the setup information.

5.1 Main menu

You can use cursor arrow keys to highlight anyone of options on the main menu

page. Press Enter to select the highlighted option. Press the Escape key to leave

the setup utility. Press the F9 key to go back to menu in BIOS. Some options on

the main menu page lead to tables of items with installed value that you can use

cursor arrow keys to highlight on item, and press page

Up and page Down keys to cycle through alternative values of that item. The

other options on the main menu page lead to dialog boxes that require your

answer Yes or No by hitting the Y or N keys. If you have already changed the

setup utility, press F10 to save those changes and exit the utility.

Standard CMOS Features

Setup date、time、floppy type

Advanced BIOS Features

Setup BIOS provides function, for example virus、boot-strap induct

Advanced Chipset Features

Setup mainboard chipset parameter, for example DRAM Timing

Integrated Peripherals

Setup include mainboard all peripherals drive

Power Management Setup

Setup CPU、Hard disk、Monitor drive power save mode

PnP/PCI Configurations

Setup PnP and PCI interface parameter

PC Health Status

Frequency/Voltage Control

Load Fail-Safe Defaults

Setup the default values in system

Load Optimized Defaults

Setup the best performance values in system

Set Supervisor Password

Setup supervisor password in system

Set User Password

Setup user password in system

Save & Exit Setup

Setup save and exit, press Y to save and exit

Exit Without Save Setup

Exit without Save and exit, press N to without save and exit

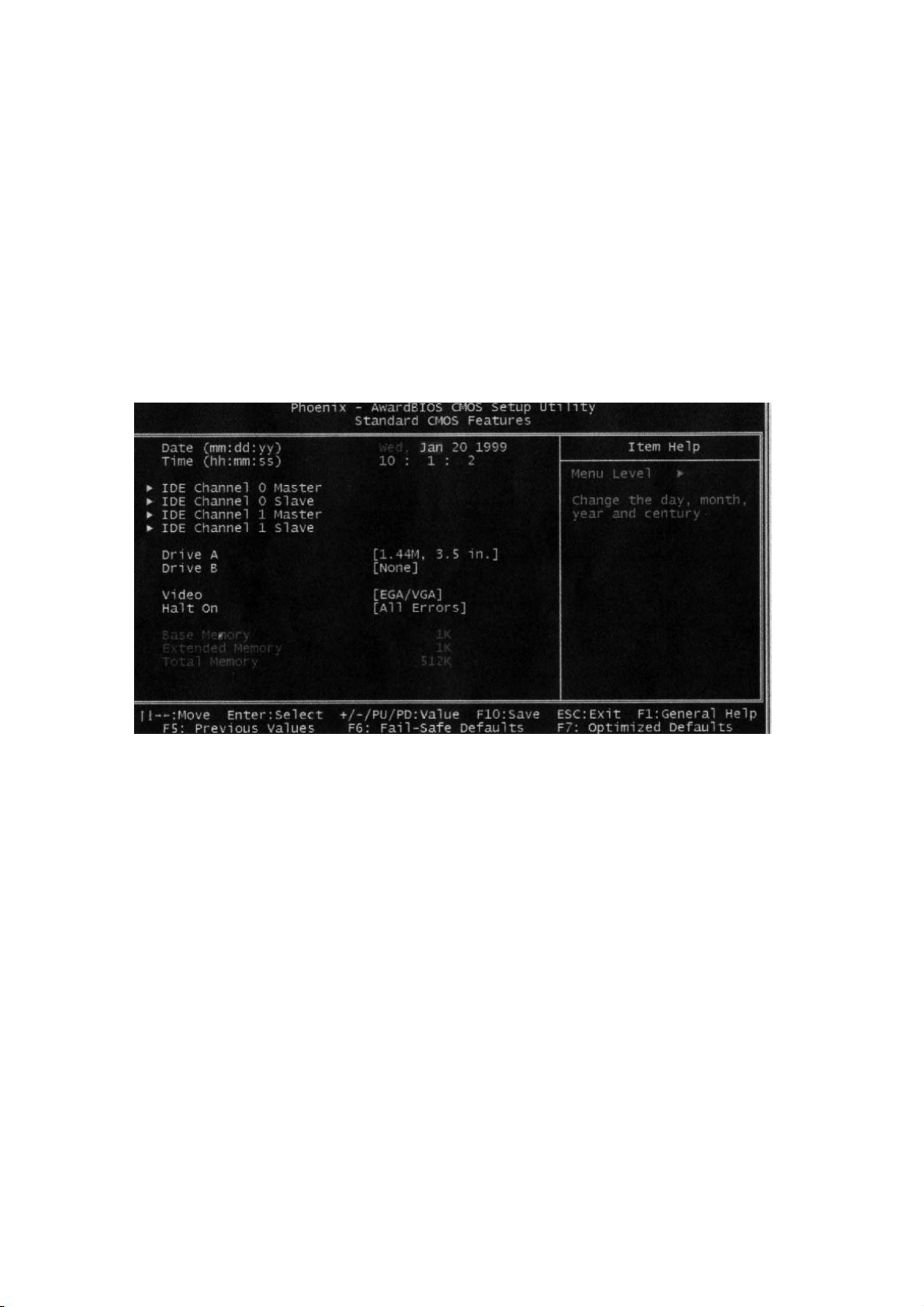

5.2 Standard CMOS Features

Date(mm:dd:yyyy)

These items set up system date

Time(hh:mm:ss)

These items set up system time

Primary/Secondary Master/Slave

These items configure devices connected to the Primary and Secondary IDE

channels. To configure an IDE hard disk drive, Choose Auto. If the Auto

setting fails to find a hard disk drive, set it to User , and then fill in

the hard disk characteristics manually. If you have a CD-ROM drive, select

the setting CD-ROM. If you have an ATAPI device with removable media,

select Floptical.

Drive A/B

Video

Halt on

Base Memory

Expanded Memory

Total Memory

5.3 Advanced BIOS Features

CPUFeature Default:PressEnter

DelayPriortoThermal Default:16Min

ThermalManagement Default:ThermalMonitor1

LimitCPUIDMaxVal Default:Disabled

C1EFunction Default:Auto

ExecuteDisableBit Default:Enabled

Removable Device Priority Default: Press Enter

Floppy Disks

HardDiskBootPriority Default:PressEnter

VirusWarning Default:Disabled

CPUL1&L2Cache Default:Enabled

Leave these items enabled since all the processors that can be installed on

this board have internal L2 cache memory.

Hyper–Threading Technology Default: Enabled

Quick Power On Self Test Default: Enabled

USB Flash Disk Type Default: Floppy

First Boot Device Default: Removable

When system boot-strap first time detect device.

Second Boot Device Default: CDROM

When system boot-strap first time detect device.

ThirdBootDevice Default:HardDisk

When system boot-strap first time detect device.

Boot Other Device Default: Enabled

If you enable this item, the system will also search for other boot devices if it

fails an operating system from the first two locations.

Swap Floppy Drive Default: Disabled

If you have two diskette drives installed and you enable this item, drive A
