Intel I915PL User manual

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.1

August 29, 2005

IntelIntel

Intel

i915PLi915PL

i915PL mainboardmainboard

mainboardmainboard

mainboard

forfor

for IntelIntel

IntelIntel

Intel SocketSocket

SocketSocket

Socket 775775

775775

775 processorprocessor

processorprocessor

processor

User’User’

User’ss

ManualManual

Manual

60000025ELA11

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii

80 Port Frequently Asked Questions

Below is a list of some basic POST Codes, possible problems and solutions. For

more detailed information about POST Codes, refer to Appendix B in this manual.

POST CODE Problem Solution

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. Mainboard problem

4. Add-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VGA

BIOS

2. VGA card inserted

incorrectly

1. Replace VGA card

2. Reinsert the VGA

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

Table of Contents

Section 1 Introduction

Package Contents ...................................................... 1- 1

Mainboard Features ................................................... 1- 2

System Block Diagram ............................................... 1- 5

Section 2 Specification

Mainboard Specification ............................................ 2- 1

Section 3 Installation

Mainboard Layout ..................................................... 3- 1

Easy Installation Procedure ....................................... 3- 2

CPU Insertion ............................................................. 3- 2

Jumper Settings .......................................................... 3- 4

System Memory Configuration .................................. 3- 5

Expansion Slots .......................................................... 3- 6

Device Connectors..................................................... 3- 7

Power-On/Off (Remote) .............................................. 3- 12

Section 4 BIOS Setup

Main Menu ................................................................ 4- 1

Standard CMOS Setup ............................................... 4-2

Advanced BIOS Features .......................................... 4- 3

Advanced Chipset Features ...................................... 4- 5

Integrated Peripherals ................................................ 4- 7

Power Management Setup ......................................... 4- 12

PNP/PCI/PCI-E Configuration .................................... 4-14

PC Health Status ........................................................ 4-15

Power BIOS Features ................................................. 4-18

Defaults Menu ........................................................... 4-21

Supervisor/User Password Setting ............................ 4-22

Exit Selecting .............................................................. 4- 23

Page

Section 5 Driver Installation

Easy Driver Installation .............................................. 5- 1

Realtek Sound Manager Quick User guide ................ 5-2

Appendix Appendix A

Update Your System BIOS ......................................... A- 1

Appendix B

POST Codes ............................................................... B-1

Page Left Blank

Introduction

Page 1-1

Section 1

INTRODUCTION

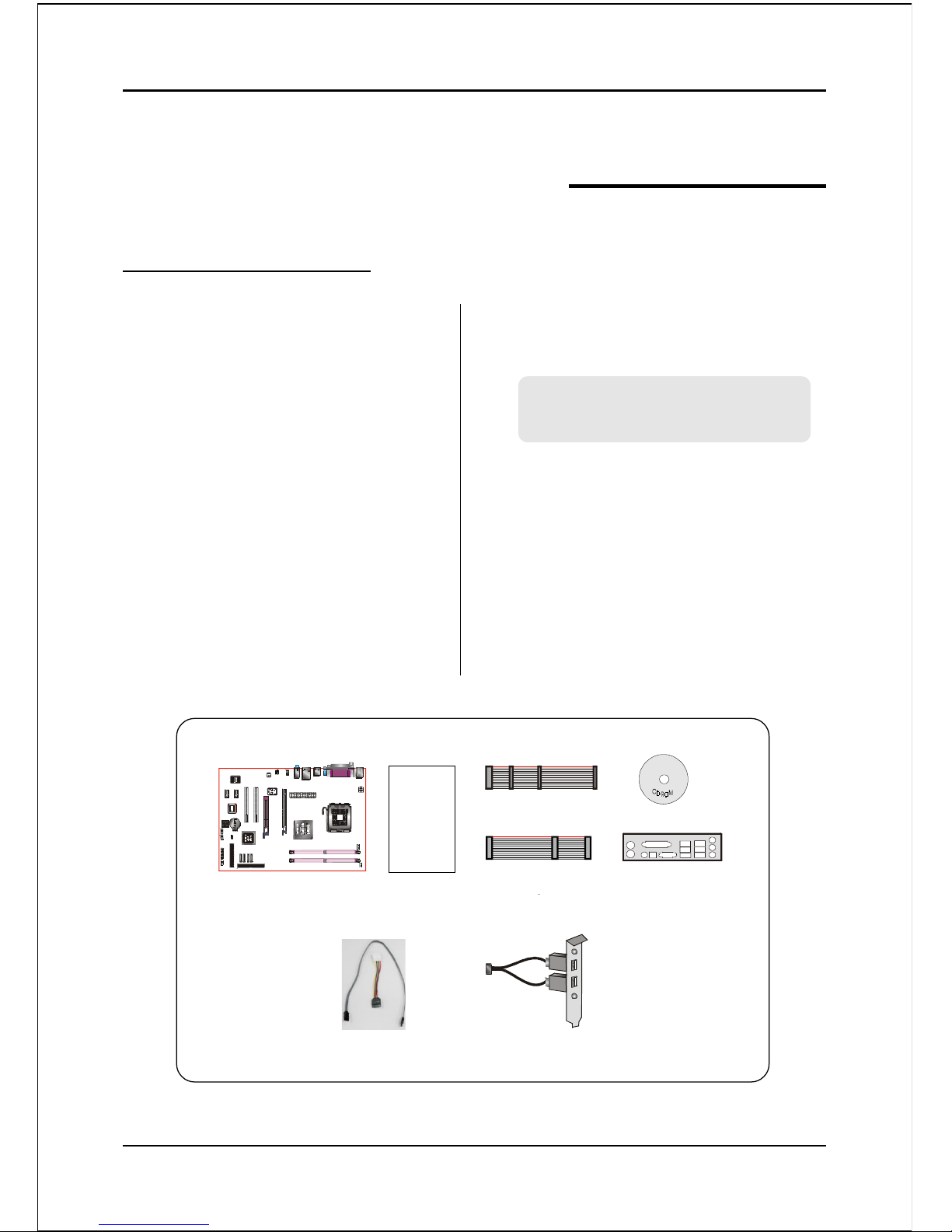

1-1 Package Contents

Contents

A. Mainboard

B. User’s manual

C. Floppy drive cable

D. HDD drive cable

E. CD (drivers and utilities)

F. I/O Shield

G. S-ATA data and power cable

Optional Items

H. Extra USB2.0 port cable

If you need the optional item, please

contact your dealer for assistance.

USER’S

MANUAL

Introduction

Page 1-2

1-2 Mainboard Features

Brief Introduction

Intel®Pentium®4 processors

The Pentium 4 processor is designed to deliver performance across applications

and usages where end-users can truly appreciate and experience the

performance. The Pentium 4 processor delivers this world-class performance for

consumer enthusiasts and business professional desktop PC users as well as for

entry-level workstation users.

Intel adds support for Hyper-Threading Technology to the Pentium 4 processor

family. HT Technology allows a single, physical Pentium 4 processor to function

as two logical processor for next generation multi threaded application.

For more information about all the new features the Pentium 4 delivers, check out the

Intel website at http://www.intel.com

Chipset

This board is designed with Intel®915PL chipset. The Intel®915PL chipset

consists of the Graphics Memory Controller Hub (GMCH) and the I/O Controller

Hub (ICH6).

Dual Channel

Supports dual channel of DDR400 memory to give you twice the memory

bandwidth for greater system performance.

PCI-Express (PCI-E)

Next generation peripheral interface to succeed to current PCI bus for the next

decade. With smaller slot size and 250MB/sec(PCI-E*1) or 4GB/sec(PCI-E*16)

maximum transfer, PCI-Express overcomes PCI bus bottleneck.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system opera-

tion and status. This includes CPU temperature, voltage and fan speed in RPMs.

Ultra ATA100

The mainboard provides an Ultra ATA100 Bus Master IDE controller. This

controller supports Ultra ATA100 protocols which are ideal to support demanding

applications such as real-time video, multimedia, and a high performance operating

system. A new IDE cable is required for Ultra ATA100.

Introduction

Page 1-3

10/100 LAN (Optional)

This mainboard is mounted with a ethernet LAN controller. It allows the mainboard

to connect to a local area network by means of a network hub.

GbE LAN (Optional)

The new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per

second (Mbps), which runs 10 times faster than conventional 10/100BASE-T

Ethernet LANs.

Serial ATA (S-ATA)

Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage

interface. Increases the peak data transfer speed up to 150MB/sec and allows

future enhancements to the computing platform.

USB2.0

A popular USB standard for plugging in peripherals with up to 480Mbps transfer

speed while maintaining backward compatibility with older USB1.1 device.

6ch

Mainboard is equipped with 6 channel of audio to support Dolby Digital 5.1

audio for DVD-playback. The onboard audio jacks can be configured for normal

2 channel mode or 6 channel mode.

Introduction

Page 1-4

Special Features

&Magic Health

Reports your system hardware status for every boot-up to help detect faults

early. Monitor hardware status including CPU temperature, CPU/Memory/

Chipset voltage, fan RPM speed for chassis fan, CPU fan & Power supply fan.

&EZ-Boot

Simply press “ESC” to select your bootable device. No more hassle to search

the BIOS menu, change and re-start.

&PowerBIOS

Supporting a full range of overclocking setting via BIOS. Various adjustable

feature include FSB/Chipset/Memory voltage tweaking.

&80 Port

An onboard LED-display trouble-shooting device, facilitating user to detect

boot-up problems.

&QuickSPDIF

On board SPDIF-out connector for quick connection to multi-channel

speakers. Not only removes cable cluttering but also delivers loss-free digital

audio to let you enjoy DVD movies and games with crystal clear sound.

BIOS Features:

H/W Features:
