Intel i875P User manual
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 2.0
May 29, 2003
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
IntelIntel
IntelIntel
Intel i875Pi875P
i875Pi875P
i875P mainboardmainboard
mainboardmainboard
mainboard
for Intel Socket 478 processorfor Intel Socket 478 processor
for Intel Socket 478 processorfor Intel Socket 478 processor
for Intel Socket 478 processor
$ 2+)
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED
WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS
PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL
APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE
COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW
OR LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.
80 Port Frequently Asked Questions
Below is a list of some basic POST Codes possible problems and solutions. For
more detailed information about POST Codes refer to Appendix D in this manual.
POST CODE Problem Soluti on
FFh or CFh 1.BIOS chip inserted
incorrectly
2. Incorrect BIOS update
version
3. Mainboard problem
4. dd-on card inserted
incorrectly.
1. Reinsert the BIOS
chip
2. Download the correct
BIOS version update
from the manufacturer's
Web site.
3. Replace mainboard
4. Remove and replace the
add-on card
C1h - C5h 1. Memory module
inserted incorrectly
2. Memory compatibility
problem
3. Memory module
damaged
1. Reinsert memory
module
2. Replace memory
with correct type
3. Replace memory
module
2Dh 1. Error occured in VG
BIOS
2. VG card inserted
incorrectly
1. Replace VG card
2. Reinsert the VG
card
26h Overclock error Clear CMOS or press the insert
key to power on the system
07h - 12h 1. Init keyboard
controller error
2. RTC error
1. Ensure that the keyboard and
mouse are connected
correctly.
2. Replace the RTC battery.
Initial Keyboard
Table of Contents
Section 1 Introduction
Package Contents ...................................................... 1-1
Overview
Intel Pentium 4 Processors......................................... 1-2
Chipset Components.................................................. 1-2
Accelerated Graphics Port ......................................... 1-3
Ultra ATA66/100 ........................................................ 1-3
Hardware Monitoring................................................. 1-3
LAN (Optional) .......................................................... 1-3
Serial ATA .................................................................. 1-4
Mainboard Form-Factor ............................................. 1-5
I/O Shield Connector.................................................. 1-6
Power-On/Off (Remote).............................................. 1-6
System Block Diagram ............................................... 1-7
Section 2 Features
Mainboard Features ................................................... 2-1
Section 3 Installation
Mainboard Layout ..................................................... 3-2
Easy Installation Procedure
CPU Installation ......................................................... 3-3
Jumper Settings.......................................................... 3-5
System Memory Configuration .................................. 3-6
Expansion slots .......................................................... 3-9
Device Connectors..................................................... 3-11
External Modem Ring-in Power ON and
Keyboard Power ON Function (KBPO) ..................... 3-17
STR (Suspend To RAM) Function .......................... 3-18
Supports AGP Card 3.3V Protection .......................... 3-19
Page
Section 4 Award BIOS Setup
Main Menu ................................................................ 4- 1
Standard CMOS Setup ............................................... 4- 2
Advanced BIOS Features .......................................... 4- 3
Advanced Chipset Features ...................................... 4- 6
Integrated Peripherals ................................................ 4- 8
Power Management Setup ......................................... 4-16
PNP/PCI Configuration Setup.................................... 4-20
PC Health Status ........................................................ 4-22
Power BIOS Features ................................................. 4-24
Defaults Menu ........................................................... 4-28
Supervisor/User Password Setting ............................ 4-29
Exit Selecting .............................................................. 4-30
Section 5 Driver Installation
Easy Driver Installation.............................................. 5-1
C-Media Audio Configuration Brief Guide ................ 5-2
Appendix Appendix A
Update Your System BIOS ......................................... A-1
Appendix B
EEPROM BIOS Remover ........................................... B-1
Appendix C
GHOST 7 Quick Users Guide (Optional) ................... C-1
Appendix D
POST Codes .............................................................. D-1
Page Left Blank
Introduction
Page 1-1
B
A
C
D
USERS
MANUAL
E
or
G
F
I
J
Section 1
INTRODUCTION
Package Contents
Contents
A. Mainboard
B. Users manuals
C. Floppy disk drive cable
D. Hard drive cable or round cable
E. CD and diskette (drivers and
utilities
F. I/O Shield
Deluxe Pack Items
G. Game port cable
H. S-ATA data and power cable
Other Optional Items
I. Extra USB2.0 port cable
J. S/PDIF Module
H
If you need the other optional item,
please contact your dealer for
assistance.
Introduction
Page 1-2
Intel®Pentium®4 processors
The Intel Pentium 4 processor, Intel's most advanced, most powerful processor for
desktop PCs and entry-level workstations, is based on Intel NetBurstTM
microarchitecture. The Pentium 4 processor is designed to deliver performance
across applications and usages where end-users can truly appreciate and experience
the performance. These applications include Internet audio and streaming video,
image processing, video content creation, speech, 3D, CAD, games, multimedia, and
multi-tasking user environments. The Pentium 4 processor delivers this world-class
performance for consumer enthusiasts and business professional desktop PC users
as well as for entry-level workstation users.
Intel adds support for Hyper-Threading Technology to the Pentium 4 processor
family. HT Technology allows a single, physical Pentium 4 processor to function as
two logical processor for next generation multi threaded application.
For more information about all the new features the Pentium 4 delivers check out
the Intel website at http://www.intel.com
Chipset Components
This board is designed with Intel® 875P (Canterwood chipset. The Intel® 875P chipset
consists of the Memory Controller Hub (MCH , and the I/O Controller Hub (ICH5/R .
Memory Controller Hub (MCH)
The MCH provides the interconnect between the AGP, DDR SDRAM and the
system logic. It integrates:
- Supports for single processor with a data transfer rate of 533/800MHz.
- Supports dual channel of 333/400 DDR SDRAM up to 4GB.
- 8X/4X 1.5V AGP interface (Only support 1.5V on AGP interface .
- Downstream hub link for access to the ICH5/R.
I/O Controller Hub (ICH5/R)
The I/O controller Hub provides the I/O subsystem with access to the rest of the
system. Additionally, it integrates many I/O functions:
- Upstream hub link for access to the MCH
Introduction
Page 1-3
- 2-Channel Ultra ATA/100 Bus Master IDE controller
- USB controller
- SMBus controller
- LPC / Flash BIOS interface
- PCI 2.3 interface
- Integrated System Management Controller
Accelerated Graphics Port (AGP)
The AGP slot on the board is compliant with the new AGP 3.0 specification. This
new specification enhances the functionality of the original AGP specification by
allowing 8X data transfers ( 8 data samples per clock resulting in maximum band-
width of 2.1GB/s. In addition, it defines 1.5 volt power supply operation. Complying
with this specification, this board supports external AGP-8X/4X cards with Fast
Write Transactions. Only 1.5V AGP cards are supported.
Ultra ATA/66/100
The ICH5/R provides an Ultra ATA/66/100 Bus Master IDE controller. This controller
supports Ultra ATA/66/100 protocols which are ideal to support demanding applica-
tions such as real-time video, multimedia, and a high performance operating system.
A new IDE cable is required for Ultra ATA/66/100; this cable is an 80-pin conductor
cable which is backward compatible with ATA/33 connectors.
Hardware Monitoring
Hardware monitoring enables you to monitor various aspects of the system operation
and status. The features include CPU temperature, voltage and fan speed in RPMs.
LAN (Optional)
This mainboard is optionally mounted with LAN chip. It allows the mainboard to
connect to a local area network by means of a network hub.
Introduction
Page 1-4
Serial ATA
The evolutionary serial ATA interface replaces the standard parallel ATA physical
storage interface. The serial ATA specification provides scalability and allows
future enhancements to the computing platform. Serial technology overcomes
performance limits of parallel interface architecture, meeting the escalating need for
faster data throughput in servers and storage devices.
Serial ATA is completely software compatible with parallel ATA, requiring no
modification to your operating system. The serial ATA interface cable requires lower
voltages and uses smaller cable connectors, providing ease of installation. You can
easily upgrade storage devices that are compatible with the serial ATA interface
specification.
Table of contents
Other Intel Motherboard manuals
Intel
Intel DQ57TM User manual
Intel
Intel BLKDP67BG Configuration guide
Intel
Intel DG33BU Configuration guide
Intel
Intel BLKDX58OG Configuration guide
Intel
Intel SBC 80/10 Quick user guide
Intel
Intel AN430TX - Motherboard - ATX Technical manual
Intel
Intel BLKDZ68DB Configuration guide
Intel
Intel S3200SHV - Entry Server Board Motherboard User manual
Intel
Intel D865PERL User manual
Intel
Intel ITX-IC2M1026S Series User manual
Intel
Intel BLKD865GBF User manual
Intel
Intel BLKD915GMHLK - LGA775 800FSB Dual DDR400 GIG Lan PCI Express mBTX... Configuration guide
Intel

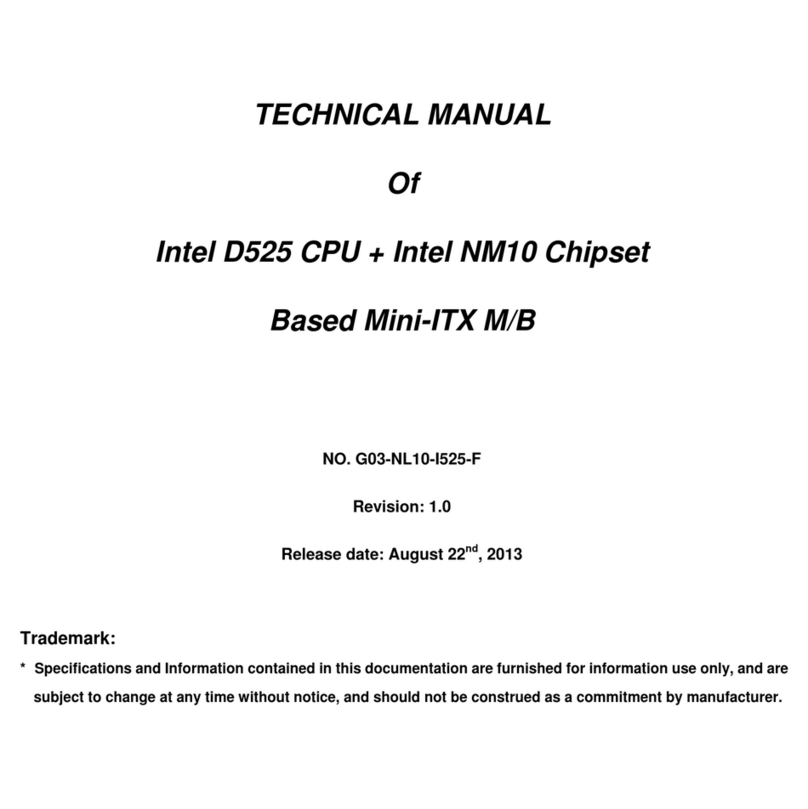

Intel D525 User manual
