Insportline IN 8252 User manual

USER MANUAL –EN

IN 8252 Motorized Treadmill inSPORTline T400i

CONTENTS

TIPS FOR SAFETY................................................................................................................................................ 3

PACKING DETAILS ............................................................................................................................................. 4

EXPLODED VIEW ................................................................................................................................................ 5

LIST OF COMPONENTS...................................................................................................................................... 5

TREADMILL STRUCTURE ................................................................................................................................. 7

INSTALLATION SKETCH................................................................................................................................... 7

USE......................................................................................................................................................................... 8

INSTRUCTION FOR CONSOLE........................................................................................................................ 10

MAINTENANCE ................................................................................................................................................. 15

CLEANING.......................................................................................................................................................... 16

CAUTIONS, DEPOSITING................................................................................................................................. 16

GUIDES FOR MALFUNCTION ......................................................................................................................... 16

INSTRUCTION MANUAL FOR IRUNNING+.................................................................................................. 18

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ...Chyba! Záložka není definována.

Special tips:

Before installation and operation, please read this operation manual carefully and save this manual for future

reference.

TIPS FOR SAFETY

We have considered more for safety when we design and produce this item. However, in case of any

unhappiness, please pay attention to these tips. We don’t assume responsibility if any accident cased by follow

tips.

According to your health condition, please exercise properly. Overload or improper exercise will

damage your health.

While running, you should dress properly. Don’t dress too loosely in case your clothes are entangled by

the machine. And please wear sport shoes. Don’t let your children or pet play near it to avoid

unnecessary injury.

This machine is not suitable for children. For patients or the disabled to use, they have to follow the

guides by their guardians or doctors.

Don’t use this machine when in outdoor, high humidity condition or sun.

Please pull the plug off from socket and keep the safe key, when the treadmill is unused.

This machine is for home use, not suitable for professional exercise or testing, and also not suitable for

medical purpose.

The heart rate on this machine is not suitable for medical.

If any damage for power wire, please ask manufacturer or professional service to replace it in case of

any danger.

Please check all the parts before using. Make sure that all the nuts or screws are fastened.

Place your treadmill on the clean, flat and solid floor. Make sure that there is not anything pointy, water

or hot near to the machine.

Please stop exercising immediately and consult your doctor if you’re feel giddy, surfeit, thorax ache or

other symptoms.

Make sure that hands are not near to running parts. Don’t put your hands or foots under the running belt.

When running this machine, it is only for one person to use it!

Please use the spare parts from us, it is not acceptable if you use spare parts from others.

This machine is HC level, max weight shall be less than 180 kg.

Please consult your doctor at first before running, if you have one of the following diseases.

1. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic

diseases, complication disease.

2. If you are over 35 years old and heavier than common weight.

3. Women in pregnant or in breasting period.

SPECIAL TIPS FOR SAFETY

Please use qualified socket. If the plug and the socket is not compatible, please ask electrician to handle

it and don’t do anything for the plug.

The voltage for this machine is 220V-240V AC.

Don’t let power wire touch roller, and also don’t put power wire on the running belt. Don’t use

damaged plug.

Before cleaning, moving and maintaining the machine, please pull off the plug for the socket.

Warning: If don’t pull off, it will cause injury or damage for the machine.

PACKING DETAILS

Warning: Carefully install the product, avoid to make any damage.

Notice:

1) Carefully read the instructions before installation. Operate in accordance with procedures.

2) Check components in the package

3) Remove all paper boxes and foams used as fasteners.

Check all the following components. If there is missing or problematic parts, please contact the dealer

Frame

Decorating cover at base

Hardware tool bag

Multi-wrench 1pc

Homemade wrench 1pc

Nut 2pcs

Umbrella-type allen screw M8*20

4pcs

Umbrella-type allen screw

M8*60*15 2pcs

Umbrella-type cross tapping screw

M4.2*15 6pcs

Washer 6pcs

Lubricant

Safety key

MP3 connector 1pc

EXPLODED VIEW

These are all the components used in installation. All components are listed in the following form.

LIST OF COMPONENTS

No.

Component

Quantity

No.

Component

Quantity

Base frame

Bumper

Frame

Rubber wheel

Left pillar accessory

Square tube plug

Right pillar accessory

Upper cover of meter

Dashboard frame

Meter panel

Incline frame

Button board

Connecting frame

Lower cover of meter

Motor stator

Sponge sheath

Reinforcement tube for running board

Heart rate sensor

Pedal hook

Circular tube plug

Sleeve for shaft

Safety key

Safety brace for base frame and frame

Surface paster

Incline motor

Button paster

Motor

Speaker

PCB

PCB for console

Front roller

Fan

Back roller

Upper communication line

Pressure stick

Lower communication line

Multislot belt

Green connecting line

Power switch

Red connecting line

Overload protector

Power wire

Running belt

Red connecting line

Running board

Sensor wire

Motor cover

Reed pipe for safety key

Side rail

MP3 module

Left back cover

Locating pad for side rail

Right back cover

Lifting transporting wheel

Base handling wheel set

Adjusting foot pad

Tension spring

Left decorative cover at base

Right decorative cover at base

Lower cover of motor

Shock absorption

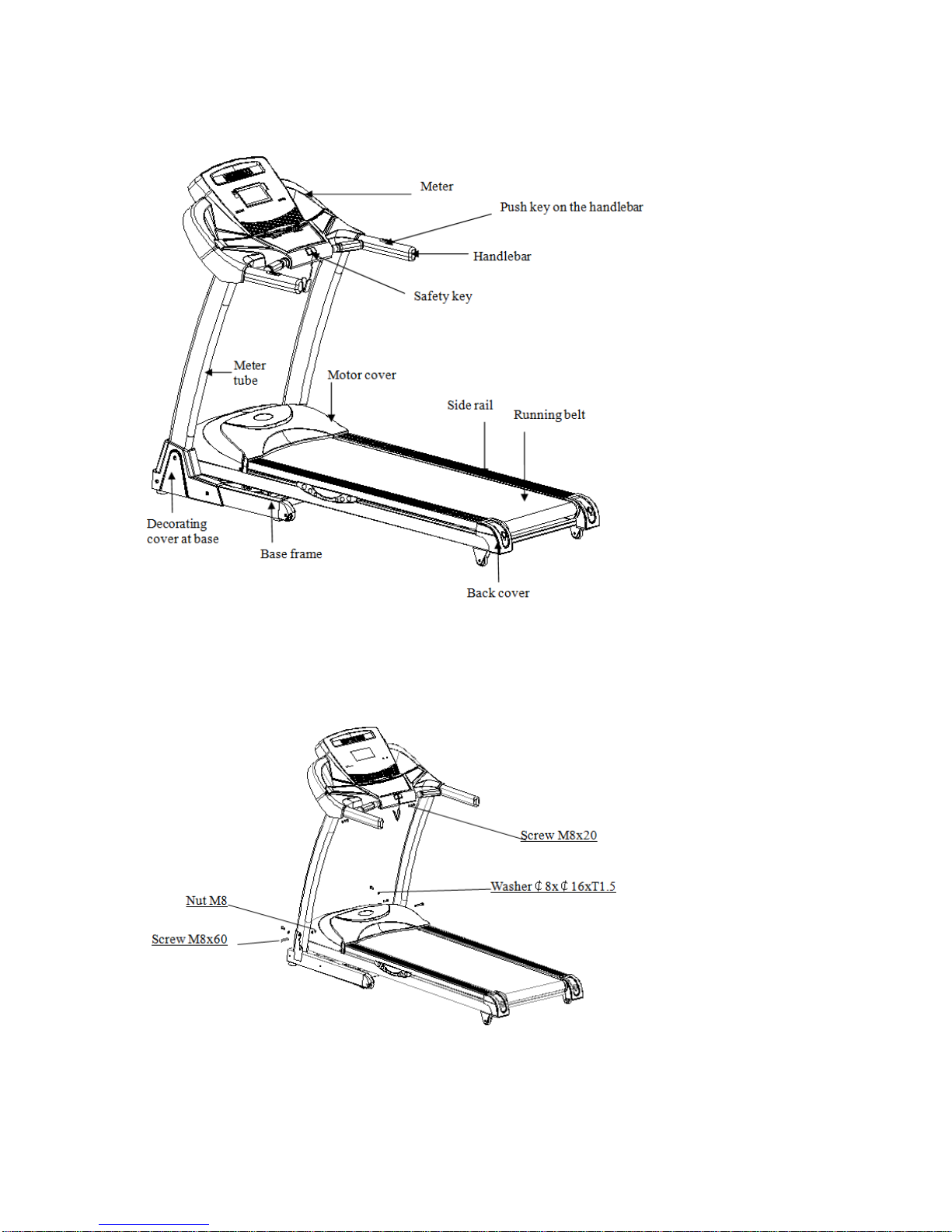

TREADMILL STRUCTURE

INSTALLATION SKETCH

Step 1: Put meter on the meter tube.

a) Use 2 pcs of Screw M8*20 with 2 pcs of washer to solid the meter tube. (Don’t fasten screw at first).

b) Use 2 pcs of Screw M8*60 with 2 pcs of washer, 2 pcs of nut to solid the meter tube. (Don’t fasten

screw at first).

c) Use 2 pcs of Screw M8*20 with 2 pcs of washer to solid the meter. (Don’t fasten screw at first).

d) After the machine is power on, push “Start”, if everything goes well, then fasten screws mentioned in

front steps.

Step 2：Disassemble connecting screw for base frame

Step 3: Install decorating cover at base

Use 6 pcs of Screw ST4.2*15 to solid left and right decorating cover at base.

USE

Insert the power plug into the socket and switch on the machine. The switch light will be on and you will hear a

voice “Di”. You will find the meter light will also be on.

SAFETY KEY

The machine can work only when you put safety key at the appointed position. Make sure the other end of the

safety key has been nipped to your clothes. In this way, you can pull the safe key for the machine’s sudden stop

under the dangerous condition. Then you will not be injured. If you need to reuse the machine, you could put

safety key back.

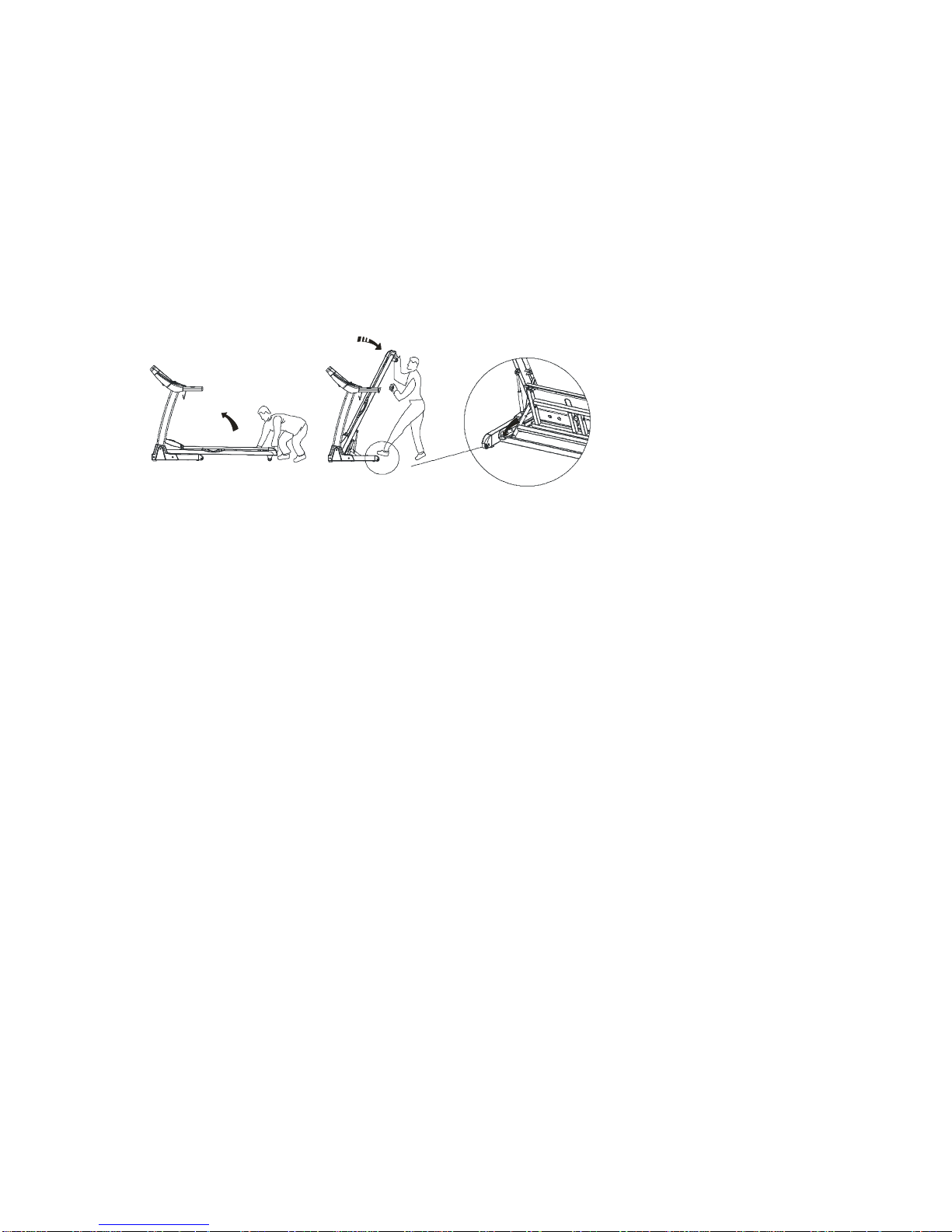

FOLDING & UNFOLDING

Folding:

Folding will help to save space.

Before folding, please switch off and pull off the plug.

Use your hand to lift the running board until it has been locked.

Unfolding:

Step on the supporting tube and pull running board with your hands. The running board will fall to the ground

slowly.

INSTRUCTION FOR CONSOLE

Tech info

Time

00:00-99:59 min

Speed

1.0-22.0 km/h

Incline

0-22%

Distance

0.00-99.9 km

Calorie

0-999 KCAL

Heart rate

40-250 / Min

Program

Preset program

P1-P99

User-defined program

U1.U2.U3

FAT

HRC

HR1
