Insportline Gilavar User manual

USER MANUAL –EN

IN 6938 Treadmill inSPORTline Gilavar

2

CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
ADDITIONAL INFORMATION............................................................................................................. 3
PACKING DETAILS ................................................................................................................................ 4
EXPLODED VIEW................................................................................................................................... 5
LIST OF COMPONENTS........................................................................................................................ 5
TREADMILL STRUCTURE..................................................................................................................... 7
INSTALLATION SKETCH ....................................................................................................................... 7
USE ......................................................................................................................................................... 8
FOLDING & UNFOLDING ................................................................................................................... 8
INSTRUCTION FOR CONSOLE............................................................................................................. 9
DISPLAY................................................................................................................................................ 11
Detailed Instructions .......................................................................................................................... 11
GENERAL TRAINING RECOMMENDATIONS..................................................................................... 14
GETTING STARTED............................................................................................................................. 15
SAFE EXERCISE.................................................................................................................................. 15
MAINTENANCE .................................................................................................................................... 16
THE ADJUSTMENT STEPS FOR POLY V-BELT............................................................................. 16
ADJUSTMENT RUNNING BELT....................................................................................................... 16
THE ADJUSTMENT STEPS FOR RUNNING BELT DEFLECTION................................................. 17
LIBRICATION..................................................................................................................................... 17
CLEANING......................................................................................................................................... 18
STORAGE.......................................................................................................................................... 18
GUIDES FOR MALFUNCTION............................................................................................................. 18
PROGRAMS.......................................................................................................................................... 20
IMPORTANT NOTICE........................................................................................................................... 22
ENVIRONMENT PROTECTION ........................................................................................................... 23
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 23



SAFETY INSTRUCTIONS

•According to your health condition, please exercise properly. Overload or

improper exercise will damage your health.

•While running, you should dress properly. Don’t dress too loosely in case your

clothes are entangled by the machine. And please wear sport shoes. Don’t let

your children or pet play near it to avoid unnecessary injury.

•This machine is not suitable for children. For patients or the disabled to use, they

have to follow the guides by their guardians or doctors.

•Don’t use this machine when in outdoor, high humidity condition or sun.

•Please pull the plug off from socket and keep the safe key, when the treadmill is

unused.

•This machine is for home use, not suitable for professional exercise or testing,

and also not suitable for medical purpose.

•The heart rate on this machine is not suitable for medical.

•If any damage for power wire, please ask manufacturer or professional service to

replace it in case of any danger.

•Please check all the parts before using. Make sure that all the nuts or screws are

fastened.

•Place your treadmill on the clean, flat and solid floor. Make sure that there is not

anything pointy, water or hot near to the machine. Use floor protection (not

included) and keep at least 0,6 m free space around device for security.

•Please stop exercising immediately and consult your doctor if you’re feel giddy,

surfeit, thorax ache or other symptoms.

•Make sure that hands are not near to running parts. Don’t put your hands or foots

under the running belt.

•When running this machine, it is only for one person to use it!

•Please use the spare parts from us, it is not acceptable if you use spare parts

from others.

•This machine is HC category, max user weight 150 kg.

•Please consult your doctor at first before running, if you have one of the following

diseases.

1. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic

diseases, complication disease.

2. If you are over 35 years old and heavier than common weight.

3. Women in pregnant or in breasting period.

ADDITIONAL INFORMATION

•Please use qualified socket. If the plug and the socket is not compatible, please

ask electrician to handle it and don’t do anything for the plug.

•The voltage for this machine is 220V-240V AC.

•Don’t let power wire touch roller, and also don’t put power wire on the running

belt. Don’t use damaged plug.

•Before cleaning, moving and maintaining the machine, please pull off the plug for

the socket.

Warning: If don’t pull off, it will cause injury or damage for the machine.

PACKING DETAILS

WARNING: Carefully install the product, avoid making any damage.

WARNING:

1) Carefully read the instructions before installation. Operate in accordance with procedures.

2) Check components in the package

3) Remove all paper boxes and foams used as fasteners.

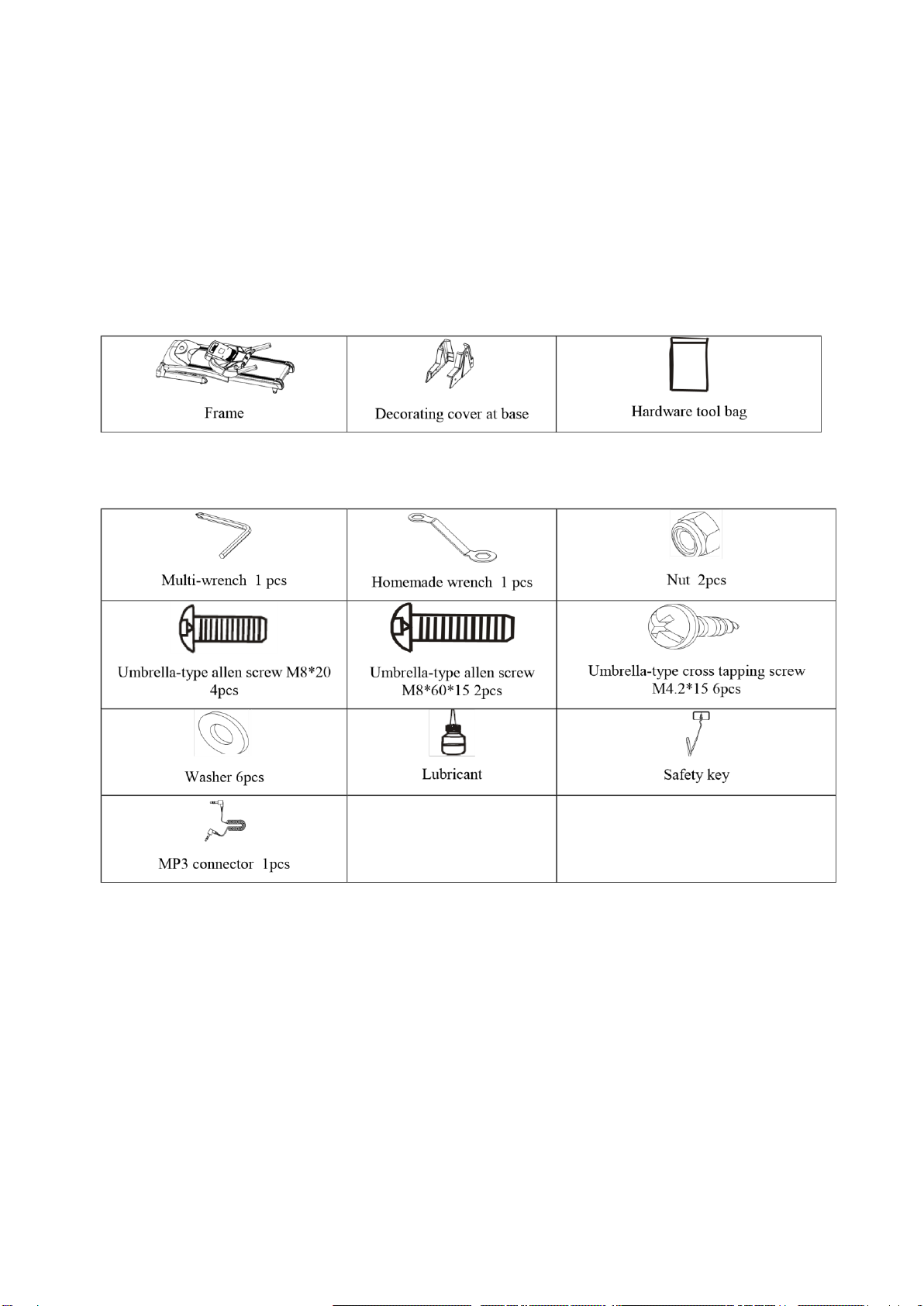

Check all the following components. If there is missing or problematic parts, please contact the dealer

Hardware tool bag

EXPLODED VIEW

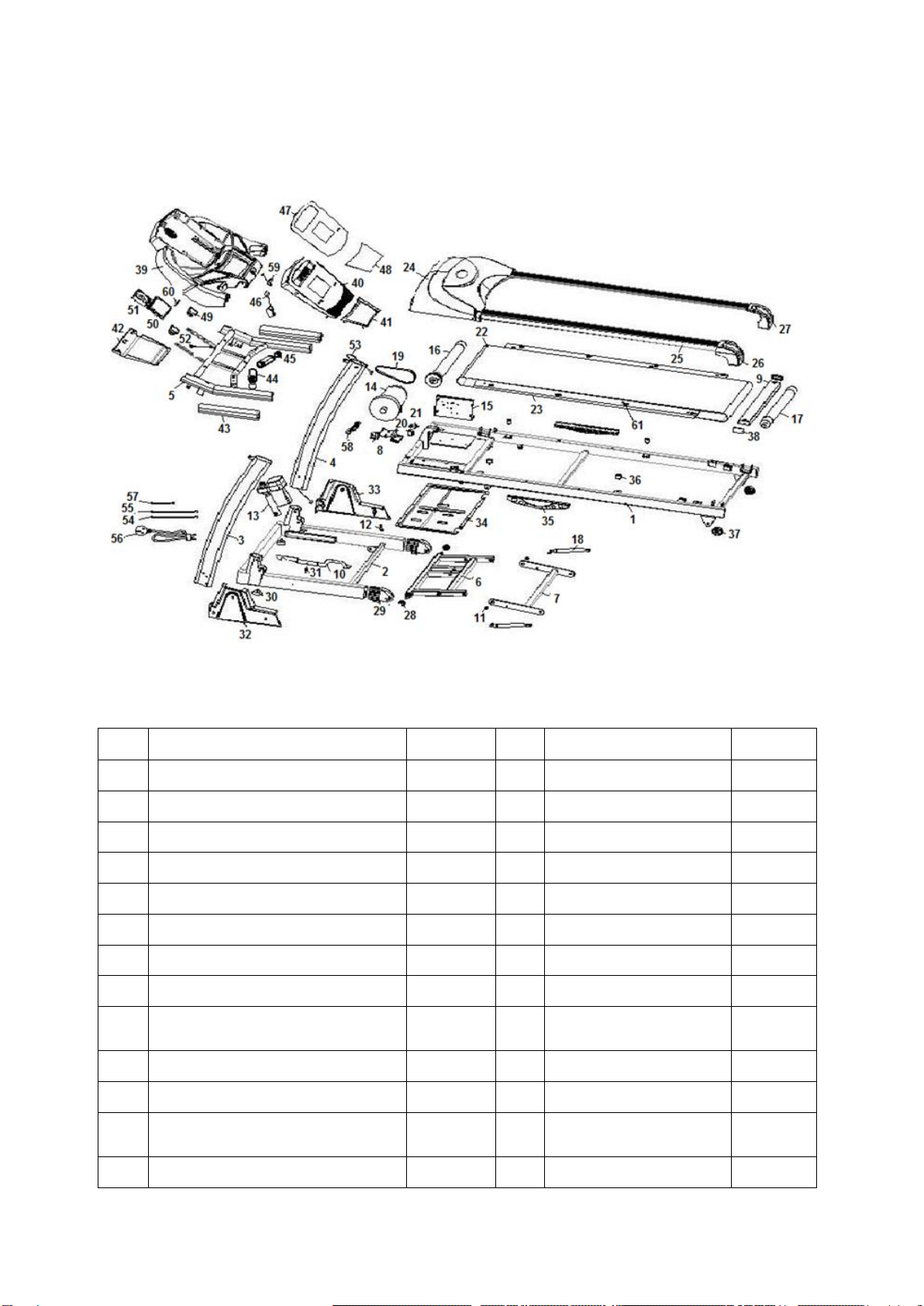

These are all the components used in installation. All components are listed in the following form.

LIST OF COMPONENTS

No.

Component

Quantity

No.

Component

Quantity

Base frame

Bumper

frame

Rubber wheel

Left pillar accessory

Square tube plug

Right pillar accessory

Upper cover of meter

Dashboard frame

Meter panel

Incline frame

Button board

Connecting frame

Lower cover of meter

Motor stator

Sponge sheath

Reinforcement tube for running

board

Heart rate sensor

Pedal hook

Circular tube plug

Sleeve for shaft

Safety key

Safety brace for base frame

and frame

Surface paster

Incline motor

Button paster

Motor

Speaker

PCB

PCB for console

Front roller

Fan

Back roller

Upper communication

line

Pressure stick

Lower communication

line

Multislot belt

Green connecting line

Power switch

Red connecting line

Overload protector

Power wire

Running belt

Red connecting line

Running board

Sensor wire

Motor cover

Reed pipe for safety

key

Side rail

MP3 module

Left back cover

Locating pad for side

rail

Right back cover

Lifting transporting wheel

Base handling wheel set

Adjusting foot pad

Tension spring

Left decorative cover at base

Right decorative cover at base

Lower cover of motor

Shock absorption

TREADMILL STRUCTURE

INSTALLATION SKETCH

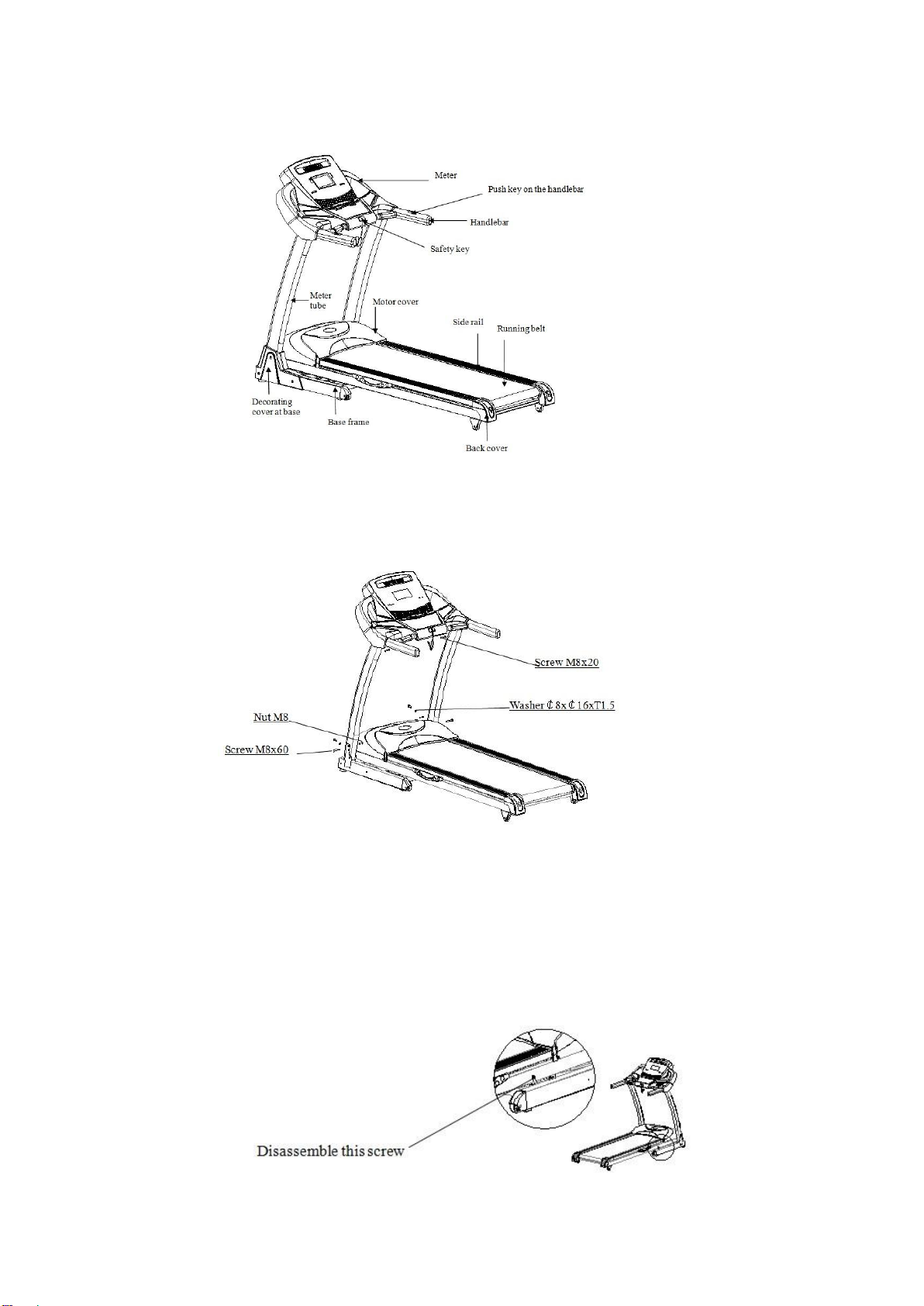

Step 1: Put meter on the meter tube.

•Use 2 pcs of Screw M8*20 with 2 pcs of washer to solid the meter tube. (Don’t fasten screw at

first).

•Use 2 pcs of Screw M8*60 with 2 pcs of washer, 2 pcs of nut to solid the meter tube. (Don’t

fasten screw at first).

•Use 2 pcs of Screw M8*20 with 2 pcs of washer to solid the meter. (Don’t fasten screw at first).

•After the machine is power on, push “Start”, if everything goes well, then fasten screws

mentioned in front steps.

Step 2：Disassemble connecting screw for base frame

Step 3: Install decorating cover at base

Use 6 pcs of Screw ST4.2*15 to solid left and right decorating cover at base.

USE

Insert the power plug into the socket and switch on the machine. The switch light will be on and you

will hear a voice “Di”. You will find the meter light will also be on.

Safety key:

The machine can work only when you put safety key at the appointed position. Make sure the other

end of the safety key has been nipped to your clothes. In this way, you can pull the safe key for the

machine’s sudden stop under the dangerous condition. Then you will not be injured. If you need to

reuse the machine, you could put safety key back.

FOLDING & UNFOLDING

Folding:

Folding will help to save space.

Before folding, please switch off and pull off the plug.

Use your hand to lift the running board until it has been locked.

Unfolding:

Step on the supporting tube and pull running board with your hands. The running board will fall to the

ground slowly.

INSTRUCTION FOR CONSOLE

Time

00:00-99:59 Min

Speed

1.0-22.0 km/h

Incline

0-22%

Distance

0.00-99.9 km

Calorie

0-999 KCAL

Heart rate

40-250 / Min

Program

Preset program

P1-P99

User-defined program

U1.U2.U3

FAT

HRC

HR1
