Insportline Galdigar User manual

USER MANUAL –EN

IN 20166 Treadmill inSPORTline Galdigar

2

CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
DIAGRAM................................................................................................................................................ 5
PARTS LIST............................................................................................................................................ 6
PRODUCT DESCRIPTION..................................................................................................................... 7
PACKAGE ............................................................................................................................................... 8
ASSEMBLY ............................................................................................................................................. 9
STEP 1................................................................................................................................................. 9
STEP 2............................................................................................................................................... 10
STEP 3............................................................................................................................................... 10
STEP 4............................................................................................................................................... 11
STEP 5............................................................................................................................................... 11
STEP 6............................................................................................................................................... 12
CONSOLE............................................................................................................................................. 12
DISPLAY............................................................................................................................................ 13
BUTTONS.......................................................................................................................................... 13
SAFETY KEY..................................................................................................................................... 13
HEART RATE TEST.......................................................................................................................... 13
FAULTS AND ERROR CODES ............................................................................................................ 14
TRANSPORT......................................................................................................................................... 14
GENERAL TRAINING RECOMMENDATIONS..................................................................................... 15
GETTING STARTED............................................................................................................................. 15
SAFE EXERCISE.................................................................................................................................. 16
EXERCISE INSTRUCTIONS ................................................................................................................ 17
THE WARM UP PHASE .................................................................................................................... 17
THE COOL DOWN PHASE............................................................................................................... 17
STORAGE............................................................................................................................................. 18
IMPORTANT NOTICE........................................................................................................................... 18
ENVIRONMENT PROTECTION ........................................................................................................... 18
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 18



SAFETY INSTRUCTIONS

•Read the manual carefully and keep it for future reference.

•Always clip the safety key to your clothes or belt before starting exercising.

•Move naturally, forward. Do not look on your feet. Only for one person can use the product on

the same time.

•Speed increase regularly, not immediately.

•In case of danger, press the stop button or pull out the safety key.

•Leave the device after it stopes moving.

•Follow the assembly instructions. Assembly can be done by adult person.

•Keep away from kids and pets. Do not leave kids and pets unattended near the treadmill.

Treadmill is for adults only.

•Before starting any exercise, program ask your physician. It is important if you have heath

issues or ongoing treatment or have high blood pressure.

•Regularly check all bolts and nuts. They must be tightened properly. Regularly check the

treadmill for damage or signs of wear. Do not use damaged or wear treadmill.

•Regularly check the treadmill for signs of wear or damage. If any sharp edge appears stop

using the treadmill.

•Please the treadmill on flat, dry and cleat surface. Keep safety distance of at least 0.6 m

around the treadmill. Do not use in humid areas. Do not place the treadmill on thick carpet.

•If the power cable is damaged do not use the device. Buy new one in authorized shop.

•Protect the treadmill from humidity and water.

•Place the treadmill not to cover socket.

•Do not use aerosol sprays in the area around treadmill.

•If the treadmill is running, do not remove the protective cover. If you need to remove the

protective cover during maintenance, unplug the treadmill from socket.

•Always wear sport clothes. Do not wear loose clothes that can get stuck. Always wear sport

boots.

•Do not turn on the treadmill if you are standing on it. There is a delay when you turn on the

treadmill. Before starting the treadmill stand on the side.

•Do not exercise 40 min after eating food.

•Always do warm ups before exercise.

•Do not place foreign object to ventilation or sockets.

•Do not modify the product.

•Exercise reasonably and do not overextend. If you exercise for the first time, hold your

handles firmly until you get used to the device. When HIGH HEART RATE is displayed, your

heart rate is too high, and you need to reduce the pace.

•Connect the treadmill to socket after the treadmill is assembled. Use only grounded socket.

•If you are not using the device unplug it from socket and safety key removed.

•Any part of the treadmill cannot prohibit the movement of the user.

•Do not use outdoors.

•Do not expose to direct sunlight.

•Do not please in areas with high humidity (pools, sauna etc.)

•Max. user weight: 150 kg

•Category: SB (according to EN 957) suitable for professional and commercial use

•Dimensions: After assembly 1960x876x1640 mm running belt 1600x550 mm

SAFETY WARNING: Do not use heart rate sensors in the handle at speeds above 14 km / h.

WARNING! The heart rate monitoring system may not be accurate. Overextending during

training can cause serious injury or death. If you feel nauseous, stop the exercise

immediately!

DIAGRAM

PARTS LIST

No.

Name

Qty

No.

Name

Qty

Incline frame

Feet pad

Base

Hexagonal bolt

Incline motor adjust part

Hexagonal bolt

Guide wheel set

Hexagonal bolt

Left upright

Hexagonal bolt

Right upright

Hexagonal bolt

Console holder

Wheel bearing (OMA-01-12-066)

Handlebar set

Outside cover (OMA-01-13-468) –

Incline side frame

Drive pipe (OMA-01-08-095)

Handlebar pipe

Drive pipe

Front roller reinforcing clamp ring

Drive pipe

Pinch roller clamp ring

Cylinder cushion

Aluminum chain

Handlebar adjust set

Console panel

Sundries box

Bolt M8x40x13

110

Decoration strip

Hexagonal bolt

Decoration strip

Hexagonal bolt

Console frame

Allen bolt

Rear console cover

Hexagonal bolt

Right cover

Hexagonal bolt

Left cover

Hexagonal bolt

Right handle

Hexagonal bolt

Left handle

Hexagonal bolt

Front right cover

Hexagonal bolt

Front left cover

Self-tapping screw

Bolt M5x20

Flat washer

Guide wheel (OMA-01-08-103)

Flat washer

Guide pulley (OMA-01-08-103)

Spring washer

Guide pulley (OMA-01-08-058) –1

Washer

240

Guide pulley (OMA-01-08-085)

Nut

240

Guide pulley (OMA-01-08-089)

Nut

118

Guide pulley

Nut

Guide pulley

Front roller

Frequency converter

PU front roller

Deep groove ball bearing

Universal bearing

Wheel (OMA-05-09-019)

Rear roller

Button

Belt wheel

Round shaft sleeve

Synchronous wheel

Bolt M5x15

Universal bearing

Screw ST3x10

Washer

120

Power cord

Bearing

110

Power cord socket (Sanwei S-03-

11)

Rubber coated aluminum chain

Fuse (with wire)

Belt to fix running belt

Switch

Console

Power cord

Communication wire

Power cord

Communication wire

Console

Communication wire

Hexagonal bolt M8x20

Safety key console plate

Hexagonal bolt M4x16

Safety key extractor

Hexagonal bolt M8x20

Servo motor

100

Hexagonal bolt M8x20

Incline motor

101

Knob

Motor belt

102

Knob frame

Water bottle holder

103

Hexagonal bolt M8x35x20

PRODUCT DESCRIPTION

1. Console

2. Knob

3. Handles

4. Upright

5. Aluminum chain

6. Lifting handrail

7. Cover

8. Upright cover

9. Console hodler

PACKAGE

Base

Console frame

Upright

Handles

Covers

Console

Front handles

Console holder

Manual

Hexagonal bolt M8x15 –8 pcs

Spanner

Allen key

Spanner

Screwdriver

Hexagonal bolt M8x20 –4 pcs

Bolt M10x35 –6 pcs

Screw ST4x16 –14 pcs

Hexagonal bolt M8x30 –4 pcs

Hexagonal bolt M8x40x20 –6 pcs

Hexagonal bolt M8x20 –2 pcs

ASSEMBLY

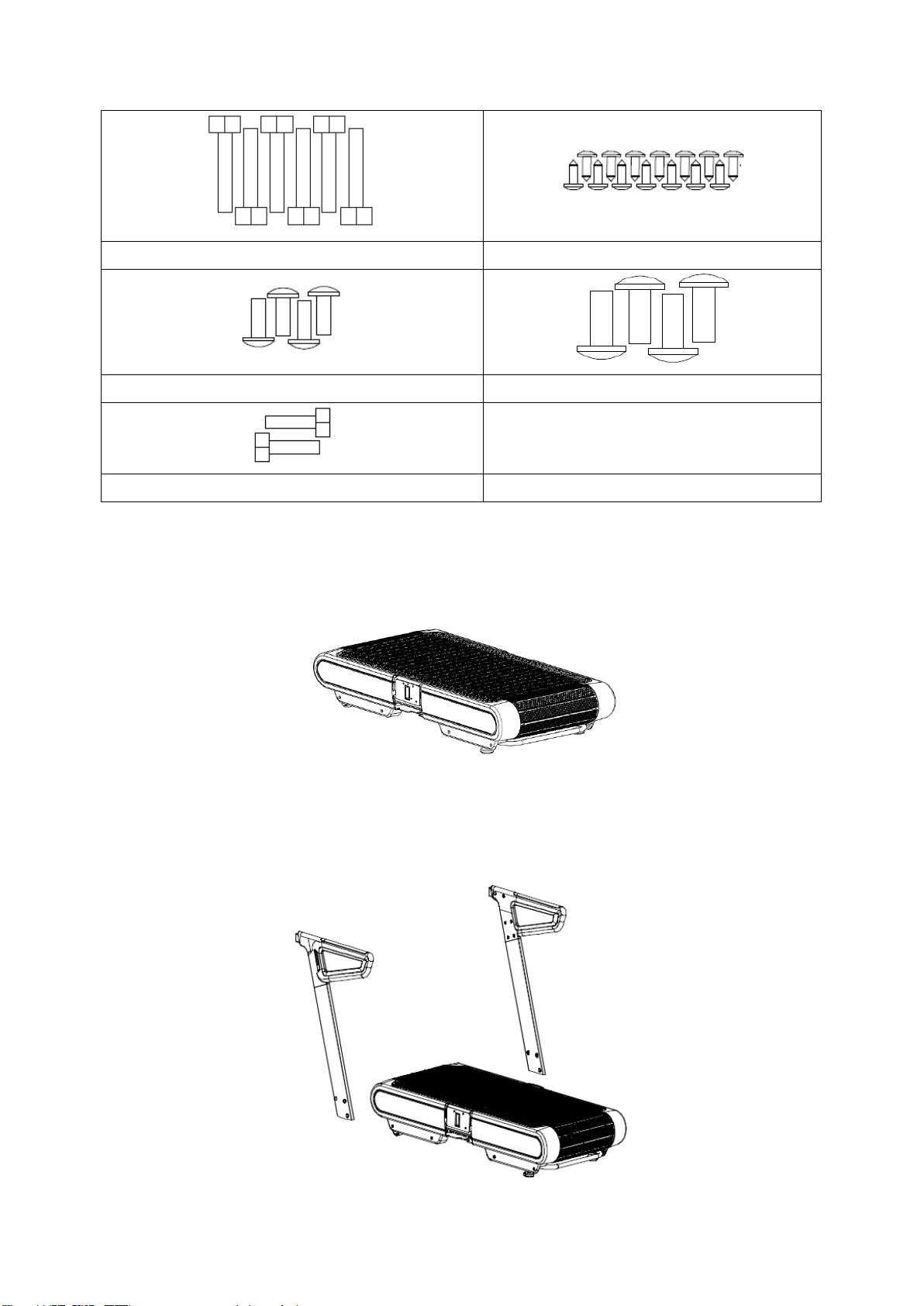

Pull the base out of the package and place it on a flat and firm surface.

STEP 1

Connect the main frame and right post communication cables, then slide the right post into the

clamping ring and secure with 3x M10x35 bolts. Attach the left pillar as well as the right one; no cables

are required.

STEP 2

Attach the console frame to the right and left post using 4x M8x20 bolts and 2x M8x20 bolts from the

bottom.

STEP 3

Attach the front handles to the bracket frame using 4x M8x30 bolts
