Infinity Total Solutions TSS-CENTER4000 User manual

TSS-CENTER4000

Owner’s Guide

TOTAL SPEAKER SOLUTIONS

TSS-4000

INFP1594Center-4000om 10/18/04 2:34 PM Page 1

INTRODUCTION

InfinityTotal Solutions™

Infinity Total Solutions TSS-CENTER4000 center channel

loudspeaker is designed to perfectly complement theTSS-SAT4000

speakers. It uses identical drivers to provide exceptional

dialogue reproduction and a seamless transition between the

front channels.The horizontal design allows for maximum

placement flexibility.

AboutThis Guide

Please read this guide completely before connecting and

operating theTSS-CENTER4000 center channel speaker.

Maximum performance is dependent upon following these

instructions, as well as those in the owner’s manuals of

associated components in your home theater system. Save

these instructions for future reference.

Unpacking the Speaker

Finish unpacking the speaker and check the contents. If you

suspect damage from transit, report it immediately to your

dealer. Keep the shipping carton and packing materials for

future use.

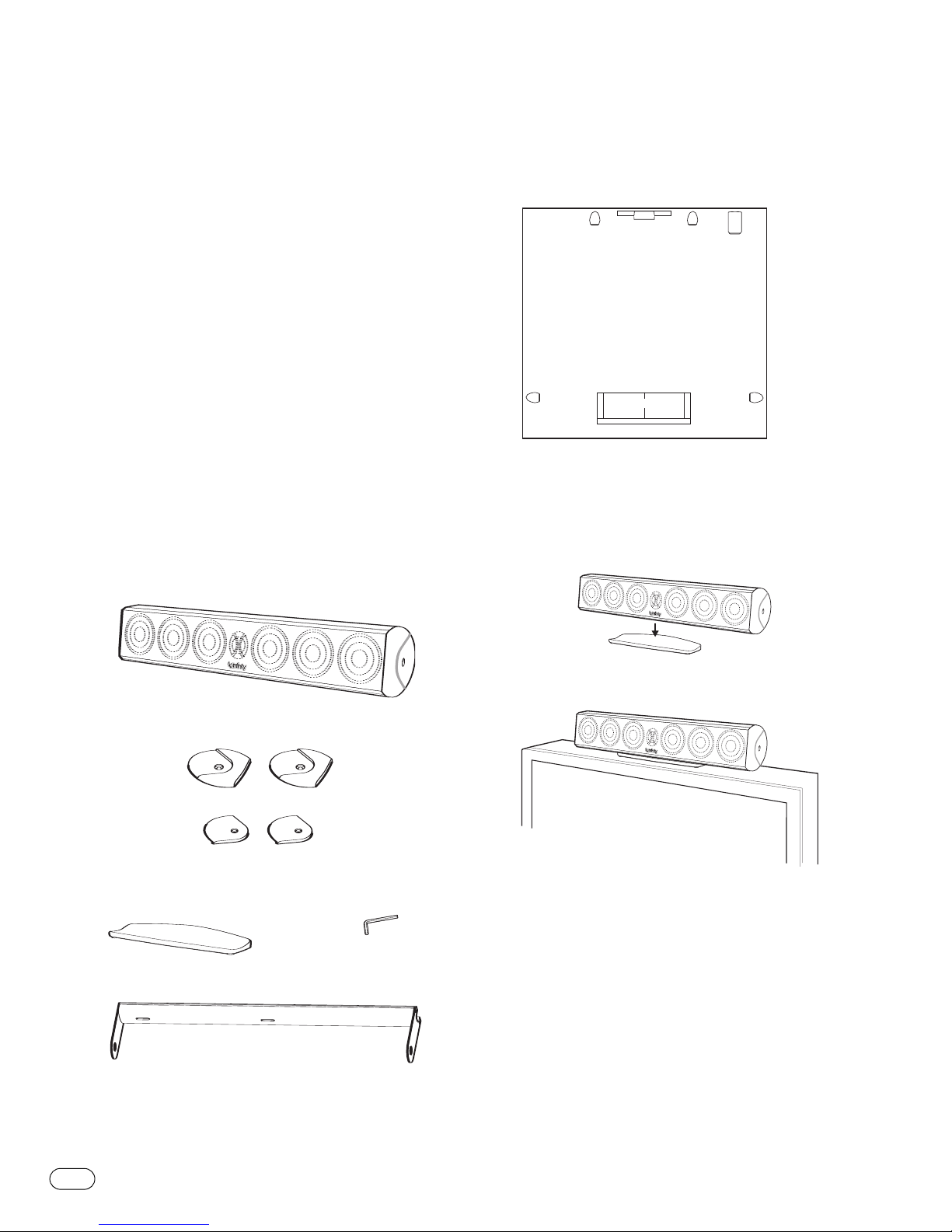

Contents

Please verify that the package contains the following items:

PLANNING YOUR SYSTEM

Before deciding where to best place your speakers, survey your

room and study Figures 1 and 2.

Figure 1. In this overhead view of a typical installation, satellite

speakers are used to reproduce sound for the front and surround

channels.The center channel reproduces sound and dialogue.

The powered subwoofer provides bass for effects and music.

Placement

Figure 2.This example shows the TSS-CENTER4000 being placed

on top of a television.The speaker can also be placed below the

television and tilted up (see Figure 3).

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

(above or below TV) Subwoofer

(1) TSS-CENTER4000 center channel speaker

(1) Speaker base

(1) Wall bracket with wall bracket cover

2TSS-CENTER4000

Part A

Part B

(2) Wall-mount end caps

(attached to satellite)

(1) Allen

wrench

INFP1594Center-4000om 10/18/04 2:34 PM Page 2

TSS-CENTER4000

Tilting the Speaker

If needed, the enclosed stand allows you to tilt the speaker

across a wide range (i.e., up a maximum of 18˚ or down a

maximum of 7˚), as shown in Figure 3.

Important!

Do not exceed the tilt range. Doing so may cause the speaker to

fall out of its stand.

Figure 3.

Wall-Mounting theTSS-CENTER4000 Using the

Included Wall Bracket

The customer is responsible for proper selection and use of

mounting hardware, and for correctly and safely wall-mounting

the speakers.

Step One

Remove the wall bracket cover by removing the four wall bracket

screws on the ends as shown.

StepTwo

Run the speaker wire behind the wall bracket and out the hole

in the center. After deciding where to place the center speaker,

attach the wall bracket (in a horizontal position) to the wall

using the appropriate screws and anchors.

StepThree

Run the speaker wires out through the hole in the center of

the wall bracket cover. Resecure in place with the four wall

bracket screws, as shown.

Mounting Screws and Anchors

Not Included

Wall Bracket

Center Hole

INFP1594Center-4000om 10/18/04 2:34 PM Page 3

4TSS-CENTER4000

Step Five

Connect the wires (page 5). Replace the end caps while

capturing the wall bracket between parts A and B of the

end cap,securing it in place.

Wall-Mount

End Cap A

Wall-Mount

End Cap B

Step Four

Using the included Allen wrench, remove the top and bottom

end caps of the speaker by unscrewing the single center screw

on bottom.

End Cap

1/4-20 x 3/4"

Screw

End Cap

Step Six

The wall-bracket design allows for rotation of the speakers

at angles up to 30 degrees of center. Position the speakers

so they face toward the primary listening position, before

fully tightening.

INFP1594Center-4000om 10/18/04 2:34 PM Page 4

TSS-CENTER4000

WIRING THE SPEAKER

After placing the speaker, you are ready to connect it to your

system. First, turn off all audio system power. Use high-quality

speaker wire to make the connections. Consult the owner’s

manuals included with your amplifier or receiver for connection

and operation procedures.

Surround Modes

When using theTSS-CENTER4000 in a Dolby* Digital or DTS®

home theater system, make sure the receiver’s/processor’s

center channel speaker modes are set to“Small.”

Wiring and Polarity

The TSS-CENTER4000 speaker has gold-plated terminals that

can accept bare wire.To ensure proper polarity, connect each

+ terminal on the back of the amplifier or receiver to the

respective + (red) terminal on each speaker, as shown in

Figure 4. Connect the – (black) terminals in a similar way.

See the owner’s manuals that were included with your

amplifier or receiver to confirm connection procedures.

Important!

Do not reverse polarities (i.e., + to – or – to +) when making

connections. Doing so will degrade the imaging and bass

response of the home theater system.

After correctly placing and wiring theTSS-CENTER4000 and

the rest of your speaker system, adjust the levels for all of the

channels as recommended by the manufacturer of your

receiver/processor.

Figure 4.This example shows how to connect bare wires to the

terminals. Banana plugs may also be inserted directly into the

rear of the connector.

1Loosen the terminals.

2Insert bare ends; tighten terminals.

– +

CARE OF YOUR SPEAKER SYSTEM

When needed, use a soft cloth to remove any fingerprints or

to wipe off dust. Do not use any cleaning products or polish.

Clean the grille by gentle vacuuming.

INFP1594Center-4000om 10/18/04 2:34 PM Page 5

6TSS-CENTER4000

SPECIFICATIONS

TSS-CENTER4000

Frequency Response 120 – 20kHz (±3dB)

Nominal Impedance 8 ohms

Sensitivity 89dB

(2.83V @ 1m)

Recommended Amplifier 10 – 150 watts

Power Range

Crossover Frequencies 1,000Hz, 3,800Hz; 24dB/octave

Low Frequency Drivers (4) 3-1/2" (89mm) MMD®

magnetically shielded

Mid Frequency Drivers (2) 3-1/2" (89mm) MMD,

magnetically shielded

High Frequency Driver 3/4" (19mm) MMD,

elliptical waveguide,

magnetically shielded

Dimensions (H x W x D) 4-1/8" x 23" x 4-3/8"

(105mm x 584mm x 111mm)

Weight 12.7 lb (5.8kg)

Infinity continually strives to update and improve existing products, as well as create new ones.

The specifications and construction details in this and related Infinity publications are therefore

subject to change without notice.

Declaration of Conformity

We, Harman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the product

described in this owner’s manual is in compliance

with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Robin Marshall

Harman Consumer International

Chateau-du-Loir, France 10/04

INFP1594Center-4000om 10/18/04 2:34 PM Page 6

NOTES

INFP1594Center-4000om 10/18/04 2:34 PM Page 7

Infinity Systems,250 Crossways Park Drive,Woodbury, NY 11797 USA 516.674.4INF (USA only) www.infinitysystems.com

*Trademarks of Dolby Laboratories. DTS is a registered trademark of DigitalTheater Systems, Inc. Infinity and MMD are registered trademarks,

and Total Solutions is a trademark, of Harman International Industries,Incorporated.

Part No.400-OMCNTR 10/04
