ICP DAS USA I-7016 User manual

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

I-7016

Strain Gauge Voltage Input, Current Input

Data Acquisition Module

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/i_7016

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

I-7016 is a cost-effective solution for a wide range of valuable industrial

control signals and systems. The DCON utility can help users to configure

and test I-7016 modules. Plenty of library functions and demo programs are

provided to let users develop programs easily under Windows, Linux and

DOS operating systems. Users may mount the modules on a DIN rail,

panel or wall. Modules have a screw-terminal block to connect to the

signals. I-7016 comes with FREE EZ Data Logger Software.

2. Terminal Assignment

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

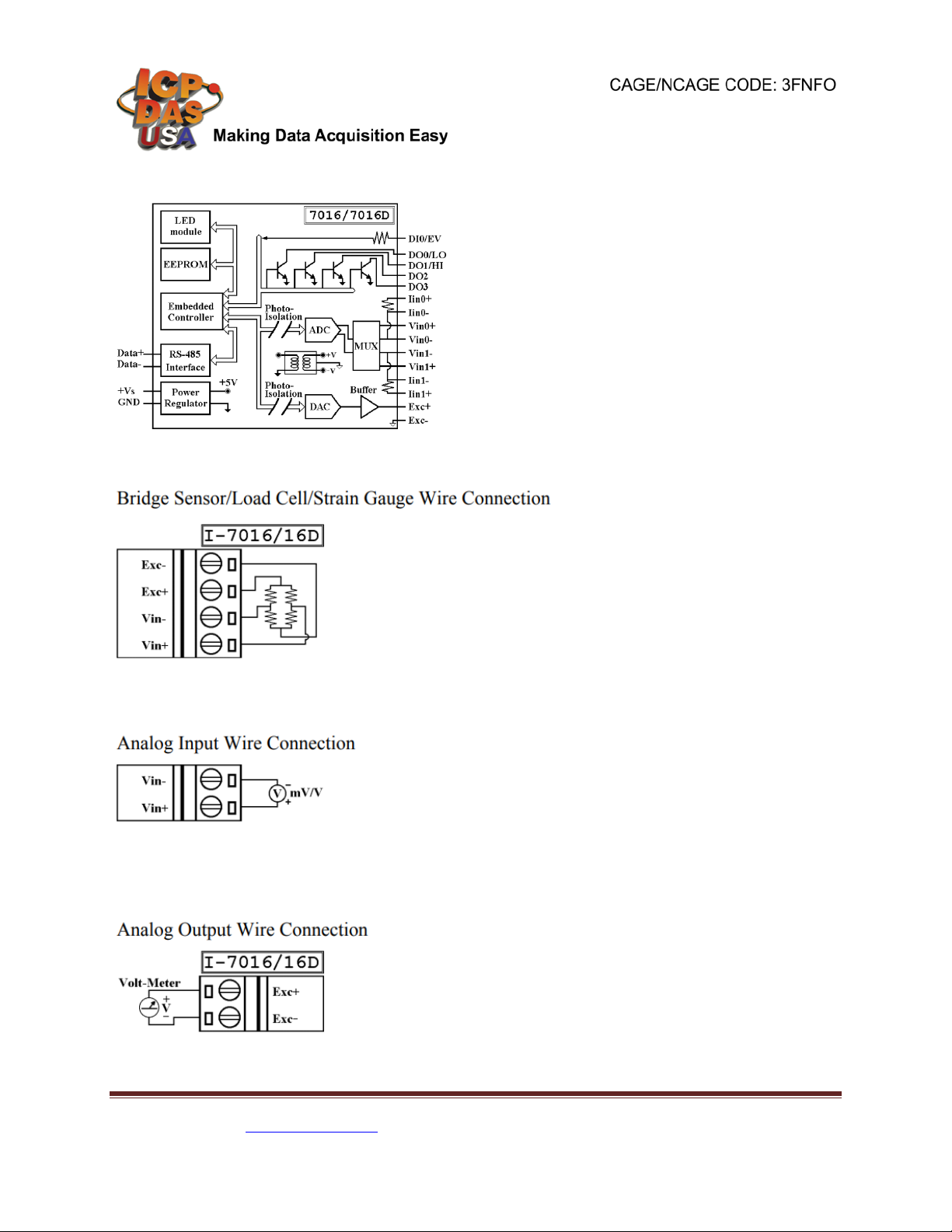

3. Block/ Wiring Diagram

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Default Settings

Default setting for I-7016/16D/16P/16PD :

- Address : 01

- Analog Input Type : Type 05, -2.5 to +2.5 V

- Baudrate : 9600 bps

- Checksum disable, engineer unit format, 60Hz filter

5. Configuration

To install the module, follow the steps below:

1. Connect the analog output.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

6. Configuration I/O module setting on PC

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

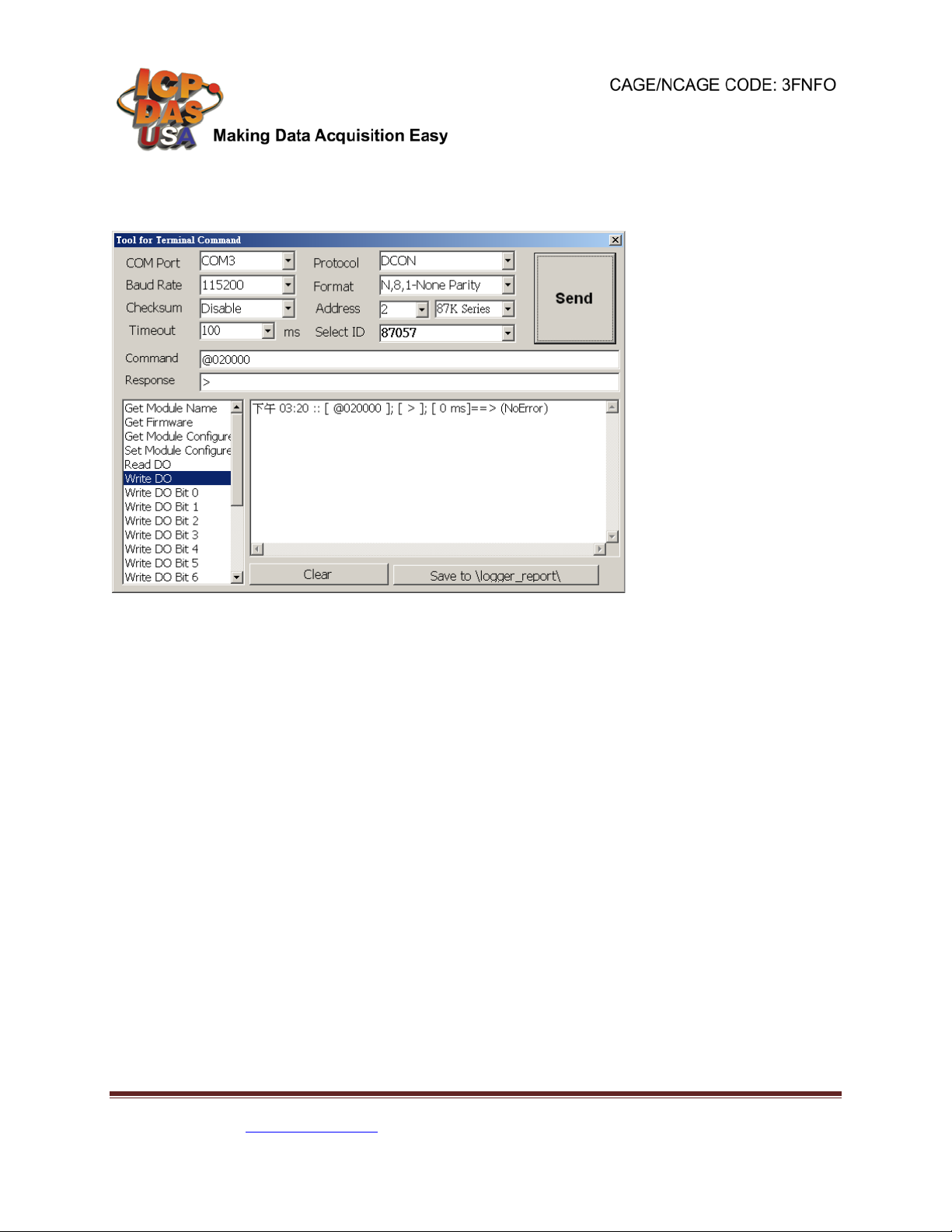

7. For I-7000 modules, DCON utility pro terminal can send command to the module.

See user manual Sections 2 for details command.

Configure the module: sending the %AANNTTCCFF command. See user manual

Section 2 for details.

Read data from the input channels: send either the #AA or #AAN command to the

module.

I-7016 - Strain Gauge Voltage Input, Current Input DAQ Module - QuickStart (Nov/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
