ICP DAS USA M-7088 User manual

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

M-7088

8-channel PWM Output and 8-channel High-

speed Counter Data Acquisition Module

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/m_7088

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

M-7088 has 8 PWM output channels and 8 counter inputs. It can be used to develop

powerful and cost effective analog control system. PWM (Pulse width modulation) is a

powerful technique for controlling analog circuits. It uses digital outputs to generate a

waveform with variant duty cycle and frequency to control analog circuits. It can be used

to Controlling the position/speed of motors, Dimming the brightness of lamps,

Controlling the speed of fans… etc.

2. Terminal Assignment

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. Block/ Wiring Diagram

4. Default Settings

Default settings for the M-7051 module is:

Address = 01

Baud Rate = 9600

Checksum disabled

Data = 1 Start + 8 Data + 1 Stop (no parity)

PWM Frequency = 10 KHz

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PWM Duty Cycle = 50%

PWM Steps = 1 (Continuous Type)

5. Configuration

To install the module, follow the steps below:

1. Connect the thermistor analog input.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

6. Configuration I/O module setting on PC

7. For M-7000 modules using the Modbus RTU protocol, configure the module using the

following functions.

Sub-function 04h of Function 46h, see user manual Section 3.3.2

Sub-function 06h of Function 46h, see user manual Section 3.3.4

Sub-function 08h of Function 46h, see user manual Section 3.3.6

For M-7000 modules using the Modbus RTU protocol, use Function 04h to read the

data from the input channels. See user manual Section 3.2 for details.

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

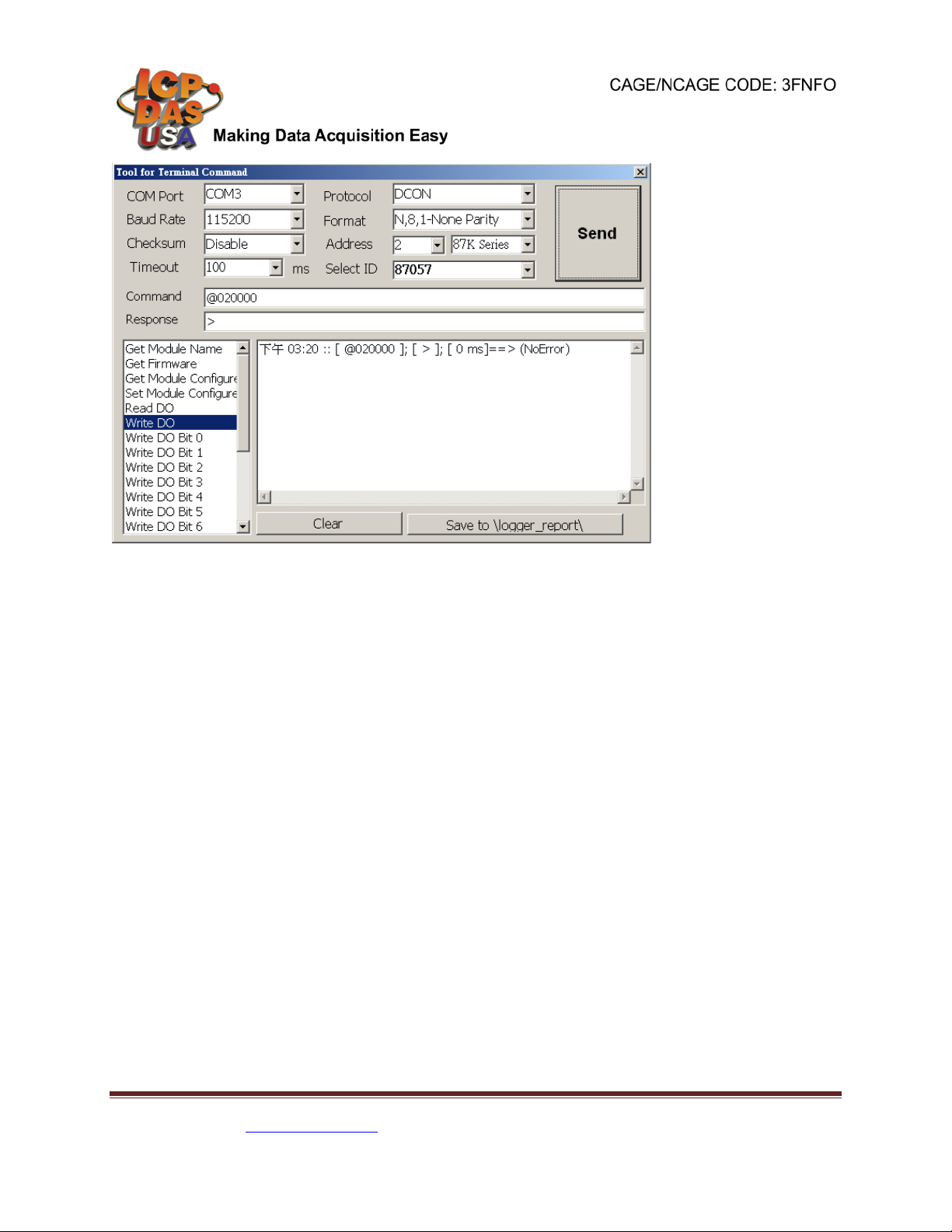

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.

M-7088 8-ch PWM Output and 8-ch High-speed Counter DAQ Module - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
