IBASE Technology LV-67H User manual

LV-67H

Mini-ITX Motherboard

User’s Manual

Edition 1.6

2013/07/10

LV-67H User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-67H User’s Manual

-2-

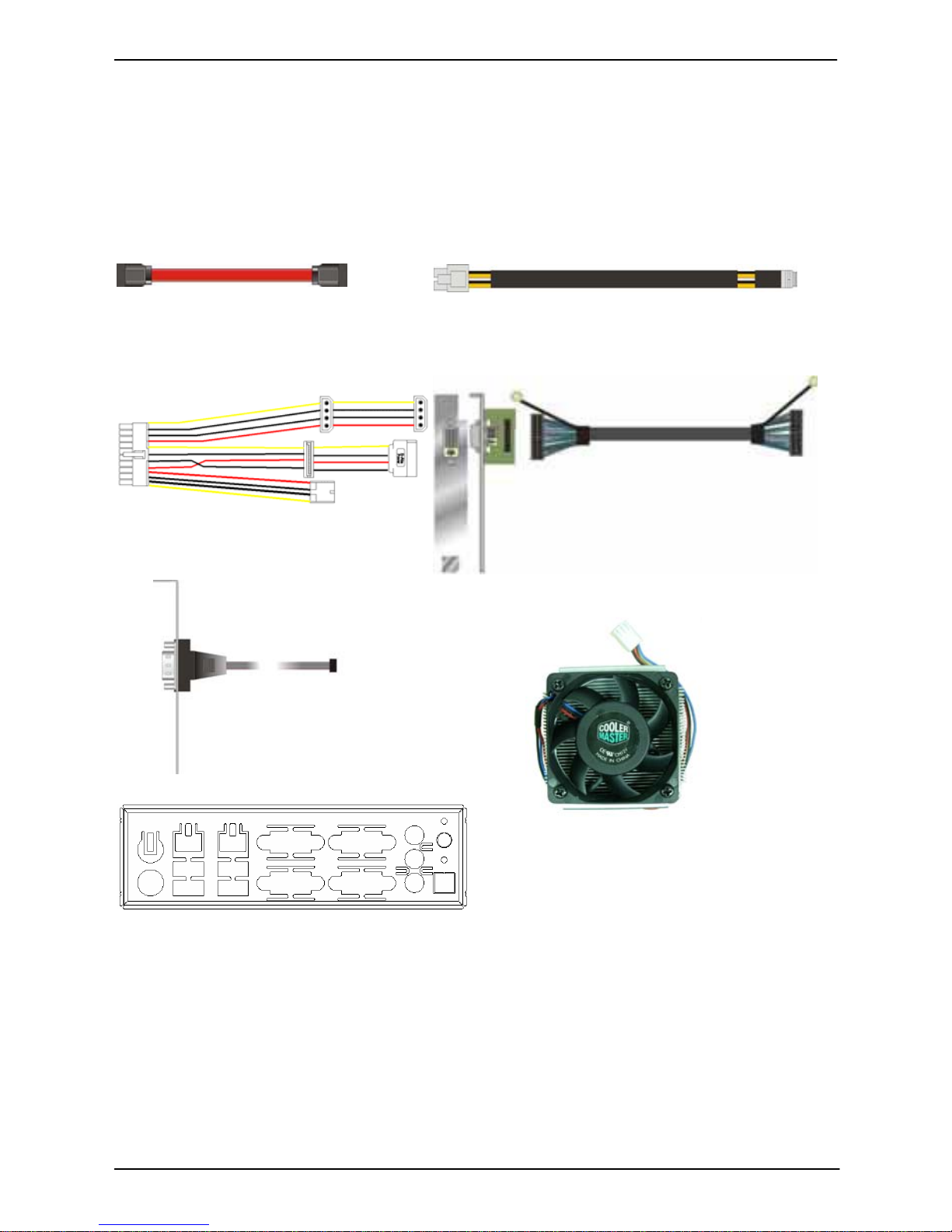

Packing List:

Please check the package content before you starting using the board.

Hardware:

LV-67H Mini-ITX Motherborad x 1

Cable Kit:

SATA Cable x 2

(OALSATA-L) DC Power Cable x 1

(OALDC-A)

I/O Shield x 1

(OPLATE-LV67E)

Power Cable x 1

(OALATX-P3S2)

Printed Matters:

Driver CD (Including User’s Manual) x 1

CPU Cooler x 1

(OHS-P-M-G)

DVI module with bracket x 1

(ADPDVIP & OALDVI-P)

COM Port Cable x 1

(

OALES-BKU1

)

LV-67H User’s Manual

-3-

Dual COM PORT cable x 1

(OALES-BKU2)

Optional Cable:

USB Cable x 1

(OALUSBA-1)

LV-67H User’s Manual

-4-

Index

Chapter 1 <Introduction> ..............................................................................7

1.1 <Product Overview>.....................................................................................7

1.2 <Product Specification>................................................................................8

1.3 <Mechanical Drawing>.................................................................................9

1.4 <Block Diagram>........................................................................................10

Chapter 2 <Hardware Setup>......................................................................11

2.1 <Connector Location> ................................................................................11

2.2 <Jumper Location & Reference>................................................................12

2.3 <Connector Reference> .............................................................................13

2.3.1 <Internal Connectors>....................................................................13

2.3.2 <External Connectors>...................................................................13

2.4 <CPU and Memory Setup>.........................................................................14

2.4.1 <CPU Setup>.................................................................................14

2.4.2 <Memory Setup>............................................................................15

2.5 <CMOS & ATX Setup>................................................................................16

2.6 <Serial ATA Interface> ................................................................................17

2.7 <Ethernet Interface>...................................................................................18

2.8 <Onboard Display Interface>......................................................................19

2.8.1 <Analog Display>...........................................................................19

2.8.2 <Digital Display> ............................................................................20

2.8.3 <DVI Interface>..............................................................................25

2.9 <Integrated Audio Interface>.......................................................................26

2.10 <USB Interface>.......................................................................................28

2.11 <Serial Port>.............................................................................................30

2.12 <PCIE Mini Card and SIM Interface>........................................................33

2.12.1 <SIM Setup>..........................................................................................35

2.13 <GPIO and SMBUS Interface>.................................................................37

2.14 <Power Supply and Fan Interface > .........................................................38

2.14.1 <Power Input>..............................................................................38

LV-67H User’s Manual

-5-

2.14.2 <Power Output>...........................................................................39

2.14.3 <Fan connector>..........................................................................40

2.15 <Switch and Indicator>.............................................................................41

Chapter 3 <System Setup>.........................................................................42

3.1 <Audio Configuration>................................................................................42

3.2 <Display Properties Setting>......................................................................43

3.3 <SATA configuration>.................................................................................45

3.4 <SATA RAID Configuration>.......................................................................46

Chapter 4 <BIOS Setup> .............................................................................48

Appendix A <I/O Port Pin Assignment>.....................................................50

A.1 <Serial ATA Port>.......................................................................................50

A.2 <IrDA Port>................................................................................................50

A.3 <VGA Port>................................................................................................50

A.4 <LAN Port>................................................................................................50

A.5 <Seria Port>...............................................................................................51

A.6 <LAN LED Port>........................................................................................51

Appendix B <Flash BIOS> ..........................................................................53

B.1 <Flash Tool> ..............................................................................................53

B.2 <Flash BIOS Procedure>...........................................................................53

Appendix C <System Resources> .............................................................54

C.1 <I/O Port Address Map> ............................................................................54

C.2 <Memory Address Map>............................................................................56

C.3 <System DMA& IRQ Resources>.............................................................57

Appendix D <Programming GPIO’s>.........................................................58

Appendix E <Programming Watchdog Timer >........................................59

Contact Information.....................................................................................60

LV-67H User’s Manual

-6-

(This page is left for blank)

LV-67H User’s Manual

-7-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-67H the 2nd Generation Intel of the Mini-ITX motherboard, supports 2nd Generation

Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features

Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition

Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN.

Intel Sandy Bridge Processor

The 2nd Generation Intel® Core™ processor family mobile is the next generation of

64-bit, multi-core mobile processor built on 32- nanometer process technology. Based

on a new micro-architecture.

New features for Intel QM67 chipset

The board integrates Intel QM67 chipset, supports integrated HD Graphics, built-in high

speed mass storage interface of Serial ATA interface with RAID function, High Definition

Audio with 2 channels surrounding sound.

All in One multimedia solution

Based on Intel QM67 chipset, the board provides high performance onboard graphics,

24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet

the very requirement of the multimedia application.

Flexible Extension Interface

The board provides, two mini-PCIE socket and one PCIE X16 slot.

LV-67H User’s Manual

-8-

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU 2nd Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron®

Mobile Processor

Package type: rPGA988B

Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB

Support Non-ECC, unbuffered memory only

Chipset Intel QM67 Express chipset

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s

Power Management Supports ACPI 3.0 compliant,

Serial ATA Interface 4 x serial ATAII interface with 300MB/s transfer rate

2 x serial ATAIII interface with 600MB/s transfer rate

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology

VGA Interface Onboard DSUB15 connector for VGA interface

LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V

supply

DVI Interface Chrontel CH7318 Transmitter with 26-pin DVI connector

Audio Interface Realtek ALC888 HD Audio

LAN Interface 2 x Intel 82574L Gigabit LAN

GPIO interface Onboard programmable 8-bit Digital I/O interface

Extended Interface 1 x PCIE x16 slot, 2 x PCIE mini card socket,1 x SIM socket

Internal I/O Port 3 x RS232,1 x SMBUS, 1 x GPIO, 6 x USB2.0 ports, 1 x IrDA, 1 x DVI ,

1 x LVDS, 4 x Serial ATAII,2 x Serial ATAIII, 1 x Front panel Audio

and 1 x CDIN

External I/O Port 1 x PS/2, 2 x LAN ports, 1 x VGA port, 4 x USB2.0 ports,

1 x RS232/422/485, 2 x RS232, 1 x SPDIF and 1 x 2 Channel Audio

Power Requirement Standard 20-Pin ATX power supply or 9~24V full range DC Input

Dimension 170mm x 170mm

Temperature Operating within 0~60 centigrade

Storage within –20~85 centigrade

Ordering Code

LV-67HTXD Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, LAN, USB2.0,

HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO, PCIE x16and,

PCI Express mini card.

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT
