i3 International Ax36 series User manual
Ax36-series Megapixel 360º Cameras
Quick Start Guide
CONTENTS
Warnings and Operation Notes ..................................................1. .3
Installation ............................................................................2. .5
Initial Network Settings .........................................................3. .6
Accessing the Camera ...........................................................4. .7
Changing5. IP Settings ................................................................8
Changing Camera View ...........................................................6. .9
Optimizing7. Image Quality .........................................................10
Factory Default ..........................8. ............................................11
Specifications ........................................................................129.
Before attempting to connect or operate this product, read these instructions carefully.
Save this manual for future use.
2
i3-TRNG-CAMS-Ax36D.indd Rev. 120402
Annexxus 36-series Camera Quick Start Guide
COPYRIGHT ©2012 by i³ International, Inc. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including but not limited to, photocopying,
recording, or by any information storage or retrieval system, without the prior
written permission of the copyright owner and the publisher.
Annexxus 36 is a registered trademark of i³ International Inc.
Disclaimer
This quick start guide is provided as is, without warranty of any kind, expressed or
implied, including but not limited to performance, merchantability, or fitness for any
particular purpose. Neither i³ International Inc. nor its dealers or distributors shall be
liable to any person or entity with respect to any liability, loss, or damage, caused or
alleged to have been caused directly or indirectly by this information.
Furthermore, i³ International Inc. reserves the right to revise this publication, and to
make changes to the content at any time, without notice.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Address:
i³ International Inc.
780 Birchmount Road, Unit 16
Scarborough, ON M1K 5H4
Canada
Contact us:
Tech Support: 1.877.877.7241
Web Site: www.i3international.com
Note: You should be at the site of the equipment and have all relevant
details before calling Technical Support.
3
i3-TRNG-CAMS-Ax36D.indd Rev. 120402
1. Warnings and Operation Notes
Thank you for purchasing i³ Annexxus 36-series camera.
If the system needs to be modified or repaired, contact a certified i³ International
Dealer/Installer. When serviced by unauthorized technician, the system warranty
will be voided. Should you have any problems or questions regarding our products,
contact your local i³ International Dealer/Installer.
Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Annexxus 36-series camera be sure to avoid:
excessive heat, such as direct sunlight or heating appliances•
contaminants such as dust and smoke•
strong magnetic fields•
sources of powerful electromagnetic radiation such as radios or TV transmitters•
moisture and humidity•
areas with mechanical vibrations•
fluorescent lamps or objects that reflect light•
unstable light sources as this may cause flickering•
temperatures below 10° Celsius or 14° Fahrenheit and above 50° Celsius or•
122° Fahrenheit.
WARNING! The use of CSA certified/ UL Listed Class 2 power
adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.
4
i3-TRNG-CAMS-Ax36D.indd Rev. 120402
Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty.
Cleaning
For maximum optical clarity, the camera or lens must remain clean. Use a soft,•
dry cloth to remove finger prints and dust from the dome cover.
Use a blower to remove dust from the lens.•
Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened•
with a small quantity of neutral detergent, then wipe dry.
Do not use volatile solvents such as alcohol, benzene, or thinners, as they may•
damage the surface finish.
Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT
disassembles the camera. Refer servicing to qualified personnel only.
Recommended minimum specification:
OS: Windows 7 Professional
CPU: Intel i3 Dual Core, 2Ghz or above
Display: 1024 x 768, 256MB supporting DirectX 11
RAM: 3GB or above
HDD: 20MB for installation
Browser: Internet Explorer 9
Mozilla Firefox
Safari 5
Chrome 17
5
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

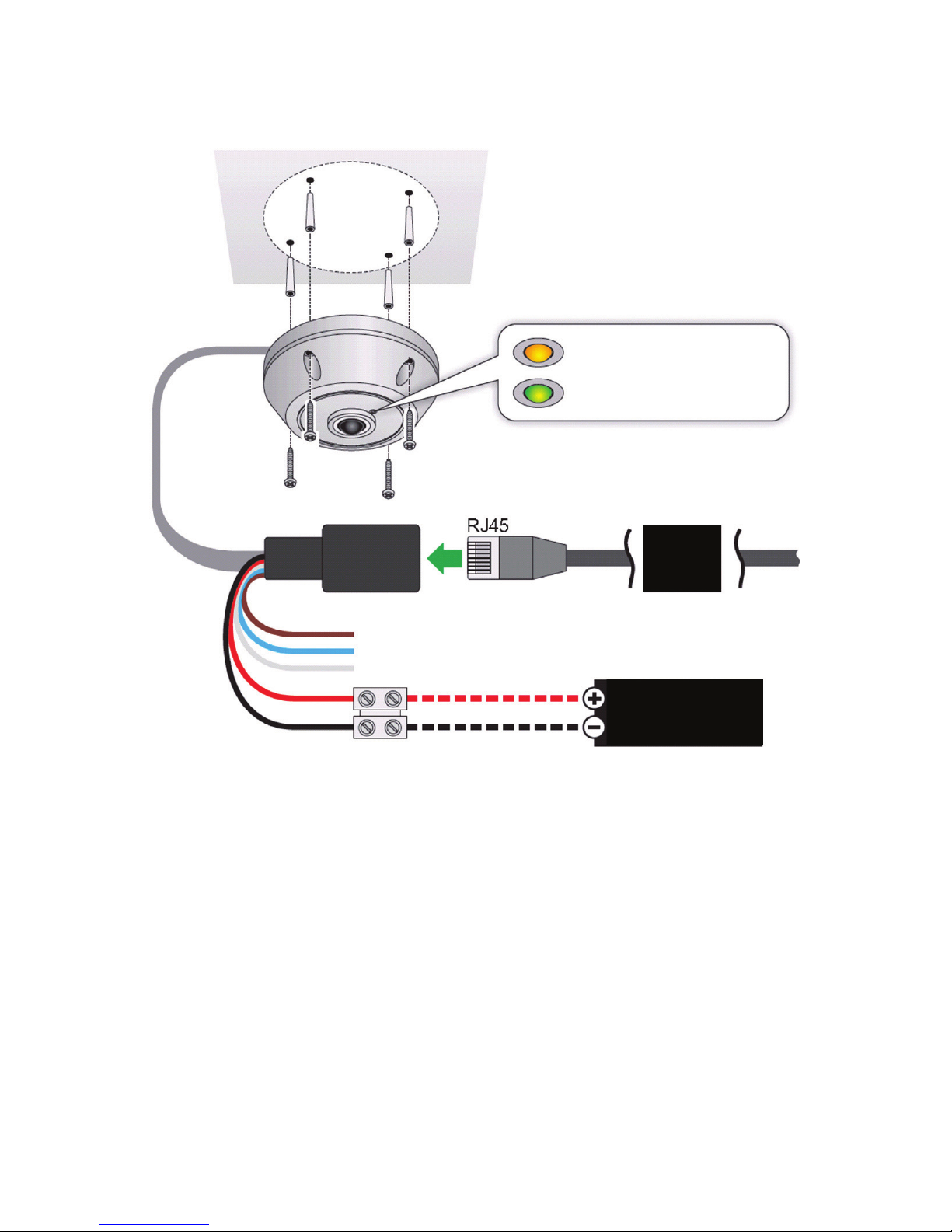

2. Installation
Starting Up
Working [flashes ON/OFF]
Option 1
Power over Ethernet
Option 2
Local Power Supply
PoE
Device
Class2 PSU
12V DC 5W
6
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

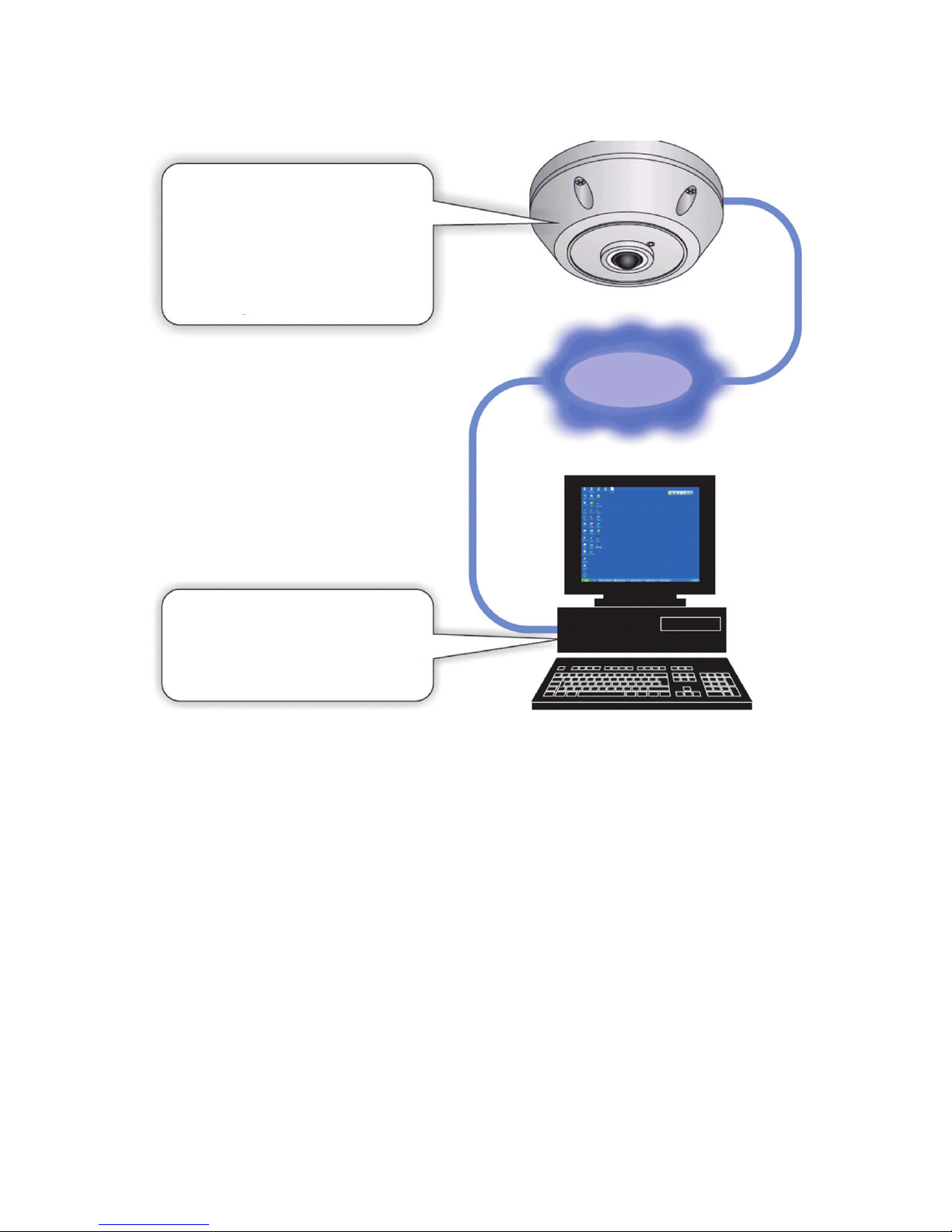

3. Initial Network Settings
NETWORK
Camera Default Settings
DHCP
if supported by network, otherwise:
IP Address: 192.168.1.100
Netmask: 255.255.255.0
Gateway: 192.168.1.1
PC / Laptop Settings
IP Address: 192.168.1.xxx
Netmask: 255.255.255.0
Gateway: 192.168.1.1
7
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

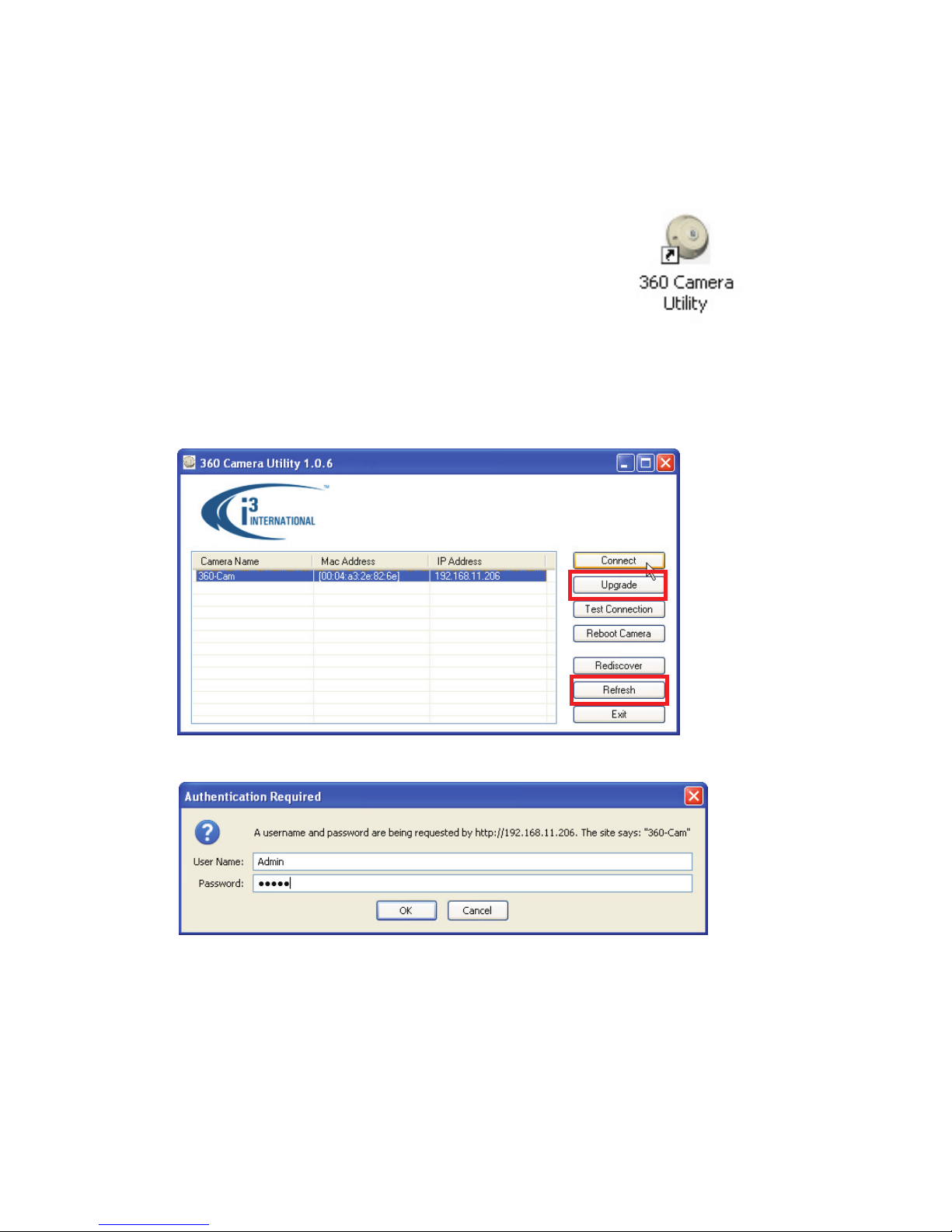

4. Accessing the Camera
From the Disk that came with your camera, run the Install.exe file to install Ax36
Camera Utility. You may be asked to restart your system after installation.
Once the Camera Utility has been installed:
Double-click the1. 360 Camera Utility shortcut on the
Desktop of your system to launch the program
Click2. Rediscover
Highlight the Ax36-series camera you wish to connect to3.
Click4. Connect
Default Web Browser will then connect to the Ax36-series camera you’ve5.
selected.
Default User Name and Password are:6. Admin / Admin
The following browsers have been tested:
Internet Explorer 9; Mozilla Firefox 6; Safari 5; Chrome 17
Note that with IE, the PTZ / Zoom buttons on the camera web page must be used
and ePTZ / zoom image will be inaccessible.
8
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

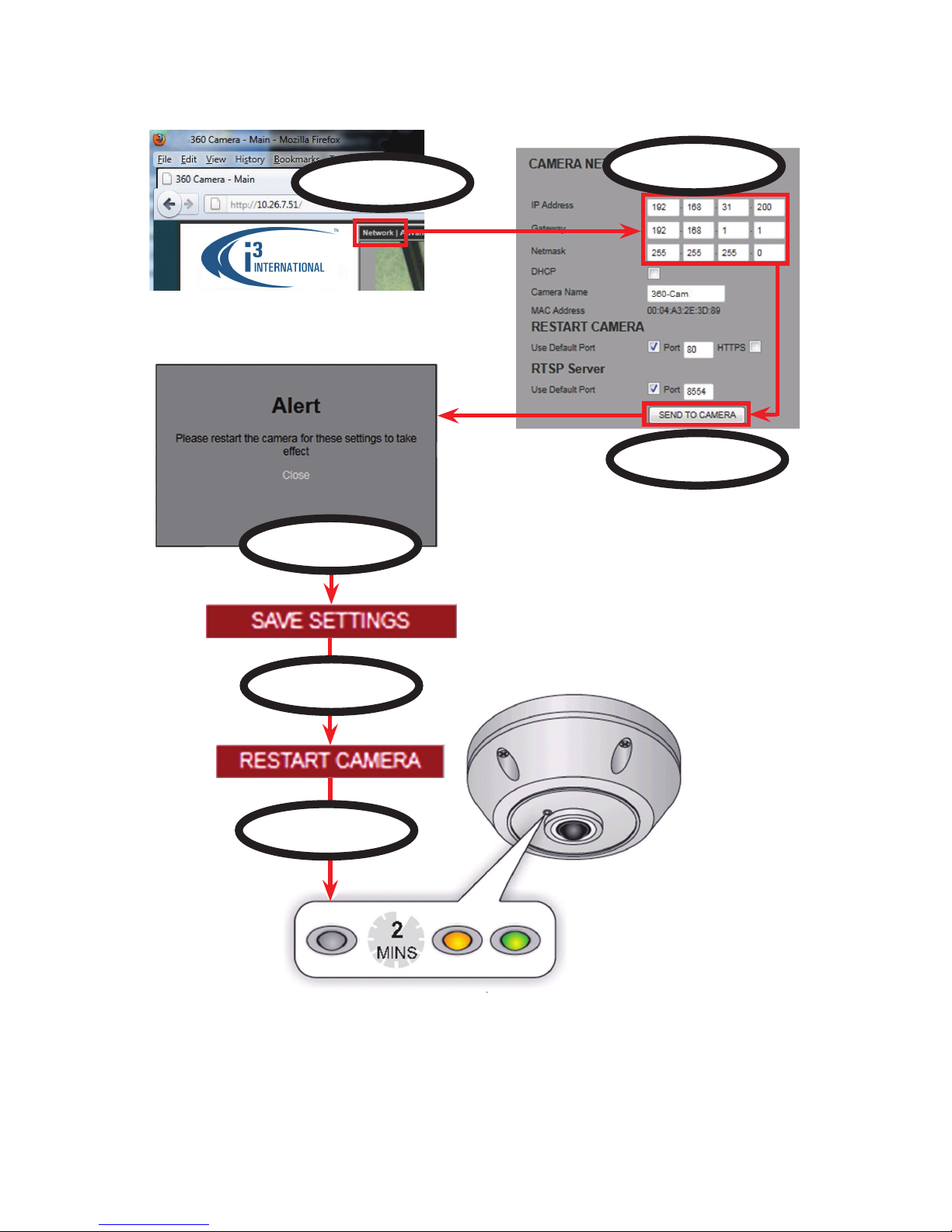

5. Changing IP Settings
After completing steps above, repeat instructions in the ‘Accessing the Camera’
section on page 7 using the new IP address. Or type in IP address into your PC /
laptop web browser.
Step 1 Step 2
Step 3
Step 4
Step 5
Step 6
9
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

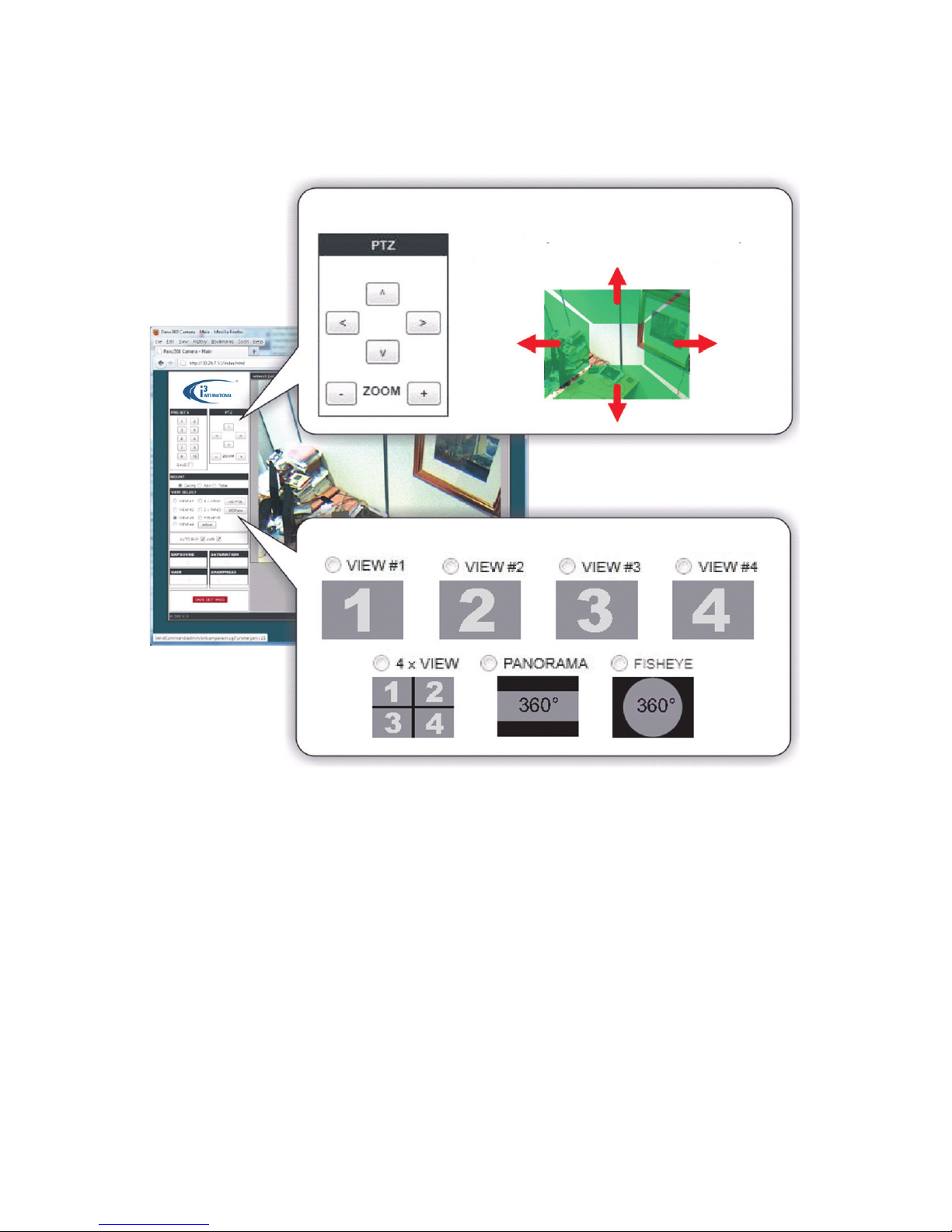

6. Changing Camera View
Pan / Tilt / Zoom Controls (PTZ)
or click the image to pan or tilt and use
mouse scroll wheel to zoom (except IE)
View Select
10
i3-TRNG-CAMS-Ax36D.indd Rev. 120402

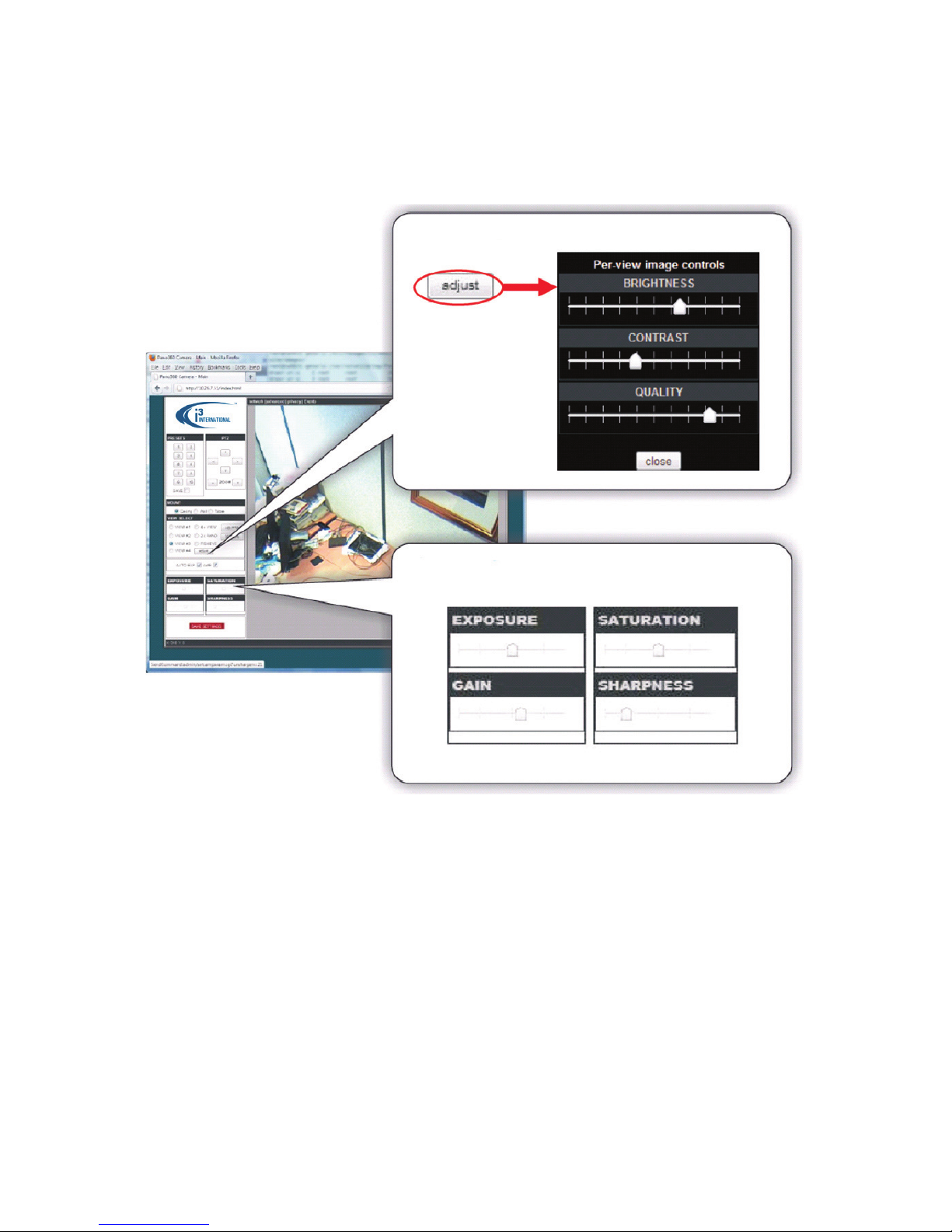

7. Optimizing Image Quality
Per-view Adjustments
Camera Adjustments
