Hunter 44008-01 User manual

44008-01

Programmable Thermostat

Models 44668 & 44660

20080916

(continued)

Table of Contents

PROGRAMMING

INTRODUCTION

INSTALLATION

Read This Before Installing Thermostat 5

What You Need 8

Remove Old Thermostat 8

Wire Labeling 9

Mount Wallplate and Thermostat 10

Connect Wires and Mount Thermostat to Wallplate 11

Option Menu 13

Remote Sensor Channel Set-Up (does not apply to thermostat model 44660) 15

Setting Time and Day 17

12 Hr. / 24 Hr. Time Format 18

Programming Introduction 19

Personal Program Schedule 20

Programming 22

Weekday/Weekend Programming 23

7-Day Programming 26

Everyday Programming 28

Program Options 30

Table of Contents (continued)

PROGRAMMING (continued)

OPERATIONS

Programmable Fan 30

System Selection Key 32

Fan Key 32

Reviewing the Current Temperature Setting 33

Temporary Manual Override 34

Permanent Manual Override 35

Vacation (Programmable) Hold 36

Auto Season Changeover 37

Home Today 38

Energy Monitor 40

Filter Monitor 41

SPAN Settings 42

Auto Recovery 43

Keyboard Lock 44

Backlighting (INDIGLO®Night-Light) 45

Low Battery Warning 46

Error Mode 46

Problems & Solution 46

TROUBLESHOOTING

OPERATIONS (continued)

Technical Support 48

Technical Support 49

WIRING DIAGRAMS

Read This Before Installing Thermostat

IMPORTANT

1Read the entire installation section of this Owner’s

Manual thoroughly before you begin to install or

operate your Hunter Thermostat.

INSTALLATION

2All installation is normally performed at your

thermostat.

ARMCHAIR PROGRAMMING

3You can program your thermostat before installation

by inserting the batteries and following the instruc-

tions starting on page 12. This can be done while you

relax in your favorite chair and is a very good way to

familiarize yourself with all the functions of your Hunter

Thermostat.

SYSTEM COMPATIBILITY

4Your Thermostat is designed to operate with most

gas, oil, electric, or 2-wire hot water heating and air

conditioning systems. It will also operate single-stage

heat pumps that do not have auxiliary or emergency

heat. These have 24 volt or millivolt control systems

and represent most central heating, air conditioning, or

space heating units in the United States.

This thermostat will not control 120/240 Volt systems or

millivolt systems.

COMPRESSOR PROTECTION

5The thermostat provides a 3.5 minute delay after

shutting off the heating or cooling system before it

can be restarted. This feature will prevent damage to

your compressor caused by rapid cycling.

TEMPERATURE RANGE

6Your thermostat can be programmed between 45°F

and 95°F (7°C and 35°C). However, it will display

room temperatures from 15°F to 99°F (-9°C and 37°C).

“HI” will be displayed if the temperature is higher than

99°F (37°C), and “LO” will be displayed if the tempera-

ture is lower than 15°F (-9°C).

AUTO RECOVERY

7Your thermostat is set from the factory to gradually

recover the room temperature from an energy sav-

ing program to your comfort program. Therefore, the

thermostat may turn your system on several minutes

prior to your programmed time. This operation is nor-

mal, but can be turned off. Refer to the Options Menu

information on pages 15.

BATTERY WARNING

8Two fresh AA alkaline batteries should provide well

over one year of service. However, when the batter-

ies become drained, the Low Battery Indicator will ash

on the display. when this message occurs, install new

alkaline batteries. You have appoximately one minute

to change the batteries and keep the thermostat’s clock

and program settings. Once the batteries have become

too low to ensure proper operation, your system will

be turned off. The display will be cleared except for the

ashing Low Battery Indicator on the LCD display, and

all programming will be lost.

CAUTION: When only the battery Icon ashes on

the display, the thermostat is shut down and your

system will no longer operate. In this condition, there is

no temperature control of your dwelling. NOTE: If you

plan to be away from the premises over 30 days, we

recommend that you replace the old batteries with new

alkaline batteries prior to leaving.

REMOTE SENSORS (does not apply to thermostat

model 44660)

1Your thermostat can support 3 remote sensors that

will measure the temperature from three different lo-

cations - two indoor and one outdoor. To congure your

thermostat to work with the remote sensors, follow the

instructions for Sensor Channel selection on page 13 of

this manual. To congure the remote sensors, consult

the Remote Sensor Instruction Manual.

NOTE (does not apply to thermostat model 44660):

This device complies with Part 15 of the FCC Rules. Op-

eration is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harm-

ful interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit dif-

ferent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV techni-

cian for help.

INSTALLATION

Wall Mounting Plate Thermostat Cover

What You Need

This thermostat includes two #8 slotted screws and two wall an-

chors for mounting. To install your thermostat, you should have

the following tools and materials.

CAUTION: Do not remove any wiring from existing

thermostat before reading the instructions carefully.

WIRES MUST BE LABELED PRIOR TO REMOVAL.

■

IMPORTANT! Turn off the power to the furnace at

the main power panel or at the furnace.

■

Remove existing thermostat cover. See Figure 1.

Some thermostats will have screws or other lock-

ing devices that must rst be removed. Once wall

mounting plate is exposed, look for wires.

If wires are not visible, they may be connected to the

back of the wallplate. Again, look for screws, tabs, etc.

Some models have doors that open to expose wires

and mounting screws. (See Figure 1).

Remove Old Thermostat

TYPICAL HOME THERMOSTATS

Figure 1

■

Slotted Screwdriver(s)

■

Electric drill and 3/16" bit

■

Phillips Screwdriver

■

Two 1.5 V (AA) size alkaline bat-

teries

■

Hammer

(continued)

Wire Labeling

■

Each wire coming from the wall to the existing

thermostat is connected to a terminal point on that

thermostat. Each of these terminal points is usually

marked with a code letter as shown in Table A on

page 11.

■

IMPORTANT! BEFORE DISCONNECTING ANY

WIRES, APPLY THE SELF-ADHESIVE LABELS

PROVIDED TO THE WIRE AS SHOWN IN TABLE A

ON PAGE 11. (For example, attach the label marked

W to the wire that goes to the W or H terminal on

your existing thermostat.) IGNORE THE COLOR OF

THE WIRES since these do not always comply with

the standard.

IMPORTANT!

If wires marked Y & C are both present, C may be a

Common wire and should not be used. If you have

a wire marked C, do not connect it to any terminal.

This wire is used only for non-battery powered

thermostats.

■

After labeling wires, disconnect them from the

existing thermostat terminals.

■

Remove existing wallplate. To make sure wires do

not fall back into wall opening, you may want to tape

them to the wall.

■

If hole in wall is larger than necessary for wires, seal

this hole so that no hot or cold air can enter the back

of the thermostat from the wall. This air could cause

a false thermostat reading.

INSTALLATION

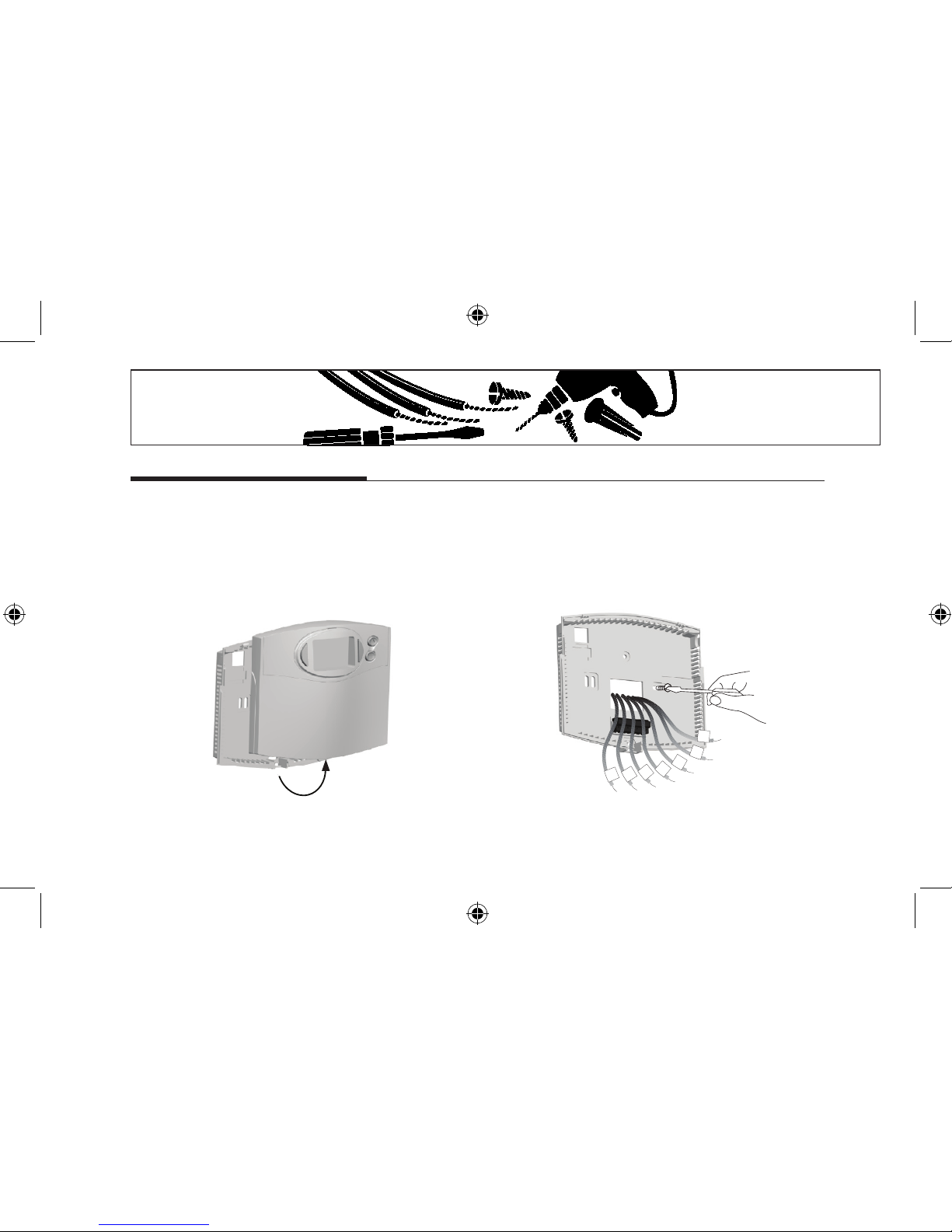

Mount Wallplate and Thermostat

■

Remove the wallplate from your thermostat by

pressing the release tab on the bottom of the

thermostat. (See Figure 2.)

■

Position wallplate on wall and pull existing wires

through large opening. Then level for appearance.

Mark holes for plastic anchors provided if your

existing holes do not line up with those on the Hunter

wallplate.

■

Drill holes with 3/16" bit and gently tap anchors into

the opening. Insert mounting screws provided into

wall anchor and tighten. (See Figure 3.) holes until

ush with wall.

■

Reposition wallplate to wall, pulling wires through

large opening. Insert provided mounting screws into

wall anchors and tighten.

W/B

Y/O

RC1

Figure 3

Figure 2
