HP J9666A User manual

HP Advanced Services zl Module

Quick Start Guide

with Microsoft® Windows Server® 2008 R2

Hewlett-Packard Company

8000 Foothills Boulevard

Roseville, California 95747

http://www.hp.com/networking

The information contained herein is subject to change without

This document contains proprietary information, which is

protected by copyright. No part of this document may be

photocopied, reproduced, or translated into another

language without the prior written consent of Hewlett-

Packard.

Publication Number

5998-1474

June 2011

Applicable Products

HP Advanced Services zl Module with Microsoft® Windows

Server® 2008 R2 (J9666A)

Software Credits and Notices

SSL used in the HP Services zl Module operating system is

based on the OpenSSL software toolkit. This product

includes software developed by the OpenSSL Project for use

in the OpenSSL Toolkit. For more information on OpenSSL,

visit http://www.openssl.org.

Open Source Software Acknowledgment

This software incorporates open source components that

are governed by the GNU General Public License (GPL). In

accordance with this license, HP will make available a

complete, machine readable copy of the source code

components covered by the GNU GPL upon receipt of a

written request. Send a request to:

Hewlett-Packard Company, L.P.

GNU GPL Source Code

Attn: HP Networking Support

8000 Foothills Boulevard

MS: 5551

Roseville, CA 95747 USA

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not

be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing,

performance, or use of this material.

The only warranties for HP products and services are set

forth in the express warranty statements accompanying

such products and services. Nothing herein should be

construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions

contained herein.

Hewlett-Packard assumes no responsibility for the use or

reliability of its software on equipment that is not furnished

by Hewlett-Packard.

Warranty

See the Customer Support/Warranty booklet included with

the product.

A copy of the specific warranty terms applicable to your

Hewlett-Packard products and replacement parts can be

obtained from your HP Sales and Service Office or

authorized dealer.

iii

Contents

1 Hardware Installation

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Install the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Verifying That the Module Is Installed Correctly . . . . . . . . . . . . . . . . . . . . 1-5

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2 Getting Started

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Next Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

3 Troubleshooting

Quick Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

A EMC Regulatory Statements

U.S.A. - FCC Class A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Japan - VCCI Class A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

European Community Declaration of Conformity . . . . . . . . . . . . . . . . . . A-2

B Waste Electrical and Electronic Equipment (WEEE) Statements

C Hardware Components

Front Panel Buttons, LEDs, and Connectors . . . . . . . . . . . . . . . . . . . . . . . . C-1

Internal Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Replacing or Removing a Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Replacing Field Replaceable Units (FRUs) . . . . . . . . . . . . . . . . . . . . . . . . . C-7

D Software Components

Updating Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Updating the Service OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Updating Service OS via FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Updating Service OS via USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3

Device Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4

1-1

Hardware Installation

Overview

The HP Advanced Services zl Module with Microsoft® Windows Server® 2008

R2 (J9666A) is a zl switch module with integrated Windows Server 2008 R2,

Standard Edition, software. The module has a 250GB hard disk drive (HDD)

and 4GB of DDR3 memory. The server software on the HDD is prelicensed.

You install the Advanced Services Module with Microsoft Windows Server

2008 R2 in an HP E5400 zl or E8200 zl Series switch. The module automatically

boots to the Windows Server 2008 R2 OS.

The software license allows you to run one instance of the server in the

physical operating system environment (POSE) and one in a virtual operating

system environment (VOSE). However, if you are running an instance in the

VOSE, the instance in the POSE can do nothing but manage the instance in

the VOSE. For more information on using virtualization with Windows Server

2008 R2, see the Microsoft web site at http://www.microsoft.com/

windowserver2008.

Because the server is headless, you access it through a Remote Desktop

Protocol (RDP) connection. You can then manage the server just as you would

a server that runs on traditional server hardware. You can also manage the

module itself with an easy to use Command Line Interface (CLI) that is

accessed through the CLI for the switch that houses the module.

Important HP zl switch software version K.14.65 or later is required. Version K.15.03 or

later is recommended because this version allows an E8200 zl switch with dual

management modules to gracefully shut down and restart the module in case

of a management module failover. Earlier software versions power down the

module without the graceful shutdown. For more information, see Appendix

For a description of the front panel buttons and LEDs, see Appendix D.

1-2

Hardware Installation

Overview

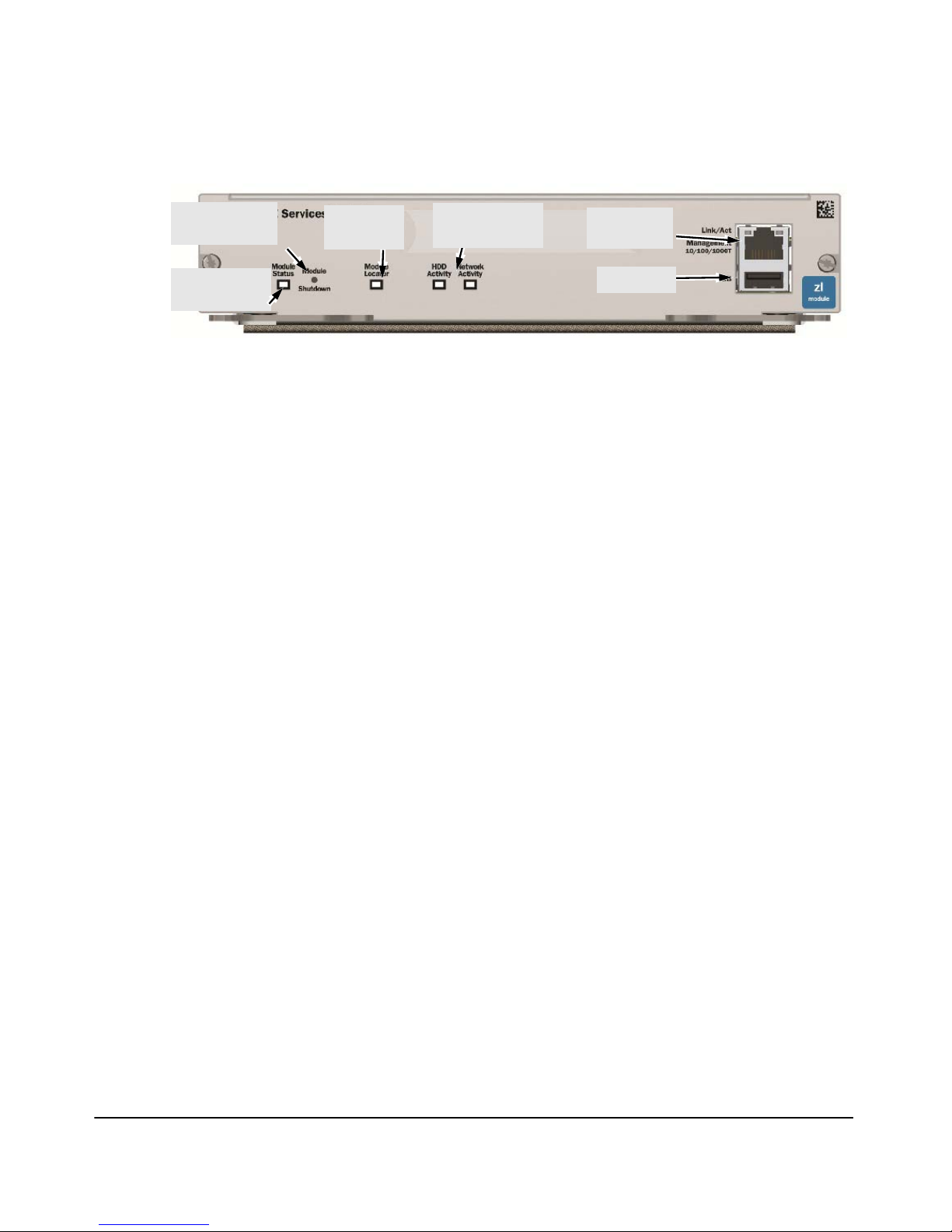

Figure 1-1. Module Front Panel

Additional information about installing and using the module is provided in

the HP Advanced Services zl Module with Microsoft Windows Server 2008

R2 Installation and Getting Started Guide, which is available at www.hp.com/

networking/support.

Module

Shutdown button Module

Locator LED

HDDandNetwork

activity LEDs

USB port

Management

port

Module Status

LED

1-3

Hardware Installation

Install the Module

The module is hot-swappable; that is, the HP zl switch can be powered on or

off when you install the module within it. The following procedure assumes

the switch is powered on.

Caution Although the module is hot-swappable, you must reboot the HP zl switch

before installing the module in a slot that used to support a different type of

module. Otherwise, the module will fail to boot.

Installation Precautions

Static electricity can severely damage the electronic components on the

module. When handling and installing the module, follow these proce-

dures to avoid damage from static electricity:

• Handle the module by its bulkhead or edges and avoid touching the

components and the circuitry on the board.

• When installing the module, equalize any static charge difference

between your body and the switch by wearing a grounding wrist

strap and attaching it to the switch’s metal body, or by frequently

touching the switch’s metal body.

The module has “low-force,” high-performance connectors. High inser-

tion forces are not necessary to install the module, and should not be

used.

Ensure the module is fully inserted. Press the module into the slot

until the bulkhead on the module contacts or is very close to contacting

the front face of the switch chassis.

Once the module is fully inserted, screw in the two retaining screws to

secure the module in place.

For safe operation, proper switch cooling, and reduction of electromag-

netic emissions, ensure that a slot cover is installed on any unused

module slot. For safety, no more than one slot should be uncovered at a

time, even temporarily, when the switch is powered on.

Check the temperature specifications for the module; different modules

have different temperature requirements.

1-4

Hardware Installation

Install the Module

Installation Procedure

1. Use a Torx T-10 or flat-bladed screwdriver to unscrew the screws in the

cover plates over the slot where you will install the module. Store the

cover plates for possible future use.

2. Hold the module by its bulkhead, taking care not to touch the metal

connectors or components on the board.

3. Open the extractor handles.

4. Insert the module, aligning with the guides in the slots, and slide it into

the slot until it is fully inserted.

5. Once the module is fully inserted, use the extractor handles to set it

completely.

6. Tighten the screws.

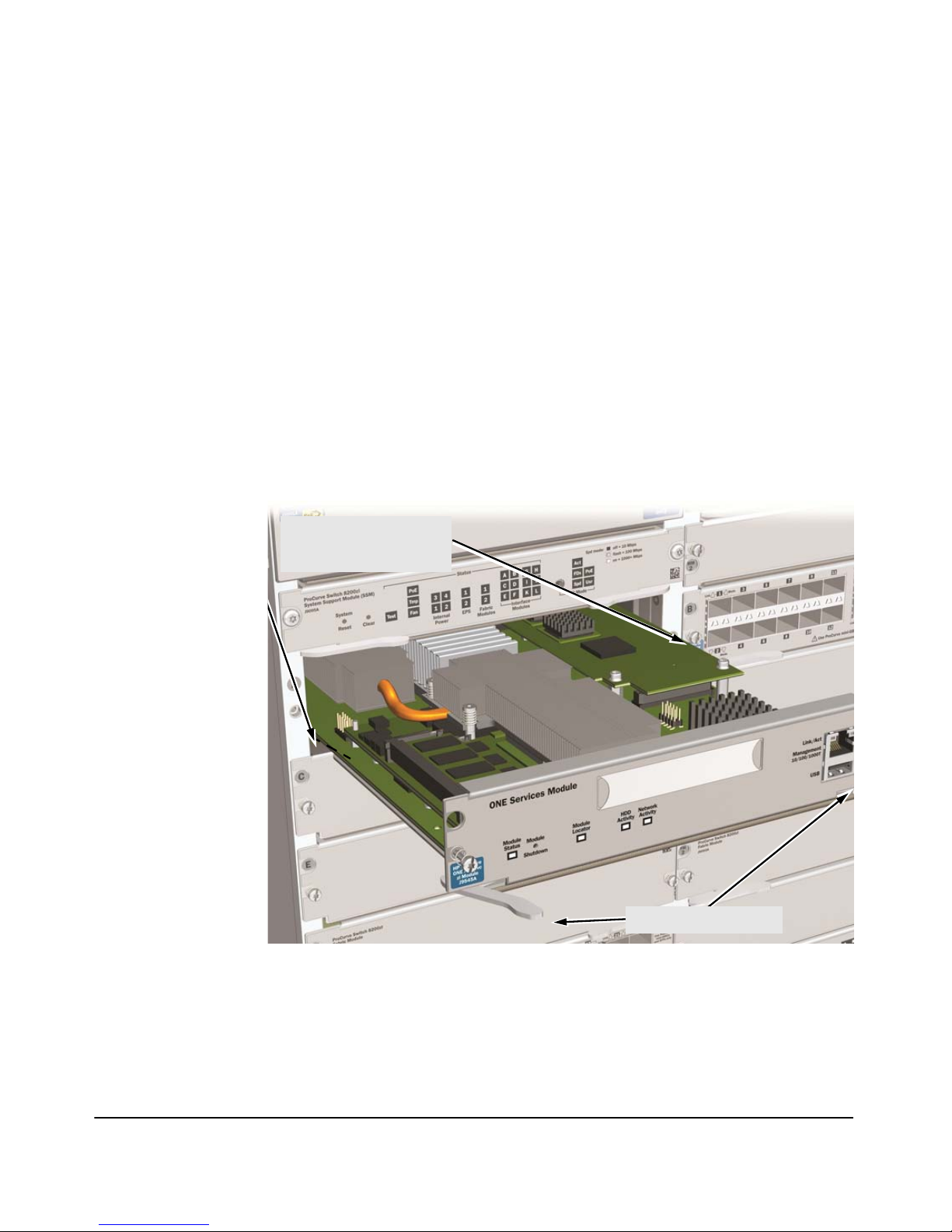

Figure 1-2. Module Being Installed

The procedure to replace or remove a module is described in “Replacing or

Removing a Module” on page C-6 in Appendix C: “Hardware Components.”

Insertmoduleintotheguides

and slide in until fully

inserted.

Open extractor handles.

1-5

Hardware Installation

Install the Module

Verifying That the Module Is Installed Correctly

If you have installed the module in a powered off HP zl switch, power up the

switch. After the switch powers up, the module will begin to power up. If you

have installed the module in a powered on switch, the module begins to power

up immediately. The initial bootup takes several minutes. You can determine

when this process is complete by viewing the Module Status LED, which

becomes solid green when the module is ready.

Caution Do not remove the module or interrupt this process in any way.

Later, whenever you reboot or power on the module, it goes through a similar

bootup and self test process. Again, the Module Status LED becomes solid

green when the module is ready.

Table 1-1. LED Behavior

Error conditions indicated by the module LEDs are described in Table C-1 on

page C-2 in Appendix C, “Hardware Components.”

LED Location of

LED Display for a Properly Installed Module

Test Switch ON briefly while the module is undergoing self test, then OFF.

Note:If the module was installed with theswitch powered off, and

then the switch was powered on, the Test LED will stay ON for the

duration of the switch self test.

TheTest, Fault,and ModuleStatus LEDs are clearly marked on the

E5400 zl or E8200 zl Series switch chassis. For help locating them,

refer to Figure C-3 and Figure C-4 on page C-5 in Appendix C,

“Hardware Components.”

Fault Switch OFF

Module

Status Switch TheLED goesONassoon asthemodule isinstalledand theswitch

is powered on, and stays ON steadily.

Module

Status Module The LED flashes green while the OS is initializing and goes solid

when the Service OS or AppSW is ready.

Figure 1-1 shows the location of all module LEDs.

1-6

Hardware Installation

Environmental Specifications

Table 1-2. Environmental Specifications

Table 1-3. Maximum Advanced Services Modules

*Notes on the Advanced Services Module operating temperature:

1. Operate at 50°C

a. The Advanced Services Module can operate in an HP E5406 zl or

E5412 zl switch at up to 50°C if you install all Advanced Services

Modules on the left side of the chassis (when you face the front, or

port side, or the switch). In other words, the left side slots are A, C,

E, G, I, and K. See Figure 1-3 on page 1-7.

b. If you want an E5406 zl switch to operate at up to 50°C, the switch

supports a maximum of three Advanced Services Modules (because

the switch has three slots on the left side).

2. Operate at 45°C

a. The 45°C limit applies to the E5406 zl and E5412 zl switches if any

Advanced Services Modules are installed on the chassis’ right side,

which includes module slots B, D, F, H, J, and L. See Figure 1-3 on

page 1-7.

b. The 45°C limit always applies to the E8206 zl and E8212 zl switches

no matter where you install the Advanced Services Modules.

Temperature Operating*

0°C to 45°C (32°F to 113°F)

Non-Operating

-10°C to 65°C (-10°F to 149°F)

Relative humidity

(non-condensing) 15% to 90% at 40°C (104°F) 15% to 90% at 65°C (149°F)

Maximum altitude 3.0 km (10,000 ft) 4.6 km (15,000 ft)

Switch Model Maximum Advanced Services Modules

E5406 zl 4

E5412 zl 4

E8206 zl 2

E8212 zl 4

Table of contents

Other HP Network Hardware manuals

HP StoreOnce 4700 Installation and user guide

HP A3550A - High Availability Disk Arrays Model 20 Storage... User manual

HP X1800sb G2 User instructions

HP 400338-001 - KVM Switch User manual

HP 226824-001 - ProLiant - ML750 Reference manual

HP ProCurve 8116fl Assembly instructions

HP FF 12910 Assembly instructions

HP Presario X1000 - Notebook PC User instructions

HP StorageWorks director 2/64 User manual

HP X5000 G2 Service manual

HP X1600 - StorageWorks Network Storage System 5.4TB SAS Model NAS... User manual

HP StorageWorks X9320 Service manual

HP Enterprise Aruba 7210 Assembly instructions

HP 10:10 LAN Bridge MB Installation and operating manual

HP procurve radio port 220 User manual

HP X1600 - StorageWorks Network Storage System 5.4TB SAS Model NAS... User manual

HP ProCurve Radio Port 230 Assembly instructions

HP E8491B IEEE 1394 User manual

HP Wireless LAN 802.11b/g Device WN4201B User manual

HP Bc1500 - BladeSystem - Blade PC Manual

HP 800 Series User manual

HP 12500 Series User manual

HP 634041-006 Quick reference guide

HP ProLiant DL980 G7 Quick reference guide

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
