HP StorageWorks 1/8 Tape Autoloader User manual

HP StorageWorks 1/8 Tape Autoloader

Designed for basic data protection, the HP

StorageWorks 1/8 Tape Autoloader provides

cost-effective, easy-to-install unattended backup.

No more struggling to remember to change tapes

or start backup programs. With the 1/8 Tape

Autoloader, reliable backup equals peace of mind.

Equally at home in a data-center rack or on a desk

next to the office server, the 1/8 Tape Autoloader is

equipped with either an HP StorageWorks Ultrium 460,

SDLT 320, Ultrium 230 or a DLT VS80 tape drive and

can house up to eight cartridges. The autoloader can

be used for both direct-attach backup to a single server

locally or across a LAN. The Ultrium and SDLT versions

are an ideal consolidated backup solution for multiple

servers where high throughput and high capacity are

required. For users who have less stringent capacity

and throughput requirements, the DLT VS80 version

is recommended.

Included with the autoloader is a power cord, SCSI

cable, LVD SCSI terminator, installation guide,

and product manual. Plus, all models come with

HP OpenView Storage Data Protector software,

Single Server Edition for Microsoft®Windows®

2000/NT/2003/XP. A separate accessory kit is

available for rack-mounting the unit. The 1/8 Tape

Autoloader is an out of the box complete solution

at an affordable price.

What’s new

Supports the new high-performance SDLT 320 tape

drive in the 1/8 Tape Autoloader platform

Key features and benefits

•Affordable: Automates the backup process at a

price comparable to standalone drives

•High Capacity: Stores up to 1.6 TB (native) of

data with Ultrium 460 technology

•Reliable: Provides consistent backup and

automatically changes tapes

•Rack-optimized: Occupies minimum rack space

•Efficient: Allows IT resources performing manual

backups to work on other critical tasks

•Compact: Holds eight cartridges and one drive

in 2U of space

•Evolutionary: Provides easy transition from

standalone tape into automated tape backup

•Compatible: works with leading servers,

operating systems, and backup software

•Investment protection: SDLT 320 version is

backwards read compatible with media written

by DLT 4000, DLT 7000, DLT 8000, DLT1 and

DLT VS80 drives; backwards read/write compatible

with media written by SDLT 220 drives

•Diverse: Supports Ultrium 460, Ultrium 230,

SDLT 320 and DLT VS80 drive technologies

8 data cartridge slots

Ultrium 460 drive: 1.6 TB (native); 3.2 TB (compressed)

SDLT 320 drive: 1.28 TB (native); 2.56 TB (compressed)

Ultrium 230 drive: 800 GB (native); 1.6 TB (compressed)

DLT VS80 drive: 320 GB (native); 640 GB (compressed)

Ultrium 460 drive: Ultrium cleaning cartridge

SDLT 320 drive: SDLT cleaning cartridge

Ultrium 230 drive: Ultrium cleaning cartridge

DLT VS80 drive: DLT1/VS cleaning cartridge

Ultrium 460 drive: SCSI Ultra3 (68-pin high density)

SDLT 320 drive: SCSI Ultra2 (68-pin high density)

Ultrium 230 drive: SCSI Ultra2 (68-pin high density)

DLT VS80 drive: SCSI Ultra2 (68-pin high density)

Ultrium 460 drive: Ultrium 400 GB data cartridge

SDLT 320 drive: SDLT 220/320 GB data cartridge

Ultrium 230 drive: Ultrium 200 GB data cartridge

DLT VS80 drive: DLTtape IV data cartridge

Ultrium 460 drive: 30 MB/s = 108 GB/hr (native); 60 MB/s = 216 GB/hr (compressed)

SDLT 320 drive: 16 MB/s = 57.6 GB/hr (native); 32 MB/s = 115.2 GB/hr (compressed)

Ultrium 230 drive: 15 MB/s = 54 GB/hr (native); 30 MB/s = 108 GB/hr (compressed)

DLT VS80 drive: 3 MB/s = 10.8 GB/hr (native); 6 MB/s = 21.6 GB/hr (compressed)

Ultrium 460, SDLT 320, Ultrium 230, DLT VS80

250,000

Operating: 50° to 95° F (10° to 35° C)

Shipping: -40° to 149° F (-40° to 60° C)

Operating: 20% to 80%

Shipping: 10% to 90%

120 VAC @ 50/60 Hz

240 VAC @ 50/60 Hz

110 to 120 VAC / 220 to 240 VAC

56 Watts (max)

47 Hz to 63 Hz

3.34 x 16 x 24 in (8.5 x 41.9 x 61.7 cm)

22 lb (10 kg)

IEC 60950

EMC: CISPR 22/class B, CISPR 24

Country Regulatory Compliance: For country specific compliance contact your local HP sales representative

Product Regulatory Series #: BRSLA-0203 (possible second series number)

www.hp.com/go/ebs

HP ProLiant servers (www.hp.com/go/servers)

HP Integrity servers (www.hp.com/go/servers)

HP tape storage media (www.hp.com/go/storagemedia)

Technical specifications

Capacity

Cleaning cartridges

Form factor

Interface

Media type

Performance

Supported drives

Mean swaps between failure (MSBF)

Temperature range

Humidity range

Nominal voltage

Voltage tolerance range (VAC)

Frequency tolerance range (Hz)

Dimensions (HxWxD)

Weight

Safety

Compatibility

Related products

HP StorageWorks 1/8 Tape Autoloader

Product name Description

1/8 Ultrium 460 Tape Autoloader* One drive, eight slot autoloader containing an Ultrium 460 drive

1/8 SDLT 320 Tape Autoloader* One drive, eight slot autoloader containing a SDLT 320 drive

1/8 Ultrium 230 Tape Autoloader* One drive, eight slot autoloader containing an Ultrium 230 drive

1/8 DLT VS80 Tape Autoloader* One drive, eight slot autoloader containing a DLT VS80 drive

U.S. power cord

Europe power cord

Australia power cord

United Kingdom power cord

No power cord

Switzerland power cord

Denmark power cord

Japan power cord

South Africa power cord

Israel power cord

China power cord

Latin America power cord

Taiwan power cord

C7972A – HP Ultrium 400 GB Data Cartridge

C7971A – HP Ultrium 200 GB Data Cartridge

C7978A – HP Ultrium Universal Cleaning Cartridge

C7980A – HP SDLT 220/320 GB Data Cartridge x

C7982A – HP SDLT Cleaning Cartridge

C5141F – HP DLT IV Data Cartridge

C7998A – HP DLT1/VS80 Cleaning Cartridge

C9268R – HP StorageWorks 1/8 Tape Autoloader Rack Kit

Ordering information

Product number

AA927A

AA926A

C9572CB

C9264CB

Required power cord options*

#ABA

#ABB

#ABG

#ABU

#AC3

#ACD

#ACE

#ACF

#ACQ

#AKJ

#AKM

#AKY

#ARB

* Please specify which power cord option you would like when ordering the tape autoloader unit

WARNING: This product can ONLY be used with an HP approved power cord for your specific geographic region.

Use of a non-HP approved power cord may result in:

1. Not meeting individual country specific safety requirements.

2. Insufficient conductor ampacity that could result in overheating with potential

personal injury and/or property damage.

3. An unapproved power cord could fracture resulting in the internal contacts being

exposed, which potentially could subject the user to a shock hazard.

HP disclaims all liability in the event a non-HP approved power cord is used.

Media supplies

Accessories

HP StorageWorks 1/8 Tape Autoloader

5981-9710EEE. January 2004

www.hp.com/go/automation

without notice. The only warranties for HP products and services are set forth in the express warranty statements

accompanying such products and services. Nothing herein should be construed as constituting an additional

warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and

Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries.

What’s included

Warranty and support

For more information

One drive, eight slot tape autoloader; one region-specific power cord; one 1.9 meter 68-pin HDTS to 68-pin

HDTS cable; one Low Voltage Differential (LVD) SCSI terminator; documentation kit including manual (CD),

quick start poster and HP OpenView Storage Data Protector software flier (with downloading instructions).

1-year parts exchange

Same day response:

U6364A/E – Warranty upgrade to 1-year, 13x5, 4 hour response/onsite

U6365A/E – Warranty upgrade to 1-year, 24x7, 4 hour response/onsite

H5526A/E – Warranty upgrade to 3-year, 13x5, 4 hour response/onsite

H4624A/E – Warranty upgrade to 3-year, 24x7, 4 hour response/onsite

Next business day response:

H2698A/E – Warranty upgrade to 3-year next business day/parts exchange

H4619A/E – Warranty upgrade to 3-year next business day/onsite

Service options:

U2090A/E – Installation services

For more information on HP StorageWorks tape automation, contact any of our worldwide sales offices or visit:

www.hp.com/go/automation

HP StorageWorks 1/8 Tape Autoloader

Other HP Network Hardware manuals

HP ProCurve XL MINI-GBIC User manual

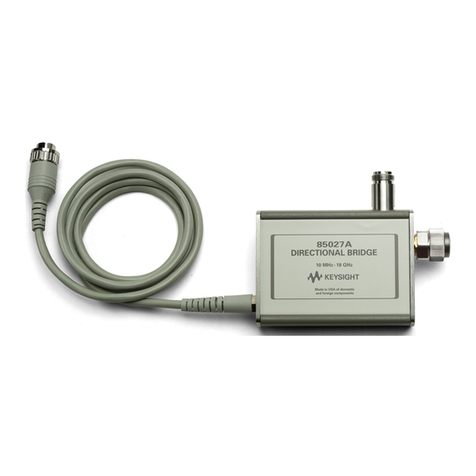

HP 85027A Service manual

HP 205H-MNT2 User manual

HP D7171A - NetServer - LPr User manual

HP VMA Series Instruction sheet

HP ProLiant DL980 G7 Quick reference guide

HP E-MSM466-R Assembly instructions

HP 5500-24G-SFP EI TAA Assembly instructions

HP Mv2120 - Media Vault Network Drive User manual

HP X1600 - StorageWorks Network Storage System 5.4TB SAS Model NAS... How to use

HP Compaq NC6133 User instructions

HP ProCurve Secure Router 7203dl J8753A J8753A User manual

HP StorageWorks T5521A Manual

HP zl2 User manual

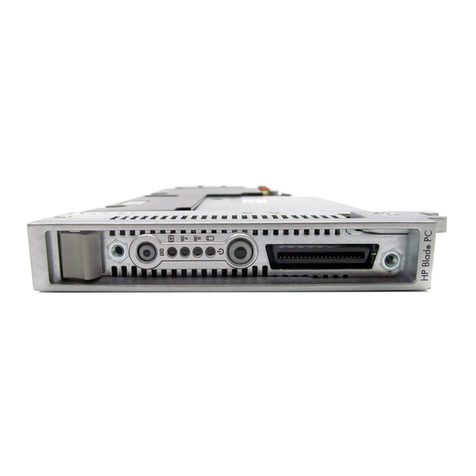

HP Bc1500 - BladeSystem - Blade PC User manual

HP ProCurve Radio Port 210 Assembly instructions

HP procurve radio port 220 Assembly instructions

HP FlexNetwork 6616 User manual

HP E8491B IEEE 1394 User manual

HP Presario X1000 - Notebook PC User manual

HP ProCurve Networking J8451A User manual

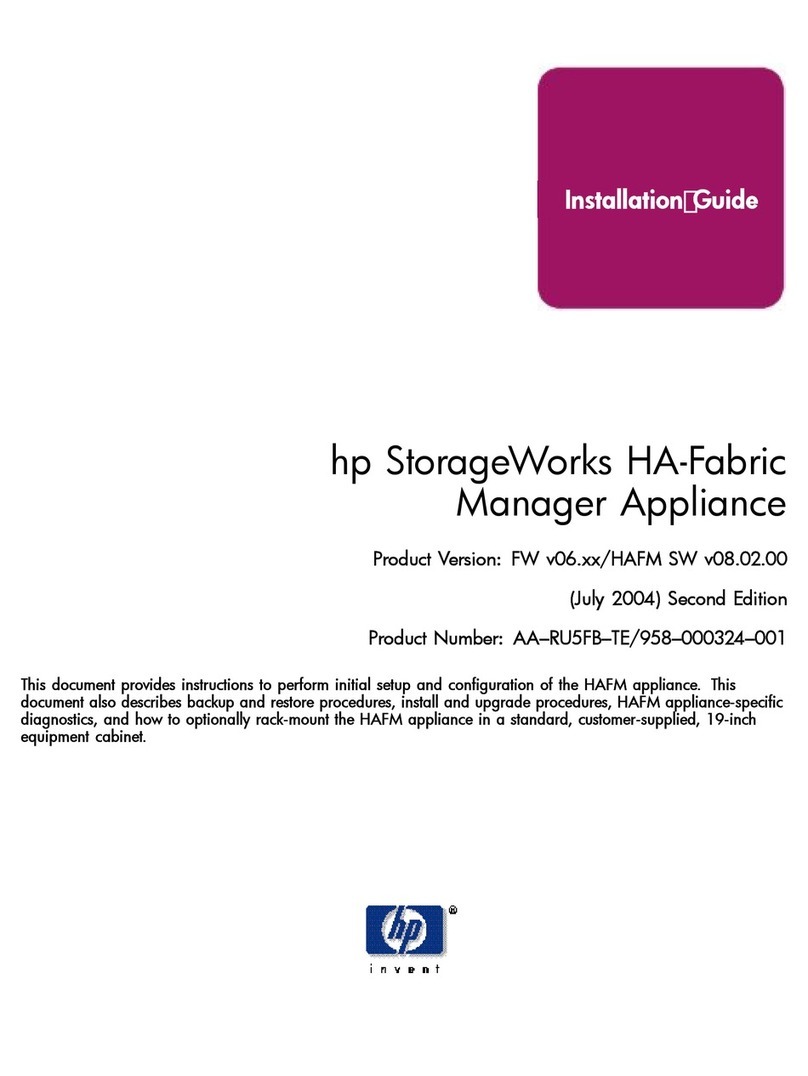

HP StorageWorks HA-Fabric Manager User manual
