62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 1 of 10

Honeywell’s HercuLine®2000 series actuators are available in four versions: HercuLine®2000, HercuLine®2001,

HercuLine®2002, and HercuLine®2003. All are low torque, precision electric rotary actuators. This guide provides

you with mechanical and electrical installation information required to mount and connect the HercuLine®2000 Series

Actuator to your specific application. Installation considerations, electrical and safety precautions should be observed.

An external disconnect switch must be installed to break all current carrying

conductors connected to the actuator. Turn off power before working on

conductors. Failure to observe this precaution may result in serious personal injury.

Refer to the Model Selection Guide on Pages 9 and 10 to determine which features and functions are on your model.

For additional information, refer to HercuLine Series 2000 Installation/Operation Manual # 62-86-25-10

Overview

The procedures to install the HercuLine®2000 Series actuator and place it in service require that you:

1. Select a suitable location for installation.

2. Mount the actuator securely.

3. Install mechanical connections or linkage between control arm and final control element. Use HAL software

application to aid in mechanical installation.

4. Make all electrical connections for actuator according to local and national electrical codes.

5. Power up actuator.

6. Enter, verify and adjust set up parameters for proper operation.

7. Check the operation of the Actuator

1. Installation Considerations

Mount the actuator in a location where it will be easily accessible for maintenance and for manual operation by means

of the hand wheel. The exact location must be determined in accordance with the linkage used.

2. Actuator Mounting

Firmly bolt the actuator to a mounting surface that will not distort when subjected to the torque stresses generated by

the actuator. The output shaft of the actuator should be parallel to the output shaft of the driven device. The output

shaft crank arm is fully adjustable through 360°.

3. Linkage Set-up

Many applications require the use of a linkage assembly and often the final control element does not have a linear

torque curve. The actuator linkage can be set up to achieve an optimal delivered torque distribution for specific

applications. To assist with linkage design, Honeywell offers a linkage analysis software application (HAL). The

software can be ordered as P/N 51197910-001.

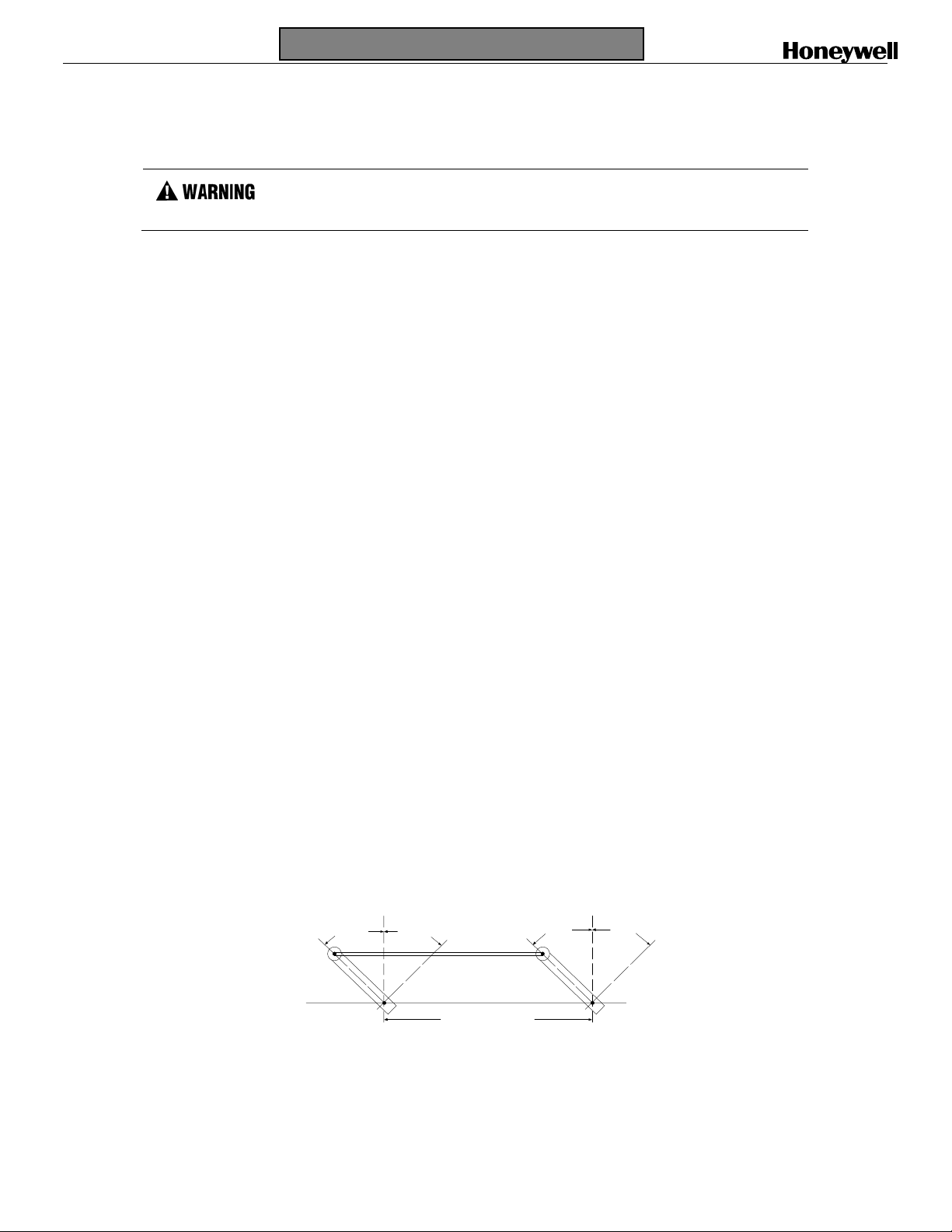

Constant Torque Linkage (typical)

A constant torque linkage is employed when it is desired to provide a linear torque profile throughout the full range of

final control element travel. In this situation, the actuator and driven crank arms will be set-up proportionally with

respect to each other.

Vertical

Centerline

45° 45°

Vertical

Centerline

45° 45°

Start Stop Close Open

Drive Unit

Crank Arm Damper

Crank Arm

Linkage

Horizontal Offset

a/n23199

Figure 1 Constant Torque Linkage

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 2 of 10

3. Linkage Set-up (continued)

Variable Torque Linkage

A variable torque linkage is employed when it is desired to provide a non-linear torque profile throughout the full

range of final control element travel. In this general situation, the actuator and driven crank arms will be set up to

provide a higher torque for seating or unseating the final control element.

Vertical

Centerline

5°

Vertical

Centerline

45° 45°

Close Open

Actuator

Crank Arm

Damper

Crank Arm

Linkage

Horizontal Offset

a/n 23200

Figure 2 Variable Torque Linkage

4. Electrical Connections

The actuator terminal connections for the field wiring are located behind the cover on the actuator case. Power and field

wiring is brought into the actuator through two access holes located on the side of the actuator case.

Use both openings: one for low level wiring (control signal) and the other for high

level wiring (120Vac).

Do not run both the High Level and Low Level wiring through the same

opening.

Recommended Minimum Wire Size

In general, copper wire used unless locally applicable codes dictate otherwise.

Earth ground wire to common power supply -14AWG

Earth ground wire to single actuator. 120/240 Vac line leads. +24 V and common signal leads. Common signal leads,

relays, and aux switches – 18AWG

HercuLine®2000 Wiring Connections

158 ohm 158 ohm Install resistors to convert 1000 ohm

potentiometer to 135 ohms

REQUIRED ONLY IF AUTO/MANUAL

SWITCH IS PRESENT

158 ohm 158 ohm Install resistors to convert 1000 ohm

potentiometer to 135 ohms

REQUIRED ONLY IF AUTO/MANUAL

SWITCH IS PRESENT

Figure 3 HercuLine®2000 connections

Connection Terminal Description

Hot 1 Hot wire for 120/240VAC main supply.

NOTE:Use only if Auto/Manual switch is present.

Neutral 2 Neutral wire for 120/240VAC main supply

Auto/Manual

Switch Contact 3

Switch contact to indicate setting of actuator AUTO/MANUAL

switch.

Switch is closed when actuator is “NOT-IN-AUTO”

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 3 of 10

CW from

Controller 5 CW Motor Drive

CCW from

Controller 6 CCW Motor Drive

Potentiometer #1 7

Clockwise-End

Slidewire feedback

Counterclockwise-End

Potentiometer #2 10

Clockwise-End

Slidewire feedback

Counterclockwise-End

Protective Ground Ground wire connection for main supply

HercuLine®2001/2002 Wiring Connections

Auxiliary

Connector

Brown

Black

Blue

Black Wire Not Used

HART connection using

external Turck connector

HART

Communications

Connection

Auxiliary

Connector

Brown

Black

Blue

Black Wire Not Used

HART connection using

external Turck connector

Auxiliary

Connector

Brown

Black

Blue

Black Wire Not Used

HART connection using

external Turck connector

HART

Communications

Connection

Figure 3 HercuLine®2001/2002 Connections

Connection Terminal Description

TB1

Hot 1 Hot wire for 120/240VAC main supply

Neutral 2 Neutral wire for 120/240VAC main supply

Protective Ground 3 Ground wire connection for main supply

Auto/Manual Switch

Contact 4

5 Switch contact to indicate setting of actuator AUTO/MANUAL switch.

Switch is closed when actuator is “NOT-IN-AUTO”

TB3

4 to 20mA Output* 1 (+)

2 (-) Analog signal output

Feedback 3

Feedback signal used in conjunction with 4 to 20mA OUTPUT voltage

when using Slidewire Emulation

4 to 20mA Input 4 (+)

5 (-) Analog signal input

Modbus

Communication 6 (+)

7 (-)

8 Shield

Connection for RS485 Modbus loop wires

HART

Communications 4 (+)

5 (-) HART Communication is

4-20 mA only.

Digital Input 9 Com

10 Input Customer’s contact closure

* Optional

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 4 of 10

4. Electrical Connections (continued)

HercuLine®2003 Wiring Connections

Figure 5 HercuLine®2003 Wiring Connections

HercuLine®2003 Operation

The 2003 actuator is uni-directional (it does not

reverse rotation with a reversal in control action).

Figure 5 illustrates the internal wiring and the external

connections.

The smaller insert of the figure describes the limit

switch action for one complete cycle. When the two-

position controller detects a sufficient fall in

temperature in a heating application, the switch

portion between the “4” and “5” terminals will close.

The motor then rotates for 180º or until the opening

switch breaks (stops are adjustable, factory set at

180º), and stops in full open position.

A subsequent rise in temperature causes the

controller to close the switch between the “4” and “6”

terminals when the motor will start to rotate (in the

same direction) for 180º or until the closing switch

breaks.

The motor stops in the closed position and completes

one cycle.

Series 90 Control – HercuLine®2001 model only

Series 90 Controls are commonly used in building environmental systems and flame safeguard systems to provide

modulating control. The control is affected by balancing a 135 ohm potentiometer. The HercuLine 2001 provides

an emulation of this system as follows. The current output is used to excite the potentiometer in the controller. To

do this it is set permanently at 11 mA. This produces a 1.5 volt span. The wiper is then connected to the

HercuLine 2001 input, which is operating in voltage mode. The returns from both the input and the output are tied

together.

Series 90 terminals are typically color coded white, red and blue. Conventionally, red is the wiper and white and

blue are the two ends of the potentiometer. On a drop in temperature, the wiper moves toward the blue terminal.

Connections

4-20mA output

4-20mA input

White

Red

Blue

TB3

Figure 6 Series 90 connections

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 5 of 10

Considerations

1. This connection performs an emulation of a series 90 motor. If the controller being used is also an

emulation of a Series 90, the connections required may be different. Shown in Figure 7are the

connections found necessary to connect a T775 controller through an S443A S90 Auto/Manual Control.

If the controller has the capability to provide a 4/20 or voltage output, it is easier to use that mode. It

will require only two wires and it will allow the independent use of the 4/20 output. If help is required,

contact Honeywell.

2. Due to variations in the definition of rotation directions, it may be necessary to reverse the action of the

actuator from CCW to CW or vice versa.

GND to

HercuLine2001 (2)

uto

Man

I out from

HercuLine2001

+ Signal to

HercuLine2001

T775 B 3

T775 W 1

T775 R 2

Figure 7 T775 Controller connections

3. In the T775 controller manual there are several examples of using resistances or potentiometers as

high and low limit controls. Because of the mode of emulation of Series 90, it is likely that these

connections will not work as intended. Instead, use the output or input limits which are

programmable in the HercuLine®2001.

5. Power up actuator.

Depending on which power supply selection is ordered for your actuator, wire the power input (MAIN POWER) as

described in the previous tables and figures. Wiring must conform to national and local electrical codes.

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 6 of 10

6. Enter, verify and adjust set up parameters for proper operation. (2001/2002 with optional display)

Pressing the SET UP key on the keypad provides access to the various set up groups and allows you to set up

operating parameters, (such as input types and alarms), set communications, and check actuator status. The Table

below lists the set up groups that are available by using the SET UP and FUNCTION keys on the keypad.

TEMP TEMPHI TEMPLO ACSTAL STARTS RL1CNT

RL2CNT RL3CNT RL4CNT REGN0 REGN9 TOTDEG

DATSAV PASSWD MANRST LD CAL LD CFG RESTRT

…

VERSON SPEED POWER ROTATE TAG MFGDAT

LREP LCAL REPTYP

CUROUT

COMM ADDRES BAUD XmtDLY DBLBYT

DIGINP EndPos

DECMAL EUNITS UNITS

LOCKID LOCK MAENAB

FAILSF RAMTST SEETST CFGTST CALTST

RTYPny Rny VAL Rny E* Rny HL RTYPny Rny VAL Rny E*

Rny HL RLYnHY n = 1,2,3 or 4 y = 1 or 2

RELAYn

IN TYP INP HI INP LO FILTYP Direct Dband FSTYPH

CHAR CUSTOM X0 VAL X20 VAL

Y0 VAL

…

Y20 VAL

…

FsVALH

FSTYPL FsVALL

MAINT

DRVINF

STATUS

LOCK

DISPLA

DIGINP

COMM

INPUT

CUROUT

Setup Groups Function Prompts

TEMP TEMPHI TEMPLO ACSTAL STARTS RL1CNT

RL2CNT RL3CNT RL4CNT REGN0 REGN9 TOTDEG

DATSAV PASSWD MANRST LD CAL LD CFG RESTRT

…

TEMP TEMPHI TEMPLO ACSTAL STARTS RL1CNT

RL2CNT RL3CNT RL4CNT REGN0 REGN9 TOTDEG

DATSAV PASSWD MANRST LD CAL LD CFG RESTRT

…

VERSON SPEED POWER ROTATE TAG MFGDAT

LREP LCAL REPTYP

VERSON SPEED POWER ROTATE TAG MFGDAT

LREP LCAL REPTYP

CUROUT

COMM ADDRES BAUD XmtDLY DBLBYT

DIGINP EndPos

DECMAL EUNITS UNITS

LOCKID LOCK MAENAB

FAILSF RAMTST SEETST CFGTST CALTST

RTYPny Rny VAL Rny E* Rny HL RTYPny Rny VAL Rny E*

Rny HL RLYnHY n = 1,2,3 or 4 y = 1 or 2

RELAYn

IN TYP INP HI INP LO FILTYP Direct Dband FSTYPH

CHAR CUSTOM X0 VAL X20 VAL

Y0 VAL

…

Y20 VAL

…

FsVALH

FSTYPL FsVALL

MAINT

DRVINF

STATUS

LOCK

DISPLA

DIGINP

COMM

INPUT

CUROUT

Setup Groups Function Prompts

You can use this procedure to access the set up groups and select all parameters.

Set Up Procedure Using Display and Keypad

Step Operation Press Result

1 Enter Set Up

Mode SET UP

Upper Display = SET UP-Lets you know you are in the set up mode and a set up group

title is being displayed in the lower display.

Lower Display = INPUT-This is the first set up group you see when you press SET UP.

2 Select any

Set Up

Group

SET UP Successive presses of the SET UP key will display the other set up group titles. You can

also use the or keys to scroll through the set up groups in both directions. Stop

at the set up group title that describes the group of parameters you want to configure.

Then proceed to the next step.

3 Select a

Function

Parameter

FUNCTION Upper Display - Shows the current value or selection for the function prompt in the

selected set up group.

Lower Display - Shows the first function prompt within the selected set up group.

62-86-25-14 Quick Start Guide for Herculine 2000 Series Actuators

February 2007

Page 7 of 10

Step Operation Press Result

4 Select other

function

parameters

FUNCTION Successive presses of the FUNCTION key will sequentially display the other function

prompts of the selected set up group.

Stop at the function prompt that you want to change, and then proceed to the next step.

5 Change the

Value or

Selection

These keys increase or decrease the value, or display the next available selection for the

selected function prompt.

Change the value or selection to meet your needs.

NOTE: If the display flashes, you are trying to make an unacceptable entry, or the value

on the display is at its range limit. The display may also show “KEYERR” (Key error).

6 Enter Value

or Selection FUNCTION

SET UP

This key selects another function prompt.

This key selects another set up group.

NOTE: Pressing either key will cause the previously selected value or selection to be

entered into memory.

7 Exit Set Up

mode DISPLAY Exits set up mode and returns actuator to the same state it was in immediately preceding

entry into the set up mode. Any changes you have made are stored in memory.

If you do not press any keys for 30 seconds, the display times out and reverts to the

mode and display shown prior to entering the set up mode.

Record your selections on the Configuration Record Sheet .

Configuration Record Sheet

Group

Prompt Function

Prompt Value or

Selection Factory

Setting

INPUT IN TYP From MSG

INP HI 100

INP LO 0.0

FILTYP LPAS

LPFILT 0.5

DIRECT CCW

DBAND 0.5

FSTYPH UP

FSVALH 100

FSTYPL DOWN

FSFVALL 0

CHAR LINR

CUSTOM EQUL

X1 VAL 5

X2 VAL 10

X3 VAL 15

X4 VAL 20

X5 VAL 25

X6 VAL 30

X7 VAL 35

X8 VAL 40

X9 VAL 45

X10 VAL 50

X11 VAL 55

X12 VAL 60

X12 VAL 65

Group

Prompt Function

Prompt Value or

Selection Factory

Setting

INPUT

(CONT) X14 VAL 70

X15 VAL 75

X16 VAL 80

X17 VAL 85

X18 VAL 90

X19 VAL 95

X20 VAL 100

Y1 VAL 5

Y2 VAL 10

Y3 VAL 15

Y4 VAL 20

Y5 VAL 25

Y6 VAL 30

Y7 VAL 35

Y8 VAL 40

Y9 VAL 45

Y10 VAL 50

Y11 VAL 55

Y12 VAL 60

Y13 VAL 65

Y14 VAL 70

Y15 VAL 75

Y16 VAL 80

Y17 VAL 85

Y18 VAL 90

Y19 VAL 95

Y20 VAL 100

62-86-25-14

February 2007

Page 8 of 10

Quick Start Guide for Herculine 2000 Series

Group

Prompt Function

Prompt Value or

Selection Factory

Setting

RELAYn RTYP NONE

RnyE X1

RnyVAL 0.0

RnyHL LO

RLYnHY 0.0

CU OUT CUROUT NONE

Depends on

MSG

COMM COMM DIS

ADDRES 1

BAUD 19.2

XmtDLY 20ms

DBLBYT FP B

DIGINP DIGINP NONE

EndPos 0

DISPLA DECMAL 8888

EUNITS PCNT

UNITS ENGL

LOCK LOCKID 0

LOCK NONE

MAENAB ENAB

STATUS FAILSF Read Only Read Only

RAMTST Read Only Read Only

SEETST Read Only Read Only

CFGTST Read Only Read Only

CALTST Read Only Read Only

DRVINF VERSON Read Only Read Only

SPEED Read Only Read Only

POWER Read Only Read Only

ROTATE Read Only Read Only

TAG 6 alpha

characters

MFGDAT Read Only Read Only

LREP Factory Set Factory Set

LCAL Factory Set Factory Set

REPTYP Factory Set Factory Set

Group

Prompt Function

Prompt Value or

Selection Factory

Setting

MAINT TEMP NONE

TEMPHI X1

TEMPLO 0.0

hh:mm:ss ACST Read Only

STARTS Read Only Accumulated

Motor Starts

RnCNT

n=1,2,3,or4 Read Only Relay Cycle

Counts

REGNn

n= 0 to 9 Read Only Accumulated

Motor Starts

TOTDEG Read Only Total Degrees of

Motor Travel

DATSAV DIS

PASSWRD Nnnn

MANRST NONE

LD CAL NONE

LD CFG DIS

RESTRT DIS

7. Start up/Operation

After the actuator is completely installed, wired, and

the preliminary adjustments made, check the

operation of the actuator and controlled device

before placing it in service. Operate the controlled

device and check its direction of travel in response

to an increase of the input signal and make sure it is

correct for the process. Actuators having the

optional auto-manual switch must have the knob set

in the AUTO position.

When power is applied to the actuator, the actuator

electronics performs a diagnostic routine on various

device components. These tests include a:

•RAM diagnostic (RAMTST),

•Check of the electrically eraseable PROM

(SEETST),

•Verification that valid parameter values are

in the actuator configuration (CFGTST),

•Verification of valid calibration values

(CALTST)

•Test of the local display and LED indicators

(all display segments and LED indicators

light simultaneously).

The optional local display shows the status of the

diagnostics as they are completed during power up.

TEST DONE is shown on the display when

diagnostics are complete and actuator should be in

AUTO mode.

If the Actuator Motor is “Hunting” (Motor does not

drive to a position and stop) the process control

loop is not tuned correctly. Refer to the Instruction

Manual for your controller on how to tune a loop.

62-86-25-14

February 2007 Quick Start Guide for Herculine 2000 Series

Model Selection Guide

Instructions

Select the desired key number. The arrow to the right marks the selection available.

Make the desired selections from Tables I thru VIII using the column below the arrow.

A dot ( ) denotes unrestricted availability.

Key Number V VI VII VIII IX

-----

_ -

_ _ _ _ _ -

KEY NUMBER - Motor Selection Availability

Basic Motor Unit (no electronics)

Basic Motor Unit plus Digital Electronics

Enhanced Performance Motor Unit with Non-contact Position Sensing

Unidirectional Motor (M640D Replacement)

TABLE I - TORQUE & SPEED SELECTION (speed per 150 degree rotation)

Torque, lb-in/(N-M)

50 / (6.0) 4.5 / 7.5 sec 4 / 6 sec

100 / (11.5) 9 / 15 sec 7 / 12 sec

200 / 22.5) 18 / 30 sec 15 / 25 sec

400 / (45.0) 36 / 60 sec 30 / 50 sec

400 / (45.0) 54 / 90 sec 45 / 75 sec

TABLE II - ROTATION

Travel 90 degrees

150 degrees

360 degrees

TABLE III - POWER SUPPLY

Single Phase 100 - 130 Vac, 60 Hz

100 - 130 Vac, 50 Hz

200 - 240 Vac, 60 Hz

200 - 240 Vac, 50 Hz

TABLE IV - ANALOG INPUT/OUTPUT SIGNALS

Input 3 Wire Drive up/down 0 _ _

0/4-20 mA, 0/1-5 Vdc, 0-10 Vdc 2 _ _

0/4-20 mA, 0/1-5 Vdc, 0-10 Vdc 3 _ _

0 to 135 ohm input (Series 90 control) 4 _ _ a

Contact Input for 2003 6 _ _

Output None _ 00

(Note 1) Dual 1000 Ohm (1000 ohms over 150 degrees) _ 15 b

(Note 1) Dual 1000 Ohm (1000 ohms over 90 degrees) _ 19 c

Slidewire Emulation _ 60

Slidewire Emulation _ 65

0/4-20mAdc (0/1-5 Vdc, 0-16 Vdc) _ 80

0/4-20mAdc (0/1-5 Vdc, 0-16 Vdc) _ 85

TABLE V - SWITCH AND RELAY OUTPUTS (2 end-of-travel limit switches are standard)

Auxiliary Outputs No Auxiliary Switches

2 Auxilliary Switches

4 Auxilliary Switches

Relay Outputs No Relays

2 Programmable Relay Outputs

4 Programmable Relay Outputs

_ _ _ _

50Hz (90°/150°) 60Hz (90°/150°)

Selection

2000

2001

2002

IVII

III

2003

050

100

200

400

600

090

150

360

0 _

2 _

4 _

126

125

246

245

_ 0

_ 2

_ 3

_ 4

Page 9 of 10

62-86-25-14

February 2007 Quick Start Guide for Herculine 2000 Series

2002 2003

TABLE VI - OPTIONS Selection

Local keypad/ No local display interface supplied (Note 2) 0_ _ _ _ _

display Integrally mounted local display/keypad interface 1_ _ _ _ _

Local Auto/ No auto/manual switch _ 0_ _ _ _

manual switch Auto/manual switch with "Out of Auto Contact" _ 1_ _ _ _

Auto/manual switch with "Out of Auto Contact" _ 2_ _ _ _

Handwheel No Handwheel _ _ 0_ _ _

Handwheel _ _ 1_ _ _

Certificates None _ _ _ 0 _ _

Certificate of Conformance _ _ _ 1_ _

Approvals UL Type 4/IP66, CSA (Note 4) _ _ _ _ 0_

CE _ _ _ _ 1_

Shipped Rotation Counter clockwise shaft rotation on increasing signal _ _ _ _ _0

Clockwise shaft rotation on increasing signal _ _ _ _ _1

TABLE VII - COMMUNICATIONS/PROTOCOL

None No communications option board or protocol 0

Modbus RTU RS485 RS-485 Modbus compliant - standard with EEU 1

HART 5 HART Communications Protocol 2

TABLE VIII - MANUALS

Standard English 0

TABLE IX - FACTORY OPTIONS

Factory Options None

Restrictions

aIV _ 00 IV _ 60, _ 80

II II

ACCESSORIES

Mounting Hardware Mounting plate adapter for Barber Colman Series MP495

Mounting plate adapter for Landis & Staefa SQM53/56

Direct Couple Valve Hardware

North American Valve Retrofit Kit

Linkage Assembly Ball joint for 5/16" dia. Pushrod

Pushrod 12 in. (304,5 mm) long, 5/16 " dia.

Pushrod 18 in. (457,2 mm) long, 5/16 " dia.

Pushrod 24 in. 609,6 mm) long, 5/16 " dia.

Pushrod 48 in. (1219,2 mm) long, 5/16 " dia.

HART Turk Cable for Handheld Connection 51452352-501

Handheld Config. HercuLink

PC and Palm PDA Software

(Note 3) Battery powered 232/485 converter with cable

Remote Mount Remote 4-20 mA requires 135 ohm fdbk, 120V 50/60Hz

Control Remote 4-20 mA requires 1000 ohm fdbk, 120V 50/60Hz

Remote 4-20 mA requires 135 ohm fdbk, 220V 50/60Hz

Remote 135 ohm input requires 135 ohm fdbk, 120V 50/60Hz

HercuLine 2000 V51 2.5" - 3" Valve Mounting Kit 51452354-513

HercuLine 2000 V51 4" Valve Mounting Kit 51452354-514

Notes: 1. 135 ohm available by parallelling 1K potentiometer with 158 Ohm resistor (supplied).

2. HercuLinkTM software (pn 51452354-509), RS232/485 converter (pn 51452354-510),

customer supplied PalmTM PDA running OS3.5 or higher and Palm serial cable are required

for the 2001 and 2002 actuators if no display is selected.

3. Requires PDA manufacturer's serial interface cable.

4. CSA approval is good for 75°C and a maximum relay load of 3.5 amps or 70°C with a

relay load of 5 amps.

Restriction

Letter

150

090

Table Selection

Available Only With

R7195A1056

R7195B1021

R7195A1064

51452354-508

R7195A1031

51452354-510

51452354-509

Table Selection

Not Available With

51452354-505

51452354-501

51452354-502

51452354-511

51452354-504

150

090

2000 2001

Availability

V51 Valve Kits

51452354-506

51452354-507

51452354-503

Page 10 of 10

Other manuals for HercuLine 2000 Series

This manual suits for next models

Table of contents

Other Honeywell Controllers manuals

Honeywell

Honeywell ML7421A Operation manual

Honeywell

Honeywell homexpert Rondostat COMFORT+ HR30 User manual

Honeywell

Honeywell Lyric Instruction manual

Honeywell

Honeywell VR4304 Series User manual

Honeywell

Honeywell WEB-VA00IB24NM User manual

Honeywell

Honeywell Centra Line HAWK 8000 Installation and operation manual

Honeywell

Honeywell ML7421A1032 Operation manual

Honeywell

Honeywell UDC2800 User manual

Honeywell

Honeywell UDC 2300 User manual

Honeywell

Honeywell UDC 6300 Guide

Honeywell

Honeywell T775B Installation guide

Honeywell

Honeywell DB7110U1000 User manual

Honeywell

Honeywell Stryker VAV User manual

Honeywell

Honeywell Touchpoint Plus Release Note

Honeywell

Honeywell R7515C MacroCel User manual

Honeywell

Honeywell P906C Operation manual

Honeywell

Honeywell dcp100t User manual

Honeywell

Honeywell HON 670 Guide

Honeywell

Honeywell WEB-300E Series User manual

Honeywell

Honeywell TUXWIFIS User manual

Honeywell

Honeywell 10260A Series Guide

Honeywell

Honeywell S9240F2051 User manual

Honeywell

Honeywell B User manual

Honeywell

Honeywell S4965V3250 Operating and installation instructions

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual
