Honeywell CL25AE User manual
Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use
Model: CL25AE
Power rating: 235 Watts
Voltage rating: 220-240 Volt AC, 50Hz
For product enquiry or support contact:
E-mail: [email protected]
Customer Service Hotline: 1300 8000 32
www.honeywellaircoolers.com
QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
SECTION PAGE
THANK YOU ..................................................................................................................
USER TIPS ....................................................................................................................
SAFETY .........................................................................................................................
PARTS DESCRIPTION ..................................................................................................
USE & OPERATION ......................................................................................................
Control Panel .........................................................................................................
Function Buttons ....................................................................................................
CLEANING & MAINTENANCE .....................................................................................
TROUBLESHOOTING GUIDE .....................................................................................
TECHNICAL SPECIFICATIONS ...................................................................................
ELECTRICAL WIRING DIAGRAM ................................................................................
2
3
5
7
8
8
Remote Control ......................................................................................................
9
Room cooling and humidifying ...............................................................................11
12
Filling Water ...........................................................................................................13
14
16
18
18
1
Read all instructions carefully before setting up and operating the cooler, and keep this
instruction manual for future reference. This manual is designed to provide you with impor-
tant information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to
follow these instructions may damage and/or impair its operation and void the warranty.
INDEX
THANK YOU!
2
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location - Indoors (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-
erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.
3
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
USER TIPS
Energy efficient, No compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low. Warm
air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the Honeycomb
Cooling Media. Water pumped from the tank pours over the honeycomb media. As the warm air
passes through the media, the water absorbs the heat, naturally cooling and humidifying the air. A
fan propels the cooled air out into the room. This no-compressor system cools naturally, efficiently
and inexpensively.
NOTE
4
USER TIPS
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a week or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, circulates in the room, then
exits via the door. The maximum cooling effect is felt when
a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidification the windows
and doors should be closed to allow the humidified air to
accumulate. The evaporative air cooler is not an air conditioner
as it does not use a compressor or refrigerant gas. It should not
be expected to cool as efficiently as a refrigerated air
conditioner.
READ AND SAVE THESE INSTRUCTIONS:
SAFETY
220~240 Volt AC 50Hz
SHOCK HAZARD

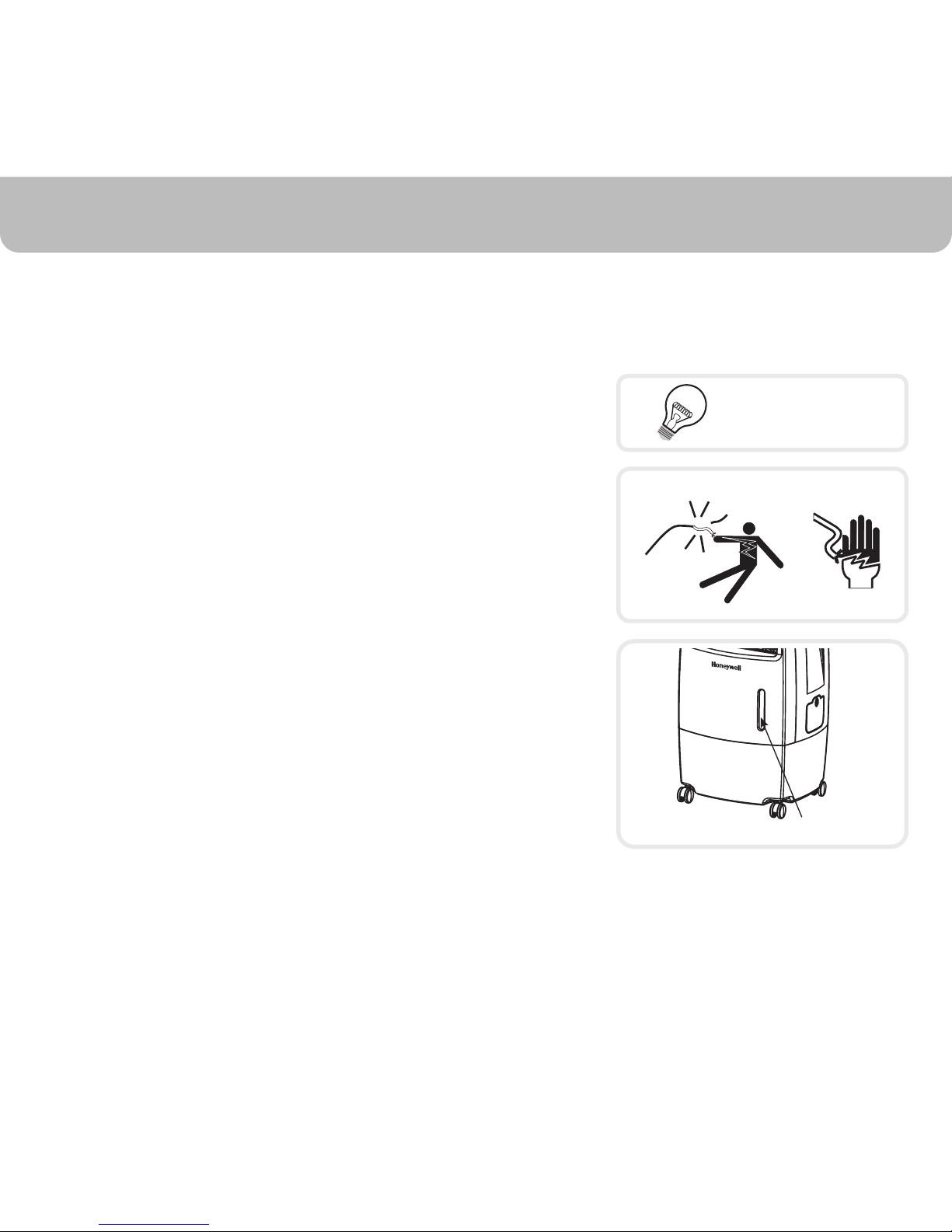

WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Before operating the product remove it from its packaging and
check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.
Warning:
a. Children should be supervised to ensure that they do not play with the appliance.
b. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a
similarity qualified person in order to avoid a hazard.
Your cooler runs on 220~240 Volts, 50 Hz current. Check the
household voltage to ensure it matches the appliance's rate speci-
fication.
SAFETY
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause electrical shock or fire.
DO NOT operate with the Honeycomb Cooling Media removed
as this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
When the unit is not in use always store in a dry area.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instructions concerning the
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
7
1 Control Panel
2 Side Handle
3 Horizontal Louvers
(Manual Adjustment)
4 Left Side Panel
5 Power Cord & Plug
6 Castors
7 Ice Compartment Lid
8 Vertical Louvers
(Automatic Movement with SWING)
9 Front Panel
10 Water Level Indicator
11 Remote Control
12 Remote Control Holder
13 Water Tank
14 Water Fill Door
15 Drainage Tube / Cap
16 Right Side Panel
PARTS DESCRIPTION
1
11
12
3
2
4
8
9
10
7
6
16
15
14
5
13

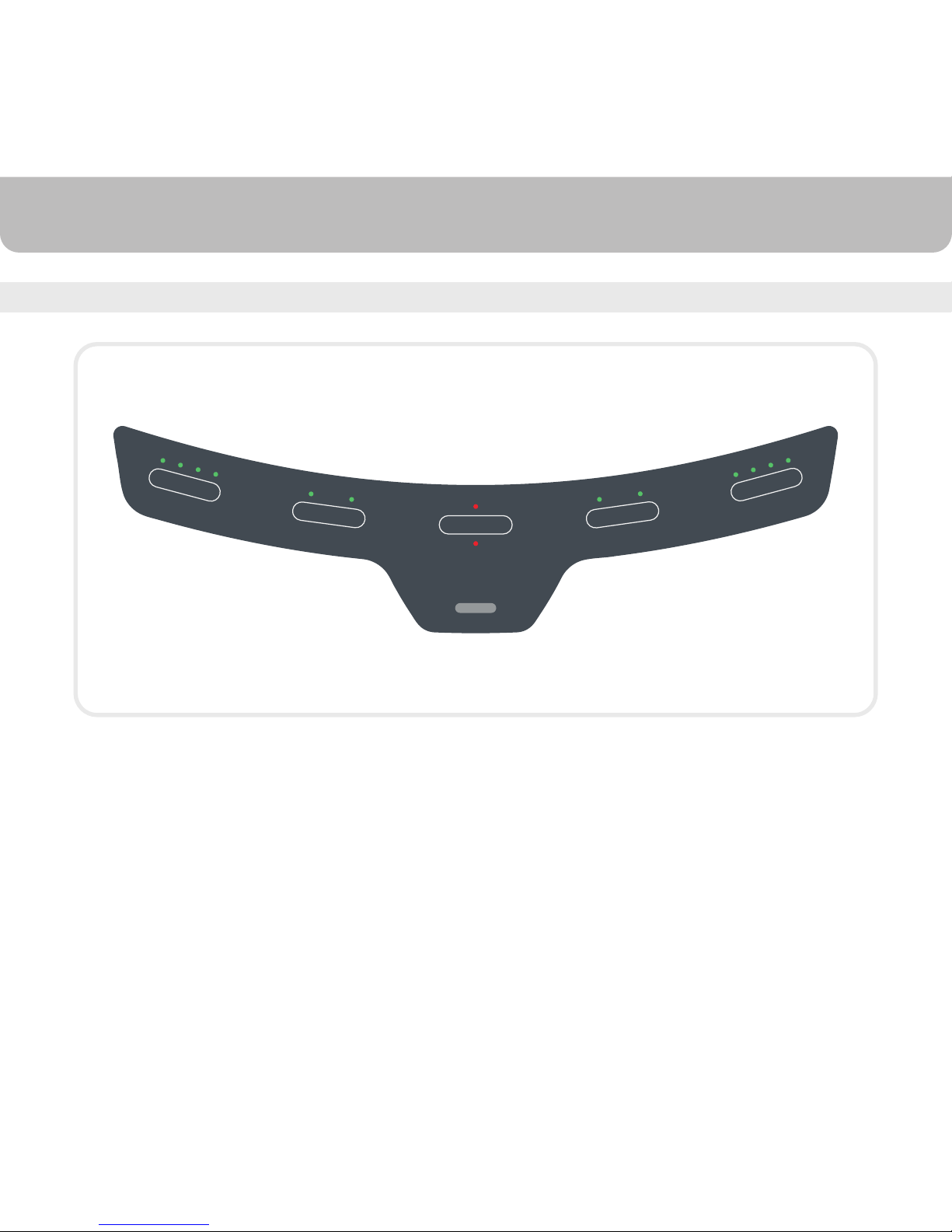

CONTROL PANEL
USE & OPERATION
8
POWER
Tank Empty
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
SPEED
Sleep Lo Med Hi
SWING /ION
