Honeywell CS071AE User manual
OWNER’S MANUAL
Read and save these instructions before use
Manual del Usuario
Leer y guardar estas instrucciones antes de usar
Model: CS071AE
Modelo: CS071AE
Power rating: 50 Watts
Voltage rating: 120 Volt AC, 60Hz
Potencia: 50 Watt
Voltage: 120 Volt AC, 60Hz
Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com
For product inquiries or support, visit www.honeywellaircoolers.com
Portable Evaporative Air Cooler
for Indoor Use
Enfriador de Aire Portátil por Evaporación
Para Uso En El Interior
Customer Support : 1-800-474-2147
Centro de servicios al cliente: 1-800-474-2147
Made in P.R.C.
Fabricado en China

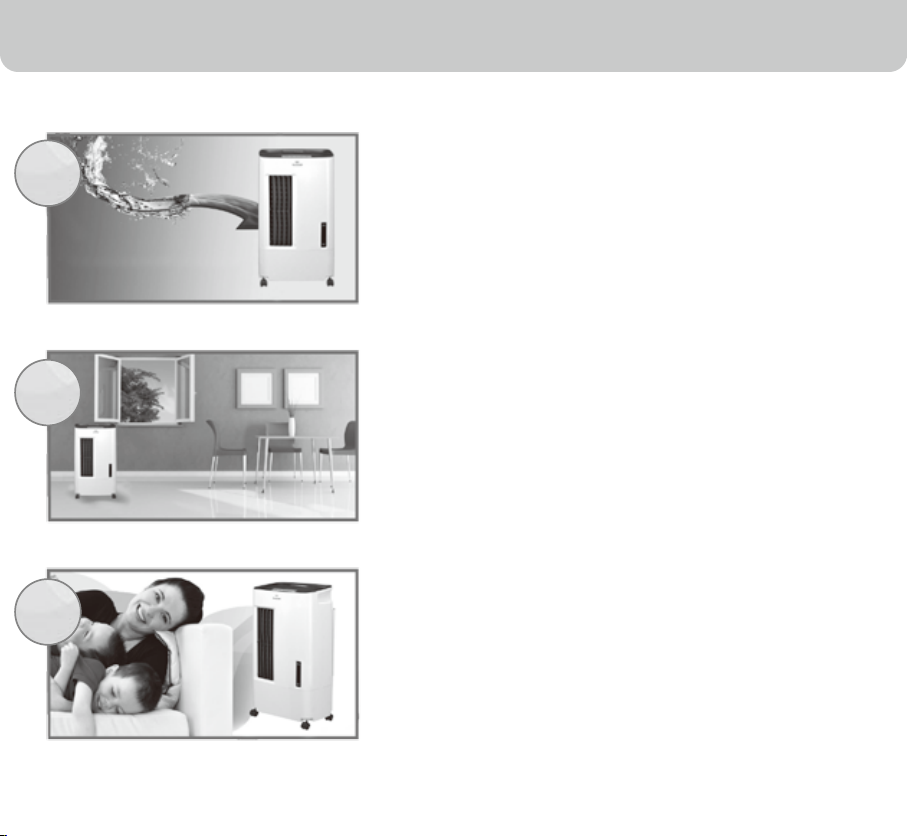

Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
QUICK START GUIDE
SECTION PAGE
........................................
...........................................
..................................
.........................
................................
............................................................................ ...............
...........................................................................................................
1. THANK YOU ..................................................................
2. USER TIPS .................................................................
3. SAFETY ...............................................................................
4. PARTS DESCRIPTION .................................................................
5. USE & OPERATION ...............................................................
Function Buttons
Control Panel
............
2
3
5
7
8
9
8
Read all instructions carefully before setting up and operating the cooler, and
please keep this instruction manual for future reference. This manual is designed to
provide you with important information needed to setup, operate, maintain, and
troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
.............................................................................. ...............
..........
..................
............
Remote Control
6. CLEANING & MAINTENANCE .....................................................................
7. TROUBLESHOOTING GUIDE ...............................................................
8. TECHNICAL SPECIFICATIONS .................................................................
9. ELECTRICAL WIRING DIAGRAM ..........................................................................
............
.................................................................................. ...............
Filling Water ............ 12
11
13
15
17
17
10.SERVICE AND WARRANTY ................................................................................... 18
1
INDEX
2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

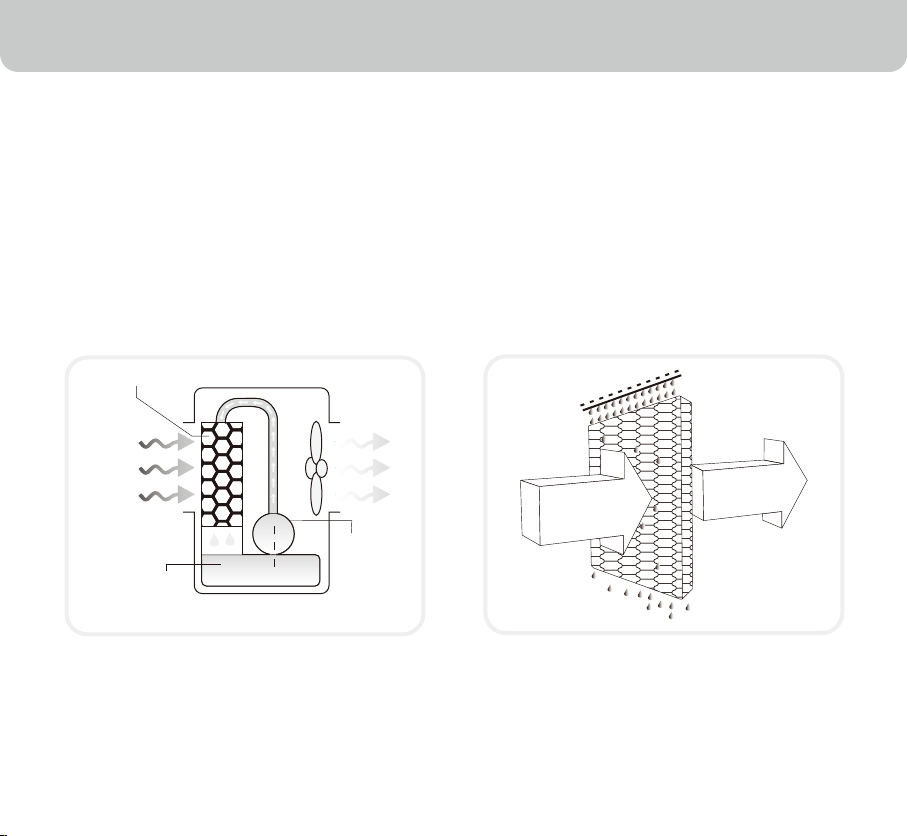

Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
3
USER TIPS
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the
Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media.
As the warm air passes through the media, the water absorbs the heat, naturally cooling and
humidifying the air. A fan propels the cooled air out into the room. This no-compressor system
cools naturally, efficiently and inexpensively.
NOTE
4
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.

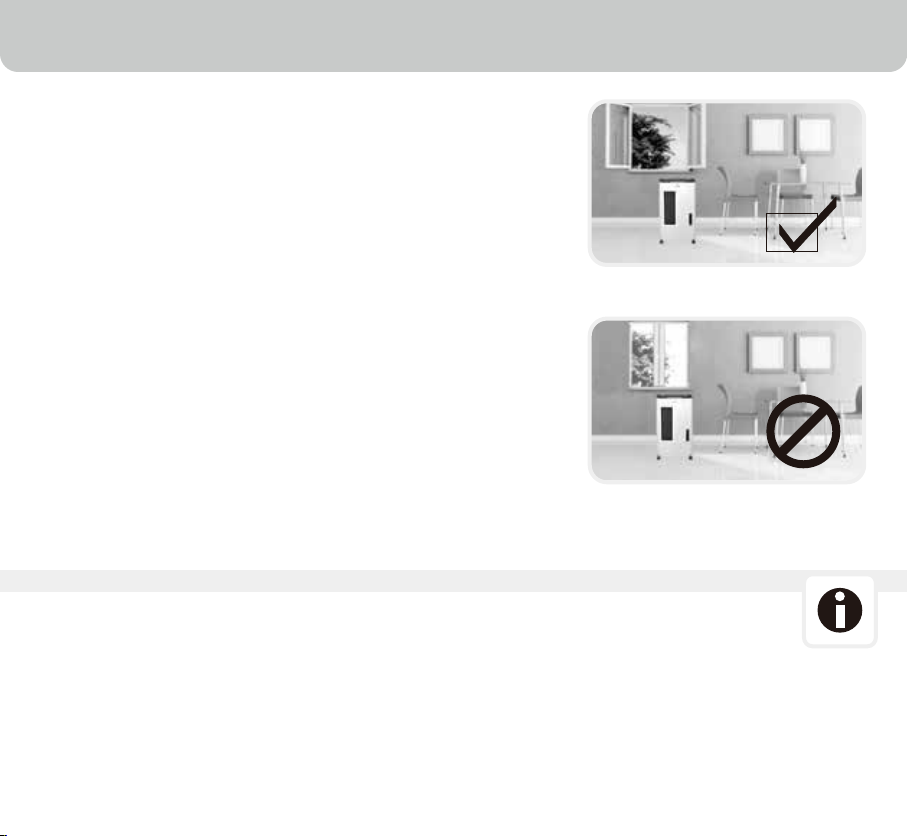

The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
USER TIPS
120V - 60 Hz
Shock Hazard
Water Level Indicator
5
SAFETY
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•

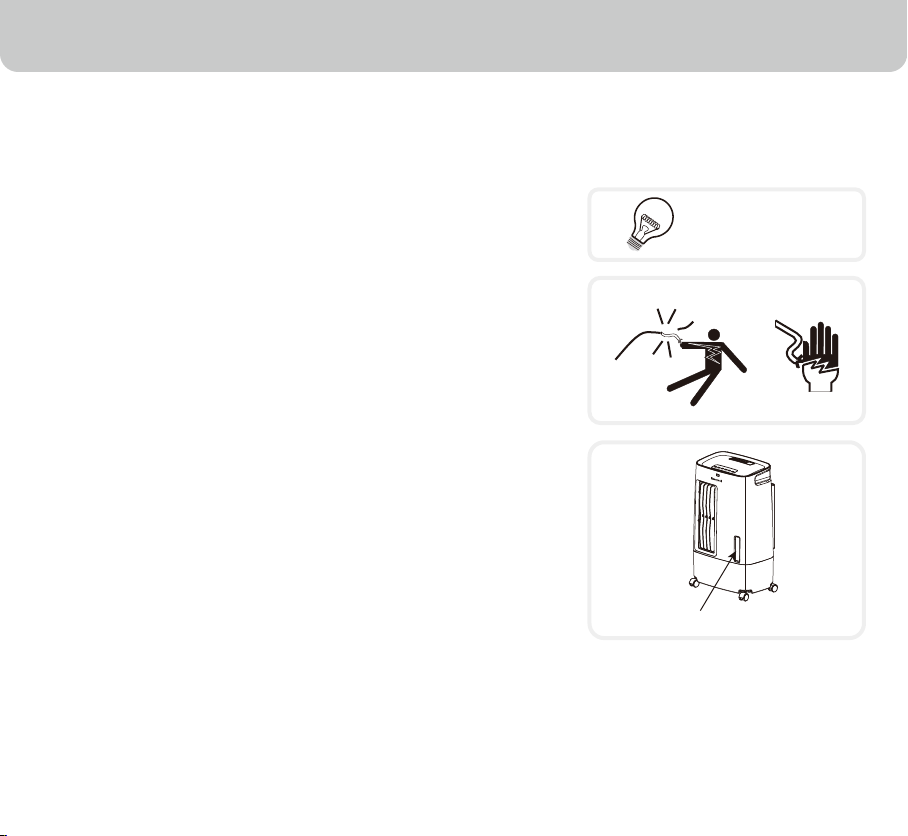

Your cooler runs on 120 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this appli-
ance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.
Floor Level
•
•
•
•
•
•
•
•
•
•
•
•
•

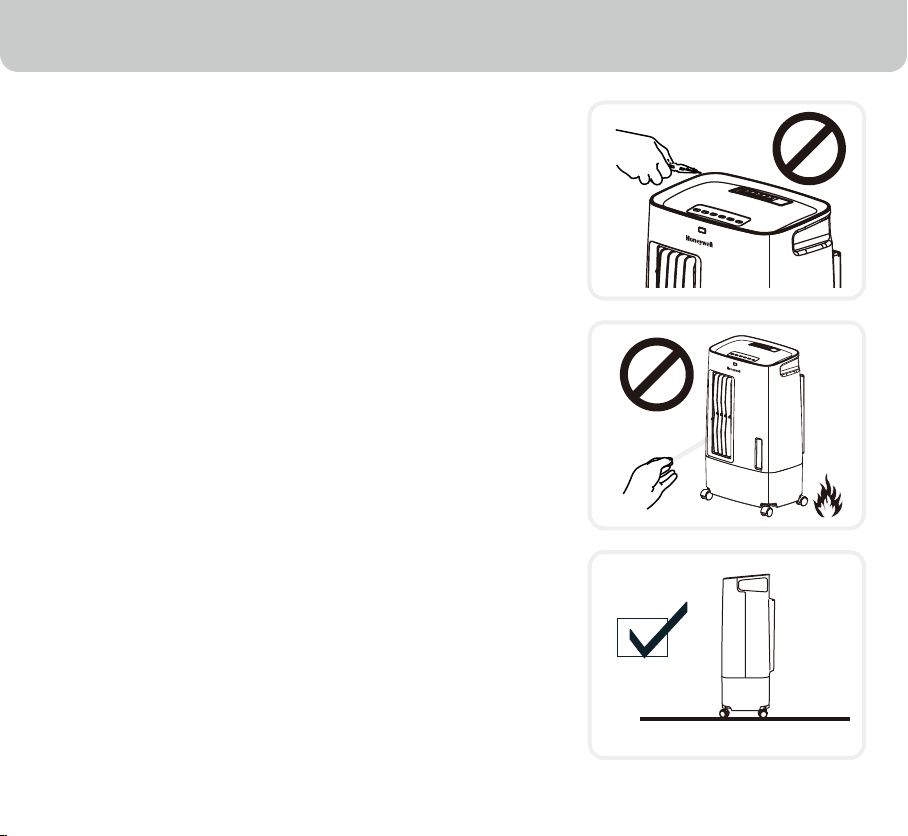

DO NOT attempt to repair or adjust any electrical or mechani-
cal functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb Media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
•Warning: To reduce the risk of fire or electric hock, do not use
this appliance with any solid- state speed control device.
6
SAFETY
7

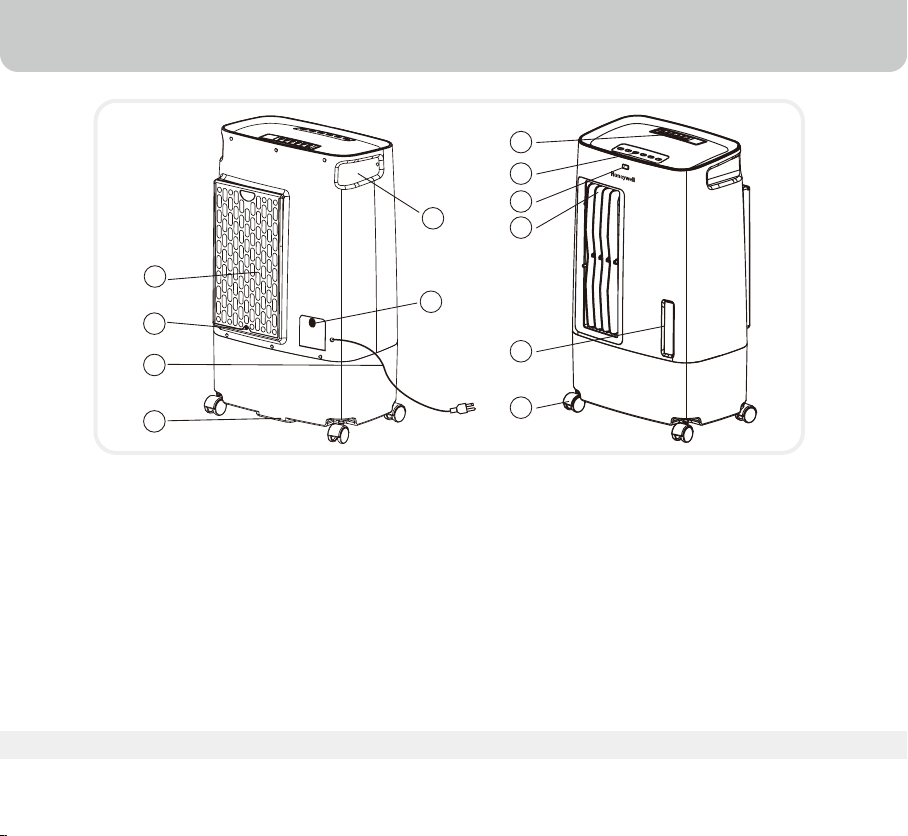

ACCESSORIES:
Remote Control (1pc Li batteries CR2032 included)
1 Remote Control
2 Control Panel
3 Remote Control Receptor
4 Vertical Louvers
(Automatic Movement with SWING)
5 Drain Plug
6 Water Level Indicator
7 Casters
8 Side Handle
9 Back Grill
10 Water Fill Door
11 Power Cord & Plug
12 Rear Grill Removal Screw
1
2
3
4
6
7
8
9
10
11
12
5
PARTS DESCRIPTION

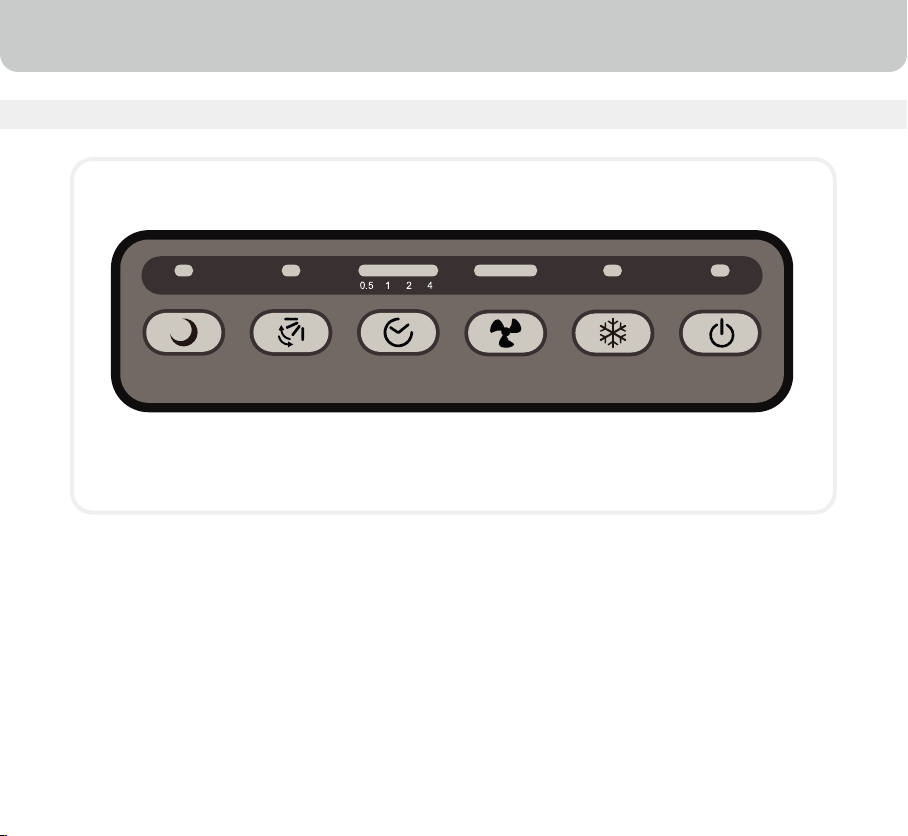

Control Panel
USE & OPERATION
8
SWINGSLEEP TIMER SPEED COOL POWER
Lo Med Hi
