PARTS DESCRIPTION

1) Control Panel 7) Handle

2) Louvers 8) Rear Grill

3) Power Cord & Plug 9) Water Tank

4) Water Fill Door 10) Drain Plug

5) Water Level Indicator 11) Casters

6) Ice Compartment Lid 12) Honeycomb Cooling Media

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

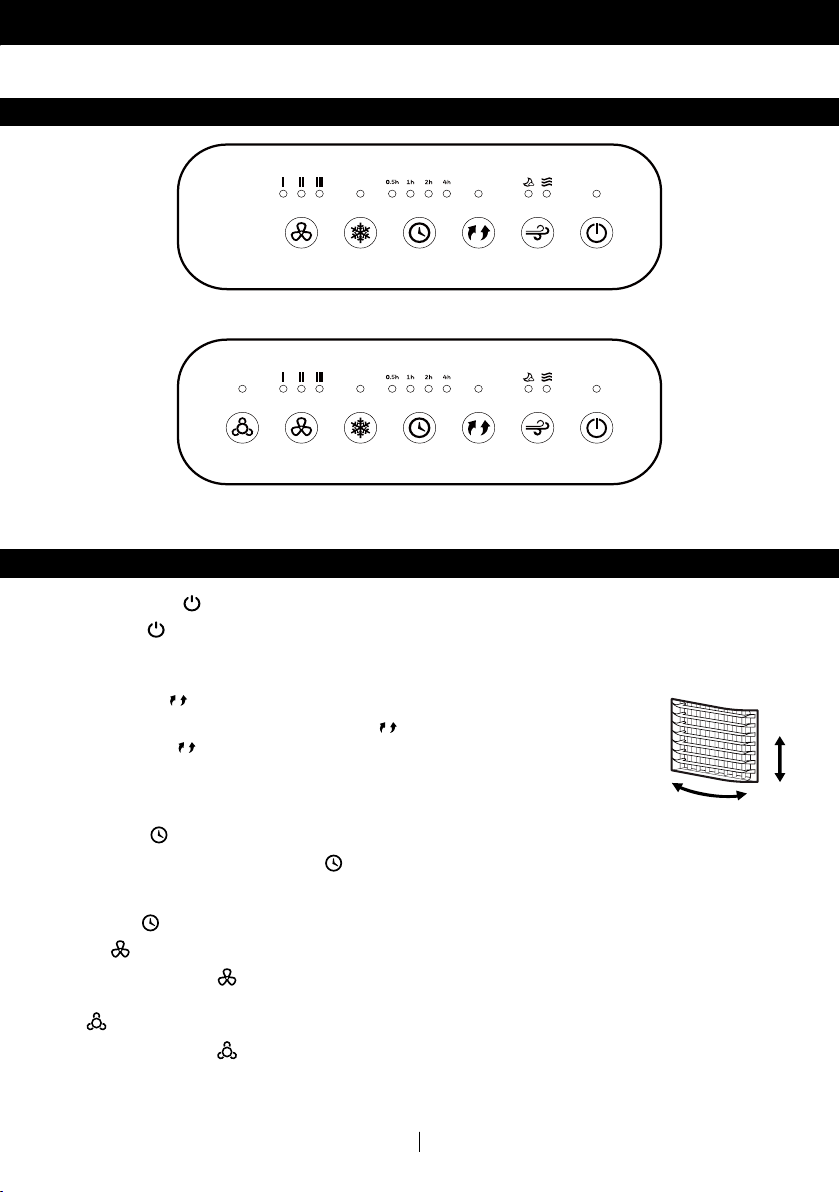

CONTROL PANEL

POWER

Press the or POWER button to turn the unit on. The cooler will start automatically at medium

speed. After a few seconds the speed will switch to low. To turn the unit off, press the button again.

SWING

Press the button until the indicator light is illuminated on the control

panel. The louvers will begin to move left to right automatically.

Vertical Air Flow - You can manually adjust the louvers to change vertical air

ﬂow.

TIMER

Press the button until the desired time duration setting is selected. When the set time has passed,

the unit will automatically turn off (unit remains in Standby mode until power cord is unplugged from

electrical socket). The function allows you to program the unit for up to 7.5 hours of use.

SPEED

Press the button repeatedly to change the speed between 3 (High) - 2 (Medium) - 1 (Low).

ION

Press the button until the ion indicator light is illuminated on the control panel.

Model with Ionizer *^

* Applicable for models with this feature only.

^ Ionizer reduces particles in the air. This is not an air puriﬁer.

Model without Ionizer

Louver

Movement

FUNCTION BUTTONS

USE & OPERATION

FUNCTION BUTTONS (CONTINUED)

WIND TYPE

COOL

Press the COOL button until the COOL indicator light is illuminated on the control panel. This

activates evaporative cooling. The water pump will operate and you will feel the cooler air after the

Honeycomb Cooling Media is completely wet.

Note: When the COOL indicator light is switched OFF, the unit can still function in a fan only mode

(without evaporative cooling).

Press the Wind button to select your desired wind type: Random or Sleep

Random: This mode mimic a natural breeze.

Sleep: This mode is for comfort during the night.

USE & OPERATION (CONTINUED)

NOTE:

•

The remote control requires a CR2025 (1x3V) coin type or equivalent battery for replacement.

Open the battery compartment at the back of the remote control and insert batteries inside.

Care must be taken to insert the batteries according to the correct polarity (+ / –) markings

shown inside the battery compartment.

Always point the remote control signal transmitter towards the unit when operating. Make sure

that the signal path is not obstructed.

Remove the batteries if the unit is not going to be used for an extended period of time.

Do not drop the remote control.

Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.

Do not mix old and new batteries.

Do not recharge the battery.

Exhausted batteries are to be removed from the product and safely disposed of as per local

regulations.

Do not dispose of batteries in ﬁre. Batteries may explode or leak.

WARNING: Caution for ingestion of the small battery. Keep away from children and animals.

Model with

Ionizer*^

* Applicable for models with this feature only.

^ Ionizer reduces particles in the air. This is not an air puriﬁer.

Model without

Ionizer

ON / OFF

Low / Medium / High

Controls the motion of the louvers

Controls the Timer function for automatic off

Controls cooling or fan option

Switch between Random & Sleep

Switch ON/OFF the Ionizer

POWER:

SPEED:

SWING:

TIMER:

COOL:

WIND TYPE:

ION:

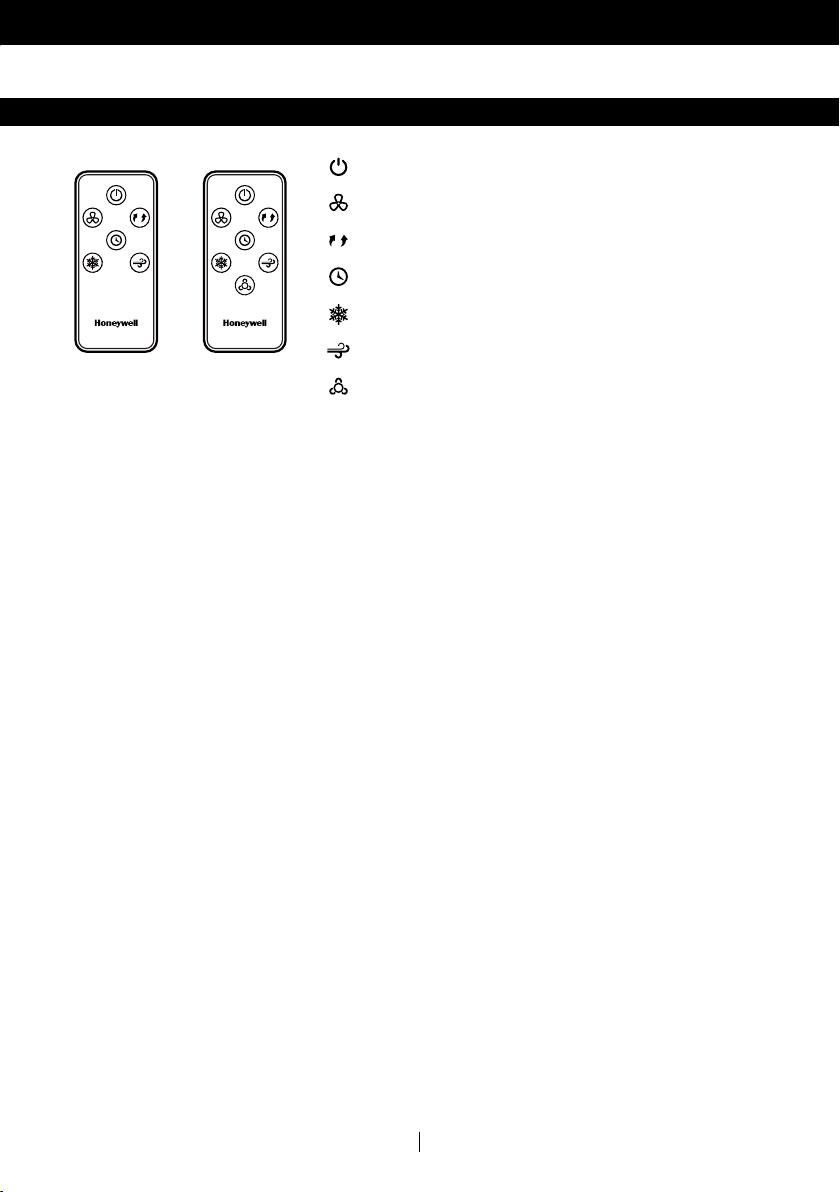

REMOTE CONTROL

USE & OPERATION (CONTINUED)

Make sure to position the air cooler correctly before you set up and start using the product.

Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

CAUTION:

Unplug the unit from the electrical power outlet before emptying or

reﬁlling the water tank.

Open the Water Fill Door.

The Water Level Indicator is located at the front of the unit. Refill the

water tank when water level is low. Do not ﬁll water above the "Max." water

level mark to avoid water droplets collecting on the louvers. Check the

water level in the tank before running the COOL function. Make sure that

the water in the tank is above the minimum water level mark. Running the

unit in COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be

contained within the air cooler water tank and water distribution system.

The water capacity in the tank at the “Max.” indicator level may be lower

than the actual water capacity of the air cooler.

Note: If ice is available, you may add ice in the top ice compartment to

enhance the cooling performance.

WARNING: Do not fill water tank with dirty water or salt water. This can

damage the unit and Honeycomb media.

COOLER LOCATION

FILLING WITH WATER

Ice Compartment

Water

Fill Door

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for

a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the

separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

USE & OPERATION (CONTINUED)

CLEANING & DRAINING THE WATER TANK

Move the unit to a location where the water can be drained. Remove the cap from the Drain plug

located at the bottom of the unit. Allow the tank to empty.

Reﬁll the water tank with clean water and drain it completely.

Reﬁll the water tank with clean water, up to the maximum level.

Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

When the product is not in use, store the unit in a dry place out of direct sunlight.

•

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the

minimum level, you will hear a beeping sound and the indicator light will ﬂash continuously. The unit

will automatically pause evaporative cooling.

Reﬁll the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug

from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and

switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch

the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low

Water Alarm will sound again if the COOL function is activated while the water tank is still empty.

*Applicable for models with Low Water Alarm feature only.

LOW WATER ALARM*

USE & OPERATION (CONTINUED)

CLEANING THE CARBON DUST FILTER* & MESH FILTER AND HONEYCOMB COOLING MEDIA

The appliance is supplied with a Carbon Dust Filter* & Mesh Filter and Honeycomb Cooling

Media.

The Carbon Filter* & Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill.

See Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Carefully pull out the rear grill from the cooler.

Slide out the Honeycomb Cooling media.

Slide out the Carbon Dust Filter* & Mesh Filter and

clean with water.

Replace or clean media with water and a damp cloth

as needed.

Removing the Carbon Dust Filter* & Mesh Filter / Honeycomb Cooling Media:

WARNING: DO NOT operate the Air Cooler when the

Rear Grill is removed from the Air Cooler, or if there is

a loose-fitting Rear Grill. Doing so can cause serious

injury or dangerous electrical shock.

Figure 1:

Honeycomb

Frame Carbon Dust

Filter*

Rear Grill

Honeycomb

Cooling Media

Mesh

Filter

* Applicable for models with Carbon Dust Filter only.

DESCRIPTION DES PIECES

1) Panneau de Contrôle 7) Poignée

2) Grilles d'Aération 8) Grille Arrière

3) Cordon Electrique & Prise 9) Réservoir d'Eau

4) Porte de Remplissage d'Eau 10) Bouchon de Vidange

5) Indicateur de Niveau d'Eau 11) Roulettes

6) Couvercle du Compartiment

de Glaçon 12) Système de Refroidissement

Honeycomb

AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE

MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS

SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON

FONCTIONNEMENT ET ANNULER LA GARANTIE.

PANNEAU DE CONTROLE

INTERRUPTEUR

Appuyer sur pour allumer l'unité. Le refroidisseur s'allumera automatiquement à une vitesse

moyenne. Après quelques seconds, la vitesse basculera à faible. Pour éteindre l'unité, appuyez à

nouveau sur le bouton.

OSCILLATION

Appuyer sur le bouton OSCILLATION jusqu’à ce que l’indicateur

d’OSCILLATION soit illuminé sur l’écran d’affichage. Les grilles d’aération

commenceront à osciller de gauche à droite automatiquement. — Débit d’air

vertical – il est possible de régler manuellement les grilles d’aération verticales

pour modiﬁer le débit d’air vertical.

MINUTERIE

Appuyer le bouton de la MINUTERIE jusqu'à ce que le réglage de temporisation désiré est choisi.

Lorsque le temps réglé est dépassé, l'unité s'arrêtera automatiquement (l'unité restera en mode

Veille jusqu'à ce que le cordon d'alimentation soit débranché de la prise électrique). La fonction de

MINUTERIE vous permet de programmer l'unité jusqu'à 7.5 heures d'utilisation.

SPEED

Appuyer sur le bouton de la VITESSE à plusieurs reprises pour changer la vitesse entre 3(Élevée)-

2(Moyenne) - 1(Faible).

ION

Appuyez sur le bouton jusqu'à ce que le voyant ionique s'allume sur le panneau de commande.

Modèle avec ioniseur*^

* Applicable uniquement pour les modèles avec la fonction.

^ Le ioniseur réduit les particules dans l'air. Reduces particles in the air. Ce n'est pas un puriﬁcateur d'air.

Modèle sans ioniseur

Mouvement des

grilles d’aération

BOUTONS DE FONCTION

UTILISATION & FONCTIONNEMENT

Table of contents

Languages:

Other Honeywell Air Conditioner manuals

Honeywell

Honeywell MO08CESWS6 User manual

Honeywell

Honeywell CL60PM Series User manual

Honeywell

Honeywell CL15AC User manual

Honeywell

Honeywell CL401PM User manual

Honeywell

Honeywell TC10PE User manual

Honeywell

Honeywell CL201AE User manual

Honeywell

Honeywell CO70PE User manual

Honeywell

Honeywell CL30XC User manual

Honeywell

Honeywell TC50PEU Guide

Honeywell

Honeywell MN10 Series User manual

Honeywell

Honeywell CL30XC User manual

Honeywell

Honeywell CL25AE Guide

Honeywell

Honeywell MP10CESWW User manual

Honeywell

Honeywell MM Series User manual

Honeywell

Honeywell CL30XC User manual

Honeywell

Honeywell ES800 User manual

Honeywell

Honeywell CS071AE User manual

Honeywell

Honeywell CL610PE User manual

Honeywell

Honeywell CO25AE User manual

Honeywell

Honeywell CL201AE User manual

Honeywell

Honeywell CL48PM User manual

Honeywell

Honeywell CS074AEKK User manual

Honeywell

Honeywell MN10CCS User manual

Honeywell

Honeywell HC09CESAWK User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
