Hobby King Decathlon-46 User manual

AIRCRAFT SPECIFICATIONS：

Wing Span: 1592mm/62.67"

Wing Area: 37.84 Sq dm/ 586

Lenght:1040mm/40.95in

.5 Sq in

Weight:1300g RTF less battery

ECOMMENDED EQUIPMENT： R

Motor: 3520

Radio: 4 channels, 4 servos

mAh Battery: 4S/5S 3800mAh-4200

ESC: 60A-80A

arning! This model is not a toy.

mance. Please seek

ad c

ut prior preparation may cause

safety is the most important thing. Always keep

It is designed for maximum perfor

vice if one is not familiar with this kind of electri

powered precision model.

Operating this model witho

juries.

Remember,

is instruction manual at hand for quick reference.

1.Main Wing

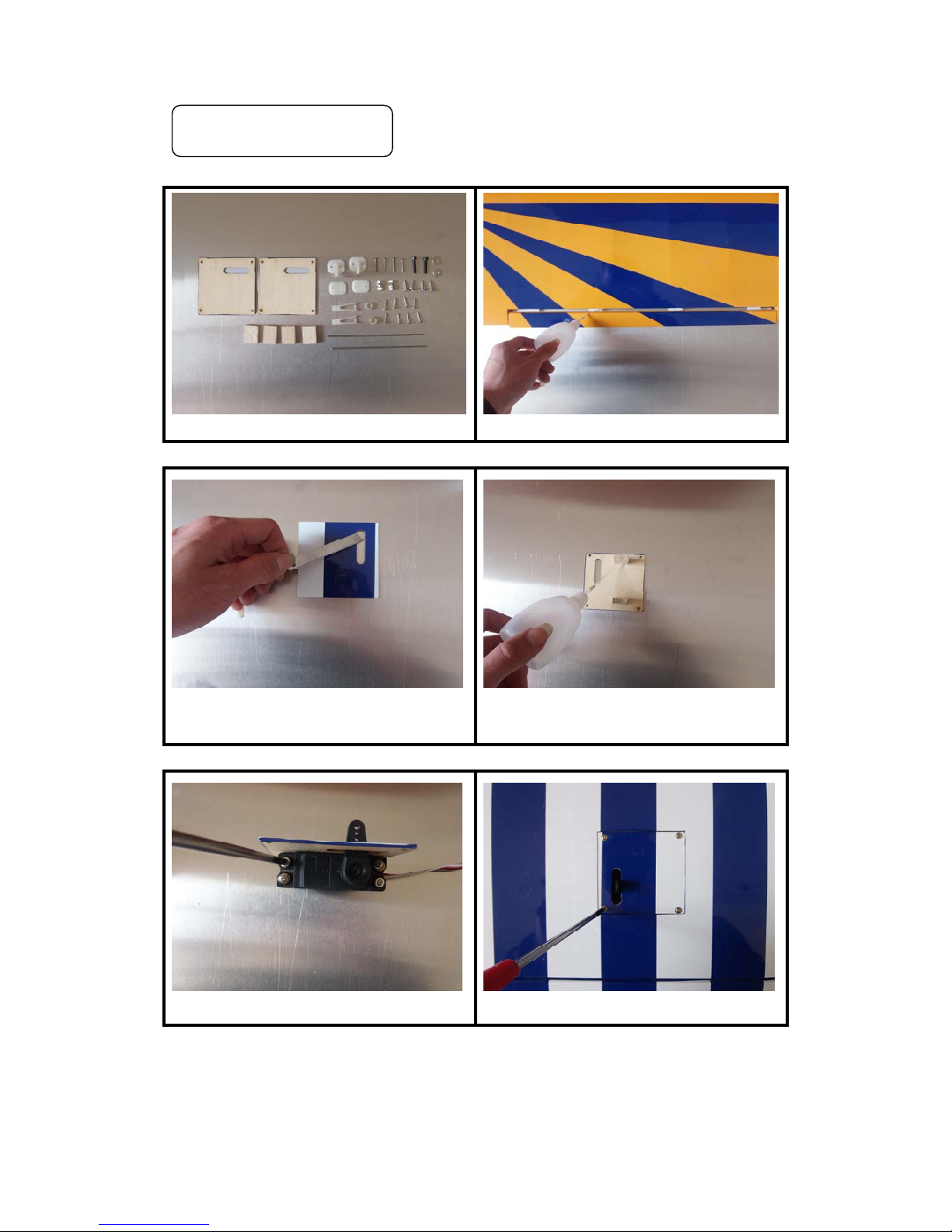

Wings Part List Apply instant glue

Cut

the

covering

for

installing

the

aileron’s servos

Apply epoxy glue

Install the aileron servos Fix the aileron servo’s cover plate

Fix the aileron’s horn Complete aileron servo system install

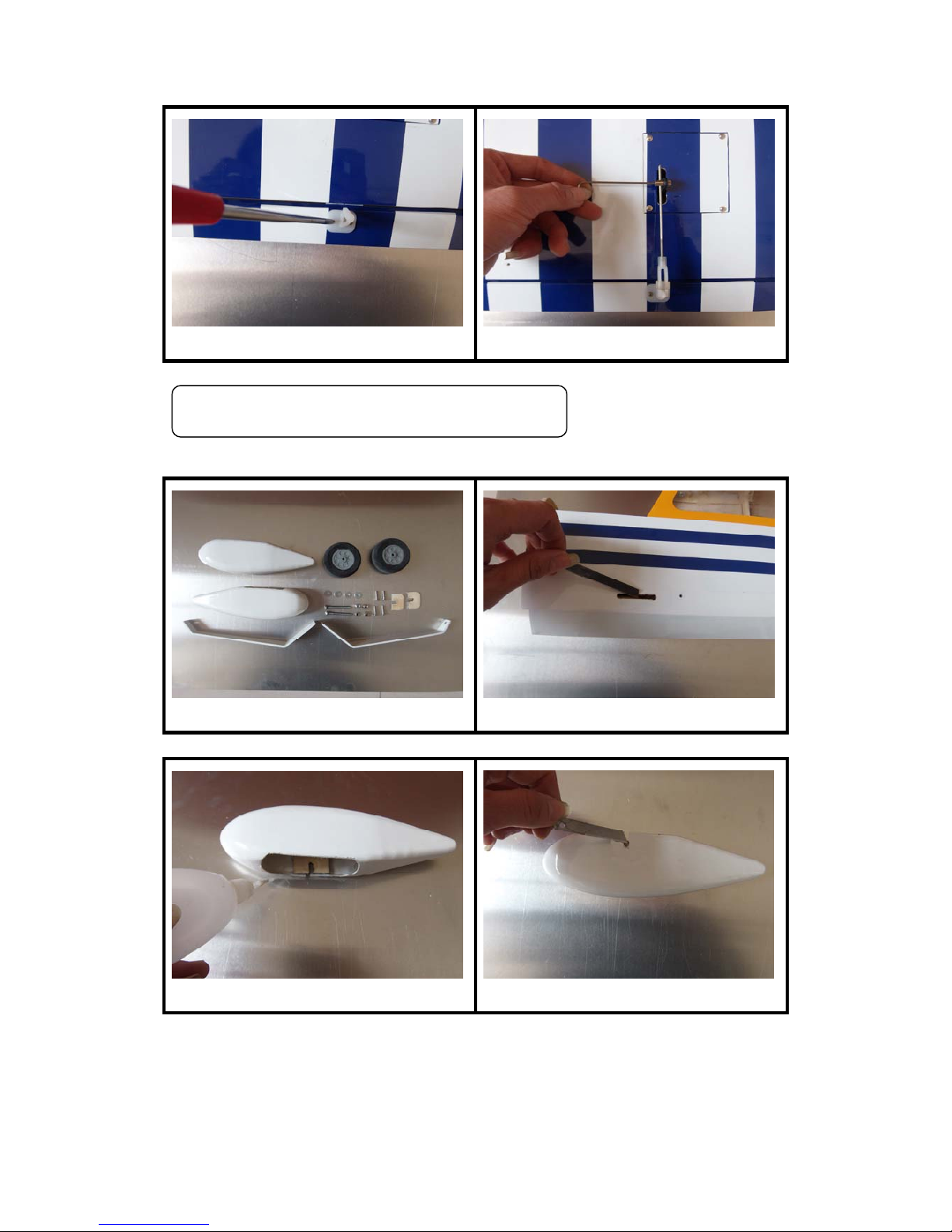

2.Main Landing Wheel

Main Landing Wheel Part List Cut the covering away

Apply epoxy glue Cut away this part

The shaft passes through the wheel and

the main landing chassis. Then fixed

using M4 skidproof nut

Put the complete wheel parts into the

wheel cowling

Locking the skidproof nut Locking the Wheelchocks

Fix the main landing gear

3.Stabilizer/Vertical/Tail Wheel

Stabilizer Part List Vertical/Tail Wheel Part List

Cut the covering away for installing

the elevator and elevator’s servos

Draw a line for cutting the covering

away

Draw a line for cutting the covering

away

Judging

the

line

cutting

the

covering away

Drill diameter 2mm hole for inserting the

linkage rod

Apply epoxy glue

Before

install

the

stabilizer

must

passing through the elevator first

Apply epoxy glue

Apply instant glue

Apply epoxy glue

Apply instant glue

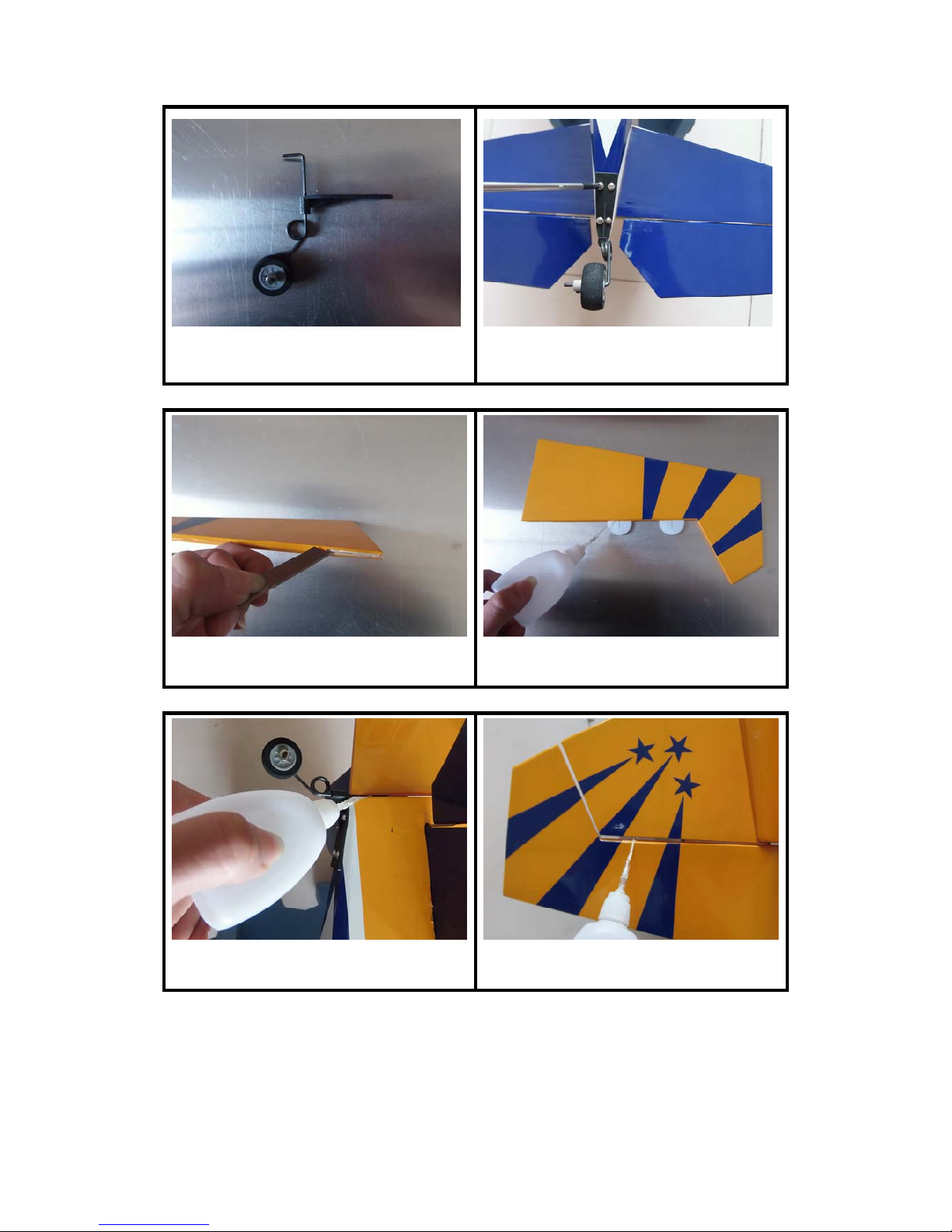

Locking the tail wheel Wheelchocks

Cut the tail wheel’s steel wire then

bend the steel wire

Locking the tail wheel

Cut this part away and drill a diameter

2mm hole for inserting tail wheel’s steel wire

Apply instant glue

Apply epoxy glue to fix the tail wheel’s

steel wire

Apply instant glue

Fix the elevator’s servo Fix the elevator’s horn

Complete elevator’s servo installing Fix the rudder’s servo

Fix the rudder’s horn Complete rudder’s servo installing

4.Canopy/ Main Wing

Fix the main wing Canopy Part List

Fix the canopy Wing strut Part List

Fix the wing strut

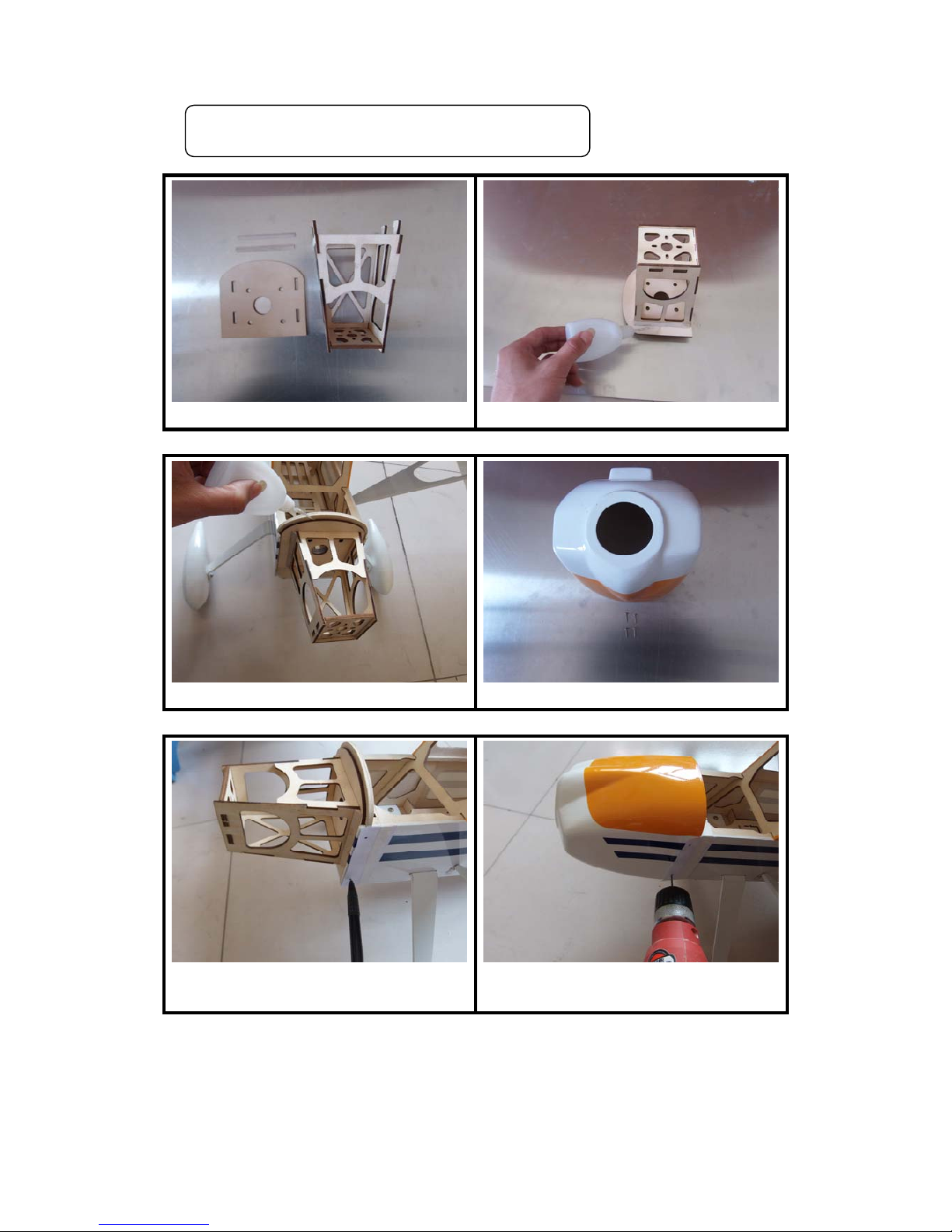

2.Cowing/ Motor Mounting

Motor mounting Part List Apply instant glue

Apply epoxy glue or White latex Cowling Part List

Draw a mark for drilling the cowling’s

hole

Judging by the mark to drilling the

hole
