Hobby King Cessna 195 User manual

AIRCRAFT SPECIFICATIONS：

Wing Span: 1350mm/53.15"

WingArea: 26.01 Sq dm/ 403.2 Sq in

Lenght:1070.5mm/40.95in

Weight: 1500g RTF less battery

RECOMMENDED EQUIPMENT：

Motor: 2820/07

Radio: 4 channels, 4 servos

Battery: 3S/4S 2200mAh-3300mAh

ESC: 60A

Warning! This model is not a toy.

It is designed for maximum performance. Please seek

advice if one is not familiar with this kind of electric

powered precision model.

Operating this model without prior preparation may cause

in juries.

Remember, safety is the most important thing. Always keep

this instruction manual at hand for quick reference.

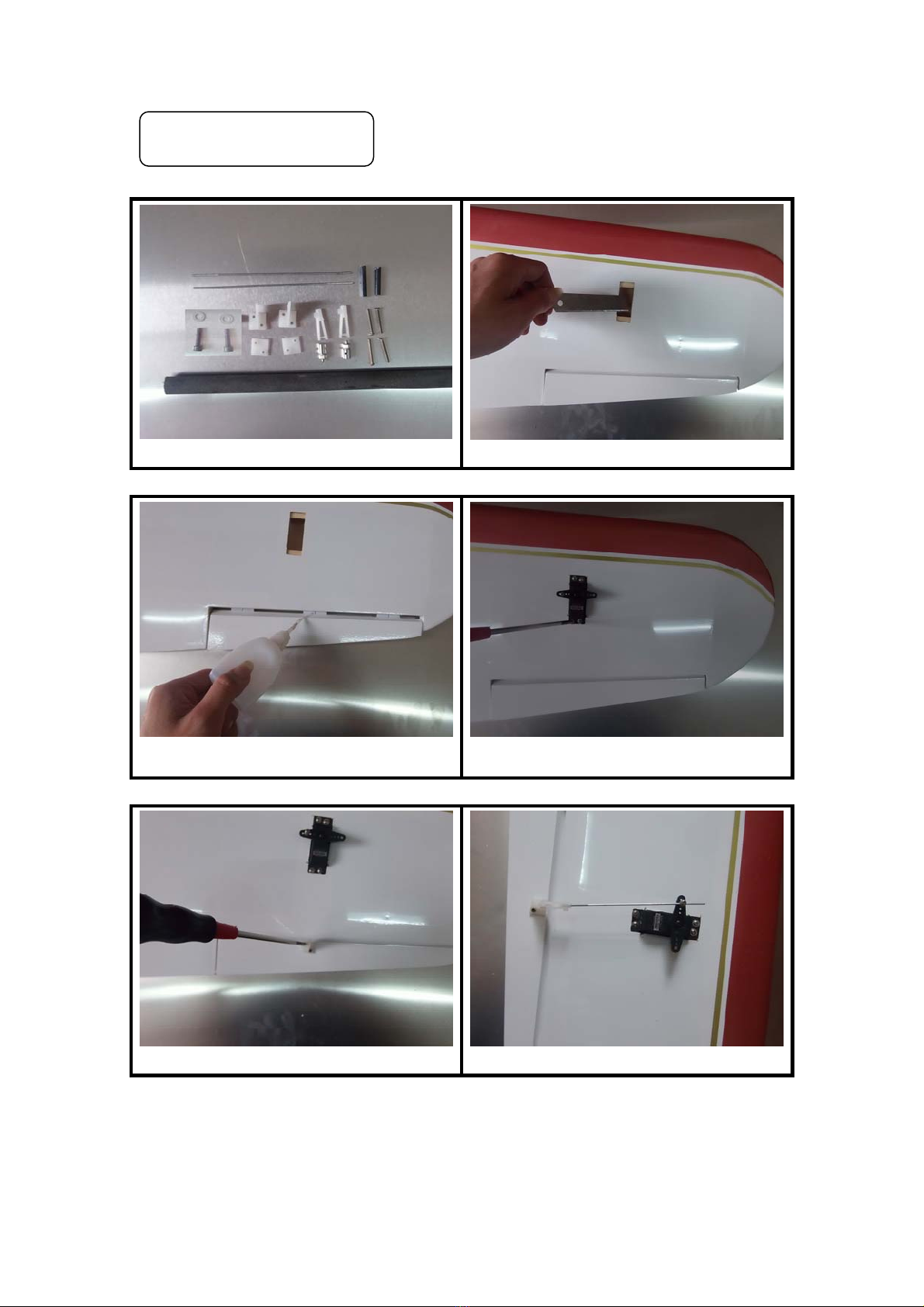

1.Main Wing

Wings Part List Cut the covering away

Apply instant glue Fix the aileron servo

Install the aileron horn Complete aileron servo system installing

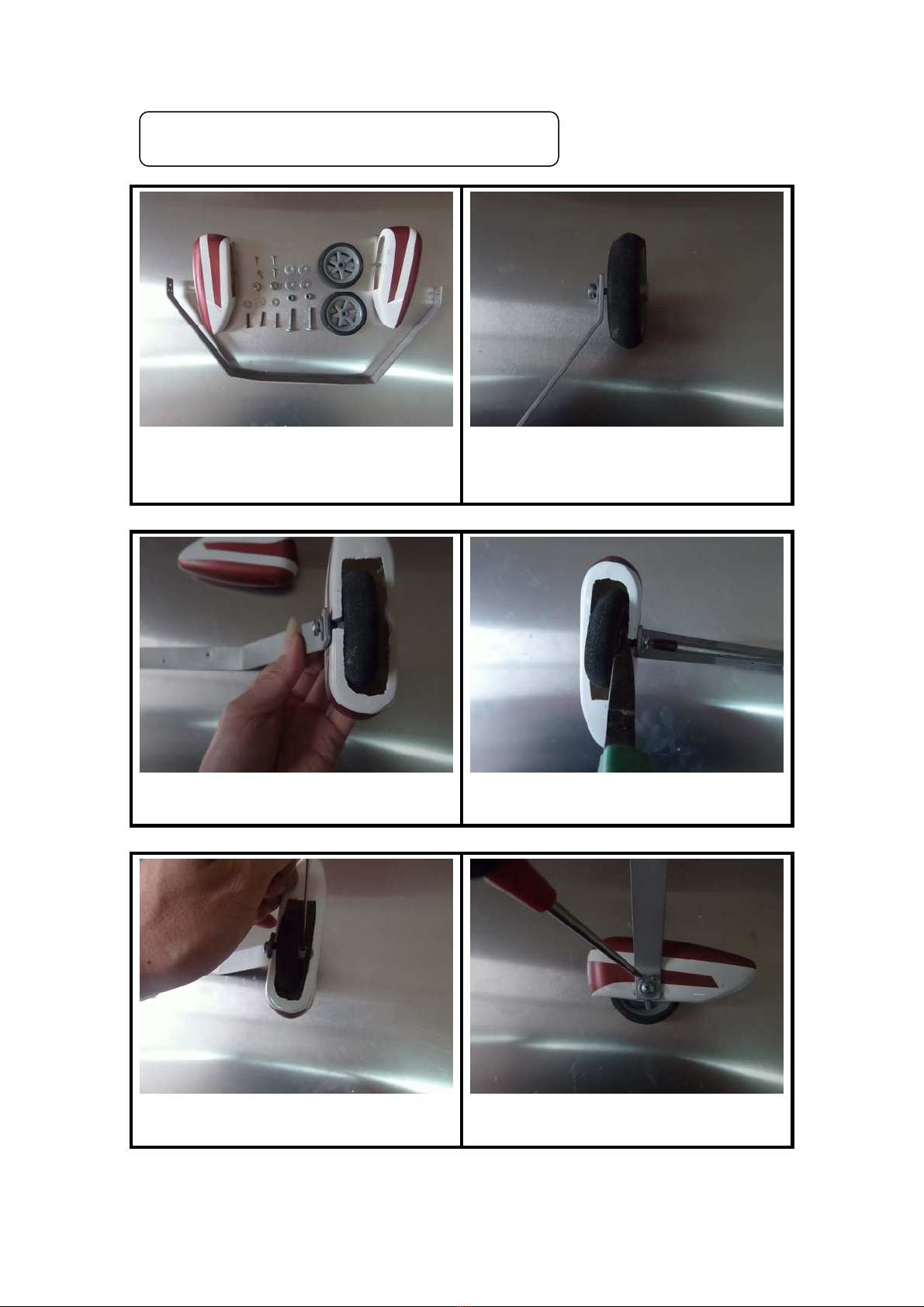

2.Main Landing Wheel

The shaft passes through the wheel and

the main landing chassis. Then fixed

using M4 skidproof nut

Main Landing Wheel Part List

Put the complete wheel parts into the

wheel cowling Locking the skidproof nut

Locking the Wheelchocks Fix the wheel cowling with 4 tapping

screw with pad

Fix the main landing gear

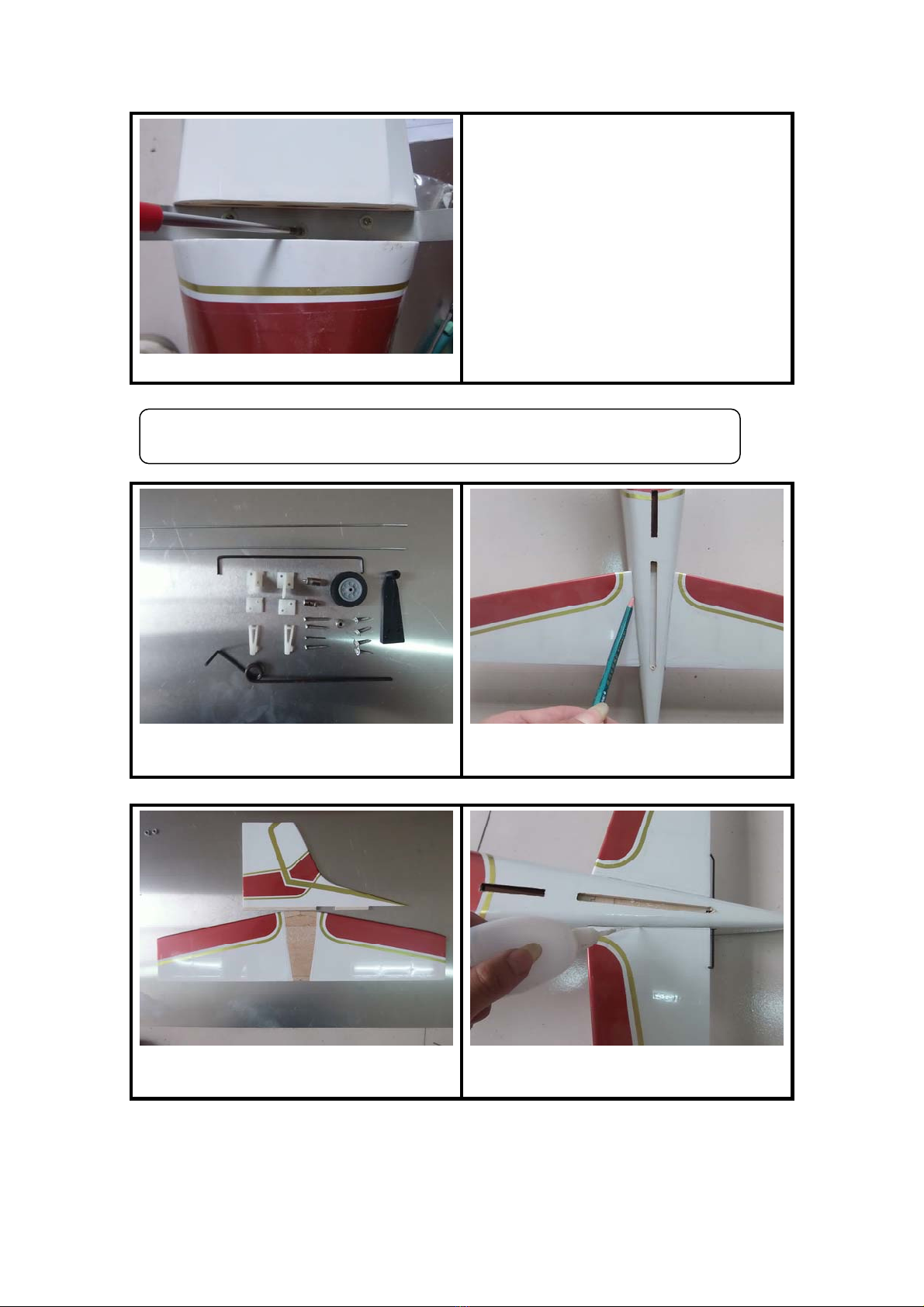

3.Stabilizer/Vertical/Tail Wheel

Stabilizer/ Vertical/Tail Wheel Part List Draw a line for cutting the covering

away

Judging by the line

to

cutting

the

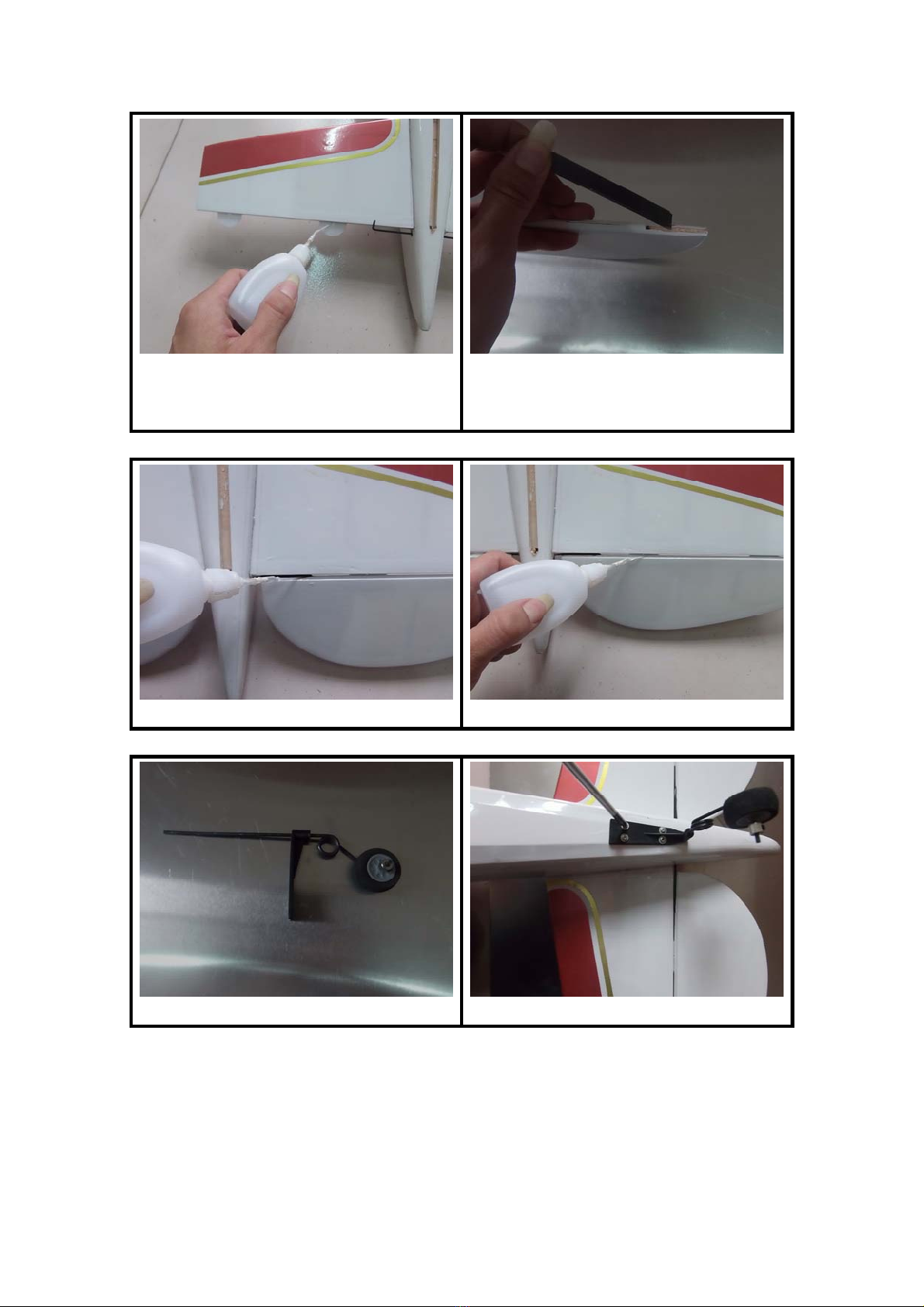

covering away Fix the stabilizer with instant glue

Apply instant glue Cut the wood away and drill a diameter

2mm hole

for

fixing

the

elevator

linkage rod

Fix the linkage rod with epoxy glue Apply instant glue

Install the tail wheel Fix the tail wheel

Bend the steel wire Fix the vertical with instant glue

Cut the wood away and drill a diameter

2mm hole

for

fixing

the

tail

wheel

steel wire

Fix

the

tail

wheel

steel

wire

with

epoxy glue

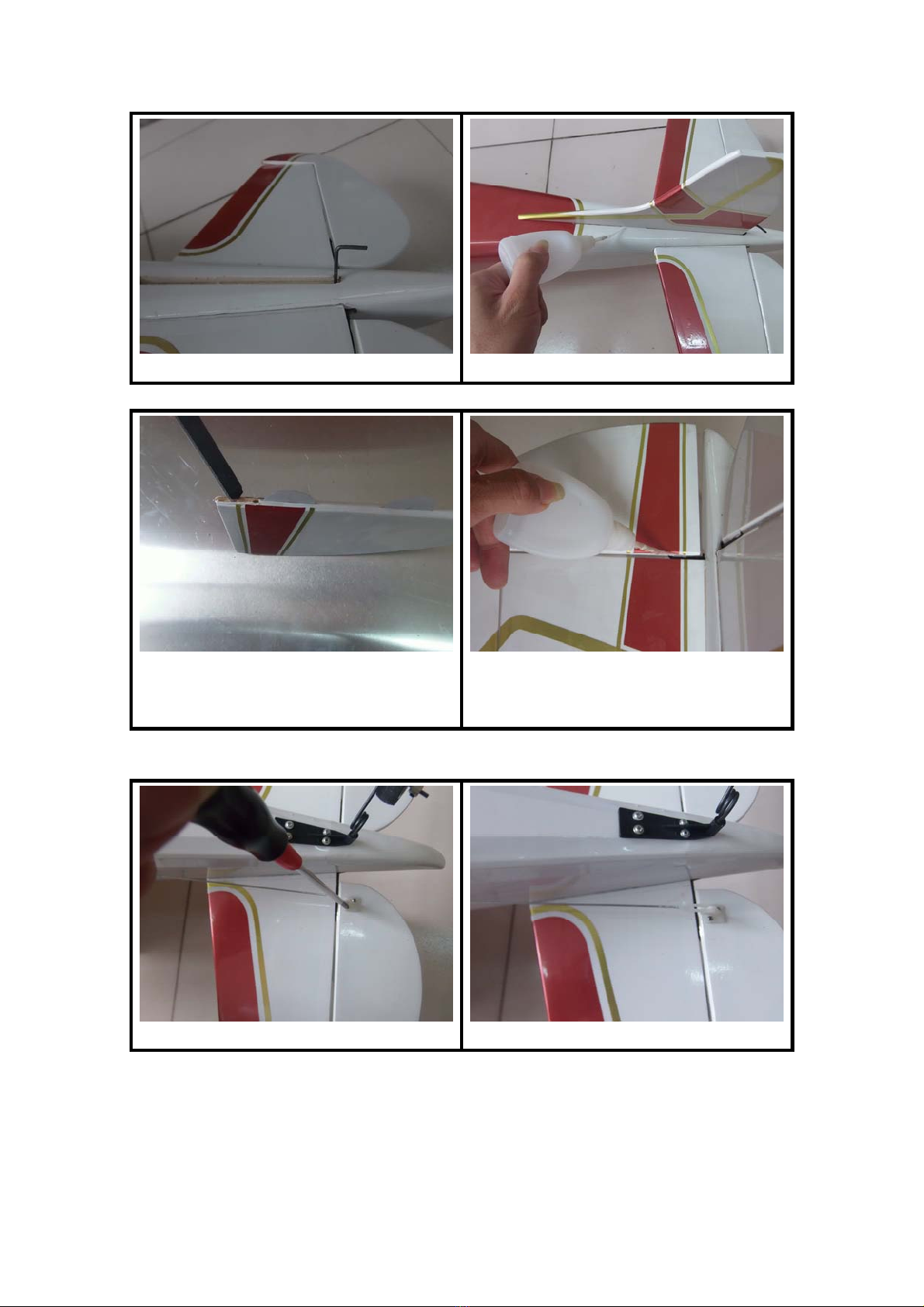

Fix the elevator horn Install the elevator servo system

Fix the rudder horn and install rudder

servo system Complete elevator and rudder servo

system installing

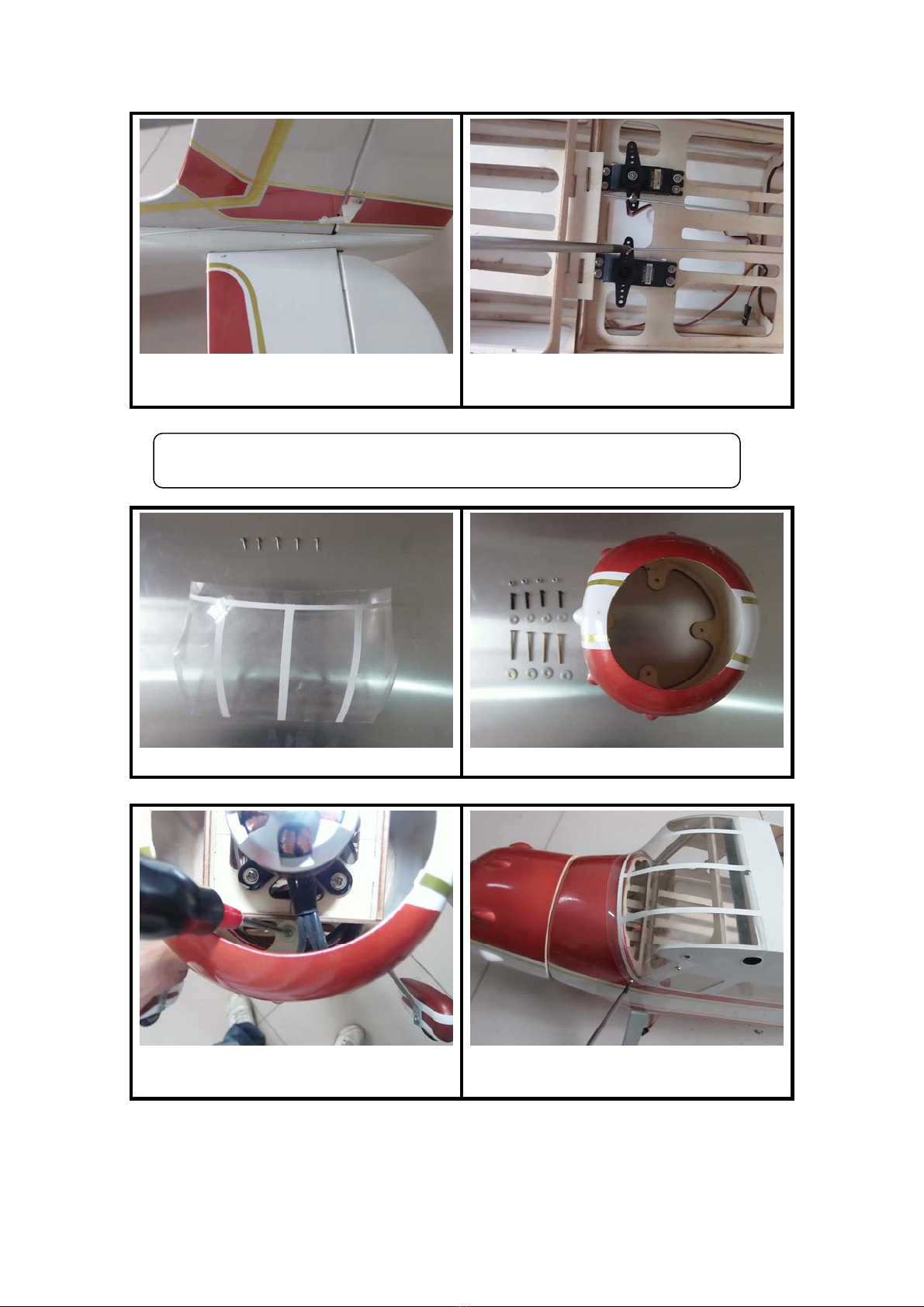

4.Canopy/Cowling/Motor/Main Wing

Canopy Part List Cowling Part List

Fix the cowling with 4 pcs M3*25 cross

head screw

Fix the canopy with 6 pcs tapping

screw with pad

Fix the main wing Install the canopy

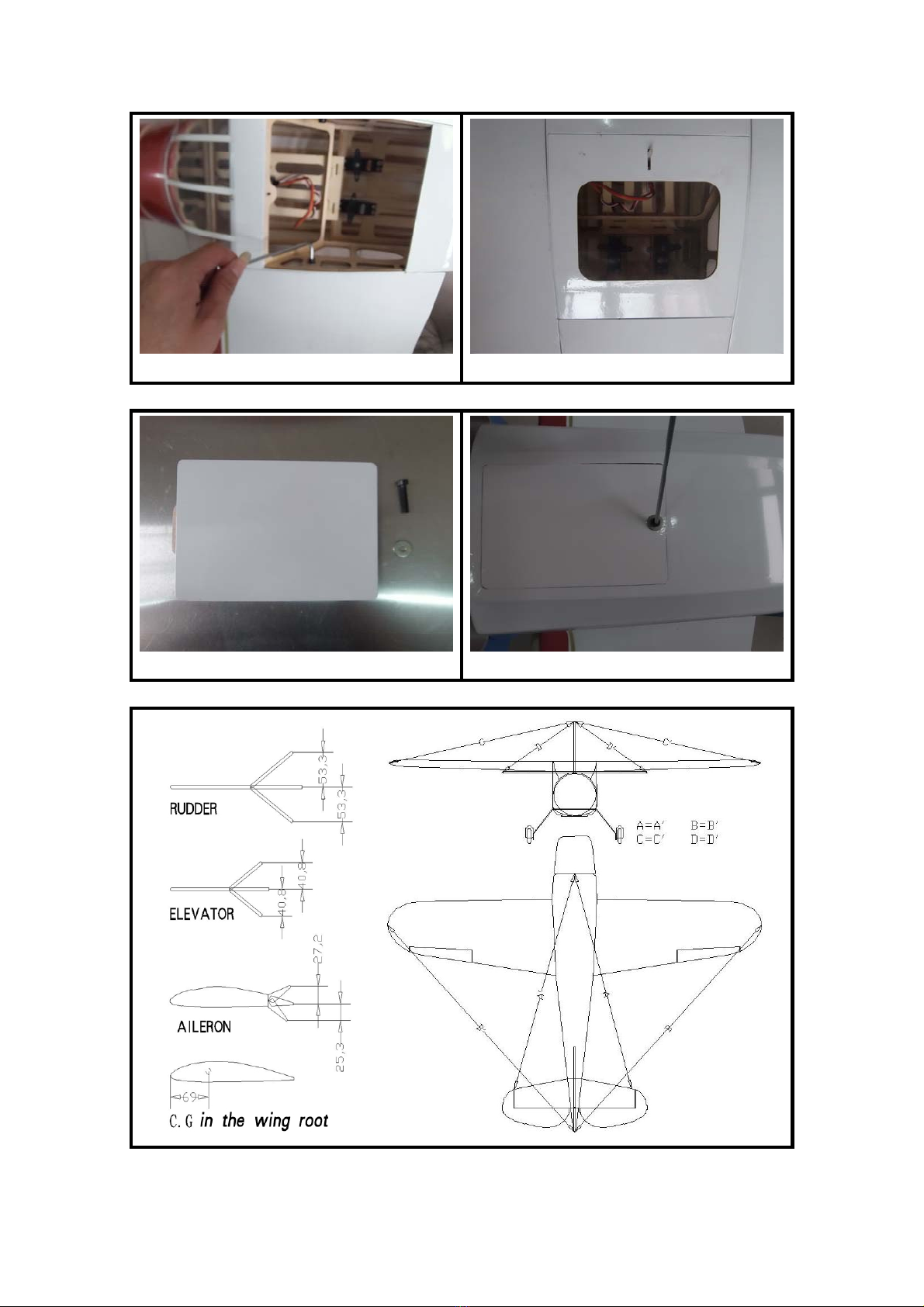

Cover Plate Part List Fix the cover plate

This manual suits for next models

1
