This section provides the installation instructions for the

Henny Penny Fry Station.

Installation of the unit should be performed only by a

qualified service technician.

Do not puncture the unit with any objects such as drills or

screws ascomponent damage or electrical shockcould result.

The Henny Penny Fry Station has been tested, inspected,

and expertly packed to ensure arrival at its destination in

the best possible condition. The unit is bolted to a wooden

skid and then packed inside a heavy cardboard carton with

sufficient padding to withstand normal shipping treatment.

Any shipping damage should be noted in the presence of

the delivery agent and signed prior to his or her departure.

1. Carefully cut bands from cardboard carton.

2. Lift carton from fryer.

This manual should beretained in a convenient location for

future reference.

Wiring diagram for this appliance is located on the inside

access door below the control panel. Post in a prominent

location, instructions to befollowed in event user smellsgas.

This information shall be obtained by consulting the local

gas supplier.

The proper location of the Fry Station is very important

for operation, speed,and convenience. The location of the

fiy station should allow clearances for servicing and proper

operation. Choose a location which will provide easy loading

and unloading without interfering with the final assembly of

food orders. Operators have found that frying from raw to

finish, and holding the product in warmers provides fast con

tinuous service. Keep in mind the best efficiency will be

obtained by a straight line operation, i.e. raw in one side and

finished out the other side. Order assembly can be moved

away with only a slight loss of efficiency.

The fryer should be installed in such a way asto prevent

tipping or movement causing splashing of hot liquid shortening.

This may be accomplished by the location the fiy station is in, or

by restraining ties.

The gasModel OG-300 Series Fry Station is designed

for installation on combustible floors and adjacent to

combustible walls. Fry Station must be installed with a

minimum clearance from all combustible, and

noncombustible materials, 4 inches from side and 4

inches from the back.

For proper operation, the fry station should be level from

side to side and front to back. Using a level place on the

flat areasaround the frypot collar, on the middle well, adjust

the castersuntil the unit is level.

adequate exhaust hood or vent

is essential to permit efficient removal of the steam exhaust and

frying odors. Special precaution must be taken in designing an

exhaust canopy to avoid interference with the operation of the

1fry station. We recommend you consult a local ventilation or

heating company to help in designing an adequate system.

Ventilation must conform to local, state,andnational codes.

Consult your local fire department or building authorities.

When installing the gasfry stationdonot attachanexten-

sionto the gasflue exhauststack.This may impair proper

operationof the burner,causingmalfunctionsandpossible

negativebackdraft.

The gasfry station is factory availablefor eithernatural

or propanegas.Checkthe dataplateinsidethe front door

of thecabinetto determinethepropergassupply

requirements. TE

TheOG-301 canbeoperatedat altitudesof upto 4000feet

abovesealevel with no changesto theunit. For operation

above4000feet,pleasecontactHennyPennyCorporation

for changesto theunit.

Do not attemptto useanygasotherthanthat specifiedon

thedataplate. Incorrect gassupplycould result in afire

or explosion.

Pleaserefer to the illustration onthefollowing pagefor the

recommendedhookup of the fry stationto themain gasline

supply.

To avoid possibleseriouspersonalinjury:

* Installation mustconform with AmericanNational Standard

2223.l-Latest Edition National FuelGasCodeandthe local

municipal building codes. In Canada,installationmustbein

accordancewith StandardCAN/CGA B 149.1& .2,

Installation Codes- GasBurning Appliancesandlocal

codes.

0Thefry stationandits individual shutoff valve mustbe

disconnectedfrom the gassupplypiping systemduring any

pressuretesting of that systemattestpressuresin excessof

l/2 PSIG(3.45 KPA).

* The fry stationmustbeisolatedfrom thegassupplypiping

systemby closing its individual manualshutoff valve

during anypressuretestingof thegassupplypiping system

attestpressuresequalto or lessthan l/2 PSIG(3.45KPA).

INIMU~I PULL of equip-

ment away from wall

permissible for accessi-

bility to Quick Disconnect

Device.

AVOID SHARP BENDS AND KINKS when

pulling equipment away from wall. (Max-

imum pull will kink ends, even if installed

properly, and reduce Connector life.)

QUICK DISCON.

NECT DEVICE

while extended at

MAXIMUM PULL NOT

ADVISED WHILE

CONNECTED

Couplings and hose

should be installed in the

same plane as shown at

left. DO NOT OFFSET

COUPLINGS-this causes

torsional twisting and

undue strain causing

premature failure.

This is the correct way to

install metal hose for ver-

tical traverse. Note the

single, natural loop.

Allowing a sharp bend, as

shown at right, strains and

twists the metal hose to a

point of early failure at the

coupling.

Maintain the minimum or

larger bending diameter

between the couplings

for

longest life.

Closing in the diameter at

the couplings, as shown

at right, creates double

bends causing work

fatigue failure of the

fittings.

In all installations where

“self-draining” is not

necessary, connect metal

hose in a vertical loop.

~0 NOT CONNECT

METAL HOSE HORI-

ZONTALLY . . . unless

“self-draining” is neces-

sary, then us% support on

lower plane as shown at

left.

odel

Please refer to the illustration below

when installing cable restraint on all

moveable gas fryers.

l-bolt is to be secured to the building

using acceptable building construc-

tion practices.

c CT1

Secure l-bolt to a building stud. DO

NOT attach to dry wall only. Also,

locate the l-bolt at the same height as

the gas service. Preferred installation

is approximately six inches to either

side of service. Cable restraint must

be at least six inches shorter than

flexible gas line.

Utilize elbows when necessary to

avoid sharp kinks or excessive ben-

ding. For ease of movement, install

with a “lazy” loop. Gas appliance

must be disconnected prior to max-

imum movement. (Minimum move-

ment is permissible for hose

disconnection).

A standard one inch, black steel pipe and malleable fittings

should be used for gas service connections.

Do not use cast iron fittings.

Although one inch size pipe is‘reconunended, piping

should be of adequate size and installed to provide a supply

of gassufficient to meet the maximum demand without

undue loss of pressure between the meter and the fry station.

The pressure loss in the piping system should not exceed 0.3

inch water column.

“revisions should be made for moving the fry station for

leaning and servicing. This may be accomplished by:

Installing a manual gas shut off valve and a disconnect

union, or

Installing a heavy duty design A.G.A. certified

connector. In order to be able to service this appliance,

which is provided with casters,a connector complying

with ANSI 221.69 or CAN/CGA 6.16 and a

quick-disconnect device complying with ANSI 22 1.41

or CAN l-6.9 must be installed. It must also be

installed with restraining means to guard against

transmission of strain to the connector asspecified in

the appliance manufacturer’s instruction.

Refer to the cable restraint instructions (illustration 2-6)

on how and where to attach the restraining devices to

the wall and fryer.

Prior to turning the gas supply on, be sure the gasdial

cock on fry station gasvalve is in the OFF position.

After the piping and fittings have been installed, check

for gasleaks. A simple checking method is to turn on

the gasand brush all connections with a soap solution.

If bubbles occur, it indicates escaping gas. In this

event, the piping connection must be redone.

Never use a lighted.match or open flame to test for gas

leaks. Escaping gas could causean explosion resulting

in severepersonal injury.

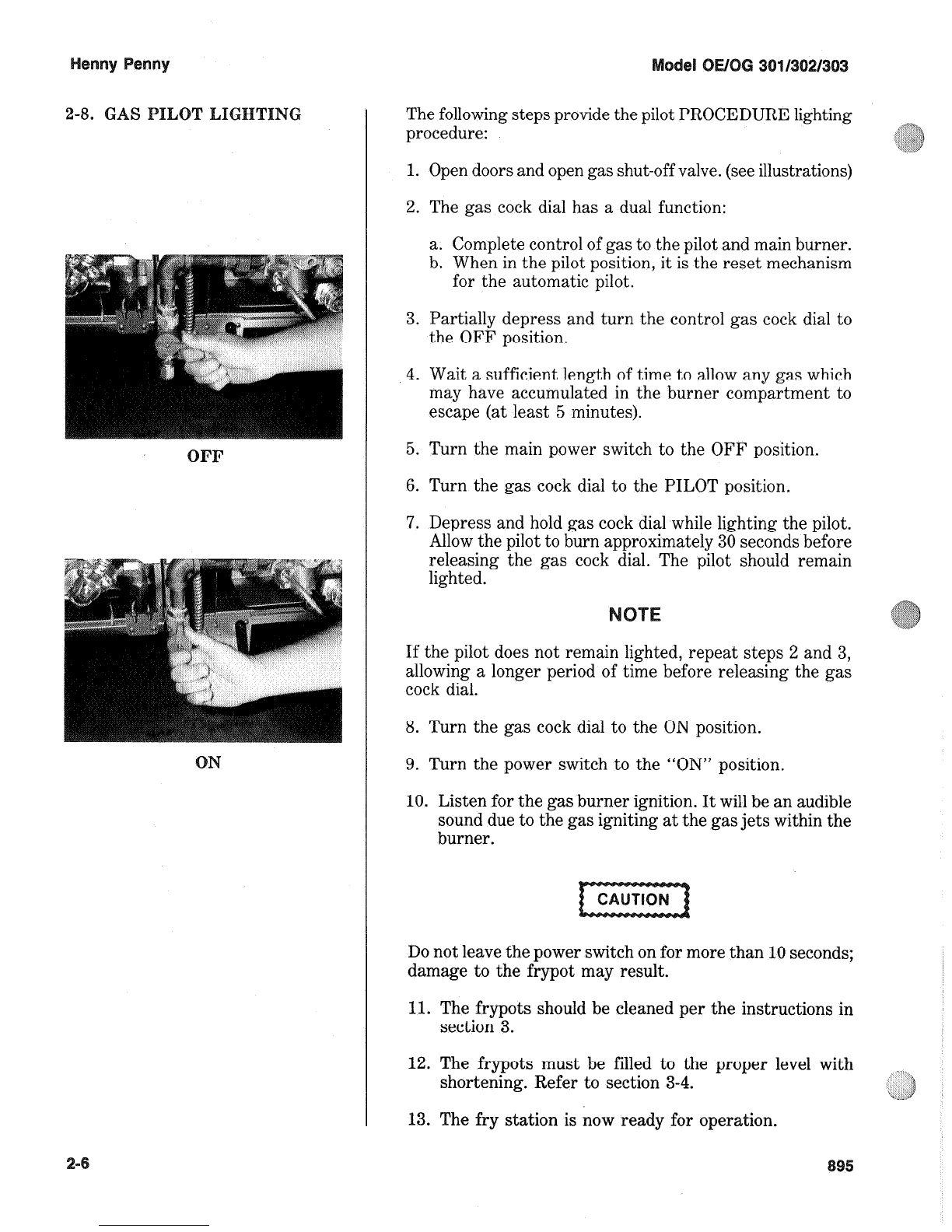

The following steps provide the pilot PROCEDURE lighting

procedure:

1. Opendoors and open gas shut-off valve. (seeillustrations)

2. The gas cock dial has a dual function:

a. Complete control of gas to the pilot and main burner.

b. When in the pilot position, it is the reset mechanism

for the automatic pilot.

3. Partially depress and turn the control gas cock dial to

the OFF position.

4. Wait a sufficient length of time to allow any gas which

may have accumulated in the burner compartment to

escape (at least 5 minutes).

5. Turn the main power switch to the OFF position.

6. Turn the gas cock dial to the PILOT position.

7. Depress and hold gas cock dial while lighting the pilot.

Allow the pilot to burn approximately 30 secondsbefore

releasing the gas cock dial. The pilot should remain

lighted.

If the pilot does not remain lighted, repeat steps 2 and 3,

allowing a longer period of time before releasing the gas

cock dial.

8. Turn the gas cock dial to the ON position.

9. Turn the power switch to the “ON” position.

10. Listen for the gas burner ignition. It will be an audible

sound due to the gas igniting at the gasjets within the

burner.

Do not leave the power switch on for more than 10seconds;

damage to the frypot may result.

11. The frypots should be cleaned per the instructions in

section 3.

12. The frypots must be filled to the proper level with

shortening. Refer to section 3-4.

13. The fry station is now ready for operation.

Depress lightly and turn manual lever on gasvalve to

theOFF position.

The gaspressure regulator on the automatic gasvalve is

factory setasfollows:

@ Natural: 3.5 inches water column.

* Propane 10 0 inches water column.

120 V, 50/60 Hz., 12 A, 1PH

0 230 V, 50/60 HZ., 6 A, 1PH

The gasfry station requires a 3 wire grounded service.

W ING c

DO NOT DISCONNECT THE GROUND PLUG. This

fry station MUST be adequately and safely grounded or

electrical shock could result. Refer to local electrical

codes for correct grounding procedures or in absenceof

local codes, with the National Electrical Code,

ANSO/NFPA No. 70 Latest Edition. Canadian models

are supplied with a terminal box, suitable for conduit

connection. In Canada, all electrical connections areto

be made in accordance with CSA C221, Canadian

Electrical Code Part 1, and/or local codes.

Servicing of the filter pump is done atthe rear of the

unit. If service is required, disconnect the fry station

from the electrical power source. The fry station will

have to be pulled out from the wall.to gain accessto

rear.

The OE-301/302/303 is available from the factory

wired 208, or 220/240 volts, 50 or 60 hertz source.

Refer to the table below for supply wiring and fusing.

Volts Phase KW Amps

208 3 11.25 31

208 3 13.50 38

220/240 3 11.25 30132

2201240 3 13.50 33135

400 3 11.25 16

400 3 13.50 20

This fry station must be adequately and safely

grounded. Refer to local electrical codes for correct

grounding procedures. If fry station is not adequately

grounded, electrical shock could result.

A separatedisconnect switch with proper capacity fuses

or breakers must be installed at a convenient location

between the fry station and the power source.

Each Hentry Penny Fry Station was completely checked

and tested prior to shipment. However, it is good

practice to check the unit a again after installation.

Other manuals for OE 301

This manual suits for next models

Other Henny Penny Fryer manuals

Henny Penny

Henny Penny PFE-592 User manual

Henny Penny

Henny Penny 520 User manual

Henny Penny

Henny Penny 500 User manual

Henny Penny

Henny Penny OFE/OFG/OEA/OGA-341 Owner's manual

Henny Penny

Henny Penny OE-30X User manual

Henny Penny

Henny Penny 600 User manual

Henny Penny

Henny Penny EVOLUTION ELITE EEG-141 User manual

Henny Penny

Henny Penny FM07-020-F User manual

Henny Penny

Henny Penny 500 User manual

Henny Penny

Henny Penny LOV LVE-100 Series User manual

Henny Penny

Henny Penny 322 User manual

Henny Penny

Henny Penny PFG-691 User manual

Henny Penny

Henny Penny Evolution Elite EEE-141 User manual

Henny Penny

Henny Penny OFE-323 User manual

Henny Penny

Henny Penny EVOLUTION ELITE EEG-242 User manual

Henny Penny

Henny Penny OEA-321 User manual

Henny Penny

Henny Penny OE 301 Reference manual

Henny Penny

Henny Penny Evolution Elite EEG-163 User manual

Henny Penny

Henny Penny F5 User manual

Henny Penny

Henny Penny OFE-391 User manual

Henny Penny

Henny Penny 291 Operating instructions

Henny Penny

Henny Penny Evolution Elite EEE-141 User manual

Henny Penny

Henny Penny Pressure Fryer User manual

Henny Penny

Henny Penny OE-100 Guide

Popular Fryer manuals by other brands

Innsky

Innsky 55SA1US user manual

Falcon

Falcon G350/11 Installation and servicing instructions

GoWISE USA

GoWISE USA GW22612 instruction manual

Wolf

Wolf IF15/S Specification sheet

Electrolux

Electrolux Thermetic 9CHG583284 Operating and safety instructions

Gourmia

Gourmia GAF799 user manual

DeLonghi

DeLonghi D677UX Instructions for use

SEVERIN

SEVERIN DEEP FRYER - Dimensions

Toastmaster

Toastmaster TMFG18-NAT Installation and operation instructions

Domo

Domo DO465FR Instruction booklet

Farberware

Farberware FBW FT 43721 B manual

GERMANICA

GERMANICA GEAF5L3LD instruction manual

Roller Grill

Roller Grill MF 120 R Instructions for use and installation

Philips

Philips HD9211 user manual

Linea 2000

Linea 2000 Domo DO536FR Instruction booklet

Lakeland

Lakeland 31796 Instruction booklet

Dash

Dash Tasti-Crisp DFAF755 user manual

Fagor

Fagor F-200 Instructions for use
