Heath Zenith Wireless Push Button Accessory 598-1151-02 User manual

The ACE®Wireless Push Button Accessory

works with existing ACE®jumper or dip switch

systems.

• Patented Technology

• Battery powered push button - No wires to run.

• 128selectablecodesallowmorethanonechime

system in the same house.

• Factory installed batteries.

• LED halo lighted push bar - Select models only

(see Lighted Push Bar Feature for more infor-

mation).

Style may vary from illustration.

Wireless Push

Button Accessory

-2- 598-1151-02

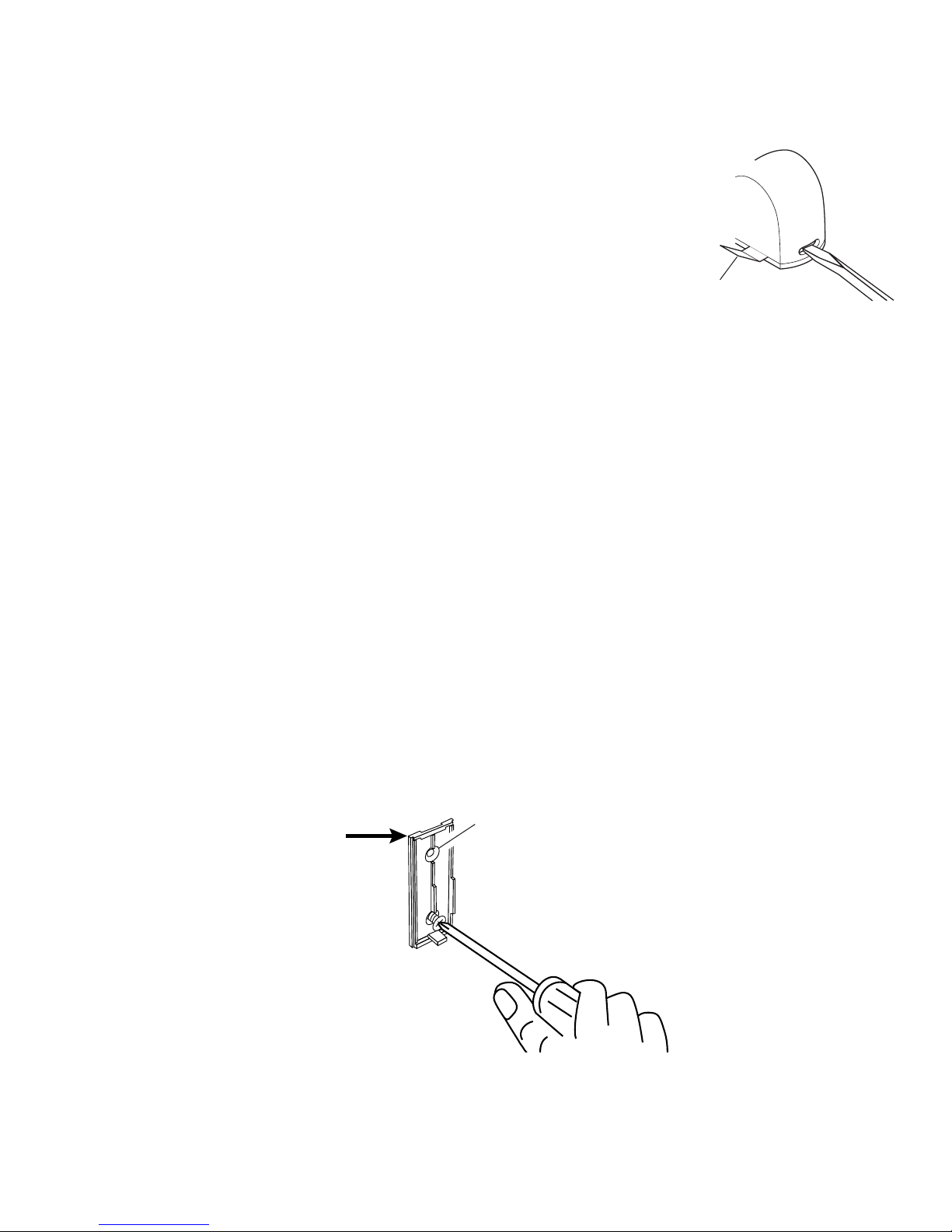

1. Remove back of push button. To remove

back of push button, push in tab on bottom with

a small screwdriver. Pull battery tab to activate

factory installed batteries.

2. Set the push button dip switches to match

the chime receiver code. See Code and Tune

Setting section.

3. Test range. Temporarily position push button where you want it

mounted. Press push button to verify chime and push button work

properly. If chime does not sound, see Troubleshooting.

4. Mount push button. Use either screws or double sided tape to mount

push button.

• To mount with screws, remove back of case by pushing in tab on

bottom with a small screwdriver. Remove material in screw hole.

Attach back of case to door jamb or wall with screws provided.Snap

front of push button on.

• When attaching push button using double sided tape, make sure

the surface of the door jamb or wall is clean.

This End

Up Remove material in

screw hole before

mounting with

screws

Pull tab to activate

batteries

-3-

598-1151-02

Code and Tune Settings

Code Settings

Note: Most installations will not require you to change any jumpers

or dip switch settings on your chime and push button.

WARNING:Disconnect chime unit from power source before opening

code access door. Close door and replace screw before reconnecting

to power (if applicable).

The push button and chime communicate by using a code that can be

changed by switching dip switch positions (or removing and/or adding

jumpers) on both the push button and chime. The code is factory set;

however, there are 128 selectable codes that allow you to expand your

system and prevent outside interference. Other wireless products may

cause interference and the system may not function properly. Follow the

instructions below for setting a new code.

1. Unplug wireless chime (if applicable).

2. Open the cases and locate the jumpers or dip switches on both the

push button and chime (See illustrations on pages 5 and 6).

3. The push button and chime both have eight different jumper/dip switch

locations. Positions 1 through 7 are used for setting the code.

4. To change the code, add and/or remove jumpers or change dip switch

setting as needed. It is recommended to only change one setting at

a time and then check to see if system is functioning properly.

Note: Positions 1 through 7 must be exactly the same for both the

push button and chime for this system to function.

-4- 598-1151-02

Tune Settings

Your ACE®wireless chime has different selectable tunes: Ding (one

note), Ding-Dong (two note), or Westminster (eight note) (Available

on selected chimes). The factory setting is for the Ding-Dong tune (or

Westminster, when available). This tune can be changed by following

the instructions below.

• Ding (one note tune)

Push Button: Location 8, Add jumper or set dip switch high (1 or

ON).

• Ding-Dong (two note tune)

Push Button: Location 8, Remove jumper or set dip switch low (0 or

OFF).

Chime: Remove jumper from location 8.

• Westminster (Eight note tune) (Available on selected chimes)

Push Button: Location 8, Remove jumper or set dip switch low (0 or

OFF).

Chime: Add a jumper to location 8.

-5-

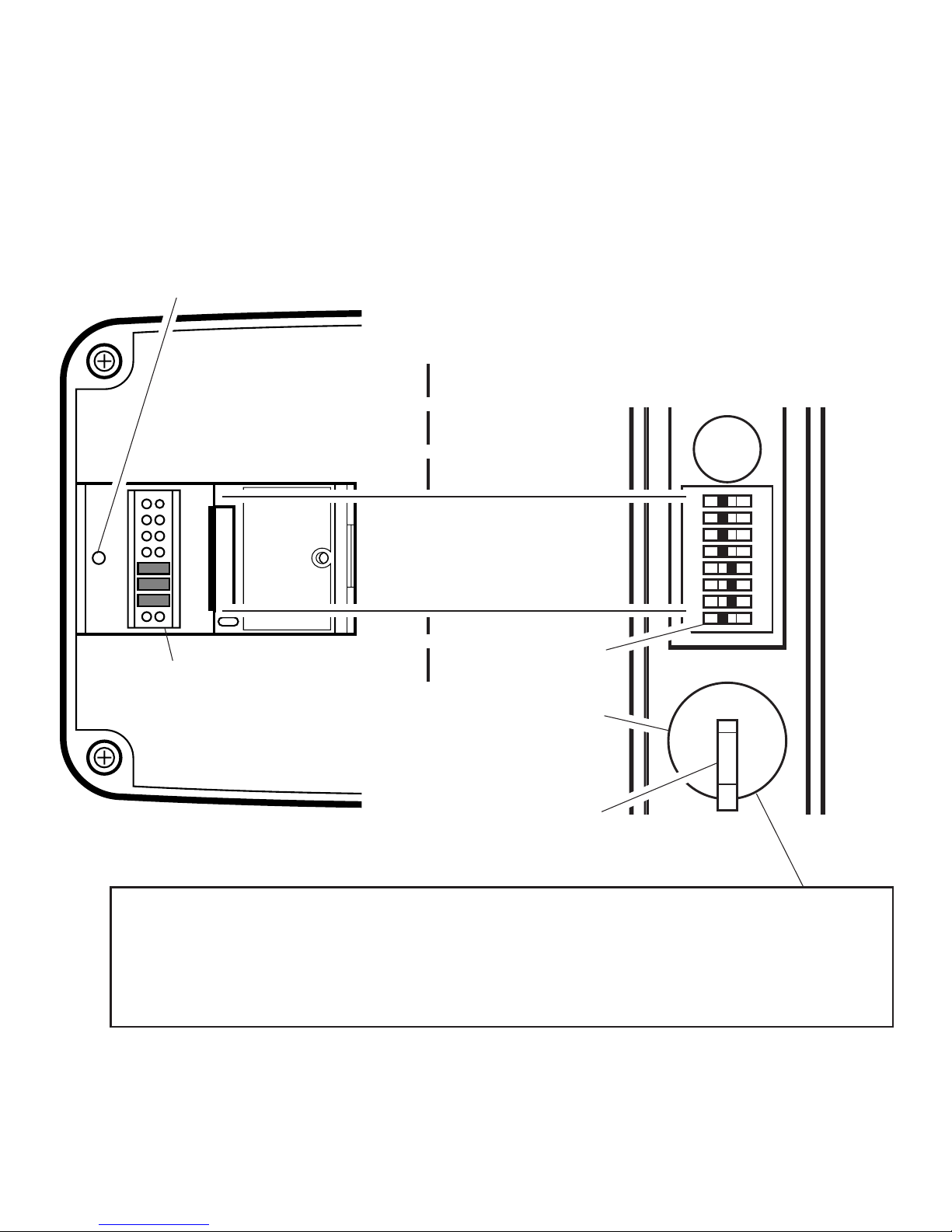

598-1151-02

1 2 3 4 5 6 7 8

12345678

Inside Push

Button

Replacing Push Button Batteries

Most Models: Install two lithium type CR1220 3 volt batter-

ies. See diagram inside push button for correct orientation of

batteries.

Open access door

(see chime manual

for instruction)

Tune Setting (Not

used on all models)

Back of

Chime

Tune Setting

Note: Some models might require the use of

tweezers to remove and replace the jumpers or

a small screw driver to set dip switches.

(+) Positive Battery

Terminal

Insert Batteries (+)

Positive Side Up

* Code Settings 1-7

Must Match Both Push

Button and Chime

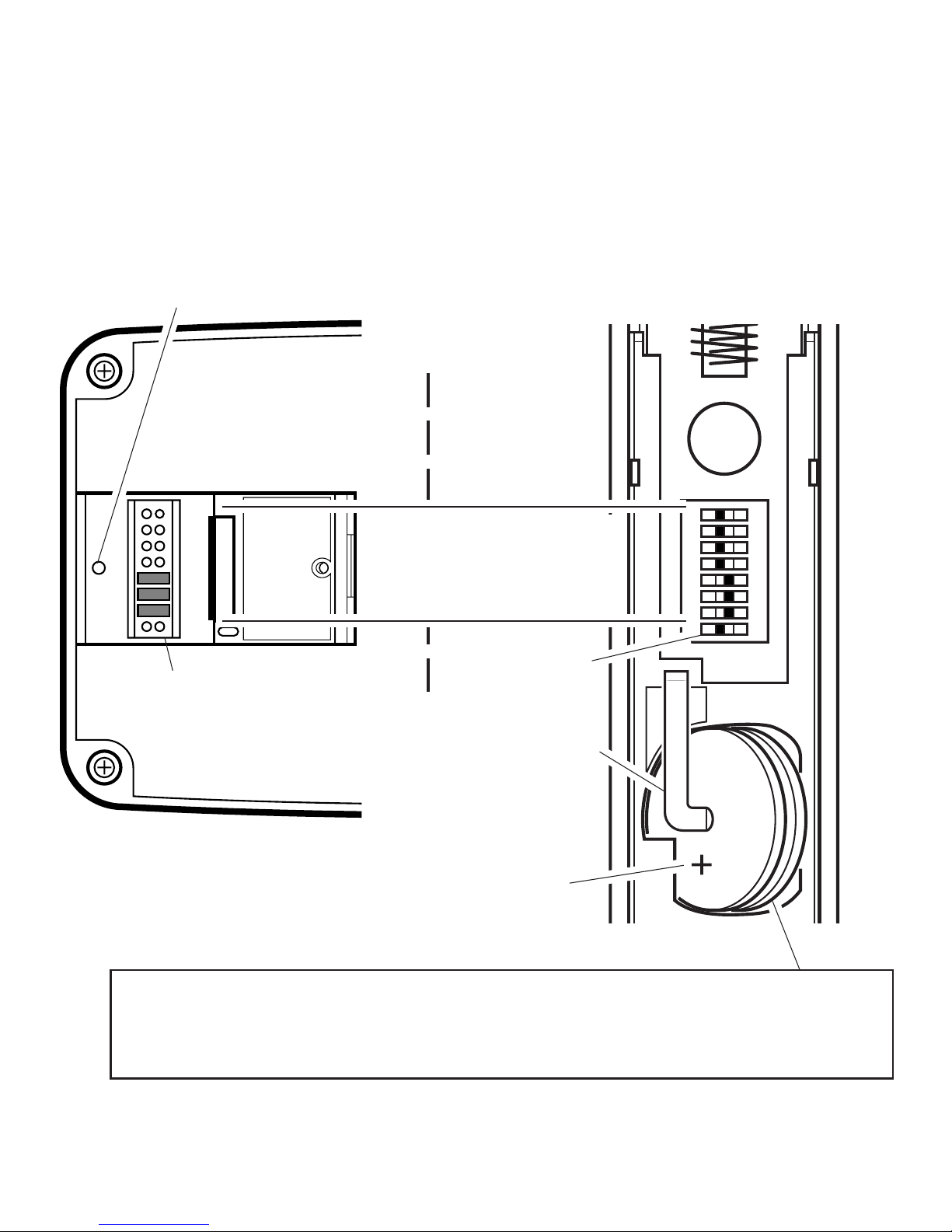

-6- 598-1151-02

1 2 3 4 5 6 7 8

O N

12345678

Inside Push

Button

Replacing Push Button Batteries

Model 6444: Install two lithium type CR2032 3 volt batteries

positive (+) side up.

Open access door

(see chime manual

for instruction)

Tune Setting (Not

used on all models)

Back of

Chime

Tune Setting

Note: Some models might require the use of

tweezers to remove and replace the jumpers or

a small screw driver to set dip switches.

(+) Positive Battery

Terminal

Insert Batteries (+)

Positive Side Up

* Code Settings 1-7

Must Match Both Push

Button and Chime

-7-

598-1151-02

Halo Lighted Push Bar Feature

(Select Models Only)

This ACE®wireless push button contains a LED (Light Emitting Diode) that

will illuminate in dark conditions so the push button will be more visible

for your guests. This (patented) technology and built-in photocontrol will

allow the light intensity of the push button LED to increase as the outdoor

light conditions around the push button decreases. The actual time and

intensity that the LED is visible will depend on the speciﬁc mounting

environment of the push button. In nominal conditions the batteries will

typically last 1 year.

Note: All models have both front and back door tune capabilities. You

may purchase any ACE®wireless push button for a second entrance.

We recommend the back door use the Ding tune and the front door

use the Ding-Dong tune (or Westminster tune, available on selected

chimes). Models that include two push buttons will come factory set for

front and back doors. Decals on the rear of the push button will indicate

its setting.

-8- 598-1151-02

Troubleshooting

Chime does not sound:

• Make sure push button and chime codes are the same (See pages 3

through 6).

• Check orientation of push button battery (See pages 5 and 6).

• Check charge of push button and chime batteries (if applicable), replace

if necessary.

Batteries seem OK, but the chime does not work when installed:

• Do not mount chime or push button on metal or near metal studs.This

reduces the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood

shims to move chime or push button off metal surface.

• Concrete ﬂoors may reduce range. Move chime away from ﬂoor.

• Try locating chime closer to push button.

The range of the wireless chime can vary with location, temperature and

battery condition.

-9-

598-1151-02

Lifetime Finish Warranty

(Selected Models Only)

Full Lifetime Finish (plate only) warranty to the original user (“User”) of

Lifetime Finish (“Product”) against premises upon which the Product

was originally installed. This warranty DOES NOT COVER: (I) scratches

or abrasions, (II) abused or misused Products, or (III) Products used in

commercial applications.

Regulatory Information

This device complies with Part 15 of the FCC Rules and RSS-210 of Industry

Canada.Operation is subject to the following two conditions:(1) this device may

not cause harmful interference, and (2) this device must accept any interfer-

ence received, including interference that may cause undesired operation.

The user is cautioned that changes or modiﬁcations not expressly ap-

proved by the party responsible for regulatory compliance could void the

user’s authority to operate the equipment.

Technical Service

Please call 1-800-858-8501 (English speaking only)

for assistance before returning product to store.

If you experience a problem, follow this guide.You may also want to visit

our Web site at: www.hzsupport.com. If the problem persists, call* for

assistance at 1-800-858-8501, 7:30 AM to 4:30 PM CST (M-F).You may

also write* to:

HeathCo LLC

P.O. Box 90004, Bowling Green, KY 42102-9004

ATTN: Technical Service

* If contacting Technical Service, please have the following information

available: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

-10- 598-1151-02

FIVE YEAR LIMITED WARRANTY

This is a “Limited Warranty” which gives you speciﬁc legal rights. You may also

have other rights which vary from state to state or province to province.

For a period of ﬁve years from the date of purchase, any malfunction caused by

factory defective parts or workmanship will be corrected at no charge to you.

Not Covered - Repair service, adjustment and calibration due to misuse,

abuse or negligence, light bulbs, batteries, and other expendable items are not

covered by this warranty.Unauthorized service or modiﬁcation of the product or

of any furnished component will void this warranty in its entirety.This warranty

does not include reimbursement for inconvenience, installation, setup time,

loss of use, unauthorized service, or return shipping charges.

This warranty covers only ACE®assembled products and is not extended to

other equipment and components that a customer uses in conjunction with

our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION

OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT

FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF

ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE

CUSTOMER AND THERE SHALL BE NO LIABILITY ONTHE PART OF ACE®

FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR

PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces

do not allow the exclusion or limitation of incidental or consequential damages,

so the above limitation or exclusion may not apply to you. Please keep your

dated sales receipt, it is required for all warranty requests.

ACE®reserves the right to discontinue and to change speciﬁcations at

any time without notice without incurring any obligation to incorporate

new features in previously sold products.

Table of contents

Languages:

Other Heath Zenith Accessories manuals

Heath Zenith

Heath Zenith 121AC User manual

Heath Zenith

Heath Zenith 598-1109-06 User manual

Heath Zenith

Heath Zenith Weatherproof Long Range Wireless Chime with Chime Extender... User manual

Heath Zenith

Heath Zenith 7868 User manual

Heath Zenith

Heath Zenith Wireless Christmas Chime 598-1127-03 User manual

Heath Zenith

Heath Zenith 7776 User manual

Heath Zenith

Heath Zenith Motion Sensing 3-Way Wall Switch 6107 User manual

Heath Zenith

Heath Zenith Hardwired Mechanical Chime 598-1112-05 User manual

Heath Zenith

Heath Zenith 6180 Series User manual

Heath Zenith

Heath Zenith Wireless Chime 6153/62/71/72 User manual

Heath Zenith

Heath Zenith SL-6166 User manual

Heath Zenith

Heath Zenith 5838 User manual

Heath Zenith

Heath Zenith Notif User manual

Heath Zenith

Heath Zenith 6168 User manual

Heath Zenith

Heath Zenith 7750 User manual

Heath Zenith

Heath Zenith Wireless Chime 598-1172-04 User manual

Heath Zenith

Heath Zenith 29 User manual

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1105-06 User manual

Heath Zenith

Heath Zenith notifi alert User manual

Heath Zenith

Heath Zenith DESA 6270 User manual

Heath Zenith

Heath Zenith SL-6200 User manual

Heath Zenith

Heath Zenith 6106 User manual

Heath Zenith

Heath Zenith Lighted Wireless Push Button Accessory User manual

Heath Zenith

Heath Zenith SL-6168 User manual

Popular Accessories manuals by other brands

Hillco

Hillco 2810 Operator's manual

Siemens

Siemens QSA2700D Basic documentation

Contours

Contours ZY024 manual

Saivod

Saivod VS621 manual

Virtuox

Virtuox VirtuCLEAN 2.0 user manual

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS user manual

Z-Wave

Z-Wave HSD-200Z user manual

turck

turck FMX-IM-2UPLI63FX quick start guide

Decagon Devices

Decagon Devices 10HS manual

UPPAbaby

UPPAbaby Cup Holder user manual

Elko

Elko SmartSensor Leakage Wireless manual

Grizzly

Grizzly H8371 instructions

Panasonic

Panasonic HG-T Series user manual

IFM Electronic

IFM Electronic Efector 250 Series Brief instructions

DigiDesign

DigiDesign 888/24 I/O installation guide

PROZIS

PROZIS QUAY user manual

patagonia

patagonia PSI Vest user manual

SFC Energy

SFC Energy EFOY GO! manual
