Heath Zenith SL-6200 User manual
Wireless Dual Push
Button Accessory
The Heath®/Zenith Wireless Push Button
Accessory works with existing Heath®/Ze-
nith jumper or dip switch systems.
•Battery powered push button - No wires to
run.
•128 selectable codes allow more than one
chime system in the same house.
•Each button can be set to ring a different
chime or ring different tunes on the same
chime.
SL-6200
(Style may vary from illustration)
© 2003 DESA Specialty Products™ 598-1144-00
-2-
598-1144-00

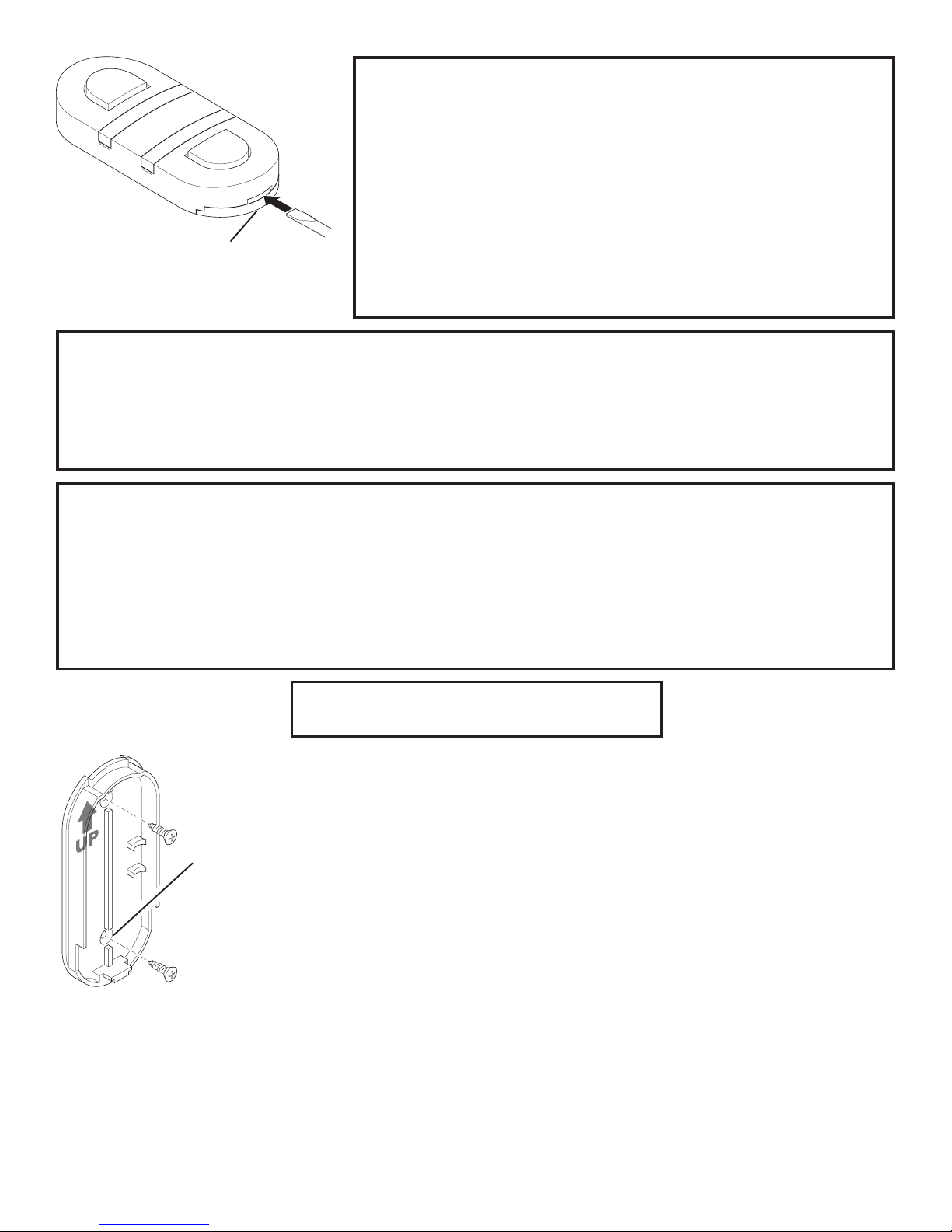

1. Install alkaline type A23 12 volt
push button battery. Remove
back of case by pushing in tab
on bottom with a small screw-
driver. Make sure battery is
oriented properly (see page 5).
Install This End
Down
2. Set the push button jumpers for each button to match
the respective chime receiver code. See “Code and
Tune Setting” section.
3. Test range. Temporarily position push button where
you want it mounted. Press push button to verify chime
and push button work properly. If chime does not
sound, see Troubleshooting.
4. Mount push button.
Use either screws or double sided
tape to mount push button.
To mount with screws, remove back
of case by pushing in tab on bottom
with a small screwdriver.
Remove material in screw hole. At-
tach back of case to door jamb or
wall. Snap front of push button on.
When attaching push button using double sided tape, make
sure the surface of the door jamb or wall is clean.
Remove
material in
screw hole
before
mounting with
screws
-3-
598-1144-00
Code and Tune Settings
Code Settings
Note: The top button is factory set to our standard de-
fault code (5, 6, 7). The bottom button is factory set to a
different code. Follow the instructions below to set the
code and tune for each chime. Verify the push button
codes match the respective chime code.
WARNING: Disconnect chime unit from power source be-
fore opening code access door. Close door and replace
screw before reconnecting to power.
The push button and chime communicate by using a code
that can be changed by removing and/or adding jumpers on
both the push button and chime. The code is factory set;
however, there are 128 selectable codes that allow you to
expand your system and prevent outside interference. Other
wireless products may cause interference and the system
may not function properly. Follow the instructions below for
setting a new code.
1. Unplug wireless chime (if applicable).
2. Open the cases and locate the jumpers on both the push
button and chime (See illustration on page 5).
3. The push button and chime both have eight different
jumper locations. The jumper positions 1 through 7 are
used for setting the code.
4. To change the code, add and/or remove jumpers as
needed. It is recommended to only change one jumper at
a time and then check to see if system is functioning prop-
erly. Note: Jumpers in positions 1 through 7 must be ex-
-4-
598-1144-00
actly the same for both the push button and chime for
this system to function.
Tune Settings
Your Heath®/Zenith wireless chime has different selectable
tunes: Ding (one note), Ding-Dong (two note), or
Westminster (eight note) (Available on selected Heath®/Ze-
nith chimes). The factory setting is for the Ding-Dong tune
(or Westminster, when available). This tune can be changed
by following the instructions below.
•Ding (one note tune)
Push button: Add a jumper to location 8.
•Ding-Dong (two note tune)
Push button: Remove jumper from location 8.
Chime: Remove jumper from location 8.
•Westminster (Eight note tune) (Available on selected
Heath®/Zenith chimes)
Push button: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: To ring different tunes on the same chime, do the fol-
lowing:
1. Set the bottom button code to match the top button code
on the dual push button.
2. Set the chime code to match the push button codes.
3. Set the tune settings for the top and bottom buttons per
the instructions above.
We recommend the back door use the Ding tune and the
front door use the Ding-Dong tune (or Westminster tune,
available on selected Heath®/Zenith chimes).
-5-
598-1144-00
12345678 12345678
Remove screw
to open access
door
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Top
Button Bottom
Button
TYPE: A23
Inside
Push Button
Push Button Battery
Replacement
Install an alkaline type A23
12 Volt battery. See diagram
inside push button for correct
battery orientation.
* Code Settings
1-7 Must Match
Each Push
Button to the
Respective
Chime
Tune
Setting
Code for
Top Button
Code for
Bottom Button
Note: Some models might re-
quire the use of tweezers to re-
move and replace the jumpers.
Back of Chime
Set to Match
Top Button
Back of Chime
Set to Match
Bottom Button
Tune Setting
(Not used on
all models)
-6-
598-1144-00
Troubleshooting
Chime does not sound:
•Make sure push button and chime codes are the same
(See pages 3, 4, and 5).
•Check orientation of push button battery (See page 5).
•Check charge of push button and chime batteries (if appli-
cable), replace if necessary.
Batteries seem OK, but the chime does not work when
installed:
•Do not mount chime or push button on metal or near metal
studs. This reduces the transmitter range. Use 1/4" to 1/2"
(6 to 13 mm) wood shims to move chime or push button
off metal surface.
•Concrete floors may reduce range. Move chime away from
floor.
•Try locating chime closer to push button.
The range of the wireless chime can vary with location, tem-
perature and battery condition.
Label Push Buttons
Using a small flat head screw-
driver or fingernail, carefully pry
off the label covers on the front
of the push button. Remove and
write relevant information on la-
bels. Replace label covers.
Label
Covers
Labels
-7-
598-1144-00
Regulatory Information
This device (6200TX) complies with Part 15 of the FCC Rules
and RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The user is cautioned that changes or modifications not expressly
approved by the party responsible for regulatory compliance could
void the user’s authority to operate the equipment.
Technical Service
Please call 1-800-858-8501 for assistance before
returning product to store.
If you experience a problem, follow this guide. You may also
want to visit our Web site at: www.desatech.com. If the prob-
lem persists, call* for assistance at 1-800-858-8501, 7:30
AM to 4:30 PM CST (M-F). You may also write* to:
DESA Specialty Products™
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service Specialty Products
* If contacting Technical Service, please have the following
information available: Model Number, Date of Purchase, and
Place of Purchase.
No Service Parts Available for this Product
-8-
598-1144-00
FIVE YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You may
also have other rights which vary from state to state or province to province.
For a period of five years from the date of purchase, any malfunction
caused by factory defective parts or workmanship will be corrected at
no charge to you. To obtain a refund or a replacement, call 1-800-
858-8501 for instructions.
Not Covered - Repair service, adjustment and calibration due to
misuse, abuse or negligence, light bulbs, batteries, and other
expendable items are not covered by this warranty. Unauthorized
service or modification of the product or of any furnished component
will void this warranty in its entirety. This warranty does not include
reimbursement for inconvenience, installation, setup time, loss of use,
unauthorized service, or return shipping charges.
This warranty covers only DESA Specialty Products™ assembled
products and is not extended to other equipment and components
that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT
ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR
PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF
THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE
PART OF DESA SPECIALTY PRODUCTS™ FOR ANY SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR
PROFITS, WHETHER OR NOT FORESEEABLE. Some states or
provinces do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not
apply to you. Proof of purchase is required for warranty claims.
DESA Specialty Products™ reserves the right to discontinue and to change
specifications at any time without notice without incurring any obligation to
incorporate new features in previously sold products.
-9-
598-1144-00
© 2003 DESA Specialty Products™ 598-1144-00 S
Accesorio inalámbrico
del pulsador doble
El accesorio de pulsador inalámbrico
Heath®/Zenith funciona con el puente
Heath®/Zenith o con los sistemas de
interruptores.
•Pulsador alimentado con pila – No se
necesitan alambres.
•Los 128 códigos elegibles permiten más de
un sistema de campanas en la misma casa.
•Cada botón puede programarse para que
haga sonar una campana diferente o tonos
diferentes en la misma campana.
SL-6200
(El estilo puede variar de la ilustración)
-10-
598-1144-00
Instale con este
extremo abajo
Retire el
material del
hueco del
tornillo antes
de colocar los
tornillos
2. Coloque los puentes del pulsador para que cada
botón empareje con el respectivo código del re-
ceptor de la campana. Vea la sección de “Programa-
ciones del código y del tono”.
1. Instalar pila alcalina de botón
tipo A23 de 12 voltios. Extraer la
parte posterior de la caja presio-
nando la aleta en el botón con un
destornillador pequeño. Asegurar-
se que la pila esté orientada co-
rrectamente (ver la página 13).
4. Instale el pulsador.
Use ya sean tornillos o cinta adhesiva por ambas caras para
instalar el pulsador.
Para montar con tornillos, quite la parte de atrás de la caja
empujando hacia adentro la lengüe-
ta de abajo con un destornillador pe-
queño y girando la cuchilla.
Retire el material del hueco del torni-
llo. Coloque la parte de atrás de la caja
contra la jamba o la pared. Encaje a
presión la parte frontal del pulsador.
3. Pruebe el alcance. Ponga provisionalmente el pulsador en
la posición donde lo quiera instalar. Presione el pulsador para
verificar que la campanay el pulsador funcionen apropiada-
mente. Si la campana no suena, vea Análisis de Averías.
Table of contents
Languages:
Other Heath Zenith Accessories manuals
Heath Zenith
Heath Zenith 7750 User manual
Heath Zenith
Heath Zenith Notifi elite User manual
Heath Zenith
Heath Zenith SECUR360 9600 User manual
Heath Zenith
Heath Zenith DualBrite User manual
Heath Zenith
Heath Zenith 7143 User manual
Heath Zenith
Heath Zenith Replacement Motion Sensor SL-5407 User manual
Heath Zenith
Heath Zenith 598-1109-06 User manual
Heath Zenith
Heath Zenith 598-1112-04 User manual
Heath Zenith
Heath Zenith Lighted Wireless Push Button Accessory User manual
Heath Zenith
Heath Zenith SL-6143 User manual
Heath Zenith
Heath Zenith 6168 User manual
Heath Zenith
Heath Zenith Notif User manual
Heath Zenith
Heath Zenith 6168 User manual
Heath Zenith
Heath Zenith 7307 User manual
Heath Zenith
Heath Zenith SL-6166 User manual
Heath Zenith
Heath Zenith Wireless Push Button Accessory 598-1151-02 User manual
Heath Zenith
Heath Zenith 7309 User manual
Heath Zenith
Heath Zenith 7311 User manual
Heath Zenith
Heath Zenith Wireless Chime TR-0095-RX User manual
Heath Zenith
Heath Zenith Dual Brite SL-5597 User manual
