HAMPTON BAY AM212-ORB User manual

USE AND CARE GUIDE

GLENDALE 42 IN. CEILING FAN

THANK YOU

Item #XXXXXXXXXX

Model #

AM212-ORB

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-Installation ..............................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Dual Mounting Instructions ......................................................

Installation .....................................................................

Assembly ........................................................................

Standard Ceiling Mounting .......................................................

Close-to-Ceiling Mounting .....................................................

Hanging the Fan ....................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation .....................................................................

Pull Chain Operating Instructions ..........................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Safety Information

3 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only UL-listed outlet boxes marked “FOR FAN

SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

Warranty

Pre-Installation

42 in.

Low

Medium

High

120

0.21

0.32

0.43

10.2

24.1

50.5

159

217

1442.37

2415.55

3484.12

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

6.80 kg

(14.97 lb)

7.98 kg

(17.55 lb) 1.39 cu. ft.

N.W.

G.W.

C.F.

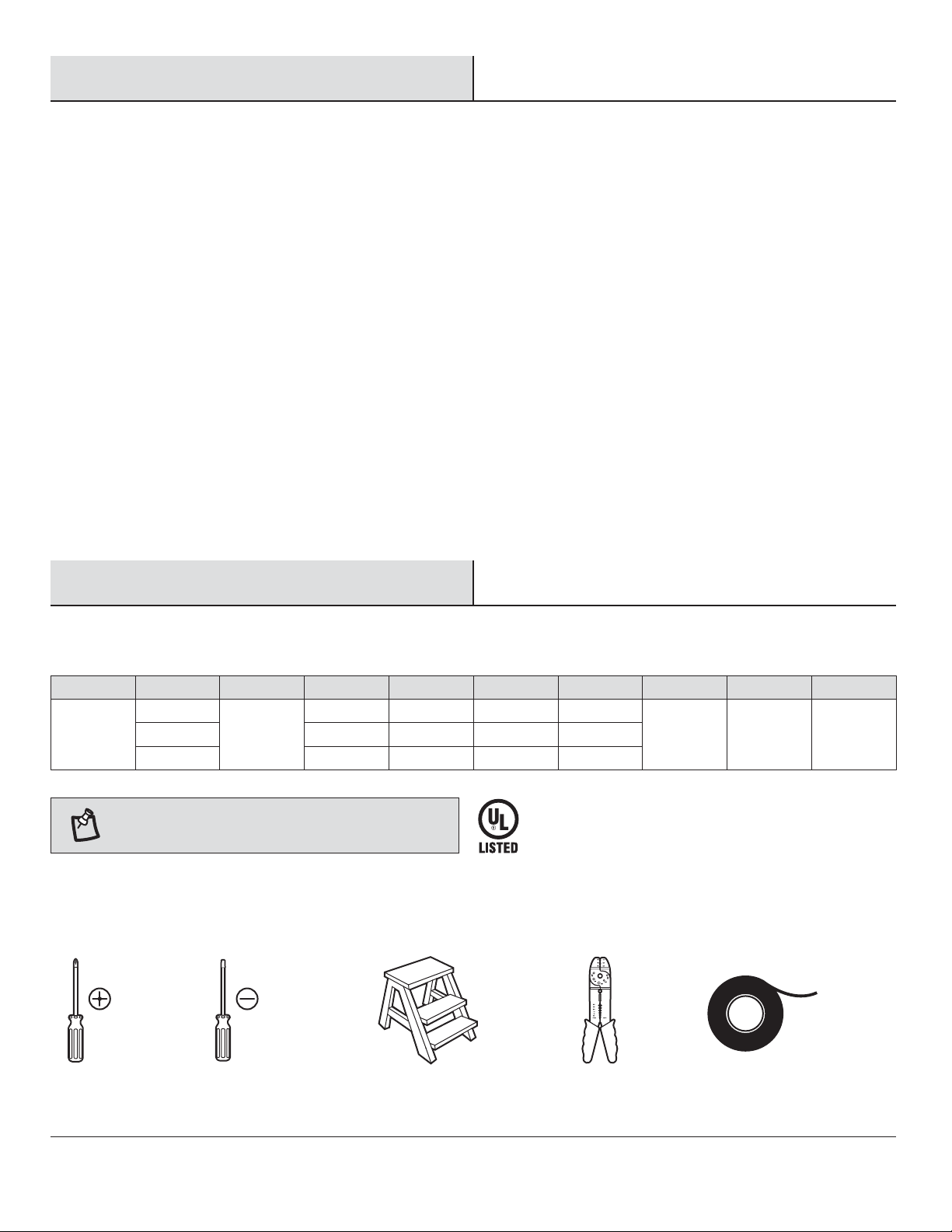

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

Pre-Installation (continued)

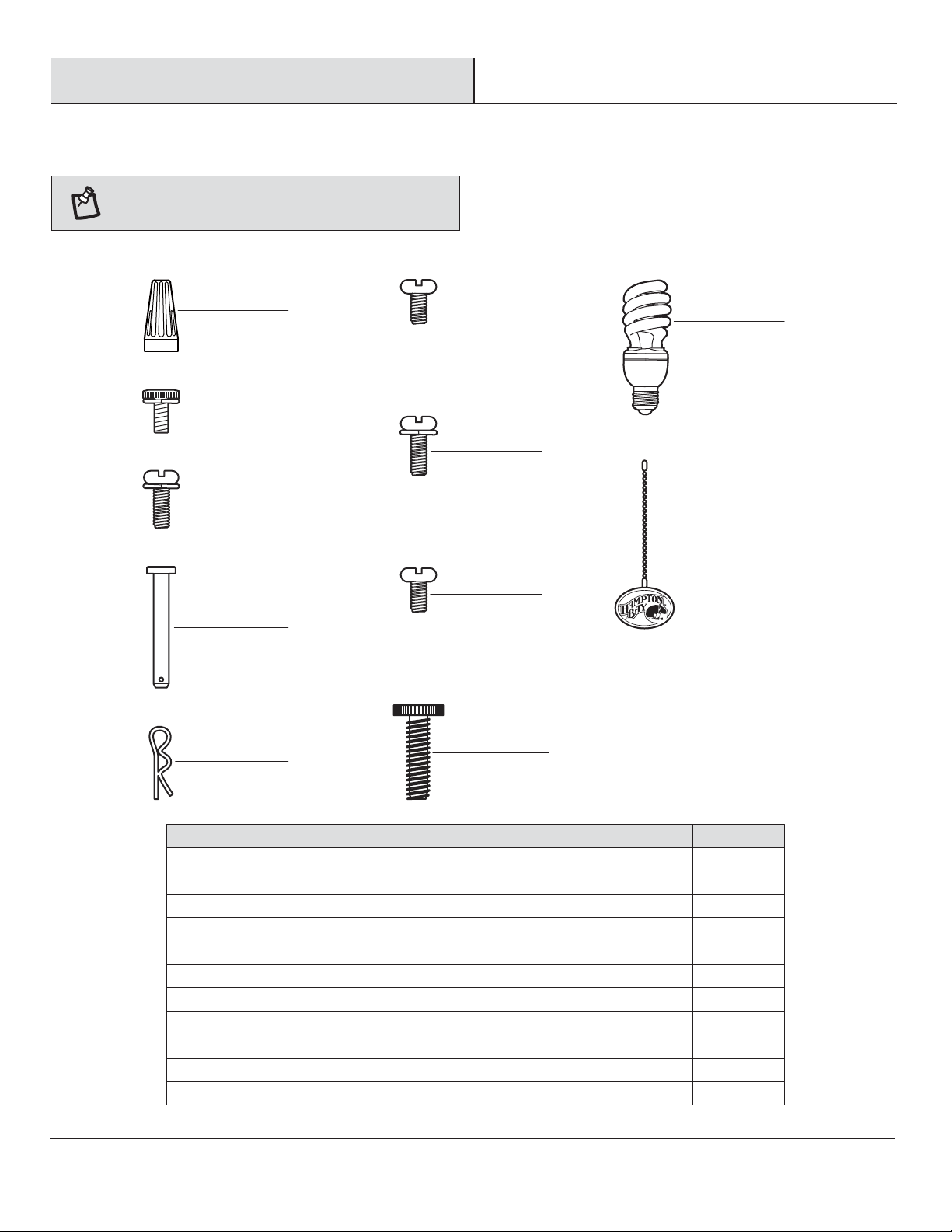

HARDWARE INCLUDED

Plastic wire nut (not to scale)

Canopy mounting bracket screw with lock washer (preassembled)

Blade arm screw and lock washer (preassembled)

Clevis pin (preassembled)

Cotter pin (preassembled)

Collar setscrew (preassembled)

Collar mounting screw with lock washer (preassembled)

Light kit mounting screw (preassembled)

Light holder thumbscrew (preassembled)

13 watt compact ﬂuorescent bulb (not to scale)

Pull chain and fob (not to scale)

Part

Description

Quantity

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

5 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

AA FF

Part

Description

Blade

Blade arm

Light kit

Glass shade

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly

Fan motor assembly

PACKAGE CONTENTS

Pre-Installation (continued)

DUAL MOUNTING INSTRUCTIONS

This ceiling fan is supplied with two types of hanging assemblies: the

standard ceiling installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"

mounting is recommended in rooms with less than 8 ft. ceilings or in

areas where additional space is desired from the ﬂoor to the fan blades.

When using the standard downrod installation, the distance from the

ceiling to the bottom of the fan blades will be approximately 12 in. The

"close-to-ceiling" installation reduces the distance from the ceiling to the

bottom of the fan blades to approximately 9 in.

Once you have decided which ceiling installation you will use, refer to the

corresponding sections and procedures during the assembly period.

Where necessary, each section of the instructions will note the different

procedures to follow for the two types of installation.

Standard Ceiling Mounting

Close-to-Ceiling Mounting

7 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

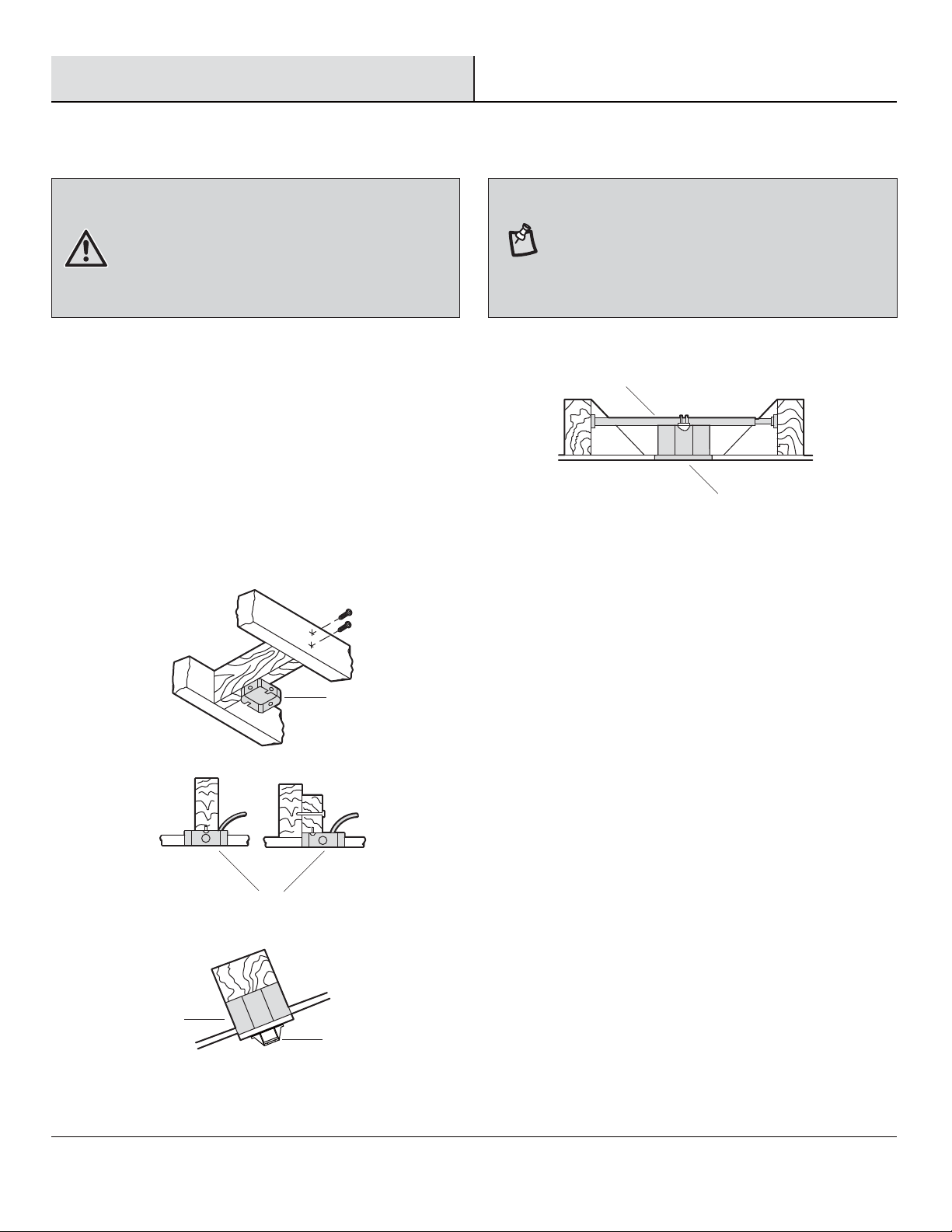

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (MM) (not

included) as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (LL) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (LL) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (B) touches the hanger ball/downrod assembly

(D), then remove the decorative canopy bottom cover (C) and

turn the canopy (B) 180° before attaching the canopy (B) to

the mounting bracket (A).

9 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

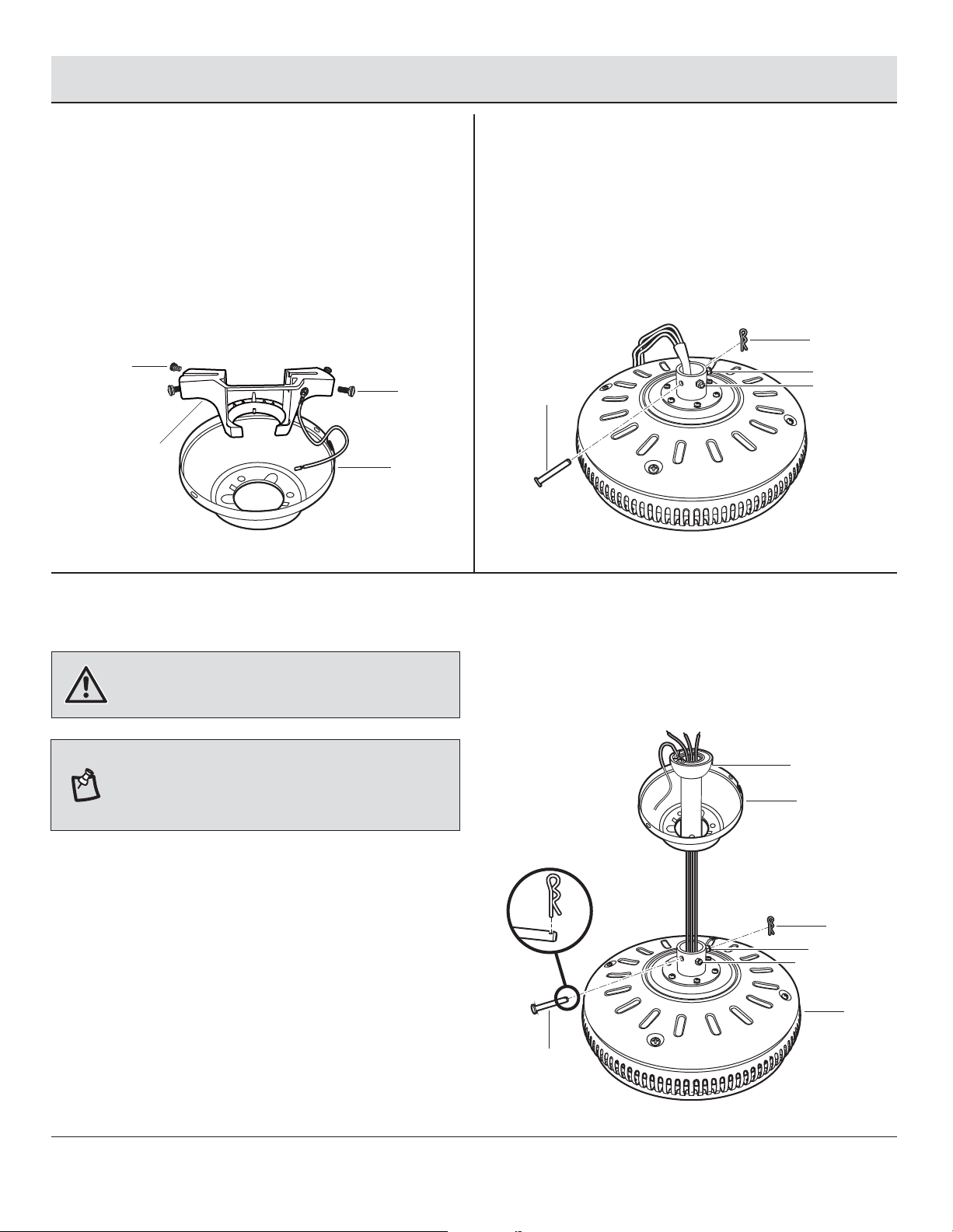

1Preparing the canopy 2Preparing the motor

□Remove the two non-slotted mounting bracket screws

(BB) from the canopy (B), and loosen the slotted

mounting bracket screws (BB) on the canopy (B).

□Remove the canopy (B) from the mounting bracket (A)

by turning the canopy (B) counterclockwise.

3Assembling the fan

□Route the wires through the canopy (B) and then

through the hanger ball/downrod assembly (D).

□Align the holes at the bottom of the hanger

ball/downrod assembly (D) with the holes in the

collar on top of the fan motor assembly (E). Carefully

insert the clevis pin (DD) through the holes in the

collar and the hanger ball/downrod assembly (D). Be

careful not to jam the clevis pin (DD) against the

wiring inside the hanger ball/downrod assembly (D).

□Insert the cotter pin (EE) through the hole near the

end of the clevis pin (DD) until it snaps into the

locked position.

□Tighten the two collar setscrews (FF) on top of the

fan motor assembly (E) ﬁrmly.

WARNING: Failure to properly install the cotter pin (EE)

could result in the fan becoming loose and possibly falling.

NOTE: If a longer downrod is needed (not included), take

out the screw located in the hanger ball, lower the hanger

ball and remove the pin. Remove all three pieces from the

downrod, and assemble them onto the new longer downrod

before proceeding step 3.

□Remove the clevis pin (DD), and cotter pin (EE), and

loosen the two collar setscrews (FF) from the motor

collar.

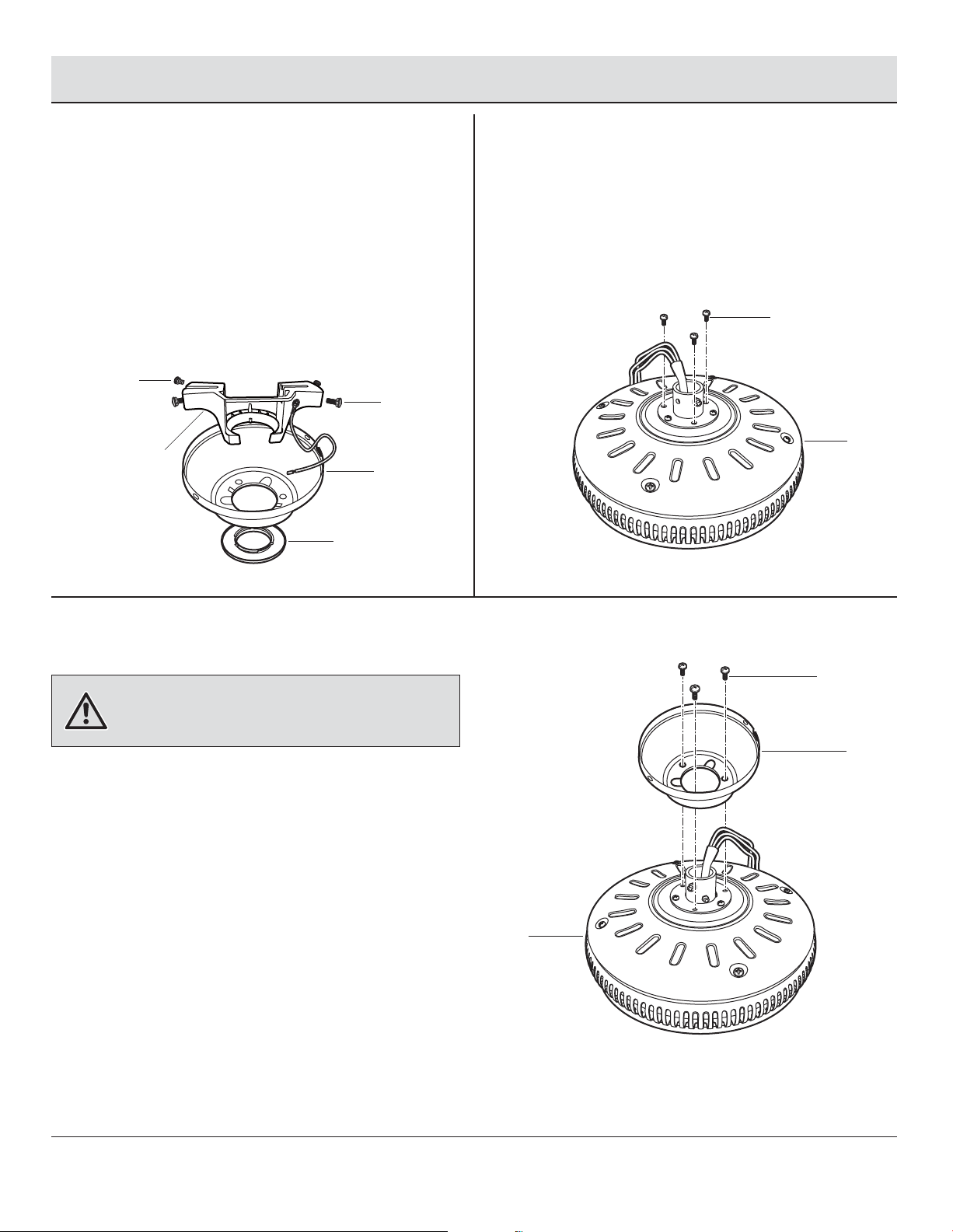

Assembly — Standard Ceiling Mounting

Assembly — Close-to-Ceiling Mounting

3Assembling the fan

Preparing the motorPreparing the canopy

□Remove the mounting bracket (A) from the canopy (B)

by loosening the four mounting bracket screws (BB)

on the top of the canopy (B). Remove the two

non-slotted mounting bracket screws (BB) and loosen

the slotted mounting bracket screws (BB).

□Remove the canopy bottom cover (C) from the canopy

(B).

□Remove three of the six collar mounting screws with

lock washers (GG) (every other one) from the collar

on top of the fan motor assembly (E).

□Make sure the slot openings are on top, and then

proceed to place the canopy (B) over the collar at the

top of the fan motor assembly (E).

□Align the mounting holes in the bottom of the canopy

(B) with the holes in the top of the fan motor assem-

bly (E), and fasten using the three collar mounting

screws with lock washers (GG) previously removed.

□Tighten the collar mounting screws (GG) securely.

WARNING: Failure to completely tighten the three collar

mounting screws (GG) could result in the fan becoming loose

and possibly falling.

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY HVW-30M User manual

HAMPTON BAY

HAMPTON BAY CAMPBELL User manual

HAMPTON BAY

HAMPTON BAY BARROW ISLAND User manual

HAMPTON BAY

HAMPTON BAY PT13-13D-1 User manual

HAMPTON BAY

HAMPTON BAY Brookedale User manual

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 User manual

HAMPTON BAY

HAMPTON BAY 91655 User manual

HAMPTON BAY

HAMPTON BAY 52652 User manual

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-TB User manual

HAMPTON BAY

HAMPTON BAY PALMARIA EF200S(X)-52 User manual

HAMPTON BAY

HAMPTON BAY AG524PR-FB User manual

HAMPTON BAY

HAMPTON BAY LDS-BF2002 User manual

HAMPTON BAY

HAMPTON BAY CLARET User manual

HAMPTON BAY

HAMPTON BAY FZ10-19M User manual

HAMPTON BAY

HAMPTON BAY Brookhurst 549-742 User manual

HAMPTON BAY

HAMPTON BAY AG524-ORB User manual

HAMPTON BAY

HAMPTON BAY WELLTON 60 AM588A-BN User manual

HAMPTON BAY

HAMPTON BAY 52202 User manual

HAMPTON BAY

HAMPTON BAY METARIE II YG922B-MBK User manual

HAMPTON BAY

HAMPTON BAY FANELEE User manual

HAMPTON BAY

HAMPTON BAY LDS-BF3001 User manual

HAMPTON BAY

HAMPTON BAY FS40-21MA User manual

HAMPTON BAY

HAMPTON BAY 434-972 User manual

HAMPTON BAY

HAMPTON BAY 52-LASO User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
