Haier XPB60-CS User manual

Twin-tub Washing Machine User's manual

This manual is for

XPB60-CS

Please read this manual

carefully before using.

Retain it for future reference.

The machine is for cold water

connection only.

0030507957

Contents

The 2nd cover

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Midway spinning

Names of the parts

Rinsing

Trouble-Shooting Answer to questions

Spinning

Disposal after washing

Packing list

Specification

The back cover

Contents

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Names of the parts

Base frame

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Water-filling entrance

Wash selector

Water inlet selector handle

Wash timer

Control panel

Water level

adjusting lever

Lint filter

(Installed by user)

Pulsator

Wash tub

Wash tub cover

Overflow filter

Quick water-filling

entrance

Buzzer

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

Please use a power point flat has

easy access. Be sure to pull the

plug out when there's power

failure, or the machine is being

moved, cleaned or when it is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of an after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plug in the

receptacle is loose, do not use the plug any

more.

Earth

Do not put your hands into the

working machine. It is dangerous

even if the rotation is slow. Take

special care of the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not dismantle, repair or

alter the machine by yourself.

Children without care should not use

the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner,

petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet

is open, and if the connection of

the water inlet pipe is proper.

It is suggested to use foamless

washing powder.

Overflow filter

Lint filter

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

of the machine.

Install the lint filter

After opening the package,please take out the lint

filter from the document bag,install it to the overflow

filter of the wash tub.See the figure.

Install the water inlet hose; Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting

lever to the required line.

Water inlet hose

Water inlet

Maximum Max

Minimum Min

Medium Med

Water level

indicator

Insert the water inlet hose into the

water-filling entrance on the control

panel.

Quick water-filling entrance

You can fill water into the wash tub

directly through this entrance. It can

reduce the humidity inside the control panel

significantly and prolong the operating life of

the components.

Insert the water inlet hose into the

water-filling entrance, then push the

water-filling jointer into the quick

water- filling entrance. (To dismantle

the water inlet pipe, just push the

control handle as indicated in the figure

and pull it out)

Quick water-filling entrance

Water inlet hose

Water inlet jointer

Control handle

Push

Quick water-filling

entrance

Installation and adjustment

Usage of the drain hose

Before using , hang up the drain hose

in a suitable location. Do not put the

drain hose on the ground.

0.8 H 1.2m

Confirm the end of drain hose is higher than

the level of tub .

How to change the direction of the drain hoses

Figure 1 indicates the ex factory

installation position of the drain hose.

Put soft items on the ground. Lean

the machine down gently with the

front surface facing the ground.

Take off the drain hose from the

cabinet.Take the hose out of the

fixing groove.(See to Figure 2).

Embed the drain hose into the groove

along the side of the wash tub in the

order of (1)~(3), heading for the side

of the wash tub. (See to Figure 3).

Embed the drain hose into the

groove with hands. Take care

not to damage the drainhose in

fastening the fixing clamp.

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Extend to the

spin tub side

Take out the drain hose from the fixing groove.Extend it from the

rear side as per the direction of the arrow.

(See to Figure 4).

Figure 1

Extend the drain hose from the side of wash tub

Extend the drain hose from the rear side

Soft item Back

Front

Preparation before washing

Check if

the laundries

has special

washing

instructions.

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the

long strips;

fasten

the

buttons;

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity

of the

laundries

shall not be

too large.

Stretch and

loosen the

laundries

before

putting them

in the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent

on them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur,

turn it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Before using , hang up the drain hose on

suitable location.

Do not put down the drain hose on the ground.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

0.8m H 1.2m

Pay attention to the following before washing the laundries

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute

the laundries than the detergent. The

refore please use it with proper

quantity.

Dosage of different washing powder

is different. Please refer to the

instruction of the washing powder for

the detail dosage.

Avoid using whitener on

laundries with color or

pattern as they are prone

to lose color.

Fill water to decided level.

Dilute the whitener with

container. Pour it slowly

into the washing tub.

The whitener shall not

touch the laundries

directly.

Refer to the user's manual

for the usage and quantity

of the whitener.

For powder whitener,

please dissolve it before

using.

The capacity of washing and spinning of

the machine refer to the largest weight

of the standard laundries under dry

condition that can be washed or spinned

at one time. The laundry quantity in one

washing cycle should be lower than the

rated capacity.

The thickness ,size , type of the cloth will

influence the actual washing capacity. Be

careful to put in a reasonable amount of

laundry.

Do not select" Maximum" water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

The musts in washing

It is suggested not to use high sudsing

detergent.

How to use the whitener

How to use the washing powder

Usage of the detergent

Figure 5

DRAIN

STRONG

STANDARD

WASH SELECTOR

OFF

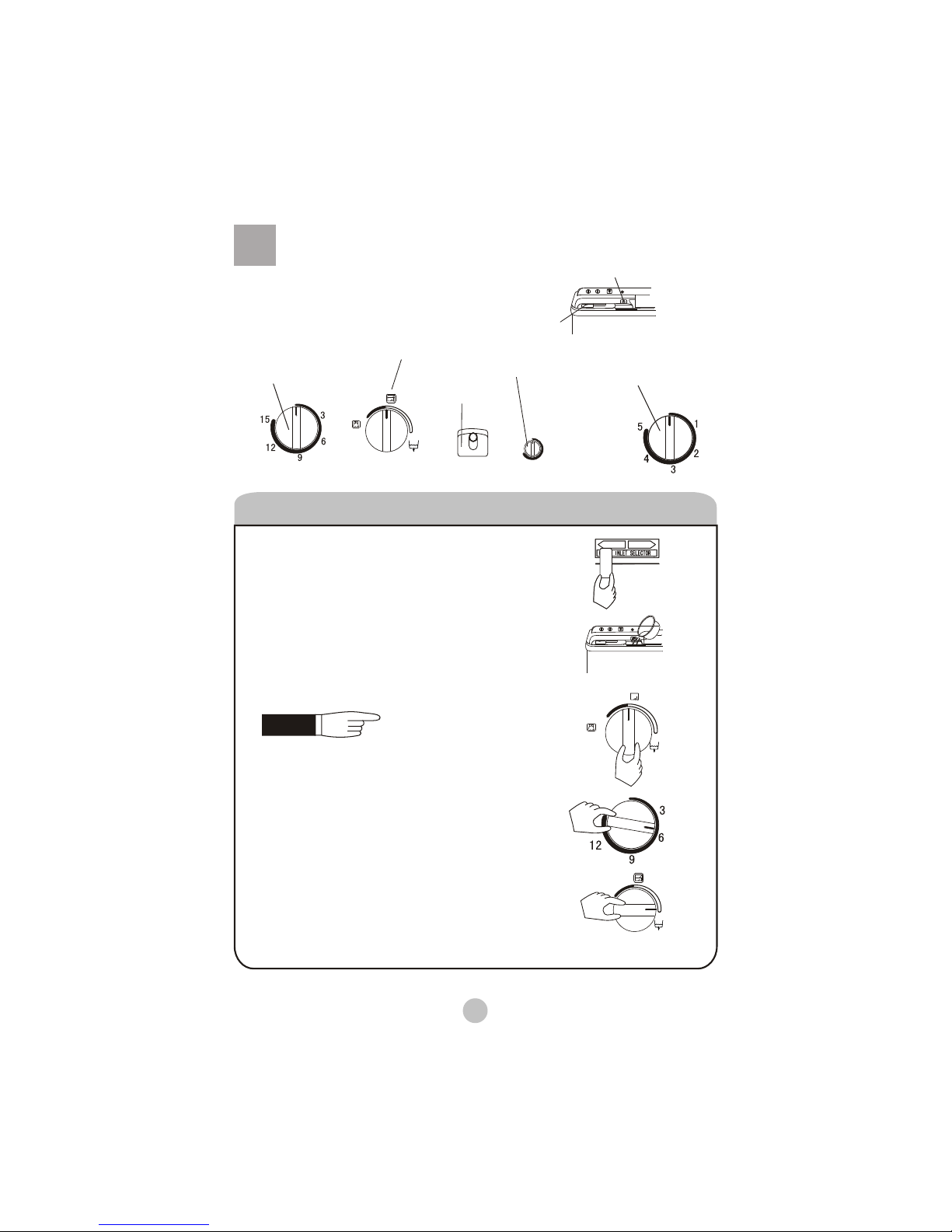

Washing sequence

Spin timer

SPIN TIMER

Wash timer

OFF

WASH TIMER

(To set to below 2 minute,

first set to 6 minute then

turn it back. it can increase

the service life of the timer).

(to set to below 1 minute,

first set to 2 minute then

turn it back. it can increase

the service life of the timer).

Wash

Figure 4

OFF

WASH TIMER

DRAIN

STRONG

STANDARD

WASH SELECTOR

Wash selector

(standard current,

strong current)

Figure 3

DRAIN

STRONG

STANDARD

WASH SELECTOR

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the

laundries. (Figure 4)

6.After washing, set the "WASH SELECTOR"

at "DRAIN". (Figure 5).

Water inlet

WATER INLET

OFF

MAX

BUZZER

Buzzer

(The buzzer will ring when

the washing finishes)

1.Water-filling selector

(1) Set the water-filling selector at the "WASH"

side.(Figure 1)

(2) Set the water level adjusting lever to

needed line.

Figure 2

SPIN

WASH

Figure 1

SPIN

WASH

Page10

Overfilling sign

Water-filling selector handle

Other manuals for XPB60-CS

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
