Haier XPB80-35 User manual
XPB80-35
Single-tub Washing Machine
Names of the parts........... the 2nd cover
Safety precautions ........................... 1
Installation and adjustment ..................3
Preparation before washing .............. 5
Put in the laundries ............................ 6
Put in the detergent ............................ 7
Select the wash selector...................... 7
Select the wash time .......................... 7
Close the top cover ............................. 8
Finish washing .................................... 8
Disposal after washing .........................8
Trouble shooting.................................9
Packing list...........................................9
Specification................the back cover
Contents
Before using
Using process
Please read this manual carefully before using.
Please retain it attentively for future reference.
User's manual
Contents marked with that symbol are related to the safety of the product
and the personal safety of the users. Please operate in strict conformity to
the contents.
Contents marked with that symbol are actions forbidden to perform.
Performing of those action may result in damage of the machine or
influence the personal safety of the users.
Accessories
water inlet hose
( one pc )
Base
Cabinet
Drain hose
Back cover
Fixing leg
(four pieces)
Power cord
Valve cover
Handle
Panel support
Pulsator
Lint filter
Filter cap
Top lid
Before Using
Before Using
Names of the parts
Control panel
Water inlet
Quick water inlet
Timer knob
Water selector
MAX
MED
MIN
Water-filling jointer
(one pc)
Ventilation hole at
the bottom of the
washing machine
Before Using
Before Using

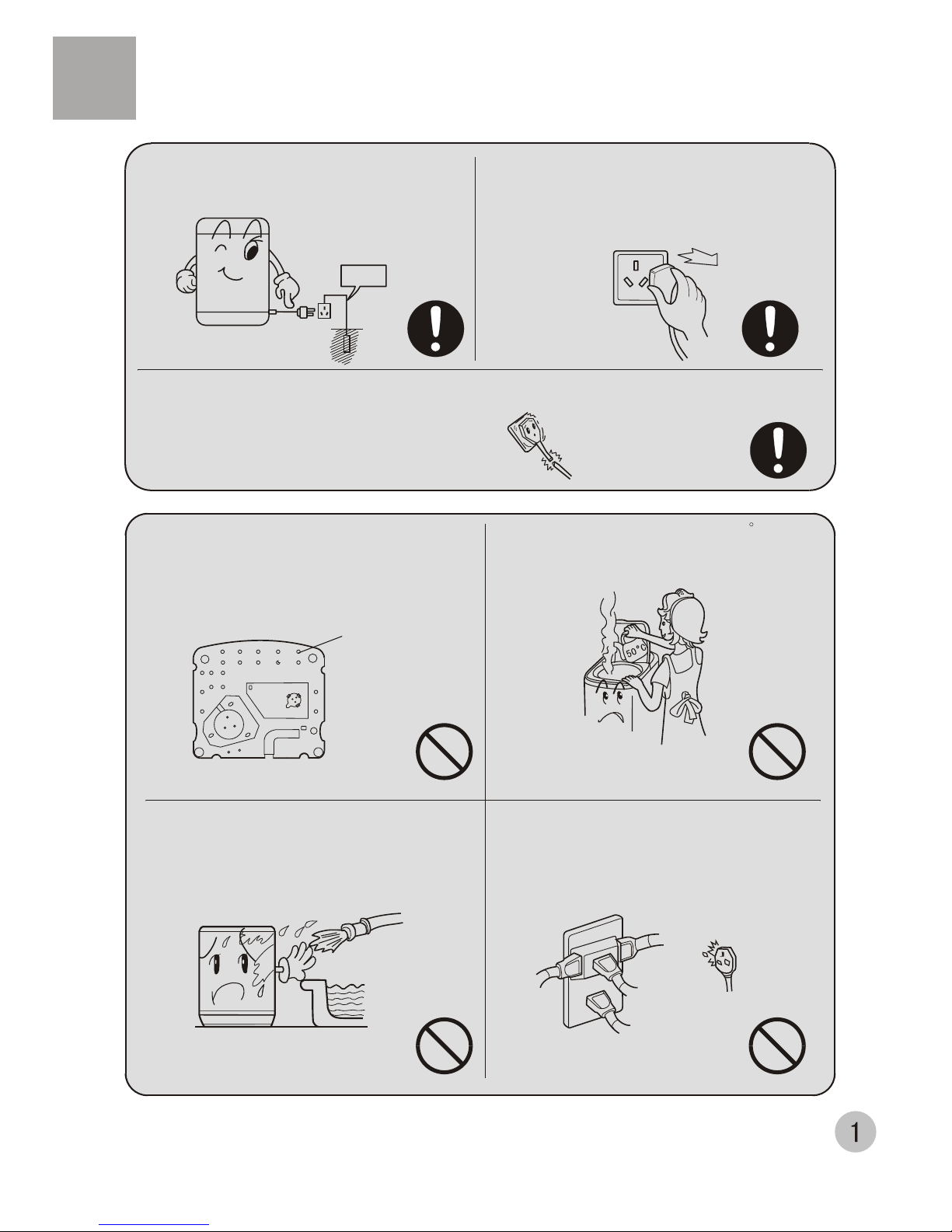

Safety precautions
If the power cord is bad, to avoid risk it is required to replace it by the technicians of
our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to use three-phase receptacle.
Earth the earthing terminal of the
receptacle reliably.
Do not put the machine at damp place
like the bathroom . Never wash it with
water. Do not place wet laundries on the
control panel.
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when there'spower failure,
or the machine is being moved, cleaned or
when it is idle.
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Handicapped or children without care
shall not use the machine.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
Safety precautions
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not step on or press the drain hose.
3.If extra drain hose is needed , the inner
diameter of the extra hose shall not less
than 30mm, and the length shall not exceed
1.5m.
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 30mm
<1.5m
Before Using
Before Using
Installation and adjustment
Adjust the installation position
Install the water inlet hose ; Select the water level
The largest permitted slope of the bearing surface of the washing machine is 2.
Slanting or uneven ground will cause unstable operation of the machine. Please
check with following methods:
Hang a becket with weight to confirm if the washing machine is horizontal.
Before Using
Before Using
Water inlet hose
Water inlet hose
Water inlet
High
about 83L
about 68L
about 49L
Low
Medium
Water level
indicator
Insert the water inlet hose into the water-inlet
on the control panel directly. ( pull it out to
dismantle it)
Fill the water to the water level selected
according to the quantity of the laundries.
Attention:
Do not exceed the " High " water
level , otherwise the water may
overflow out of the machine.
Use the quick water inlet
MAX
MAX
MED
MED
MIN
MIN
Insert the water-filling jointer into water inlet hose,
then push the water-filling jointer into the water
inlet on the control panel. (To dismantle the water
inlet hose, just push the control handle as
indicated in the figure and pull it out)
Fill water into the wash tub directly through
quick water inlet. It can reduce the humidity
inside the control panel significantly and
prolong the operating life of the components.
Quick water inlet
Water-filling jointer
Control handle
Push
Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Hang the drain hose up.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries
Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing of the machine
refer to the largest weight of the standard
laundries under dry condition that can be
washed in one time. Laundries quantity
in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " High " water level for
laundries less than 4.0kg, so as to avoid
splashing of water.
blending coat
about 800g
shirt jacket
single bed sheet
socking
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g
Selection of the quantity of the washing powder
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener,please dissolve it before using.
Please select wash time according to the laundries.
Please select water current according to the laundries.
Laundries Wash time minutes
Knitwear/chemical fiber
Cotton,blending,linen
Very dirty and thick laundries
Bed sheet
Silk(thin laundries) About2 4~
About3~6
About7~13
About8~10
About10~13
3 Put in the detergent
5 select the wash time
4 select the wash selector
Using process
Using process
Water level
Standard dosage
Concentrated washing
powder Common washing
powder
Water quantity
About About
About About
About About
High (about83L)
Low (about49L)
Medium (about68L)
75g
61g
43g
83g
68g
49g
6 Close the top lid
7 Finish washing
8 Disposal after washing
The pulsator stops rotating. Put down the drain hose
to discharge the water.
After using, please clean the lint and foreign materials of the lint filter and lint frame in time.
Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
Figure 2
Figure 3
Figure 1
Thinner
Alcohol
Petrol
1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. (See to
Figure 1)
2. Clean the lint
Put it in water and clean while it is still
wet.(See to Figure 2)
Attention: be sure not to confuse the direction.
Wipe the complete unit with soft cloth
twisted dry.
Wipe with neutral detergent if too dirty.
After washing, dismount the water inlet hose.
Pull off the power plug and hang up the
power cord.
Do not store water in the tub for long period.
Discharge the water immediately after each
using.
Wipe off the water drops on the surface and
inside the tub with clean soft cloth. Open the
cover of the wash tub for some time (about
one hour), then close it.
Hang up the drain hose.
Do not wash it directly by water.
3. Install the lint filter
After cleaning, insert the bottom of
the lint filter (marked with "down side")
into the filter frame, then push the
upper part of the filter in (marked with
"up side"). (See to Figure 3)
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Using process
Using process
This manual suits for next models
1
Table of contents
Other Haier Washer manuals
Haier
Haier HWM120-0523S User manual
Haier
Haier XQB100-96 User manual
Haier
Haier Thermocool HMS1000TVE User manual
Haier
Haier XQJ50-31 User manual
Haier
Haier HW80-F1401 User manual
Haier
Haier HWF5300AW User manual
Haier
Haier HWM100-0523S User manual
Haier
Haier hW80-1401B-u User manual
Haier
Haier HNS1260TVE User manual
Haier
Haier HWM60-0713S User manual
Haier
Haier XQSB60-JN User manual
Haier
Haier XQG50-S1016 User manual
Haier
Haier HWF5300AW Assembly instructions
Haier
Haier HWM100-0626S User manual
Haier
Haier washing machine User manual
Haier
Haier Mini magical child XQBM23-12 User manual
Haier
Haier HWM1070KFL User manual
Haier
Haier HW-E1270TVE User manual
Haier
Haier SLC116PEW Assembly instructions
Haier
Haier HWM100-728 User manual
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Electrolux
Electrolux EWF1284EDW Service manual
Bosch
Bosch WAN2829BSN User manual and installation instructions
LG
LG TV2516DV3B owner's manual
