Thank You EN

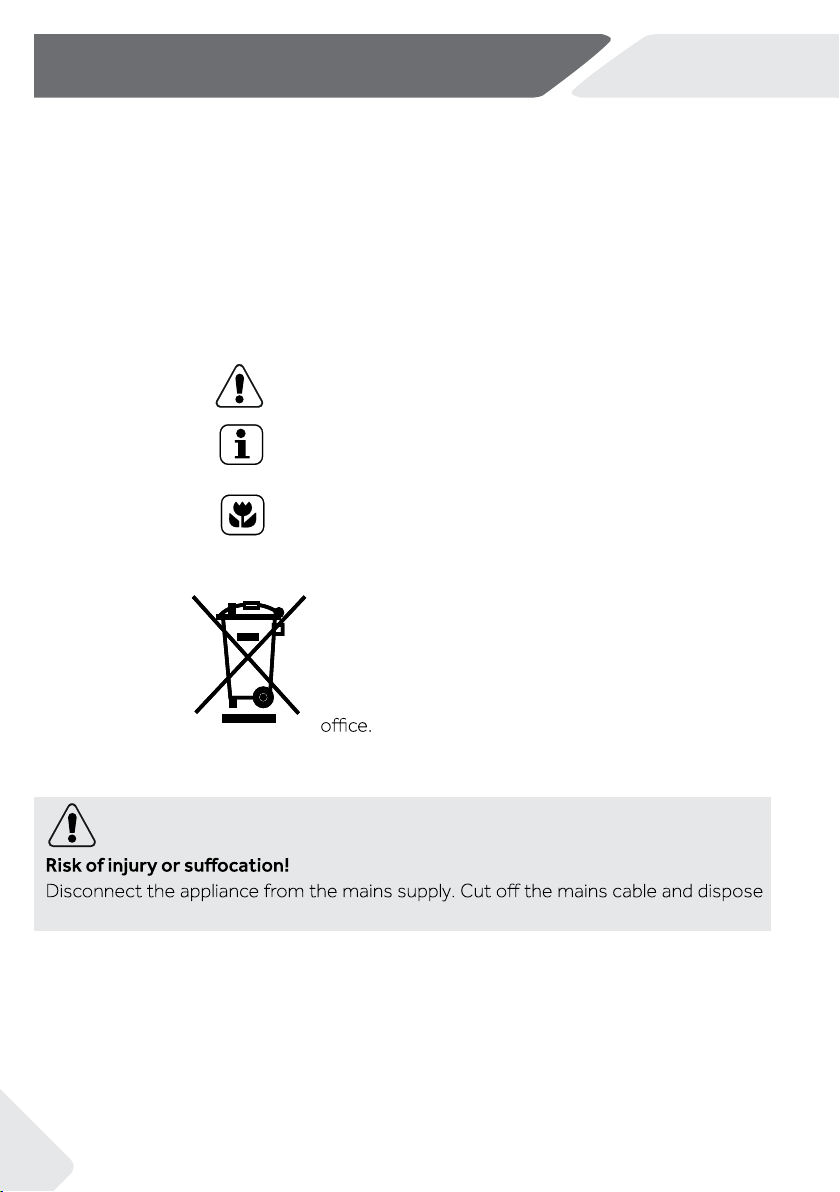

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your municipal

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

WARNING!

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content

1-Safety information........................................................................................................................... 4

2-Product description......................................................................................................................... 7

3-Control panel .................................................................................................................................... 8

4-Programmes...................................................................................................................................11

5-Consumption..................................................................................................................................12

6-Daily use...........................................................................................................................................13

7-Eco-friendly washing ....................................................................................................................18

8-Care and cleaning ..........................................................................................................................19

9-Troubleshooting .............................................................................................................................22

10-Installation.....................................................................................................................................25

11-Technical data...............................................................................................................................29

12-Customer service........................................................................................................................30

1-Safety information EN

Before switching on the appliance for the rst time read the follow-

ing safety hints!

WARNING!

Before rst use

▶Make sure there is no transport damage.

▶Make sure all transport bolts are removed.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do not let children or pets come close to the appliance when the

door is open.

▶Store washing agents out of reach of children.

▶Pull up zips, x loose threads and take care for small items to pre-

vent laundry from being entangled. If necessary, use an appropri-

ate bag or net.

▶Do not touch or use the appliance when barefoot or with wet or

damp hands or feet.

▶Do not cover or encase the appliance during operation or after-

wards to allow any moisture or dampness to evaporate.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Do not use or store ﬂammable detergent or dry cleaning agent in

close vicinity to the appliance.

▶Do not use any ﬂammable sprays in close vicinity to the appliance.

▶Do not wash any garments treated with solvents in the appliance

without having dried them previously in the air.

EN 1-Safety information

WARNING!

Daily use

▶Do not remove or insert the plug in the presence of ﬂammable

gas.

▶Do not hot wash foam rubber or sponge-like materials.

▶Do not wash any laundry which is polluted with ﬂour.

▶Do not open detergent drawer during any wash cycle.

▶Do not touch the door during the washing process, it gets hot.

▶Do not open the door if the water level is visibly over the porthole.

▶Do not force the door to open. The door is tted with a self-lock

device and will open shortly after the washingprocedure is ended.

▶

undertaking any routine maintenance and disconnect the appli-

ance from the electrical supply to save electricity and for safety.

▶Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶Keep the lower part of the porthole clean and open door and de-

tergent drawer if appliance is not in use to prevent odours.

▶Do not use water spray or steam to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its ser-

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶The appliance should be placed in a well-ventilated place. Ensure

a location which allows opening the door fully.

▶Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

1-Safety information EN

Intended use

This appliance is intended for washing machine-washable laun-

dry only. Anytime follow the instructions given on the label of each

garment label. It is designed exclusively for domestic use inside the

house. It is not intended for commercial or industrial use.

Changes or modications to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

WARNING!

Installation

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not install the appliance in direct sunlight or in the near of heat

sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure only the delivered electric cable and hose set are used.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

Only for UK: The appliance’s power cable is tted with 3-cord

(grounding) plug that ts a standard 3-cord (grounded) socket.

Never cut o or dismount the third pin (grounding). After the ap-

pliance is installed, the plug should be accessible.

▶Make sure the hose joints and connections are rm and there is

no leakage.

EN 2-Product description

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig. 2-3):

Note:

2-3

1 Detergent /

Softener drawer

2 Work top

3 Programme selector

4 Panel

5 Washer door

6 Service ﬂap

7 Adjustable feet

2-1 2-2

Inlet hose-

assembly 5 Blanking

plugs

Drain hose

bracket User manual

Warranty

card

Noise reduc-

tion pads

Eco40-60

Refresh

Cotton20°C

Duvet

Quick15’

BabyCare

Anti-crease

Shirt

Fast

T1 T2

T3 S1

S2 S6

134

265

1 Transportation bolts (T1-T4)

2 Back cover

3 Back cover screws (S1-S6)

4 Power cord

5 Water inlet valve

6 Drain hose

S3 S5

3-1

3-2

3-3

3-4

Eco 40-60

Refresh

Cotton 20°C

Duvet

Quick 15’

Baby Care

Anti-crease

Shirt

Fast

Eco 40-60

Refresh

Cotton 20°C

Duvet

Quick 15’

Baby Care

Shirt

Fast

Anti-crease

By turning the knob(Fig. 3-3), one of 15 programmes

(the OFF is not included) that can be selected, its def-

ault settings will be displayed.

Turn the knob to any position (except OFF) to start the

machine. Turn knob the OFF position to shut down the

machine(Fig. 3-2).

Steam washing

Locking the door

Child lock

▶

3.1 OFF

3.5 Function buttons

polanoitiddaelbane)6-3.giF(snottubnoitcnufehT -

tions in the selected programme before the program-

me starts. The related indicators are displayed.

By switching oﬀ the appliance or setting up a new pro-

gramme, all options are disabled.

If a button has multiple options, the desired option can

be selected by pressing the button sequentially.

By pressing the buttons, when it is in bright light, the

function is selected.

3.5.1-Function button “Delay“

3.5.2 Function button “Anti-crease”

Note: Factory settings

To get the best results in each programme, Haier has well deﬁned speciﬁc default

settings. If there is no special requirement, default settings are recommended.

3.4 Detergent drawer

Open dispenser drawer, the following components can

be seen (Fig. 3-5):

1: compartment for powder or liquid detergent.

2: detergent ﬂap slector, lift it up for powder detergent,

keep it down for liquid detergent.

3: compartment for softner.

4: lock tab, press it down to pull out dispenser drawer.

The recommendation on the type of the detergents

is suitable for the various washing temperatures.

Please refer to the manual of detergent(see P11).

Press amme

rgorpehttratsot)7-3.giF(nottubsiht

with a delay. End time delay could be increased in steps

6:30 means end of programme

(

End time will longer th-

programme time).

cycle will be in 6 hours

and 30

min

utes.

Press “Start/Pause” button to activate

delay. It is not applicable to programme Spin,the time

Refresh.

3.5.1

Note: Liquid detergent

If using liquid detergent, it is not recommended to activate the end time delay.

an original

3-5

3-6

3-7 3-8

Anti-crease

3.5.3 3.5.5

3.5.2 3.5.4

Anti-crease

For those programmes that can select "Anti-crease" function (Fig. 3-8) , press "Anti-crease"

button to select this function and the corresponding icon will light up. Press again or select

another programme, this feature will be cancelled.

Under "Anti-crease" function, the max spin speed will be set to 800 rpm.

After spin, the washing machine keeps intermittent operation to shake oﬀ the clothes to

prevent mildew and odor, reduce wrinkles and make them smoother after hanging up.

During operation, the LED display will show “ - ” “ -- ” “ --- ” “ ---- ”, and this phase lasts for

12 hours at most, users can press "Start/Pause" to terminate the programme at any time.

3-Control panel EN

3.5.4 Function button“Speed“

Press this button (Fig. 3-10) to change or deselect the

spin of the programme. If no value is illuminated the dis-

play"0"the laundry will not spin.

3.6 “Start/Pause“ button

Press this button (Fig. 3-12) gently to start or inter-

rupt the currently displayed programme. During pro-

gramme setting and during programme run the LED

above the button is shining, or if interrupted blinking.

3.5.5 “Extra Rinse”button

Press this button (Fig. 3-11) to rinse the laundry more

intense with fresh water. This is recommended for people

with sensitive skin.

-ddaeerhtotorezsemitlarevesnottubeht

Pressing

itional cycles can be selected. They appear in the display

with P--0/P--1/P--2/P--3.

3.7 Child lock

Choosing a programme and then start, touch button“ Del-

ay”and ”Anti-crease”( Fig .3-13) for 3 seconds simulta-

neously to block all panel elements against activation,

panel display . For unlocking please touch again the

two buttons.The child lock indicator lights up when the

child lock works. Feature is optional when the machine

is running.

The display shows CLOI-(Fig. 3-14) if a button will be

pressed, when the child lock is activated. The change

is not running.

Diﬀerent programme opti-

ones are diﬀrent.

3-10

3-11

3-12

3-13

3-14

Anti-crease

3.5.3 Function button “Temp.“

Press this button (Fig. 3-9) to change the washing tem-

perature of the programme. If no value is illuminated

(the display“--°C”) the water will not be heated.

3-9

Note: The procedure to check the number of cycles that the

machine has run.

Procedure: under standby mode, select "cotton" programme ﬁrst, then press “temp.”

and "speed" at the same time, it will display the number of running cycles for 2 seconds,

and then back to standby interface. The cumulativer running cycles will add 1 after the

programme ends. The running cycles will be displayed in hexadecimal if it is over 9999.

This manual suits for next models

Table of contents

Other Haier Washer manuals

Haier

Haier HW-D1070TVE User manual

Haier

Haier HWD-C1200TXVE ME User manual

Haier

Haier HWM80-0528 User manual

Haier

Haier HW90-SB1230N User manual

Haier

Haier HW-C1270TVE-U User manual

Haier

Haier XQG50-QF800 User manual

Haier

Haier XQB60-91AF - 07-01 User manual

Haier

Haier HA655TME User manual

Haier

Haier HW80-B1239N User manual

Haier

Haier XPB50-23BS User manual

Haier

Haier HM600T User manual

Haier

Haier HWM65-0528 User manual

Haier

Haier GWT450AW User manual

Haier

Haier HW90-BP14959S6 User manual

Haier

Haier HLP21E - Pulsator Wash With Tub User manual

Haier

Haier HW50-1210A User manual

Haier

Haier HW-C1270 User manual

Haier

Haier HWD1600 User manual

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Assembly instructions

Haier

Haier XQG50-S1216 User manual

Haier

Haier HWM-6.5/S User manual

Haier

Haier HWD 1500 User manual

Haier

Haier XQJ100-96 User manual

Haier

Haier HW-D1470TVE ME User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
