Haier HWM80-35 User manual

Single-Tub Washing Machine

HWM 80-35/50/60

HWM 120-35 FF

Please read this manual

carefully before use.

Retain it for future reference.

Warranty Card inside.

OPERATING MANUAL

Inspir ed living

QA Passed

Passed

service@haier.com.pk www.haier.com.pk

HNR Company (Pvt) Ltd.

Head Office : 63/B, Mega Tower Main Buleward, Gulberg-III, Lahore.

UAN: 11 11 HAIER (42437) Tel: 042 - 35879105 - 7

UAN: 11 11 HAIER (42437)

service@haier.com.pk

www.haier.com.pk

SIALKOT

Al-Hadi Town, Defence Road,

Pakka Peyya Stop,

Opp. Mehar CNG,

Tel: 052-3612011/3612279

GUJRANWALA

GMS Area Bismillah

Market, G.T Road

Opp. Gold Marriage Hall

Tel: 055-3847177/3843194

GUJRAT

Tariq Plaza Nr. Bandan

Marriage Hall,

Rahman Shaheed Road

Tel: 053-2107114/3537928/9

HYDERABAD

Banglow No.342/A

Block # 6,

Latif abad # 6,

Tel: 022-3862792,2900265

JHELUM

Major Nawaz Shaheed

Colony, Mehdi

Shaheed Road

Tel: 054-4620250,627231

D.G KHAN

House # 4, Block No. 17,

Street No. 4,

Laghari Colony

Tel: 064-2466483

BAHAWALPUR

H.No.44/278 Central

Jail Road, Arif Town

Tel: 062-3101460,2883015

SAHIWAL

66/E Scheme # 2 Near

Cakes & Bakes, College

Chowk, Farid Town.

Tel: 040-4271600-02

SUKKUR

Banglow No.C473/2

Queens Road

Tel: 071-5621462-63

RAWALPINDI

951 - B, near kali tanki,

Opp. MC girls high

school, Satellite town,

Tel: 051-4582410,4451585

KARACHI

C-16 Block#.5

Rashid Minhas Road

Nr. NIPA Chorangi

Tel: 021-4817834-7

KARACHI (2)

C-21,Sector 31 E

Lakhnow Co operative

Housing Society Korangi

Road, Near Nasir Jump

Tel: 021-5060512,5060656

SARGODHA

67 A Shahzad Park

P.A.F Road

Tel: 0483-741526-8

QUETTA

Banglow # 4-29/1

Mir Ahmed Khan Road

Tel: 081-2838508,2821179

LAHORE (2)

62-2-C-2

Town Ship

Tel: 042-5117863,5122333

LAHORE

92-B, Sharif Colony,

Iftikhar Ahmed

Malik Road

Tel: 042-5879105-7

FAISALABAD

36 / 8 New Civil Lines

Behind State bank of

Pakistan

Tel: 041-2620876-7

MULTAN

178-A Shamsabad,

Eidgah Road,

Tel: 061-4577406

PESHAWAR

Haier Plaza

G.T Road

Nr. Haji Camp

Tel: 091-2262910

Service Centres

Contents marked with that symbol are related to the safety of the

product and the personal safety of the users. Please operate in strict

conformity to the contents. otherwise it may cause damage of the

machine or injure the personal safety of the user.

Contents marked with that symbol are action forbidden to perform.

Performing of those action may reslt in damage of the machine or

influence the personal safety of the users.

Forbidding sign

Warning sign

If the power cord is bad, to avoid risk it

is required to replace it by the

technicians of our special shop or the

after-sale service department. Keep

the pin of the Power Plug clean.

When the machine is normally

using, please put the power plug at

the location easily to be inserted

and extracted by hand. Be sure to

pull the plug off when there's power

failure, or the machine is being

moved, cleaned or when it is idle.

Do not use water hotter than 50 C

Ventilation hole at the bottom of the

washing machine

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not place wet laundries on the control

panel.

Do not share one receptacle with other

electric appliances. Do no use it in case

that the power plug is damaged or the

inserting into the receptacle is loos.

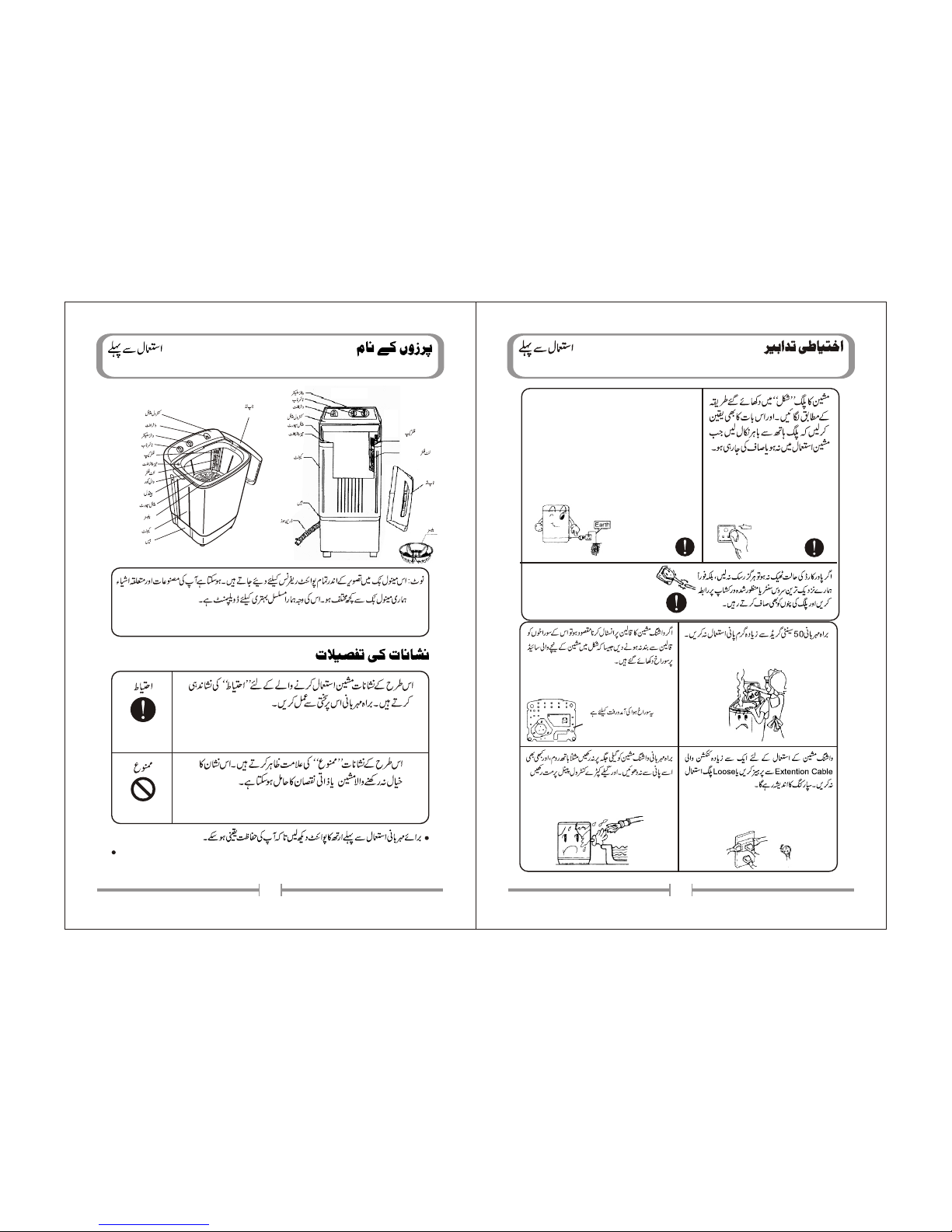

Meaning and Description

of the Symbols

Time Knob

Water

Selector

Water Inlet

Control

Panel

Support

Quick

water Inlet

Cabinet

Base

Drain Hose

Lint Filter

(Installed by user)

Filter Cap

Top Lid

Pulsator

Please check if the power receptacle has good earthing condition before using to

guarantee your safety.

Before Using Name of Parts Before Using Safety Precautions

Base

Cabinet

Valve cover

Handle

Panel support

Pulsator

Lint filter

Filter cap

Top lid

Control panel

Water inlet

Quick water inlet

Timer knob

Water selector

AMX

MED

MIN

Note: All illustrations in this manual are given for reference only. Your products and

accessories may show differences from these illustrations due to our

continuous improvement.

á`äÐ¬å¢BT~á

`ã°z;VåZgB»ñ@*Z¼u

áu»Z0+6:gìXZgBÆa0*U$c*0*ã»

0*U$CÙ¦/ZEw:,X

Be sure to earth the earthing wire reliably. Do

not connect the earth terminal to the gas pipe

and tap water pipe.





















Handicapped or children without care shall

not use the machine.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of the

children.

Do not decompose, repair or alter the

machine by your self.

Do not put any hot or heavy items (such

as the kettle with hot water) on the

washing machine.

Do not wash laundries with volatile

material (such as thinner, petrol etc.)

erol

Thnerin

Keep the machine away from direct

sunlight and heat source like the heater.

To prevent your laundries and washing

machine from damage, be sure to take

out all of the foreign materials from your

pocket, such as coins, button, sand or

hair pins etc.

Please install and adjust the machine

according to the requirement of the

manual. It is very important to your

security and correct operating the

machine.

After opening the package, please

take out the lint filter from the

document bag, install it to the

overflow filter of the wash tub. See

to the figure.

Install the lint filter

Before Using Safety Precautions Before Using Installation and adjustment

Install the water inlet hose;

Select the water level

Insert the water inlet hose into the

water-inlet on the control panel

directly. (Pull it out to dismantle it).

Fill the water to the water level

selected according to the quantity

of the laundries.

Attention:

Do not exceed the "Maximum"

water level, otherwise the

water may overflow out of the

machine.

Use the quick water Inlet:

Insert the water filling jointer

into water inlet hose, then push

the water filling jointer into the

water inlet on the control panel.

(To dismantle water inlet hose,

just push the control panel

handle as indicated in the

figure and pull it out.

Fill water into the wash tub

directly through quick water

inlet. It can reduce the humidity

inside the contro l pan el

significantly and prolong the

o p e r a t i n g l i f e o f t h e

components.

Water-filling jointer

Water inlet hose

Push

Control handle

Quick water inlet

Maximum

Medium

Minimum

Water inlet hose

Water inlet

Water level

indicator

Preparation before washing

Using Process

Connect the water inlet

hose.

Confirm that the washing

machine is earthed reliably.

Than insert the power plug

into the receptacle. Do not

connect the earth terminal to

the gas pipe and tap water

pipe.

Put down the drain hose.

Slanting or uneven ground

may result in unsatiable

working or abnormal noise.

Please make the machine

stand horizontally.

Preparation before washing

-1

-2

-3

-4

Usage of the drain hose

If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not less

than 30mm, and the length shall not

exceed 1.5m.

-4

If extra drain hose is too long, cut it either

at point A or B.

-5

The drainage shall be smooth with

the drain hose.

The height of the drain hose shall be less

than 10cm, or the drainage will not be

smooth enough and cause incomplete

drainage.

Do not tramp on or press the drain house.

-1

-2

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

-3

Before Using Installation and adjustment

The capacity of washing and spinning of the machine

refer to the largest weight of the standard laundries

under dry condition that can be washed or spinned in

one time. Laundries quantity in one washing cycle

shall be lower than the rated capacity. The largest

capacity of this machine is given page #.

The thickness, size, type of the cloth will influence the

actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries can

be turned round in washing for on time washing.

Do not select "Maximum" water level for laundries less

than 2-3kg, so as to avoid splashing of water.

Using Process Usage of the detergent

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

How to use the whitener

How to use the washing powder

-1

-2

-3

-1

-2

Direct dissolved in the machine:

1. Fill small quantity of water.

2. Add the powder. Run for 30 seconds to dissolve it completely.

3. Put it in the laundries. Select suitable water level.

The instant dissolving of the washing powder:

1. Prepare warm water of 30 C and a container.

2. Add the powder while stirring to fully dissolve it.

The powder is more prone to pollute the laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing detergent.

Dosage of different washing powder is different. Please refer to the instruction of

the washing powder for the detail dosage.

Using Process Usage of the detergent

Please select wash selector according

to the laundries

4-Select the wash time

Please select wash time according to the laundries

(To set to below 2 minute.

First set to 6 minute then

Turn it back).

5-Close the top lid -5

-6

6-Finish Washing

After washing the buzzer

will ring. Put down the drain

hose to discharge the water.

Off

WASH TIMER

STANDARD

GENTLE

WASH TIMER

-4

Using Process 3-Select the wash selector

-3

8-10

13-10

7-13

2-4

3-6

Cotton, Blending, Linen

Very dirty and thick

Bed sheet

Silk (thin laundries)

Chemical fiber Knitwear

Laundries

Washing time Current

Standard

Gentle

After using, please clean the lint and foreign materials of the lint filter and lint frame in

time. Otherwise it may influence your using the machine.

Please first pull the power plug from the receptacle before cleaning.

-1

-3

-2

Figure 3

Figure 1 Figure 2

Cleaning the lint filter

The lint filter must be used

during washing.

It must be cleaned in time after

each using.

Take off the lint filter

Put hand at the indicated

position.

Push down to take it off.

(See to Figure 1)

Clean the lint

Put it in water and clean while it

is still wet. (See to Figure 2)

Install the lint filter

After cleaning, insert the

bottom of the lint after filter

(marked with "DOWN SIDE")

into the filter frame, then push

the upper part of the filter in

(marked with "UP SIDE").

(See Figure 3)

Using Process Disposal after washing

After washing, dismount the water

inlet hose.

Do not store water in the tub for long

p e r i o d . D i s c h a r g e t h e

water immediately after each

using.

Pull of the power plug and hang up

the power cord.

Hang up the drain hose.

Wipe off the water drops on the

surface and inside the tub with clean

soft cloth.

Open the cover of the wash for some

time (about one hour), then

close them.

Wipe the complete unit with soft

cloth twisted dry.

Wipe with neutral detergent if too

dirty.

Do not wash it directly by water.

Do no wipe with thinner, petrol,

alcohol, etc.

Thinner

Alcohol

Petrol

Disposal of the complete unit

-1

-2

-3

-4

-5

-6

-7

-8

-9

10.

-10

Using Process Disposal after washing

Using Process Trouble-shooting (Answers to questions)

(If there's breakdown, please pull off the power plug before checking) The following

phenomena are not breakdowns sometimes. Please confirm again before

sending it to repair. If there are real breakdowns, please com to the special maintenance

department or after-sale service department of our company. Do not repair it by yourself.

Phenomena The reason

The machine does not act.

Is there power failure?

Is the power plug loose?

Is the pulsator twisted by foreign materials?

There's abnormal sound

during washing. Are there hair pin, coins or metal items brought

inside the tub?

The drainage does not work

Is the drain hose put down?

Is the drain hose frozen?

Is the drain hose blocked by

foreign material?

Are there laundries falling

to the outer side of the spin tub?

Is the machine slanting?

Is the gland pressed evenly?

It is the water remained in the factory inspection

of performance.

There may be some water

flowing out of the drain hose in

the first use of the machine.

There's abnormal sound

and violent vibration during

spinning.

Are there laundries falling to the outer side

of spin tub?

Are the laundries in spin tub too much?

Technical Information

Packing list

Specification

Description

Power Source

Rated in put power (washing)

Water level/water level(bout)

Injection Pressure (Mpa)

Washing Capacity (Kg)

Size (mm)

Weight

80-35/50/60 120-35 FF

220V 220V

320W 400W

0.02~0.2 0.02~0.2

8 kg 12 kg

L520 W490 H916 L540 W515 H1080

16 Kg 17 Kg

Max-83L , Med-68L

Min-49L

Max-114L , Med-93L

Min-71L

User's manual

Water inlet hose

Water-filling jointer

Lint Filter

Single Tub Washing machine

One piece

One set

NameQuantity

Working suit (up, down)

(cotton, about 1120g)

Blanket

(cotton, about 900g)

Pajamas

(about 200g)

Shirt

(cotton, about

300g)

Undershirt

(cotton, about

180g) Underpants

(cotton, about 70g)

Socking

(blending, about 50g)

Jacket

(cotton, about 800g)

Blending coat

about 800g

Jeans (about 800g)

Single bed sheet

(cotton, about 600g)

Reference weight of the laundries

Other manuals for HWM80-35

Other Haier Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
