Haier HW60-12829 User manual

User manual

Washing machine

HW60-12829

HW60-14829

HW70-12829

HW70-14829

HW80-12829

HW80-14829

HW100-12829

HW100-14829

Thank You GB

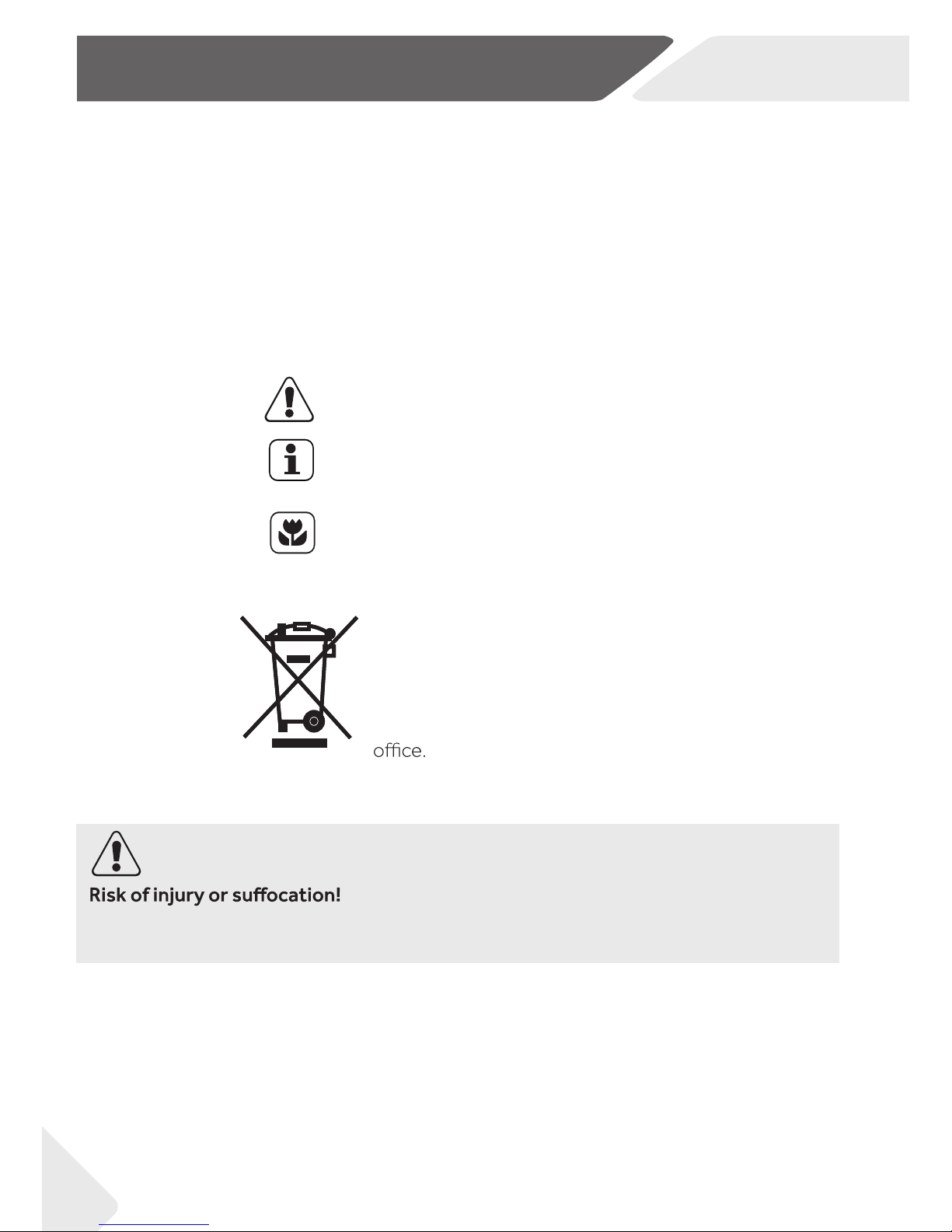

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your municipal

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

WARNING!

When the appliance is to be disposed of, disconnect the appliance from the mains supply.

Cut oﬀ the mains cable and dispose of it. Remove the door catch to prevent children and

pets to get shut in the appliance.

GB Content

1-Safety information.......................................................................................................................... 4

2-Product description ....................................................................................................................... 7

3-Control panel ................................................................................................................................... 8

4-Programmes..................................................................................................................................11

5-Consumption.................................................................................................................................12

6-Daily use ..........................................................................................................................................13

7-Eco-friendly washing ...................................................................................................................18

8-Care and cleaning .........................................................................................................................19

9-Troubleshooting ............................................................................................................................22

10-Installation....................................................................................................................................25

11-Technical data..............................................................................................................................29

12-Customer service.......................................................................................................................32

1-Safety information

Before switching on the appliance for the rst time read the follow-

ing safety hints!:

WARNING!

Before rst use

▶Make sure there is no transport damage.

▶Make sure all transport bolts are removed.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do not let children or pets come close to the appliance when the

door is open.

▶Store washing agents out of reach of children.

▶Pull up zips, x loose threads and take care for small items to pre-

vent laundry from being entangled. If necessary, use an appropri-

ate bag or net.

▶Do not press or use the appliance when barefoot or with wet or

damp hands or feet.

▶Do not cover or encase the appliance during operation or after-

wards to allow any moisture or dampness to evaporate.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Do not use or store ﬂammable detergent or dry cleaning agent in

close vicinity to the appliance.

▶Do not use any ﬂammable sprays in close vicinity to the appliance.

▶Do not wash any garments treated with solvents in the appliance

without having dried them previously in the air.

GB 1-Safety information

WARNING!

Daily use

▶Do not remove or insert the plug in the presence of ﬂammable

gas

▶Do not hot wash foam rubber or sponge-like materials.

▶Do not wash any laundry which is polluted with ﬂour.

▶Do not open detergent drawer during any wash cycle.

▶Do not touch the door during the washing process, it gets hot.

▶Do not open the door if the water level is visibly over the porthole.

▶Do not force the door to open. The door is tted with a self-lock

device and will open shortly after the washing procedure is ended.

▶

undertaking any routine maintenance and disconnect the appli-

ance from the electrical supply to save electricity and for safety.

▶Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶Keep the lower part of the porthole clean and open door and de-

tergent drawer if appliance is not in use to prevent odours.

▶Do not use water spray or steam to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its ser-

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶The appliance should be placed in a well-ventilated place. Ensure

a location which allows opening the door fully.

▶Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

1-Safety information GB

Intended use

This appliance is intended for washing machine-washable laun-

dry only. Anytime follow the instructions given on the label of each

garment label. It is designed exclusively for domestic use inside the

house. It is not intended for commercial or industrial use.

use may cause hazards and loss of of all warranty and liability claims.

WARNING!

Installation

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not install the appliance in direct sunlight or near of heat sou-

rces(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure only the supplied electric cable and hose set are used.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

earthed

Only for UK:

nce is installed, the plug should be accessible.

(earth)

▶

no leakage.

tight

2-Product description

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.:2-3):

Inlet hose-

assembly 5 Blanking

plugs

Drain hose

bracket

User

manual

Warranty-

card

Note:

Due to technical changes and dierent models, the illustrations in the following chap-

ters may dier from your model.

Temp.Speed Intense Delay Start/Pause

Extra rinse

HW80-BP14636

132

BLDC motor

+++

AutoweightCapacityEnergy

8kg

Self Clean

Temp.Speed Intense Delay Start/Pause

Extra rinse

+++

Energy

Capacity

10kg 1400

rpm

HW100-B14636

HW80-14829

+++

1400

CapacityrpmEnergy

8kg

DelayTemp. Spin

speed

Power Start/

Pause

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program

HW70-12829

+++

1200

Capacity rpm

Energy

7kg

DelayTemp. Spin

speed

Power Start/

Pause

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program

HW60-14829

+++

1400

rpm

6kg

Clase

energética Capacidad

Temp. Vel.

Centrifugado

Encendido

/ Apagado Inicio /

Pausa

Algodón

Algodón plus

Sintéticos

Mezclados

Vaqueros

Ropa

deportiva

Lana Centrifugado

Express 15 min

Rápido

Delicados

Lavado

Higiénico

Cuidado

Programa Aclarado

Extra

a mano

infantil

Fin

Diferido

Delay

Temp. Spin

speed

Power Start/

Pause

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

°C

Program

T1 T2

T3 S1

S2 S4

134

265

1 Detergent /Softener drawer

2 Control panel

3 Worktop

4 Rating plate

5 Sevice ﬂap

6 Adjustable feet

1 Transportation bolts (T1-T4)

2 Back cover

3 Back cover screws (S1-S4)

4 Power cord

5 Water inlet vave

6 Drain hose

2-1 2-2

2-3

botton cover

with felt 1)

1) Felt only available for model HW80-... and HW100-...

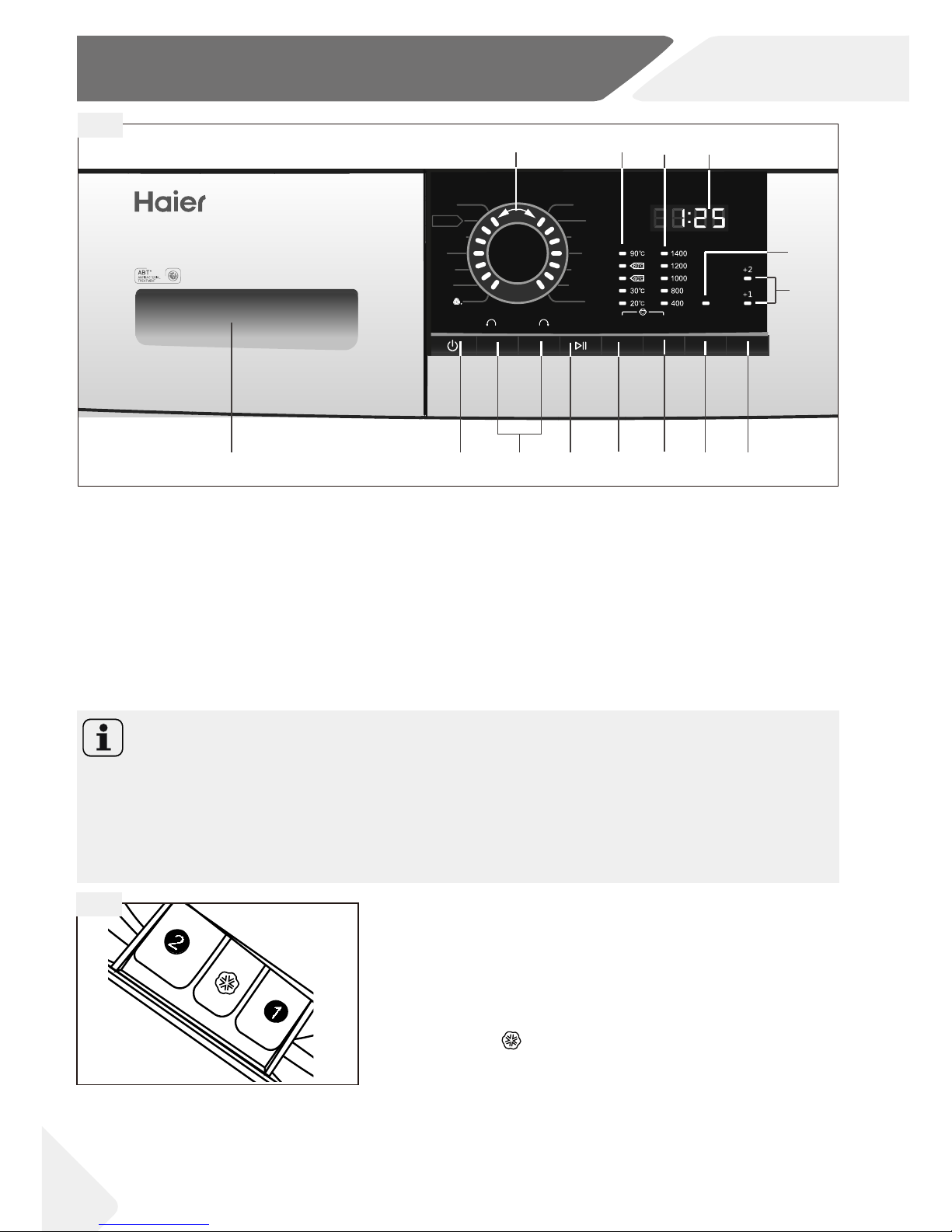

3-Control panel GB

1 Detergent /Softener drawer

2 “Power“ button

3 Programme selector

4 “Start/Pause“ button

DelayTemp. Spin

speed

Power Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program Extra

rinse

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool

1 5 6

2 3 4 7

13 12 11

5“Temp.”

6 “Spin speed”

7 “Delay”

8 “Extra rinse”

3.1 Detergent drawer

Open the drawer, three compartments can be

seen (Fig. 3-1):

Compartment 1 : Water inlet only, no detergent

Compartment 2 : Detergent for programme

Compartment : Softener, Conditioning agent etc.

Use the recommended types of detergents that are

appropriate for the washing temperatures. Please re-

fer to the detergent manufactures information.

3-1

9 Extra rinse indicator

10 Delay indicator

11 Display

12 Spin speed indicator

13 Temperature indicator

14 Programme indicator

Note : Acoustic signal

In following cases an acoustic signal sounds:

▶when pressing a button

▶at the end of programme

▶in case of failures

The acoustic signal can be cancelled if necessary ; see DAILY USE.

3-0

Function buttons: Indicators:

GB 3-Control panel

3.2 “Power“ button

Press this button (Fig. 3-2) gently to switch on, the

display is illuminated. Press it again for about 2 secon-

ds to switch oﬀ.If no panel element or programme is

activated after a while machine will shut down autom-

atically.

3.5 Function buttons

The function buttons (Fig. 3-5) enables additional op-

tions in the selected programme before programme

start. The related indicators are displayed.

gramme, all options are disabled.

If a button has multiple options, the desired option can

be selected by pressing the button sequentially.

To delete the setting or to cancel the setting process,

press the function button until the desired LED lights

Note: Factory settings

there is no special requirement default settings are recommended.

3.4 „Start/Pause“ button

Press this button (Fig. 3-4) gently to start or inter-

rupt the currently displayed programme. During pro-

gramme interruption the digits on the display are blink-

ing.

Start/

Pause

3-4

Power

3-2

3.3 Programme selector

Press one of these buttons (Fig. 3-3) sequentially until

the indicator of the desired programme lights up, and

the default settings are displayed.

Temp.

Spin

speed

Power Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool

3-3

DelayTemp. Spin

speed Extra

rinse

3.5.1 3.5.2 3.5.3 3.5.4

3-5

3.5.1-Function button „Temp.“

Press this button (Fig. 3-5.1) to change the washing

temperature of the programme. If no value is illumi-

nated the water will not heated.

In conjunction with the “Spin speed” button, the child

3-7 3-8

Delay

Temp.

Spin

speed

Power Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program Extra

rinse

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool

DelayTemp.

Spin

speed

Power Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program Extra

rinse

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool

3-5.1 3-5.2

3.5.2-Function button “Spin speed”

Press this button (Fig. 3-5.2) to change or deselect the

spin of the programme. If no value is illuminated the

3-Control panel GB

3.5.4-Function button “Extra rinse“

Press this button (Fig. 3-5.4) to rinse the laundry more

intense with fresh water. This is recommended for

people with sensitive skin. One or two additional rinse

cycles are available.

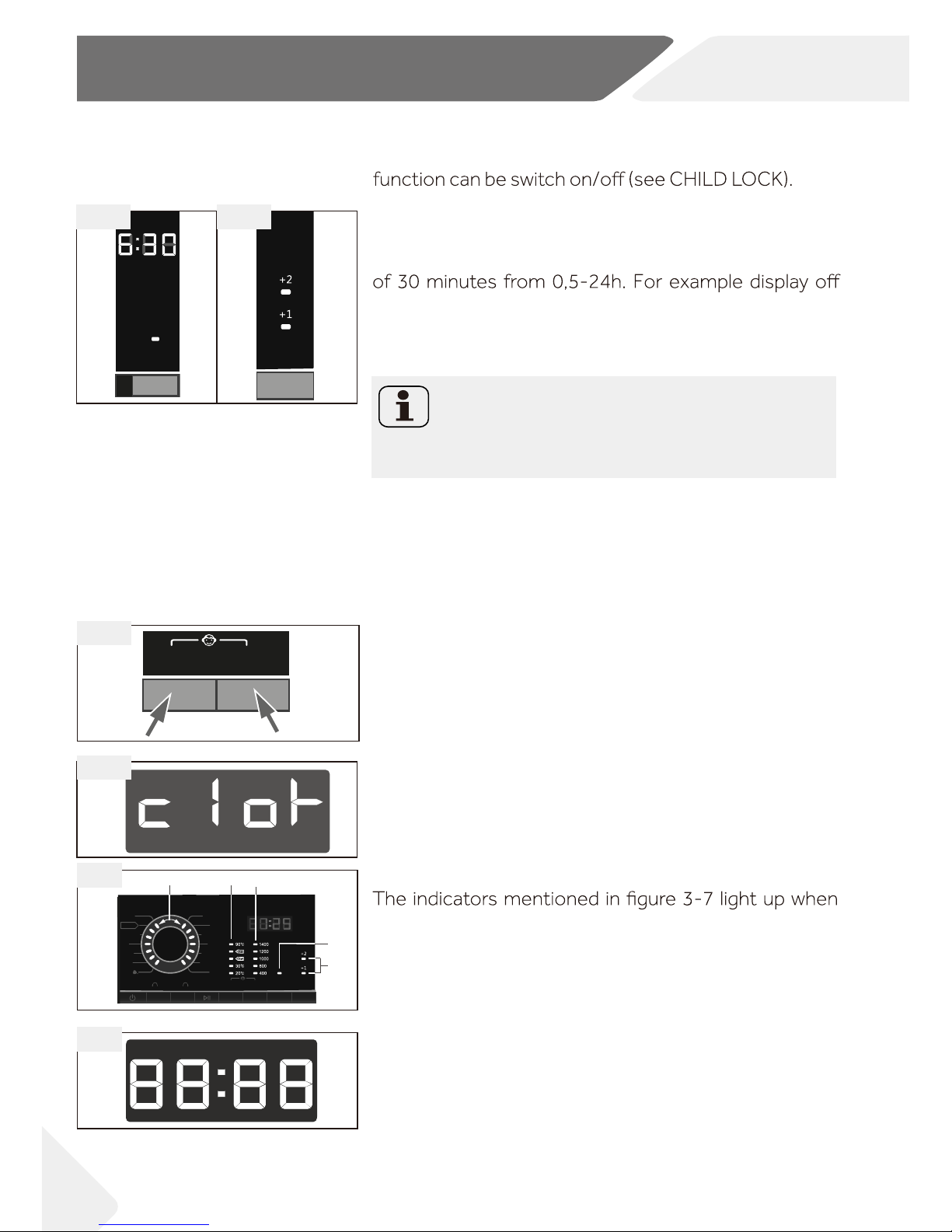

3.5.3-Function button “Delay”

Press this button (Fig. 3-5.3) to start the programme

with a delay. End time delay could be increased in steps

6:30 means end of programme cycle will be in 6 hours

and 30 minutes. Press “Start/Pause” button to activate

the time delay. It is not applicable to programme COT-

TON+ and SPIN.

Note: Liquid detergent

If using liquid detergent, it is not recommended to acti-

vate the end time delay.

3.6 Child lock

Press button „Temp.“ and ”Spin speed” (Fig. 3-6.1) for

3 seconds simultaneously to block all panel selections

against activation. For unlocking please press again

the two buttons.

The display shows cLo

-(Fig. 3-6.2) if a button will be

pressed, when the child lock is activated. The change

is not activated.

3-14

DelayTemp. Spin

speed

Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Extra

rinse

3-6.1

3-6.2

Delay

3-5.3

DelayTemp. Spin

speed

Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Extra

rinse

3-5.4

3.7 Indicators

corresponding function/programme is activated.

DelayTemp. Spin

speed

Power Start/

Pause

Spin

Express

15min

Fast

Delicate/

Silk

Hand

wash

Hygienic

Babycare

Program Extra

rinse

Cotton

Cotton+

Synthetic

Mix

Jeans

Sport

Wool

13 12

3-7

3.8 Display

The display (Fig. 3-8) shows following information:

▶Washing time

▶End time delay

▶Error codes and service information

3-8

laundry will not be spun.

In conjunction with the “Temp.” button, the child lock

This manual suits for next models

Table of contents

Other Haier Washer manuals

Haier

Haier A6-707 User manual

Haier

Haier JW-K51A User manual

Haier

Haier HWM100-0626S User manual

Haier

Haier XPB65-27QGS User manual

Haier

Haier HWM120-01 User manual

Haier

Haier WM7003A User manual

Haier

Haier HWM55-13S User manual

Haier

Haier HWMP95TL User manual

Haier

Haier HWM75TL User manual

Haier

Haier HWM50-0566 User manual

Haier

Haier HW-DS50TVE Series User manual

Haier

Haier HWM120-0523S User manual

Haier

Haier HW85-B1486NZP User manual

Haier

Haier HTD1268 User manual

Haier

Haier HK1007TVE/ME User manual

Haier

Haier Mini magical child XQBM23-12 User manual

Haier

Haier AWT-75LI User manual

Haier

Haier HWM50-10B User manual

Haier

Haier XQG6511SU - Front-Load Washer/Dryer Combo User manual

Haier

Haier HWM80-27S User manual

Haier

Haier HW07-CP1439 User manual

Haier

Haier XQG56-B1086 User manual

Haier

Haier XPB90-99VGS User manual

Haier

Haier washing machine User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
