Haier XPB52-33 User manual

Single-tub Washing Machine User's manual

This manual is for

XPB52-33

Special number:0030805975

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

Put in the laundries

Put in the detergent

Select the wash time

Close the top cover

Packing list *Specification

Names of the parts

Disposal after washing

Finish washing

Trouble-shooting

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Names of the parts

base

cabinet

drain hose

back cover

fixing leg

(four pieces)

power cord

handle

Panel support

Pulsator

Lint filter(Installed by user)

Filter cap

Top lid

Control panel

water inlet

timer knob

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians ofour special shop or the after-sale service department.

Keep the pin of the power plug clean.

Earth

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ventilation hole at

the bottom of the

washing machine

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Please install and adjust the machine according to the requirement of the man

It is very important to your security and correct operating the machine.

Usage of the drain hose

When washing,the drain hose must be hung up,if you want to drain,please

refer to the below mention.

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

3.If extra drain hose is needed , the inner

diameter of the extra hose shall not less

than 30mm, and the length shall not exceed

1.5m.

<10cm

> 30mm

<1.5m

Installation and adjustment

After opening the package,please take out the lint filter

from the document bag,install it to the filter cap of the

cabinet.See to the figure

Install the lint filter

Lint filter

Filter cap

Adjust the installation position

The largest permitted slope of the bearing surface of the washing machine is 2.

Slanting or uneven ground will cause unstable operation of the machine. Please

check with following methods:

Hang a becket with weight to confirm if the washing machine is horizontal.

Install the water inlet hose ; Select the water level

Insert the water inlet hose into the water

inlet jointer on the control panel.

(To dismantle the water inlet hose,you only

need to pullthe hose out.)

Fill the water to the water level selected

according to thequantity of the laundries.

Attention:

Put in the laundries first before

water inlet.

Do not exceed the "Max " water

level ( water level 3 ) , otherwise

the water may overflow out of the

machine.

Maximum

about 43L

about 36L

about 30L

Minimum

Medium

water level

indicator

water inlet hose

water inlet jointer

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Hang the drain hose up.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

1 Preparation before washing

The capacity of washing of the machinerefer to the largest

weight of the standardlaundries under dry condition that

can be washed in one time. Laundries quantityin one

washing cycle shall be lower than the rated capacity.

The thickness ,size , type of the cloth will influence the actual

washing capacity. It is suitable to put in reasonable amount

of laundries and the laundries can be turnedround in washing

for one time washing.

Do not select " Maximum" water level for laundries less

than 2.0kg, so as to avoid splashing of water.

2 Put in the laundries

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener,please dissolve it before using.

3 Put in the detergent

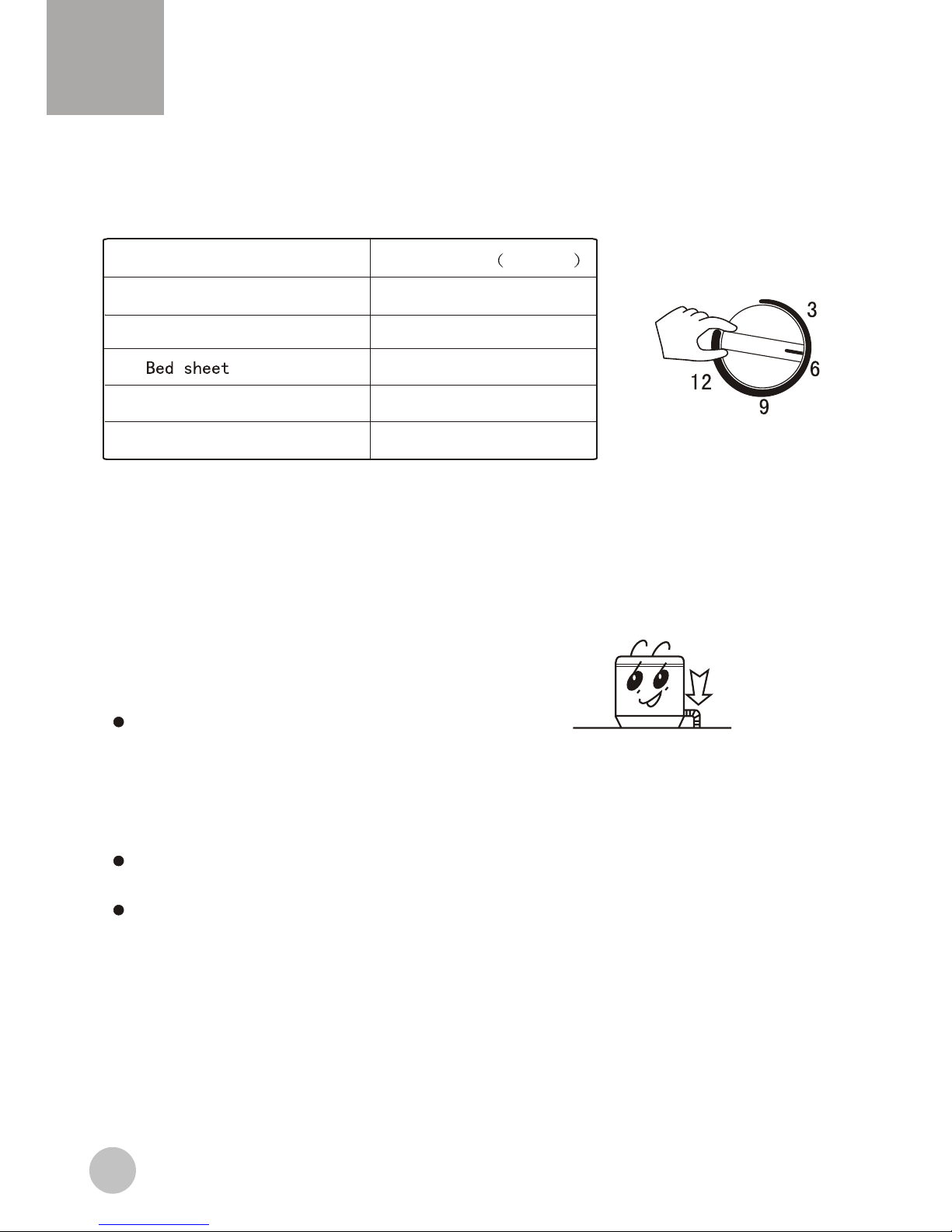

Wash timer

OFF

Please select wash time according to the laundries.

Laundries Wash time minutes

Knitwear/chemical fiber

Cotton,blending,linen

Very dirty and thick laundries

Silk(thin laundries) About2 4~

About3~6

About7~13

About8~10

About10~15

4 select the wash time

5 Close the top lid

6 Finish washing

The pulsator stops rotating. Put down the drain hose

to discharge the water.

7 Disposal after washing

After using, please clean the lint and foreign materials of the lint filter and lint frame in time.

Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.
