Haier HLP22P - 06-03 User manual

Automatic

Washing Machine

WASH

RINSESPINTEMP

WASH/RINSEWATER

LEVELRESERVE

PROGRAM

START

PAUSE

POWER

ON/OFF

User Manual- Model #

HLP22P

What The World Comes Home To TM

Lavarropas

Automático

Lave-Linge

Automatique

Manuel d’utilisation- Modèle #

Manual de uso- Modelo #

IMPORTANT SAFETY INSTRUCTIONS

Warning – To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use and

care guide.

3. Use only detergents or softeners as recommended for use in this manual and

keep them out of the reach of children.

4. This appliance must be properly installed in accordance with the installation

instructions before it is used.

5. Never unplug your appliance by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

6. Replace immediately any worn power cords, loose plugs and power outlets.

7. Unplug your appliance before cleaning or before making any repairs.

8. If your old appliance is not being used, we recommend that you remove the

door. This will reduce the possibility of danger to children.

9. Do not operate your appliance in the presence of explosive fumes.

10. Do not use this appliance to wash clothes that have been soaked, spotted or

washed in gasoline, dry cleaning solvents or any other explosive or flammable

substances that may ignite and explode.

11. Clothes or rags used to clean flammable or explosive materials should not be

washed in this appliance until all traces of this material have been removed.

12. Do not add or mix any flammable or explosive substances to the wash.

13. Do not try to remove clothes while the tub is moving. Allow it come to a

complete stop before reaching in.

14. The appliance’s loading door must be closed when the tub is spinning.

15. Do not operate your appliance when parts are missing or broken.

16. Do not use this appliance for commercial uses.

17. Do not operate this appliance unless all enclosure panels are properly in place.

18. Do not tamper with controls.

19. To reduce the risk of injury, do not allow children to play in or on the

appliance. Close supervision of children is necessary when the appliance is

used near children.

20. This appliance must be connected to a proper electrical outlet with the correct

electrical supply.

English

21. Proper grounding must be ensured to reduce the risk of shock and fire. DO

NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a

three-prong electric receptacle outlet in the wall, have a certified electrician

install the proper receptacle. The wall receptacle MUST be properly grounded.

22. Hydrogen gas may be produced if the water heater has not been used in more

then 2 weeks. This may be explosive under certain circumstances. If this is the

case, before using this appliance turn on all the hot faucets and let the hot

water run for a few minutes. This will let the trapped hydrogen escape. During

this process do not turn on an electric appliance, smoke, light a match/lighter

or use a flame to avoid an accident, as hydrogen gas is flammable and can

explode.

23. Do not repair or replace any part of the appliance or attempt any servicing

unless specifically recommended in the user-repair instructions, which you

understand and have the skill to carry out.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician perform the service.

24. To reduce the risk or electric shock or fire, do not use extension cords or

adapters to connect the unit to electrical power source.

SAVE THESE INSTRUCTIONS

For Future Use

English

DANGER

Risk of child entrapment. Before you throw away your old

appliance, take off the door so that children may

not easily get trapped inside.

Thank you for purchasing our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your washer.

Remember to record the model and

serial number. They are on a label in

back of the washer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

Table Of Contents

PAGE

SAFETY INSTRUCTIONS ................................................................1-2

UNDERSTANDING YOUR WASHER ................................................4

PARTS AND FEATURES..................................................................5-6

OPERATING YOUR WASHER ....................................................7-15

UNPACKING AND ACCESSORIES INVENTORY ..........................15

PROPER LOCATION ........................................................................16

INSTALLATION INSTRUCTIONS ..............................................17-19

UNIT DIMENSIONS ........................................................................20

ELECTRICAL CONNECTIONS ..........................................................21

PROPER CARE AND CLEANING ....................................................22

TROUBLESHOOTING GUIDE ....................................................23-25

WARRANTY......................................................................................26

English

Understanding Your Washer

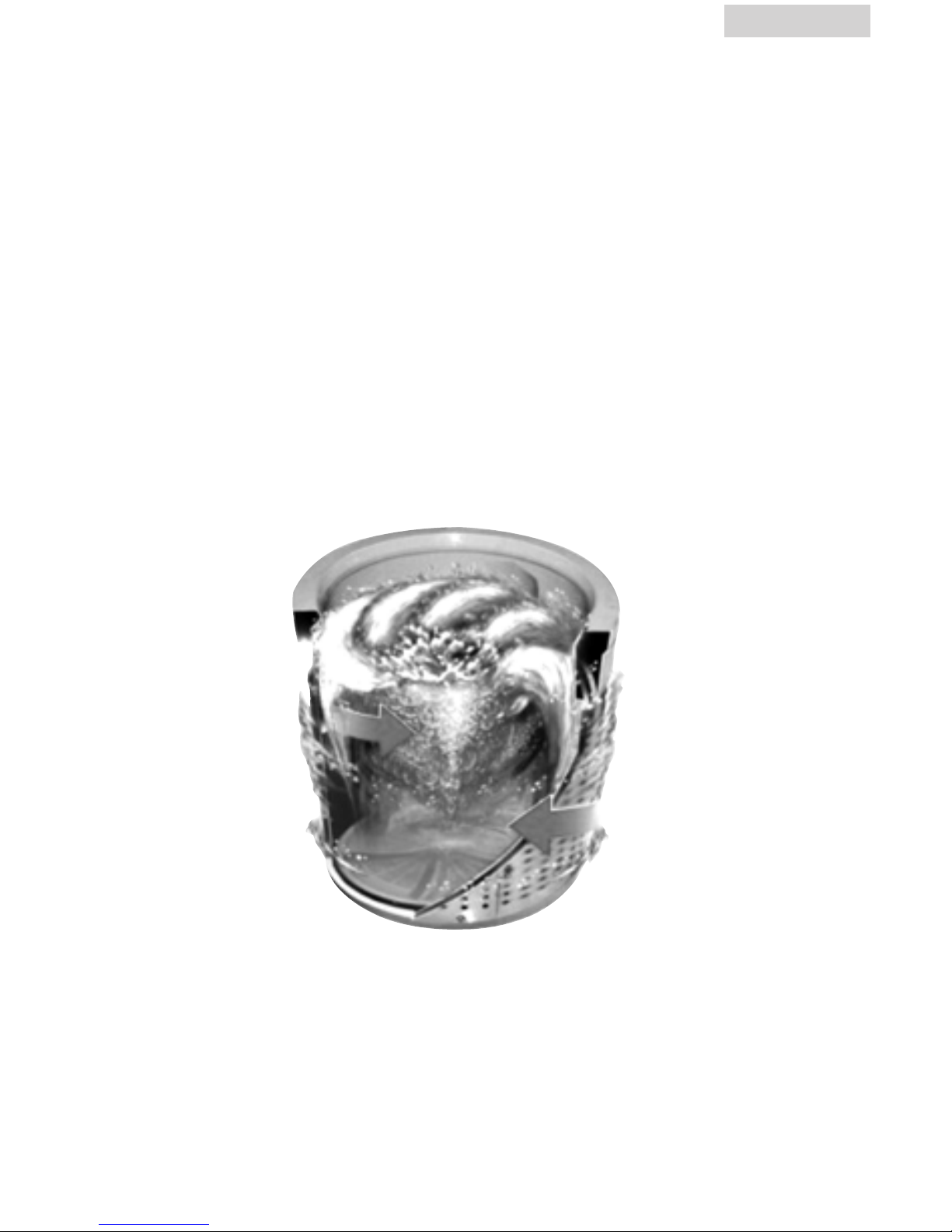

Your automatic washer features an efficient double drive system. This new

technology was developed based on our hand wash system, which replaces the

central agitator with a pulsator to provide more usable space and allow for gentler

cleaning of clothing. The inner washtub and the pulsator at the bottom of the tub

rotate in opposite directions simultaneously to create a powerful yet gentle swirling

motion that lifts and tumbles clothing through a continuous current of water.

The fins on the wall of the inner tub enhance the force of the water flow and prevent

laundry from twisting and knotting. The turning of the pulsator makes the water

spiral in an upward direction around the washtub in a manner that removes soil

and residue from clothes for the ultimate clean. This effective process protects your

clothing from wear and tear and furthermore saves you both time and water.

English

WASH

RINSESPINWASH/RINSE

TEMPWATER

LEVELDELAY START

PROGRAM

START

PAUSE

POWER

ON/OFF

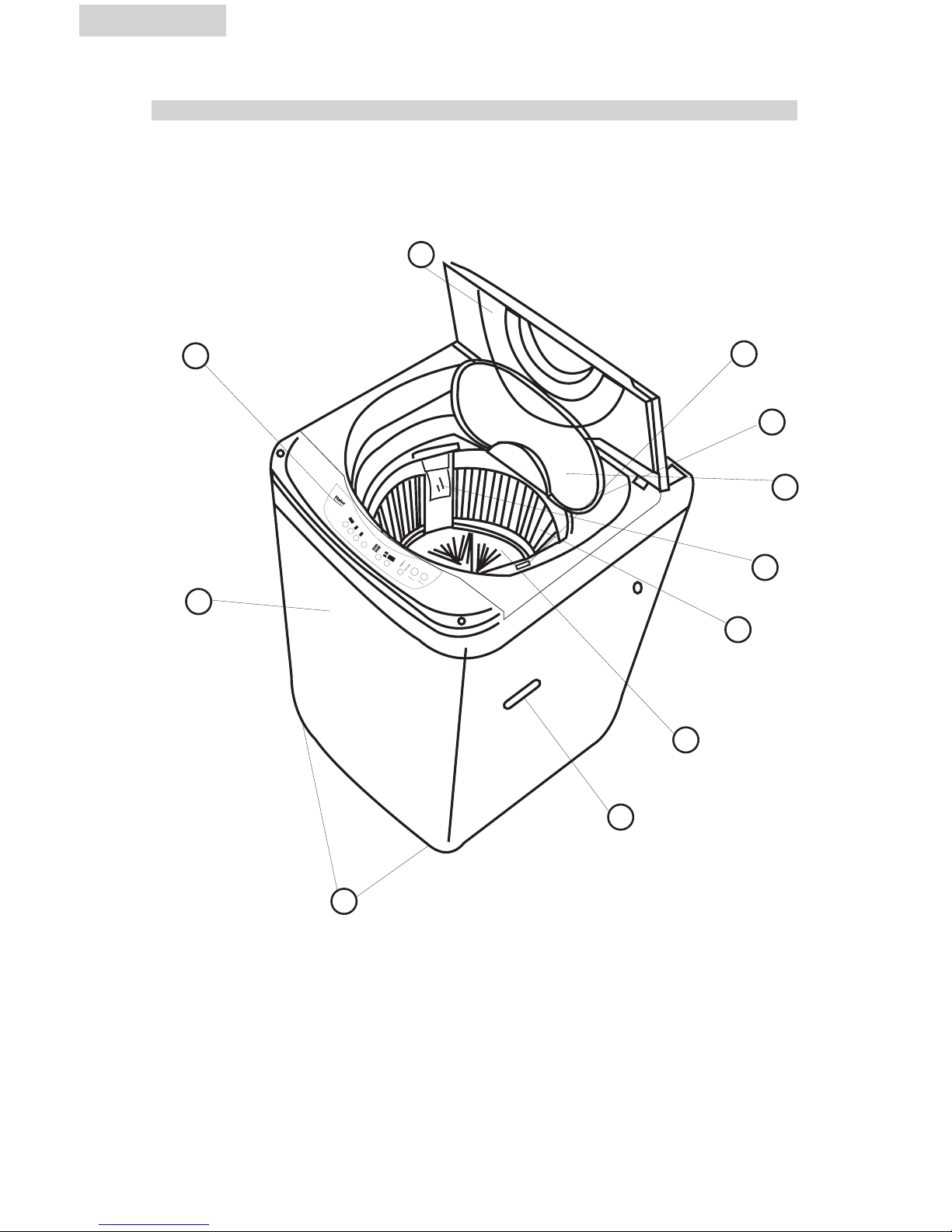

1. Folding Top Lid

2. Control Panel

3. Washer Cabinet

4. Front Leveling Legs

5. Cabinet Handle (located on both

sides of the washer)

6. Pulsator

7. Inner Tub

8. Lint Filter

9. Inner Cover

10. Detergent Dispenser (not shown)

11. Liquid Bleach Inlet

OPERATING INSTRUCTIONS

Parts and Features

English

1. Cold Water Inlet Valve

2. Hot Water Inlet Valve

3. Rear Leveling Legs

4. Drain Hose Connection

(not shown)

5. Power Cord (115V/ 60Hz)

6. Power Cord Holder Clip

English

OPERATING YOUR WASHER

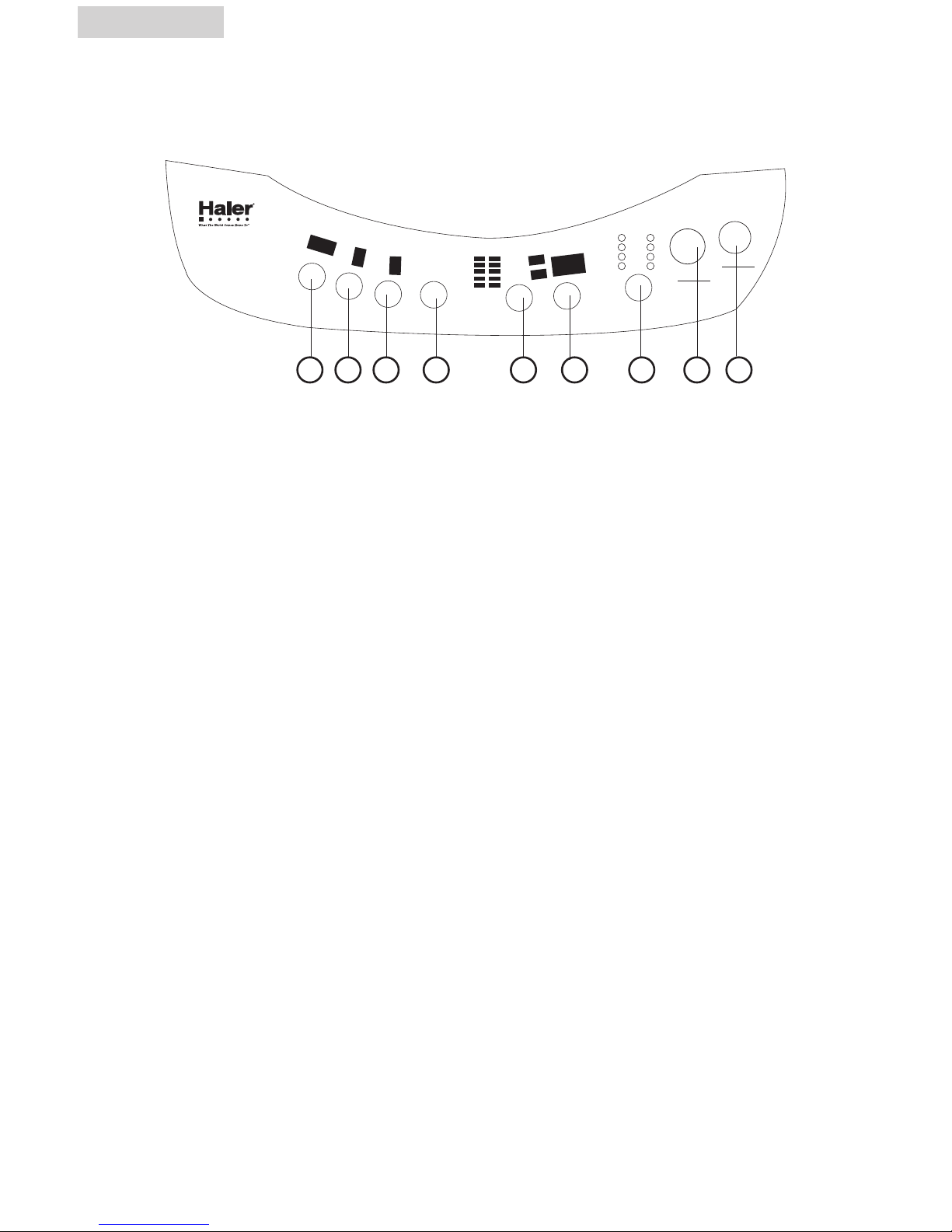

Understanding the Control Panel

Power ON/OFF: (1)

• Press the button once to operate the washer. Press the button once again to turn

the washer "OFF".

Start/Pause: (2)

• Press this button once to start the wash process. Press this button once again to

pause the activity during the wash cycle. Push again to resume the wash cycle.

Note: If the "Start/Pause" button is not pushed when the power button is

activated, the unit will shut off automatically in 5 minutes.

Program Select: (3)

• Select your desired cycle program by pressing the "Program Select" button. There

are 8 options to select from: Normal, Light, Quick, Heavy, Synthetic, Cotton, Wool

and Silk.

Delay Start Button: (4)

• This feature allows you to delay the start of the wash cycle from 2 and 24 hours.

Press the "Delay Start" button to choose the number of hours you would like to

delay the start of the cycle. The time delayed will increase by 1 hour for each time

the button is pressed.

Water Level Selector: (5)

• Press the button to select the proper water level setting. You may select from 1 to

10 water level settings depending on the cycle type and the amount of clothing to

be washed.

WASH

RINSE SPIN WASH/RINSE

TEMP WATER

LEVEL DELAY START

PROGRAM

START

PAUSE

POWER

ON/OFF

123456789

English

Temperature Select Wash/Rinse: (6)

• You may select the temperature according to fabric type by pressing the "Temp

Select" button. There are three temperature options: Cold/Cold, Warm/Cold and

Hot/Cold.

• Always refer to the label on the garment for the temperature as recommended by

garment manufacturers. See the reference chart below to select the proper

temperature for fabrics.

WASH/RINSE TYPES OF FABRICS

Cold/Cold Non-color fabrics, lingerie,

clothing with light or normal

Soil, and special care fabrics.

Warm/Cold Delicate and colored fabrics.

Hot/Cold Sturdy whites and colored fabrics

such as work or play clothes and

soiled fabrics

Note: When selecting the hot water option for your load, incoming hot

water must not exceed 122˚F/50˚C.

Spin: (7)

• Push this button to select the number of minutes (0-9) in the spin cycle. The

spinning of the drum at the end of the cycle, extracts excess water from clothing

so that they are not as damp when taken for drying. The spin time varies for each

program.

Rinse: (8)

• Press this button to select the number of times (0-4) clothing is rinsed. The machine

sprays fresh cold water to remove soil and odor from the detergent from the

clothes. The rinse time varies for each program.

Wash: (9)

• The wash time can be set from 0-25 minutes by pressing the button. Each press

will increase the wash time by 1 minute.

Digital Display:

• In normal operation, the indicator light displays the remaining wash time in

minutes.

• When the delay start button is pressed, the display will switch from the minutes

remaining in the wash time to number of hours the cycle has been delayed.

English

Function Light Indicator:

• The function display light indicates that the selected feature is ON or that the cycle

is about to begin.

• During the wash cycle, a flashing light indicates the current program.

Note: Refer to the Troubleshooting Guide on page 23-25 for "Error

Code" explanations.

Loading the Washer

• Load each item loosely.

• Separate the white from the colored clothing. Separate heavy fabrics from light

fabrics.

• Carefully check all pockets and cuffs for small items. They can easily slide in to the

tub and cause damage to the tub.

• Pre-treat all stains and heavily soiled areas for best results.

• Do not overload your washer.

• Close the door properly after loading the clothes.

• When loading wet items, keep water level high enough to keep the unit in

balance and to allow clothing to float easily in the water.
