Haier HW80-B14876N User manual

User manual

Washing machine

HW80-B14876N

HW100-B14876N

Thank You EN

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your municipal

oce.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

WARNING!

Riskofinjuryorsuocation!

Disconnecttheappliancefromthemainssupply.Cutothemainscableanddispose

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content

1-Safety information ........................................................................................................................... 4

2-Product description ......................................................................................................................... 7

3-Control panel .................................................................................................................................... 8

4-Programmes ...................................................................................................................................12

5-Consumption ..................................................................................................................................13

6-Daily use ...........................................................................................................................................14

7-Eco-friendly washing ....................................................................................................................19

8-Care and cleaning ..........................................................................................................................20

9-Troubleshooting .............................................................................................................................23

10-Installation .....................................................................................................................................26

11-Technical data ...............................................................................................................................30

12-Customer service ........................................................................................................................31

1-Safety information EN

Beforeswitchingontheapplianceforthersttimereadthefollow-

ing safety hints!:

WARNING!

Beforerstuse

▶Make sure there is no transport damage.

▶Make sure all transport bolts are removed.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do not let children or pets come close to the appliance when the

door is open.

▶Store washing agents out of reach of children.

▶Pullupzips,xloosethreadsandtakecareforsmallitemstopre-

vent laundry from being entangled. If necessary, use an appropri-

ate bag or net.

▶Do not touch or use the appliance when barefoot or with wet or

damp hands or feet.

▶Do not cover or encase the appliance during operation or after-

wards to allow any moisture or dampness to evaporate.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Donotuseorstoreﬂammabledetergentordrycleaningagentin

close vicinity to the appliance.

▶Donotuseanyﬂammablespraysinclosevicinitytotheappliance.

▶Do not wash any garments treated with solvents in the appliance

without having dried them previously in the air.

EN 1-Safety information

WARNING!

Daily use

▶Donotremoveorinsertthepluginthepresenceofﬂammable

gas

▶Do not hot wash foam rubber or sponge-like materials.

▶Donotwashanylaundrywhichispollutedwithﬂour.

▶Do not open detergent drawer during any wash cycle.

▶Do not touch the door during the washing process, it gets hot.

▶Do not open the door if the water level is visibly over the porthole.

▶Donotforcethedoortoopen.Thedooristtedwithaself-lock

device and will open shortly after the washing procedure is ended.

▶Switchotheapplianceaftereachwashprogrammeandbefore

undertaking any routine maintenance and disconnect the appli-

ance from the electrical supply to save electricity and for safety.

▶Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶Keep the lower part of the porthole clean and open door and de-

tergent drawer if appliance is not in use to prevent odours.

▶Do not use water spray or steam to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its ser-

viceagentorsimilarlyqualiedpersonsinordertoavoidahazard.

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶The appliance should be placed in a well-ventilated place. Ensure

a location which allows opening the door fully.

▶Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

1-Safety information EN

Intended use

This appliance is intended for washing machine-washable laun-

dry only. Anytime follow the instructions given on the label of each

garment label. It is designed exclusively for domestic use inside the

house. It is not intended for commercial or industrial use.

Changesormodicationstothedevicearenotallowed.Unintended

use may cause hazards and loss of of all warranty and liability claims.

WARNING!

Installation

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not install the appliance in direct sunlight or in the near of heat

sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure only the delivered electric cable and hose set are used.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Useaseparateearthedsocketforthepowersupplywhichiseasy

accessible after installation. The appliance must be earthed.

Only for UK: The appliance’s power cable is tted with 3-cord

(grounding)plugthattsastandard3-cord(grounded)socket.

Nevercutoordismountthethirdpin(grounding).Aftertheap-

pliance is installed, the plug should be accessible.

▶Makesurethehosejointsandconnectionsarermandthereis

no leakage.

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

Note:

2-3

1 Detergent /

Softener drawer

2 Work top

3 Programme selector

4 Panel

5 Washer door

6 Service ﬂap

7 Adjustable feet

1 Iron bar (I1 - I2)

2 Transportation bolts (T1-T4)

3 Rear wall reinforcement

(HW80:4pcs R1-R4; HW100:10pcs R1-R10)

4 Power cord

Water inlet valve

Drain hose

7 Rear wall reinforcement screws

2-1 2-2

Inlet hose-

assembly 6 Blanking

plugs

Drain hose

bracket User manual

Warranty

card

1 2 4 5 6 73

Noise reduc-

tion pads

EN 2-Product description

8 Door handle

)scp2:001WH ; scp1:0 8WH(

3-Control panel EN

Note : Acoustic signal

In following cases an acoustic signal sounds:

▶when pressing a button

▶when turning the programme selector

▶at the end of programme

▶in case of failures

The acoustic signal can be deselected if necessary ; see DAILY USE.

1 Detergent / Softener Drawer

2 Display

3 Programme selector

5 “Start/Pause“ button

6 Steam

7 Extra rinse

8 Speed

9 Temp.

3-2

11 Child lock

12 Delay

12 11

7 6 5

2 31

Function buttons

3.1 Detergent drawer

1 Compartment : Bleaching agent for cotton/syn-

thetic programme.

2 Compartment : Liquid detergent for programme

3 Compartment : Softener, Conditioning agent etc.

4 Compartment : Powder detergent for programme

Please refer to the information on detergent package

to obtain recommendation for using detergent in vari-

ous washing temperatures.

3.2 Display

If the appliance is on, display will light up the actual sta-

washing time, spin speed, temperature, etc. will appear

(Fig. 3-2).

3-1

HW1 00-B14876N

EN 3-Control panel

Programme status indication Programme cycle indication

Display for washing time, end time

delay as well as error codes and

service information.

Remaining opera-

tion time

Remaining delay

time

Rinse cycle

Wash cycle Spin/drainage cycle

Automatic weighing

Steam

Display symbols:

3.3 Program selector

By turning the knob (Fig. 3-3) one of 16 programmes

can be selected, its default settings will be displayed.

Press this button (Fig. 3-4) gently to switch on, the dis-

play is shining. Press it again for about 2 seconds to

vated after a while machine will shut down automatically.

3.5 “Start/Pause“ button

Touch this button (Fig. 3-5) gently to start or interrupt

the currently displayed programme.

HW120-B14876

3-3

3-4

Start/Pause

3-5

3-Control panel EN

3.6 Function buttons

The function buttons (Fig. 3-6) enables additional op-

tions in the selected programme before program start.

The related indicators are displayed.

gram, all options are disabled.

If a button has multiple options, the desired option can

be selected by pressing the button sequentially.

To delete the setting or to cancel the setting process,

press the function button until the desired LED lights

Not all functions are available for all programmes (see

PROGRAMMES).

Note: Factory settings

there is no special requirement default settings are recommended.

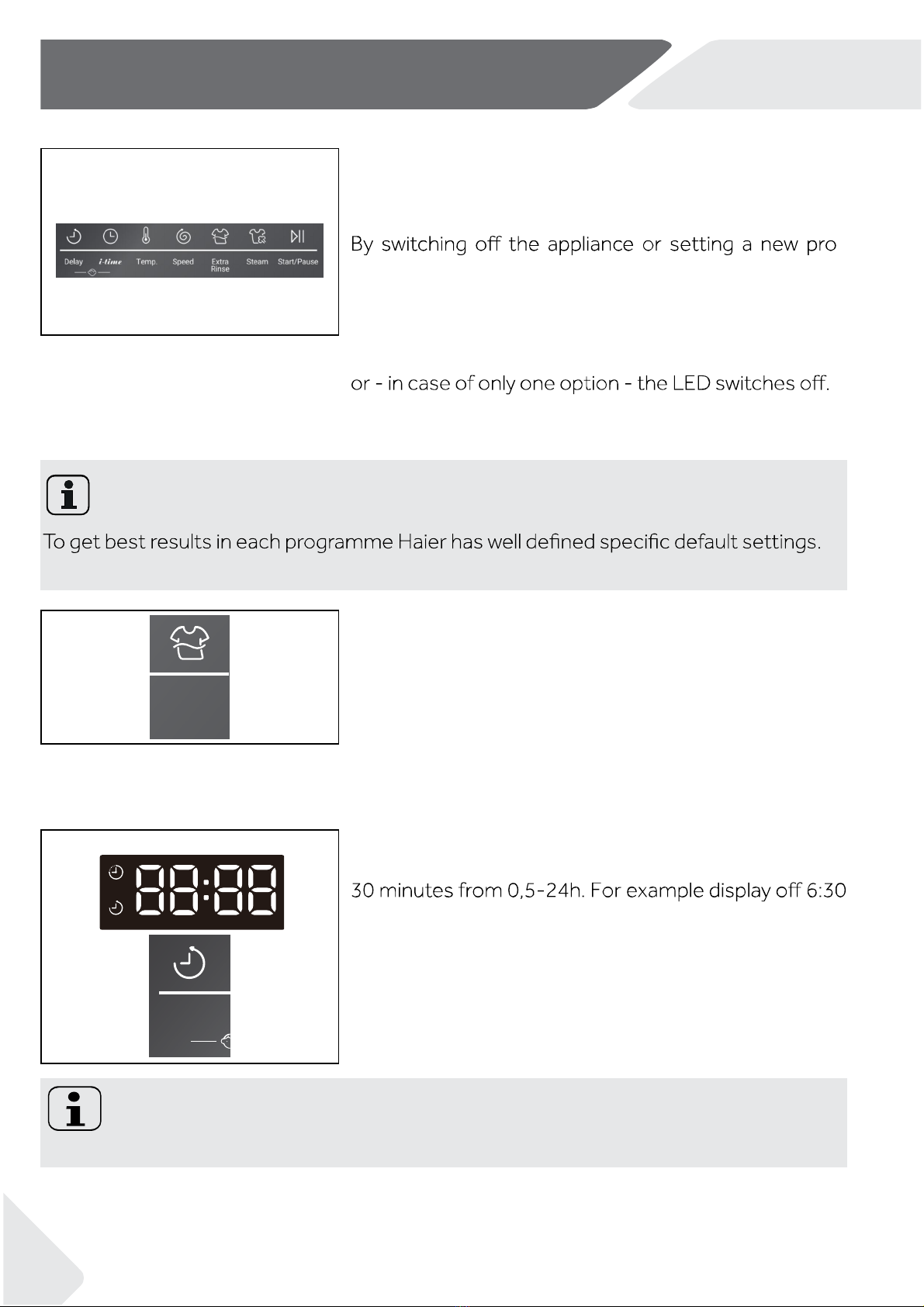

3.6.1 Function button “Extra Rinse“

Press this button (Fig. 3-6-1) to rinse the laundry more

intense with fresh water. This is recommended for

people with sensitive skin.

By pressing the button several times one to three ad-

ditional cycles (display P1-P3) can be selected.

Diﬀerentprogrammehasdiﬀerentextramaximum

rinsing times.

3.6.2 Function “Delay”

Press this button (Fig. 3-6-2) to start the program with

a delay. End time delay could be increased in steps of

means end of programme cycle will be in 6 hours and

30 minutes. Touch “Start/Pause” button to activate the

time delay.

The time delay must be longer than the programme run

time. Otherwise the programme will start immediately.

For deactivating the time delay; rotate programme se-

lector.

Note: Liquid detergent

If using liquid detergent, it is not recommended to activate the end time delay.

3-6

Extra

Rinse

3-6-1

Delay

3-6-2

This manual suits for next models

Table of contents

Languages:

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
