GXP2160 Enterprise IP Phone

Quick Start Guide

English...............................................................................1

简体中文..........................................................................7

Español............................................................................13

Français...........................................................................19

Deutsch............................................................................25

Italiano.............................................................................31

Русскй.............................................................................37

Content

1 2

The GXP2160 is not pre-congured to support or

carry emergency calls to any type of hospital, law

enforcement agency, medical care unit (“Emergency

Service(s)”) or any other kind of Emergency Service.

You must make additional arrangements to access

Emergency Services. It is Your responsibility to pur-

chase SIP-compliant Internet telephone service, prop-

erly congure the GXP2160 to use that service, and

periodically test your conguration to conrm that it

works as You expect. If You do not do so, it is Your re-

sponsibility to purchase traditional wireless or landline

telephone services to access Emergency Services.

GRANDSTREAM DOES NOT PROVIDE CON-

NECTIONS TO EMERGENCY SERVICES VIA THE

GXP2160. NEITHER GRANDSTREAM NOR ITS

OFFICERS, EMPLOYEES OR AFFILIATES MAY

BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR

LOSS, AND YOU HEREBY WAIVE ANY AND ALL

SUCH CLAIMS OR CAUSES OF ACTION ARISING

FROM OR RELATING TO YOUR INABILITY TO USE

THE GXP2160 TO CONTACT EMERGENCY SER-

VICES, AND YOUR FAILURE TO MAKE ADDITION-

AL ARRANGEMENTS TO ACCESS EMERGENCY

SERVICES IN ACCORDANCE WITH THE IMMEDI-

ATELY PRECEDING PARAGRAPH.

PACKAGE CONTENTS:

OVERVIEW:

WARNING: Please DO NOT power cycle the GXP2160 during system boot

up or rmware upgrade. You may corrupt rmware images and cause the unit to

malfunction.

1 x GXP2160 Main Case 1 x Handset

1 x Phone Cord1 x Ethernet Cable 1 x Phone Stand

1 x 12V Power adapter

1 x Quick Start Guide 1 x Wall Mount

GXP2160 is a next generation enterprise grand IP Phone that features up to 6

lines, 4.3 inch LCD, 5 XML programmable context-sensitive soft keys, dual Gigabit

network ports, integrated PoE and Bluetooth, 5-way conference, and Electronic

Hook Switch(EHS). The GXP2160 also supports automated provisioning for easy

deployment, advanced security protection for privacy, and broad interoperability

with most 3rd party SIP devices and leading SIP/NGN/IMS platforms.GXP2160 is

the perfect choice for enterprise users looking for a high quality, feature rich multi-

line executive IP phone with advanced functionalities and performance.

PRECAUTIONS:

WARNING: Use only the power adapter included in the GXP2160 package.

Using an alternative non-qualied power adapter may possibly damage the unit.

12V

3 4

CONNECTING THE PHONE:

PHONE SETUP:

To setup the GXP2160, follow the steps below:

1. Connect the handset and main phone case with the phone cord.

2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a

router (LAN side of the router) using the Ethernet cable.

3. Connect the 12V DC output plug to the power jack on the phone; plug the power

adapter into an electrical outlet.

4. The LCD will display provisioning or rmware upgrade information. Before con-

tinuing, please wait for the date/time display to show up.

5. Using the phone embedded web server or keypad conguration menu, you can

further congure the phone using either a static IP or DHCP.

PC Port LAN Port Power Headset Port Handset Port

Installing the Phone (Phone Stand):

For installing the phone on the table with the phone stand, attach the phone stand

to the bottom of the phone where there is a slot for the phone stand (upper part,

bottom part).

Installing the Phone (Wall Mount):

1. Attach the wall mount to the slot on the back of the phone.

2. Attach the phone to the wall via the wall mount hole.

3. Pull out the tab on from the handset cradle (See gure below).

4. Rotate the tab and plug it back into the slot with the extension up to hold the

handset while the phone is mounted on the wall (See gure below).

Tab with extension up

Handset rest

Tab with extension down

Slots for the

wall mount and

phone stand

USB Port

5 6

Note: For the detailed user manual, please download from:

http://www.grandstream.com/support

Tips For Using the Keypad:

PHONE CONFIGURATION:

Congure the GXP2160 using Web Browser:

1. To access the MENU, press the round MENU button.

2. Navigate the menu by using the UP/DOWN and LEFT/RIGHT buttons.

3. Press the round MENU button to conrm a menu selection.

4. The phone automatically exits MENU mode with an incoming call, the phone

goes off-hook or the MENU mode is left idle for 60 seconds.

1. Ensure your phone is powered up and connected to the Internet.

2. Press the UP button to see the IP address.

3. Type the phone’s IP address in your PC browser (See gure on right).

4. The default administrator username and password are “admin”; the default end-

user username is “user“ and the password is “123”.

Congure the GXP2160 using the Keypad:

1. Make sure the phone is idle.

2. Press the MENU button to access the keypad MENU to congure the phone.

3. Select MENU-> Phone-> SIP-> Account to congure settings for SIP Proxy,

Outbound Proxy, SIP User ID, SIP Auth ID and SIP Password.

4. Follow MENU options to congure the basic features of the phone. For ex-

ample: the IP address if using a static IP. For details, please check GXP2160

User Manual.

5. Please contact your ITSP (Internet Telephony Service Provider) for additional

settings that may be necessary to congure the phone.

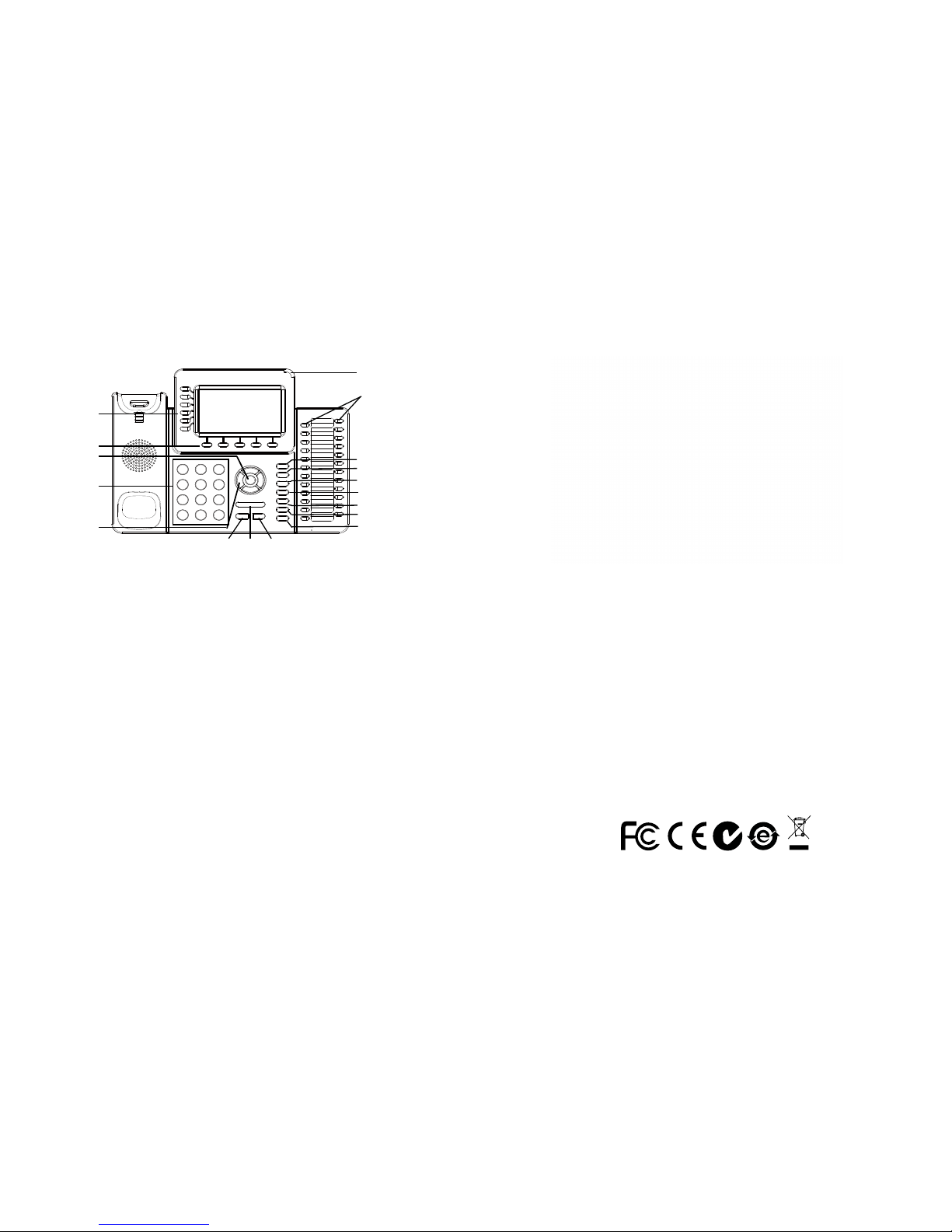

Line keys

Soft keys

Message Waiting

Indicator

Multi-Purpose

keys

Message

Contacts

Transfer

Hold

Headset

Conference

Mute

Menu/OK Key

Standard Keypad

Navigation keys

Send Volume Speaker

7 8

GXP2160不预设对医院，执法机构，医疗中

心(急救服务)以及各种紧急服务的紧急通话服

务。用户必须自行设定紧急通话功能。用户必

须自行购买SIP兼容的网络电话服务，正确的

设定GXP2160使用该服务，并定期测试您的

配置以确保GXP2160如预期工作，否则请购

买传统无线或有线电话服务来拨打紧急通话。

Grandstream Networks 公司的GXP2160不支

持紧急通话服务。 Grandstream Networks 公

司、其管理者和员工以及其相关机构对此所造

成的任何索赔、损失或者损害都不负有任何法

律追究责任。在此，您将无权对任何以及所有

由于无法通过GXP2160拨打紧急电话以及没

有遵照前段文字描述而造成紧急通话失败的事

件提出诉讼。

警告: 请不要在设备启动未完成或设备升级软件时断开电源，因为如刚才所述的

操作会导致话机本身的程序损坏，进而导致设备无法启动。

警告: 请使用设备包装中的电源，因为使用其他没有经过认证的替代电源适配器

有可能对设备造成损害。

设备包装清单:

GXP2160 话机（1台）电话手柄（1个）电源适配器（1个）

网线（1根）手柄连线（1根）桌面支架（1个）

快速安装手册（1本）墙体支架（1个）

注意事项:

产品概览:

GXP2160是一款新一代企业级IP电话。GXP2160具有6个SIP账号,6条线路通

讯，4.3英寸LCD显示屏，5个可编辑XML应用程序软按键。GXP2160有2个

10/100/1000Mbps自适应交换式以太网接口（支持PoE供电），支持蓝牙功能

以及最多五方会议，具有优异的高清晰语音质量和丰富完备的电话功能。它支持

自动化的个人多媒体信息服务、自动配置、先进的安全隐私保护设置。它广泛兼

容其它第三方SIP设备及主要SIP/NGN/IMS平台。对于追求品质的企业用户来说，

GXP2160将是理想的选择。

12V

9 10

安装电话:

墙体支架与桌

面支架插槽

安装电话 (墙体支架):

1. 将墙体支架插入电话背面的支架插槽中；

2. 通过墙孔将电话固定在墙上；

3. 如下图所示，将话机手柄槽下方的扣机零件取出；

4. 将该零件倒转，然后重新插入原处。此时零件凸出处在外，当电话使用墙体支

架固定在墙上时，手柄可以垂直地稳定扣入手柄槽中，不会滑落。

话机手柄插槽

凸出处向上

凸出处向下

安装电话 (桌面支架):

将桌面支架插入电话背面的支架插槽中。用户可以使用两排插槽中的一排，不同

的插槽用于不同的倾斜角度。

电话的连接:

PC端口网络连接端口 5V电源耳机手柄

连线步骤：

1. 用手柄连线连接电话手柄和电话主机；

2. 用网线连接电话的网络接口和外部网络接口（如：集线器或交换机上的RJ-45网

络接口）；

3. 用电源适配器连接电话电源接口和交流电源插座；

4. 电话屏幕将会显示设备启动或固件升级信息。请耐心等待至时间/日期显示；

5. 话机启动后，用户可以在主菜单或WEB浏览器进一步设置静态IP或者DHCP，

从而获得网络连接。

USB端口

11 12

使用GXP2160键盘:

1. 当电话处于空闲状态，按下菜单/确定按键进入菜单选项；

2. 使用方向选择按键 “上”“下”“左”“右”选择菜单选项；

3. 按下菜单/确定按键确定选项；

4.当有来电进入，提起电话手柄、使用免提键或者电话处于菜单状态中60秒之

后，电话将自动退出菜单选项。

电话的配置:

通过WEB浏览器配置GXP2160:

1. 请确保电话的电源及网络连接；

2. 按下“上”方向键，此时电话屏幕显示话机IP地址；

3. 在您电脑浏览器中输入话机IP地址（电话和您的电脑必须在同一个网段）；

3.如右图所示，请输入密码登陆。默认管理员用户名和密码是“admin”；默认终

端用户名是“user”，密码是“123”。

通过键盘配置GXP2160:

1. 确保电话处于空闲状态；

2. 按下菜单/确定按键进入菜单选项；.

3. 选择菜单->话机->SIP->账号，输入SIP服务器、SIP用户名、密码等账号信息，

注册新的SIP账号；

4. 在菜单选项中进行电话其他设置，如设置电话的静态IP地址。请参考GXP2160

产品用户手册获得更多详细配置信息；

5. 如有其他需要的设置，请联系您的服务提供商。

备注：欲获取详细的话机使用信息，请在以下链接中下载用户手册:

http://www.grandstream.com/support

信息指示灯

线路键

软按键

多功能按键

信息

电话薄

转接

保持

耳机

会议

静音

菜单/确认键

标准键盘

导航键

发送音量免提

13 14

1 x Auricular

1 x Cable Telefónico

1 x Cable Ethernet

El GXP2160 no esta pre-congurado para soportar o

realizar llamadas de emergencia a ningún tipo de hospital,

agencia policial, unidad de cuidado medico o cualquier otro

servicio de emergencia. Es su responsabilidad contratar un

servicio de telefonía de Internet compatible con el protocolo

SIP, congurar el GXP2160 para utilizar dicho servicio y

periódicamente probar esta conguración para conrmar

que este trabajando como usted espera. Si es requisito no

es completado, es su responsabilidad contratar un servicio

de telefonía ja o celular para tener acceso a servicios de

emergencia.

GRANDSTREAM NO PROVEE CONEXIONES A

SERVICIOS DE EMERGENCIA A TRAVÉS DEL GXP2160.

NI GRANDSTREAM NI NINGUNO DE SUS OFICIALES,

EMPLEADOS O AFILIADOS SON RESPONSABLES DE

NINGUNA DEMANDA, DAÑO O PERDIDA QUE ESTO

PUEDA OCASIONAR Y MEDIANTE ESTE COMUNICADO

USTED RENUNCIA A CUALQUIER RECLAMO O

CONSECUENCIA PROVENIENTE O RELACIONADO

DE LA INHABILIDAD DE CONTACTAR SERVICIOS DE

EMERGENCIAS CON EL GXP2160 Y SU FALTA DE NO

HABER HECHO LOS ARREGLOS DE LUGAR PARA

ACCESAR ESTOS SERVICIOS DE EMERGENCIA DE

ACUERDO CON EL PÁRRAFO ANTERIOR.

ADVERTENCIA: No apague el GXP2160 cuando las luces indicadoras se

encuentren en estado intermitente al momento de iniciar el equipo o actualizar

el rmware. Esto podría ocasionar que la unidad no continúe funcionando

correctamente.

PRECAUCIONES:

INFORMACIÓN GENERAL:

CONTENIDO DEL PAQUETE:

1 x Base Principal 1 xAdaptador de

Alimentación 12V DC

1 x Soporte de Teléfono

1 x Guía de Inicio Rápido 1 x Montura de Pared

El GXP2160 es la proxima generación de teléfono empresarial IP que cuenta

con un máximo de 4 líneas,pantalla TFT LCD a color 4.3 pulgadas, 5 teclas

suaves programables por XML, puertos de red Gigabit duales, PoE y Bluetooth

integrado, conferencia de 5 vías y descuelgue electrónico (EHS). El GXP2160

ofrece una calidad de audio superior de alta denición,con funcionalidades de

telefonía avanzada, protección de privacidad, y una amplia interoperabilidad con

la mayoría de los dispositivos SIP de terceras partes y plataformas lideres SIP/

NGN/IMS. El GXP2160 es la elección perfecta para los usuarios empresariales

que buscan una alta calidad , es un teléfono IP ejecutivo milti-lineas con todas las

funciones y prestaciones avanzadas.

12V

ADVERTENCIA: Solamente utilice la fuente de poder incluida en el paquete

del GXP2160. Utilizar un adaptador de poder alternativo no certicado podría

dañar su unidad.

15 16

Puerto PC Puerto LAN

Ranuras para soporte y

montura de pared

Instalando El Teléfono (Montura de Pared):

1. Inserte la montura de pared en la ranura de atrás del teléfono;

2. Coloque el teléfono en la pared utilizando los oricios;

3. Halé la lengüeta de la horquilla del auricular. (Ver gura abajo);

4. Coloque la lengüeta en la misma ranura de tal manera que soporte el auricular.

Lengüeta con extensión

hacia arriba

Soporte de Auricular

Lengüeta con extensión

hacia abajo

Instalando El Teléfono (Montura de Pared):

Pour installer le téléphone sur la table avec le positionneur du téléphone, joignez

ce dernier à la base du téléphone où il y a une fente (Moitié supérieure, une partie

du bas).

CONECTANDO EL TELéFONO:

Alimentación Puerto de Receptor de Cabeza

Puerto Auricular

Para congurar el GXP2160, siga los pasos detallados abajo:

1. Conecte el auricular a la unidad utilizando el cable telefónico;

2. Conecte el puerto LAN del teléfono al zócalo RJ-45 de un hub/switch o router

usando el cable Ethernet;

3. Conecte la fuente de poder de 12V DC a la salida de alimentación del teléfono

y la salida de electricidad;

4. La pantalla LCD va a mostrar un mensaje de aprovisionamiento o actualización

de rmware. Antes de continuar esperar hasta que la pantalla muestra el tiempo

y la fecha;

5. Utilizando la interfase Web integrada accediendo la dirección IP del teléfono

en un navegador Web o mediante el teclado, congure el teléfono utilizando una

dirección IP estática o dinámica con DHCP.

INSTALACIÓN DEL TELéFONO:

Puerto USB

Other manuals for GXP2160

Table of contents

Other Grandstream Networks IP Phone manuals

Grandstream Networks

Grandstream Networks GXV3275 User manual

Grandstream Networks

Grandstream Networks WP822 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GXV-3000 User manual

Grandstream Networks

Grandstream Networks GXV3240 User manual

Grandstream Networks

Grandstream Networks GRP2670 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks UCM6200 Series User manual

Grandstream Networks

Grandstream Networks GXV 3140 Manual

Grandstream Networks

Grandstream Networks GXP1625 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GXP2130v2 User manual

Grandstream Networks

Grandstream Networks GRP2601 User manual

Grandstream Networks

Grandstream Networks DP750 User manual

Grandstream Networks

Grandstream Networks GXP-2020 User manual

Grandstream Networks

Grandstream Networks GXP2120 User manual

Grandstream Networks

Grandstream Networks GXV34 Series Instruction Manual

Grandstream Networks

Grandstream Networks GXP-285 User manual

Grandstream Networks

Grandstream Networks GXP2140 User manual

Grandstream Networks

Grandstream Networks GXP2110 User manual

Grandstream Networks

Grandstream Networks GXV-3000 User manual

Grandstream Networks

Grandstream Networks GXP2124 User manual

Grandstream Networks

Grandstream Networks GXP1780 User manual

Grandstream Networks

Grandstream Networks GXP1610 Instruction Manual

Popular IP Phone manuals by other brands

Alcatel

Alcatel 4028 manual

Polycom

Polycom Polycom VVX 600 quick reference

Polycom

Polycom SoundPoint IP 450 datasheet

Cisco

Cisco SPA-500 Series user guide

Polycom

Polycom SoundPoint IP 650 user guide

Proximus

Proximus Maestro 3016 IP quick start guide

Fanvil

Fanvil X4 user manual

Cisco

Cisco 7962 user guide

Snom

Snom 320 quick start guide

Yealink

Yealink Yealink SIP-T46G Guide

Avaya

Avaya 4625SW user guide

Yealink

Yealink SIP-T52S quick start guide

Nortel

Nortel 1140E Getting started

Nexotek

Nexotek NT-P500 user manual

Avaya

Avaya Integral 5 R3.0 user guide

GE 28320EE2 - Dect 6.0 InfoLink 2 user guide

Avaya

Avaya 4600 Series Administrator's guide

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP user guide
